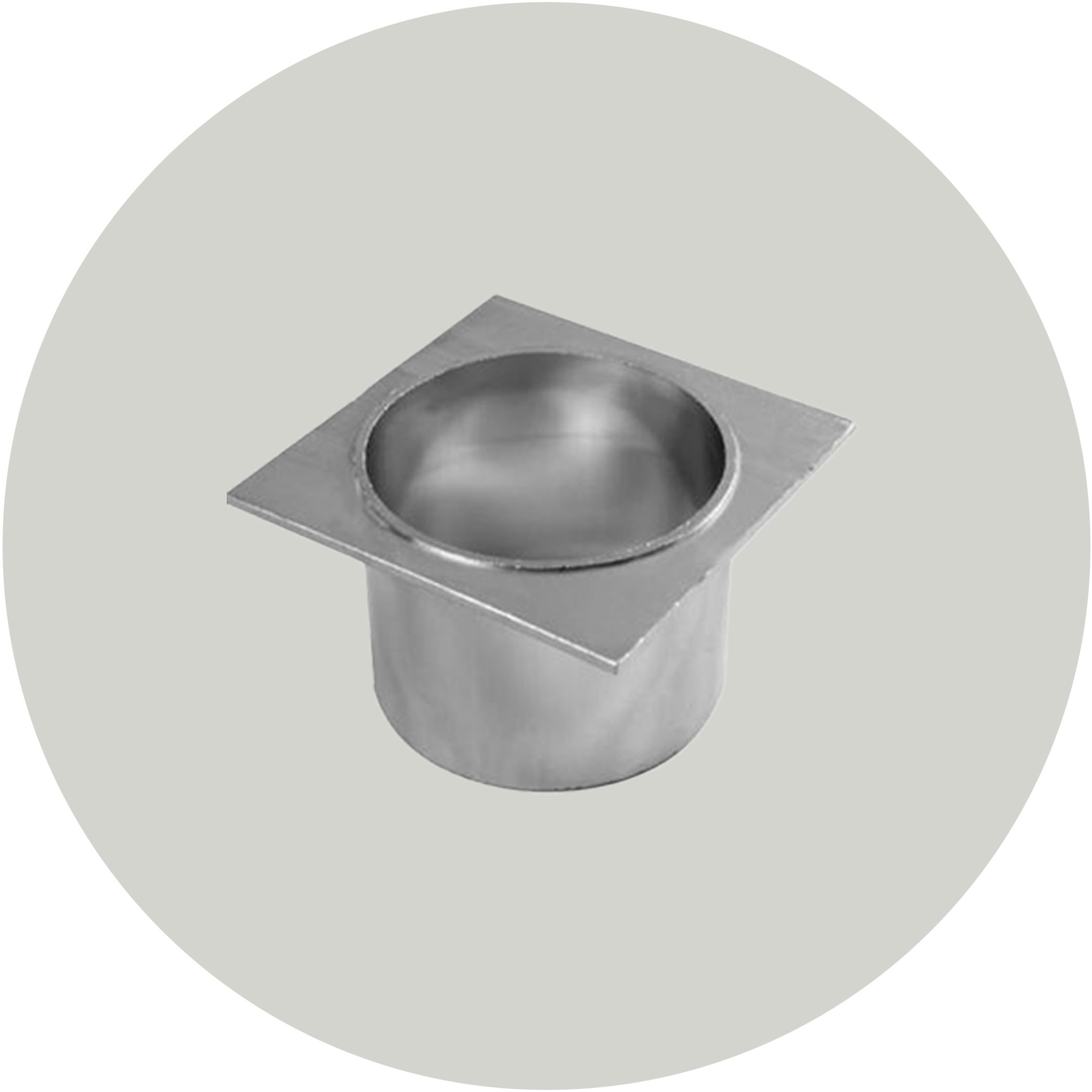

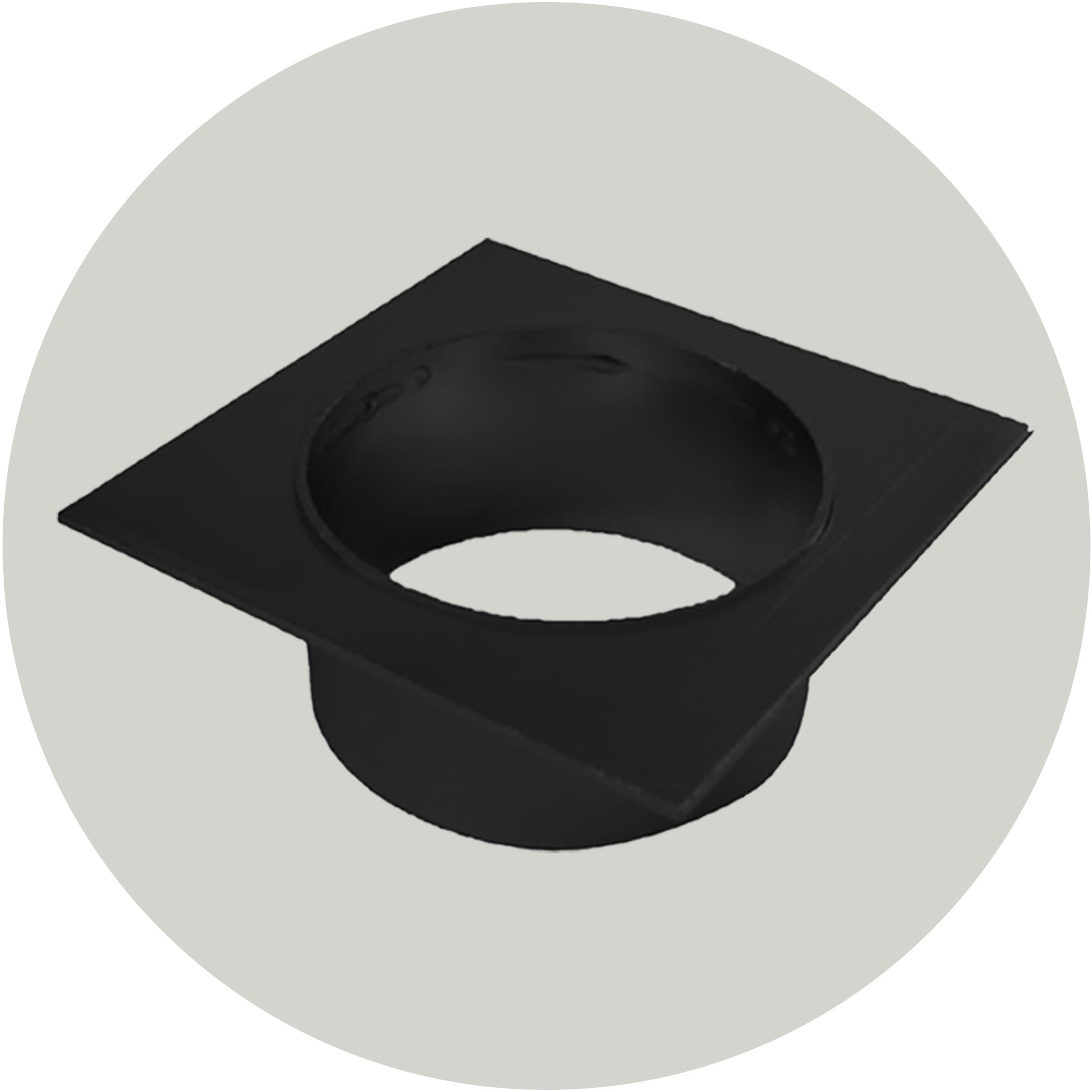

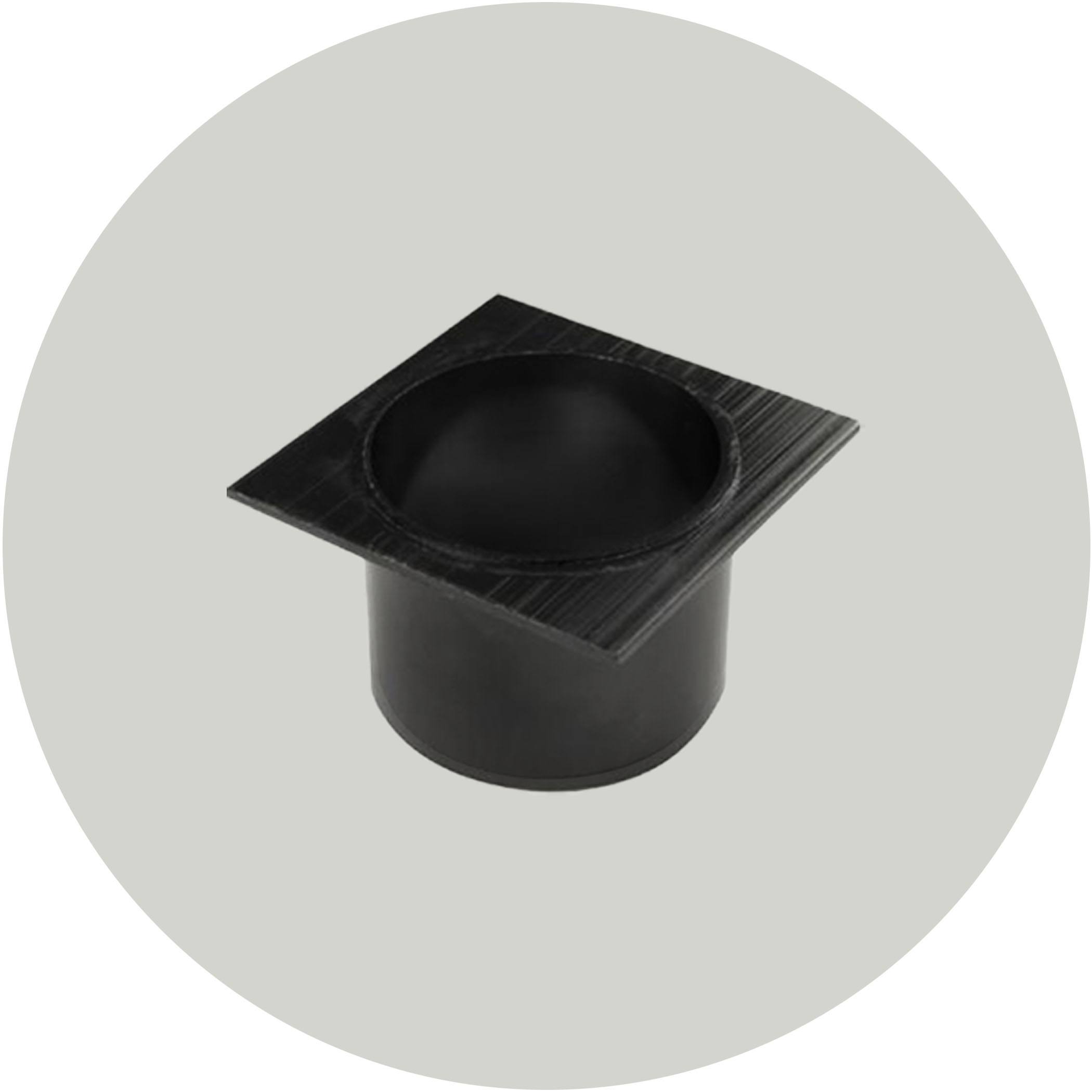

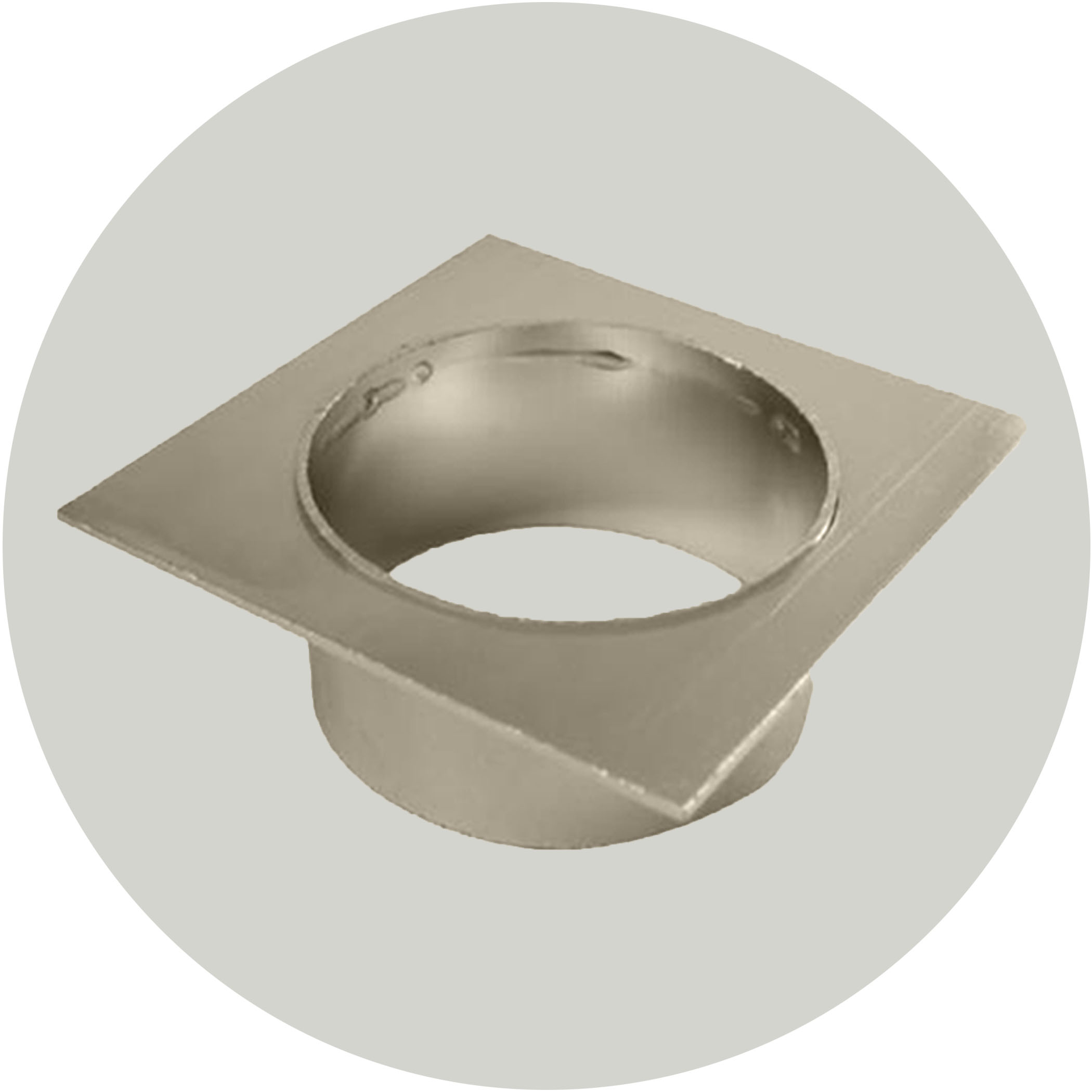

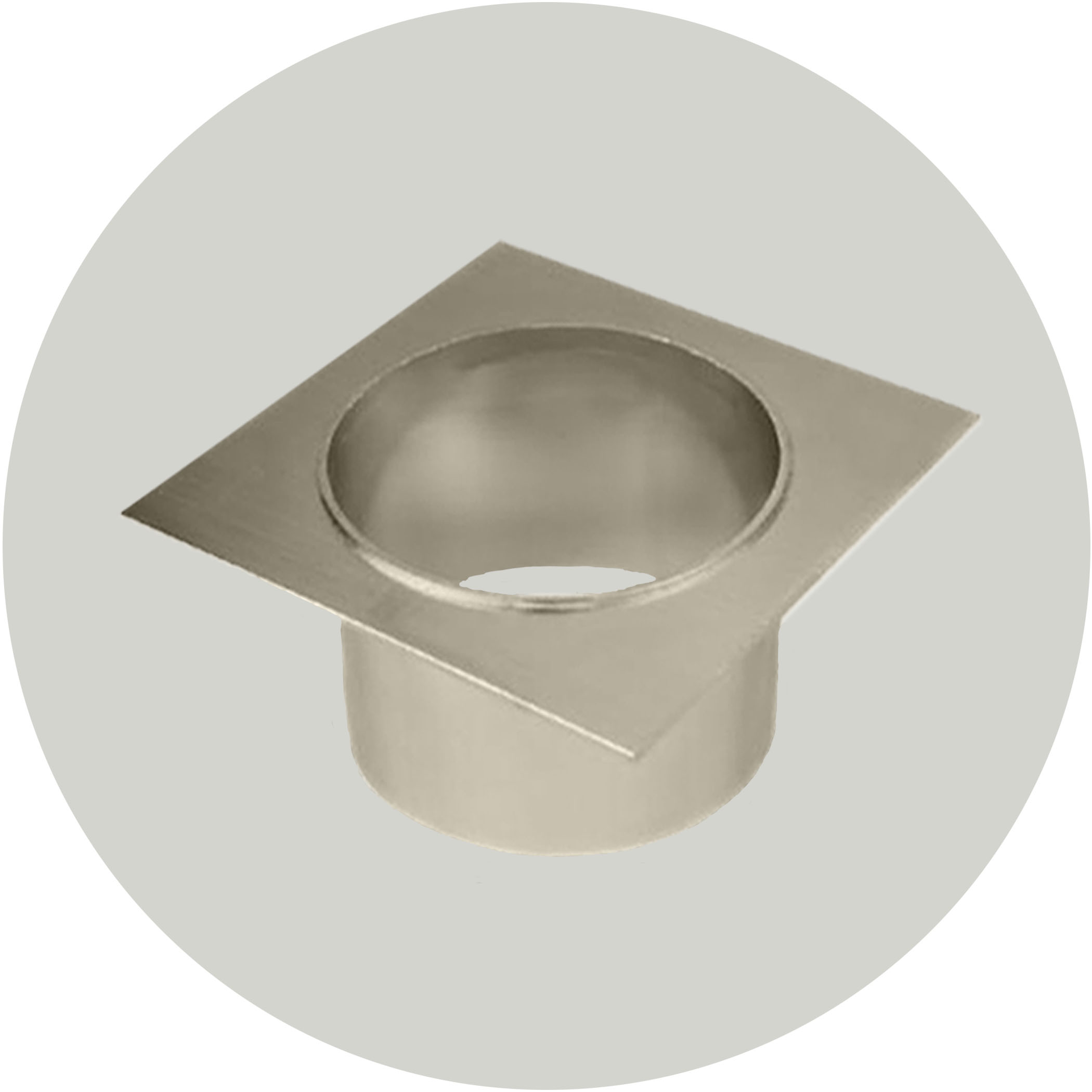

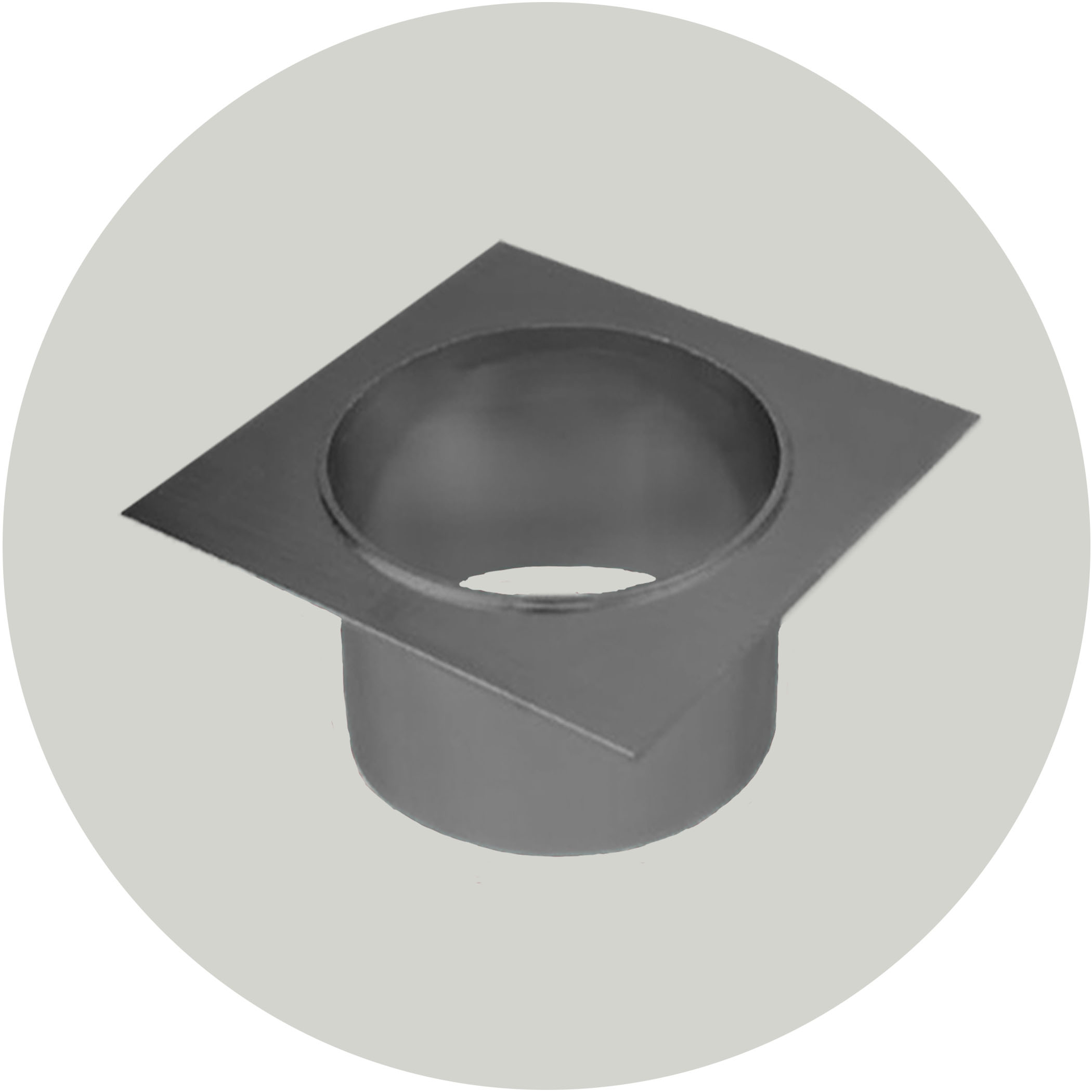

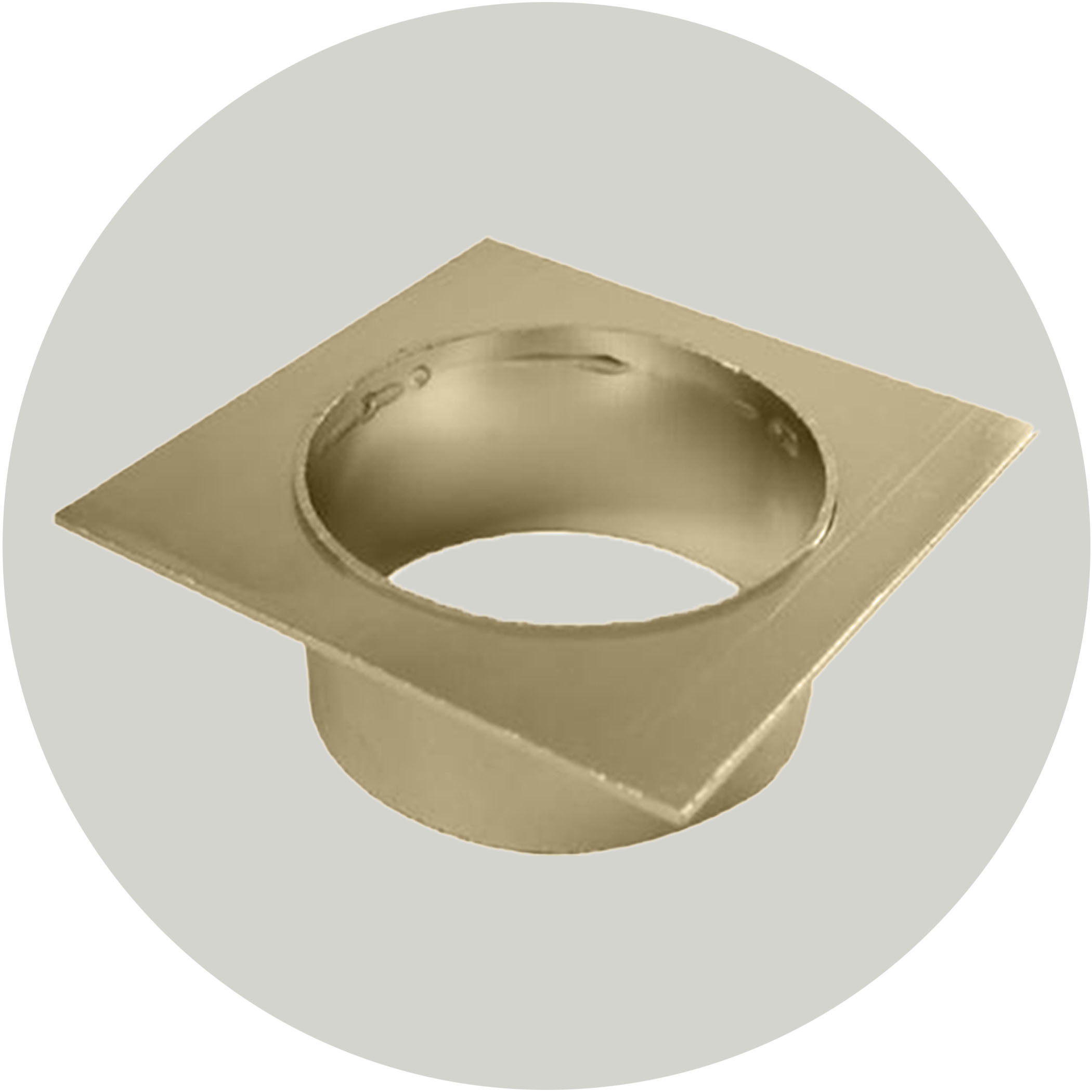

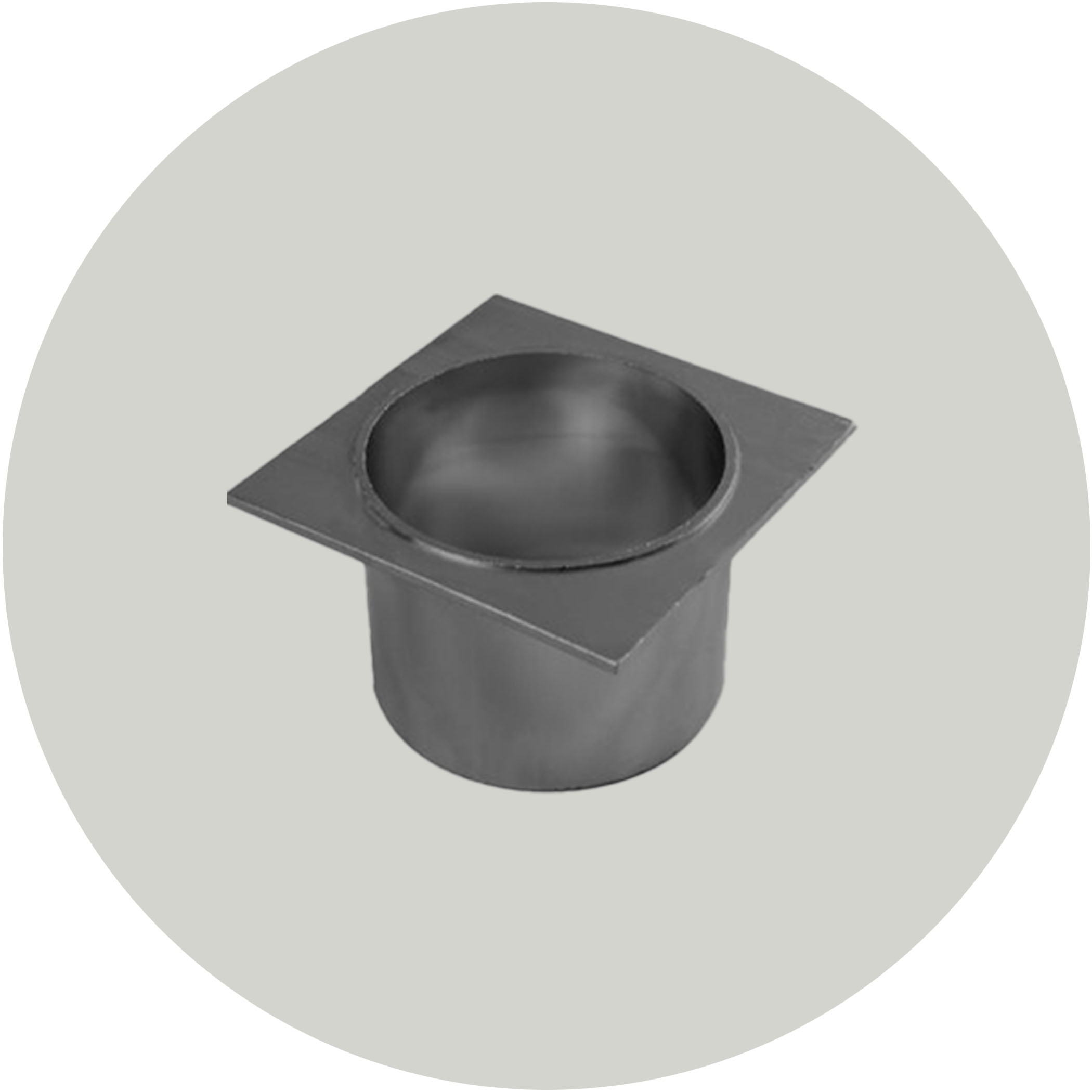

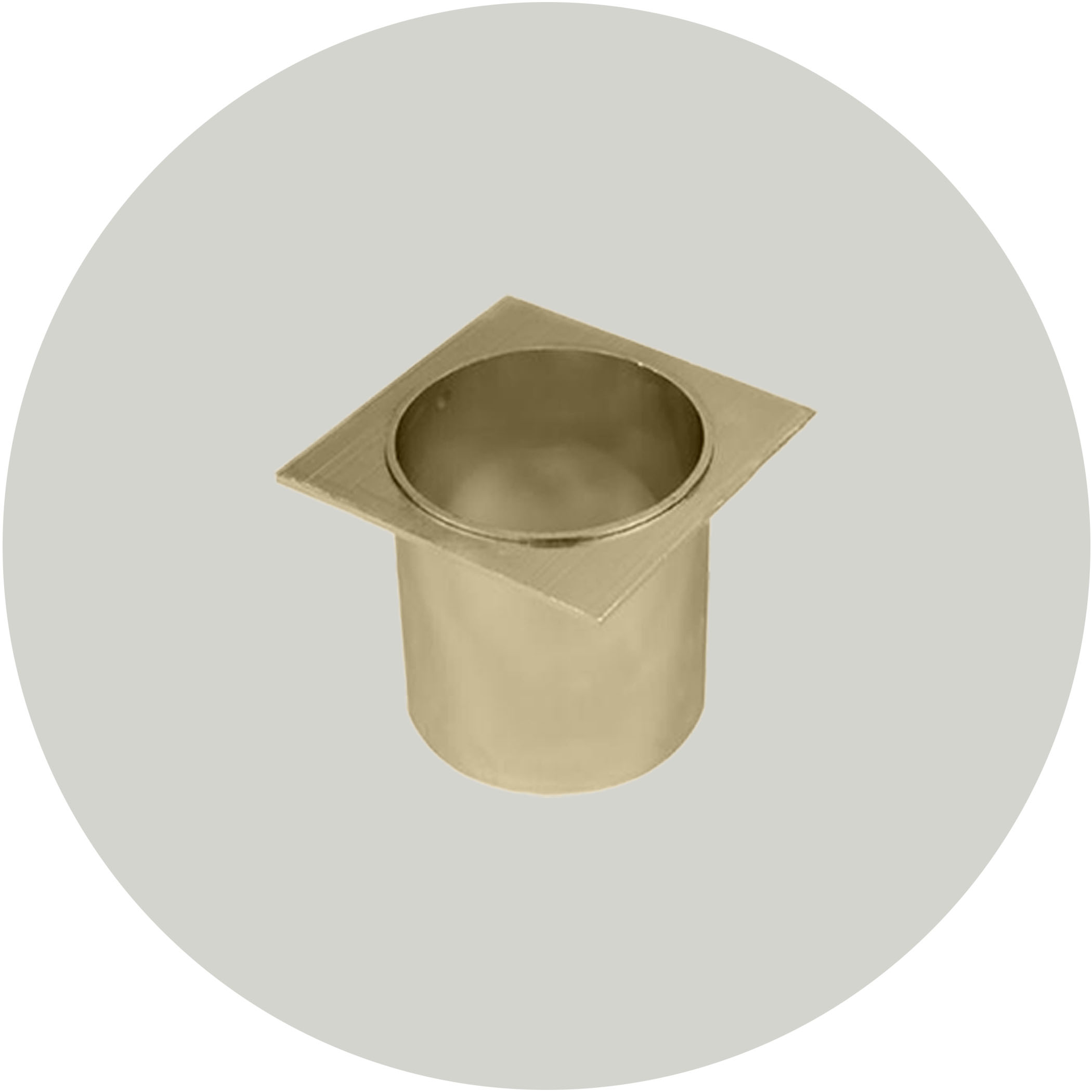

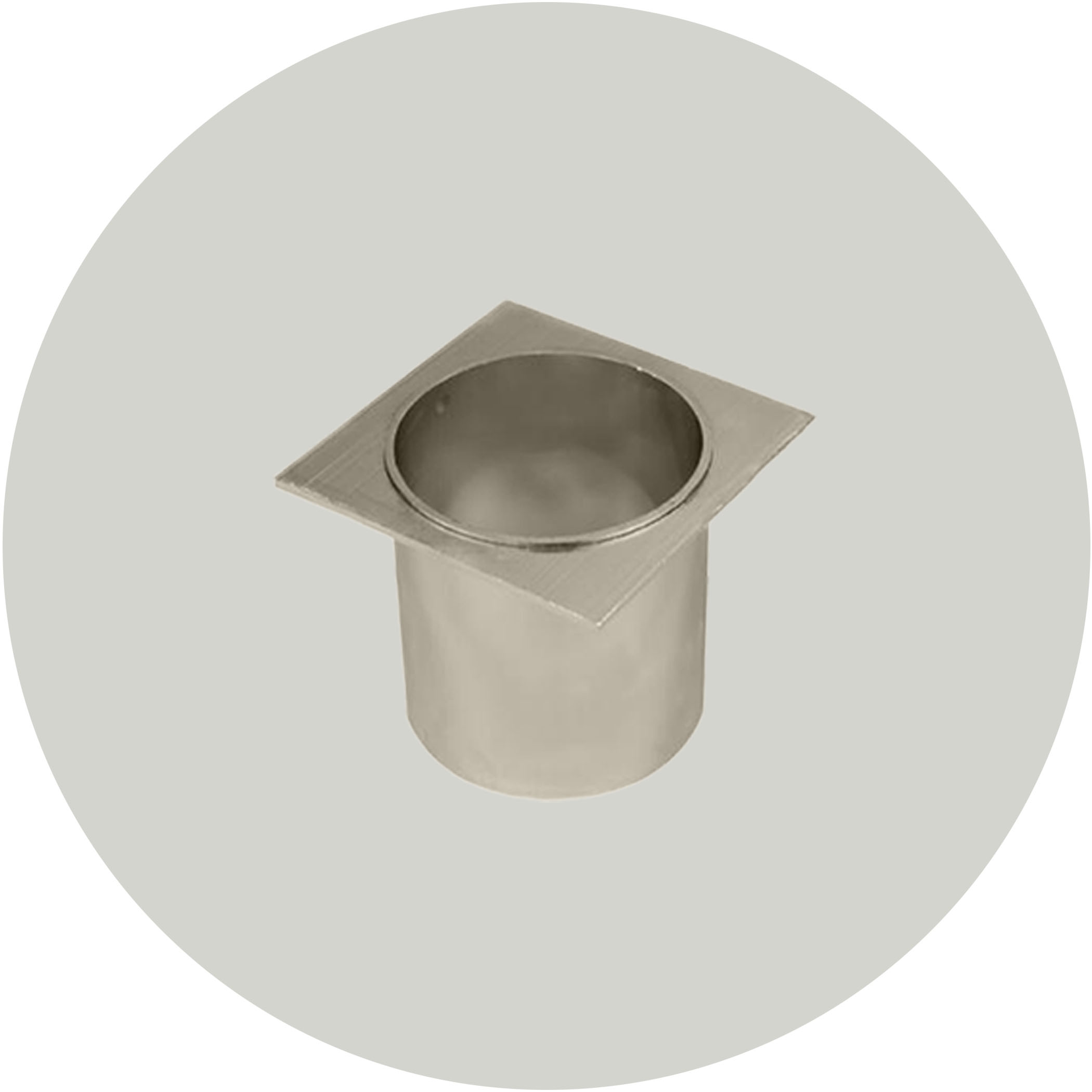

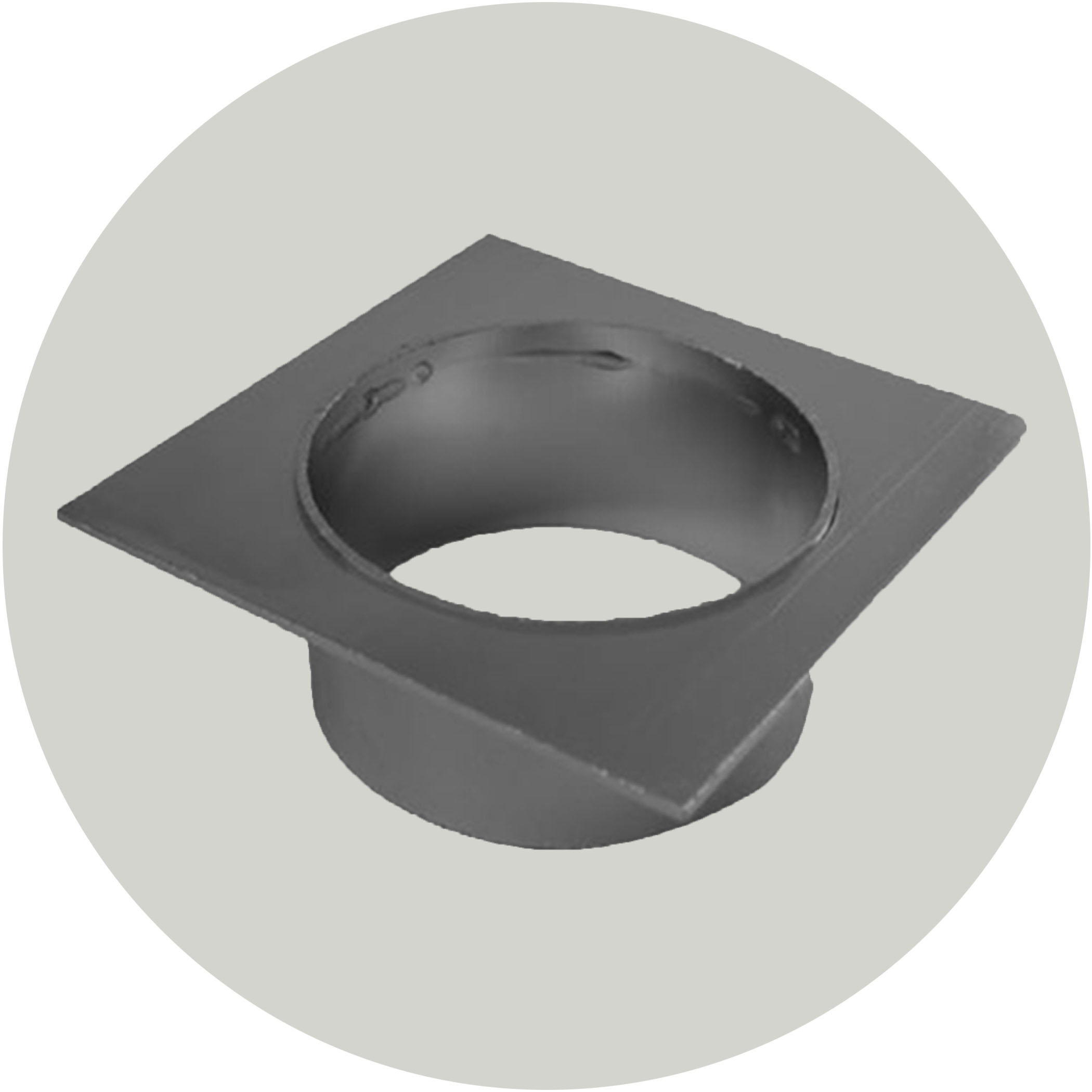

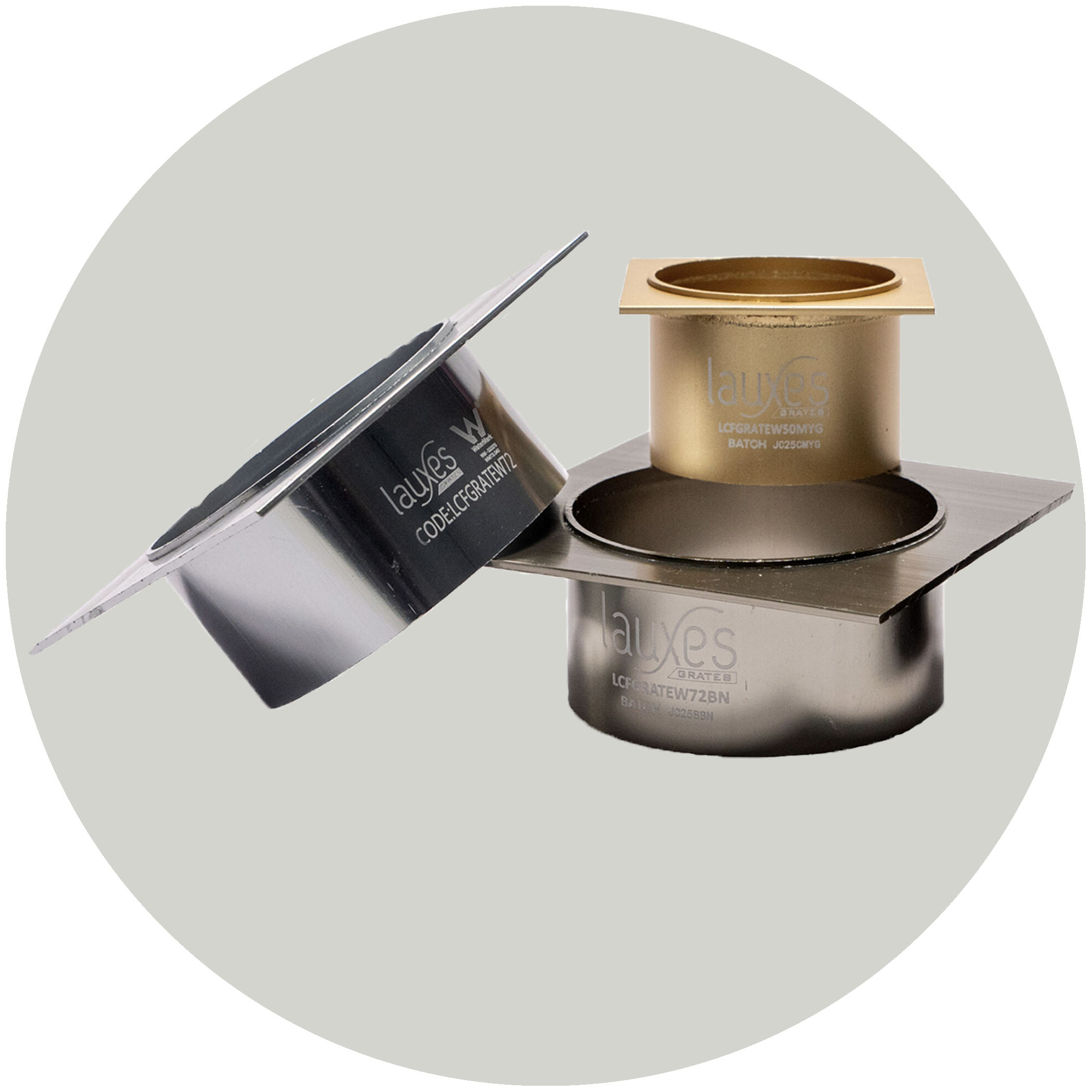

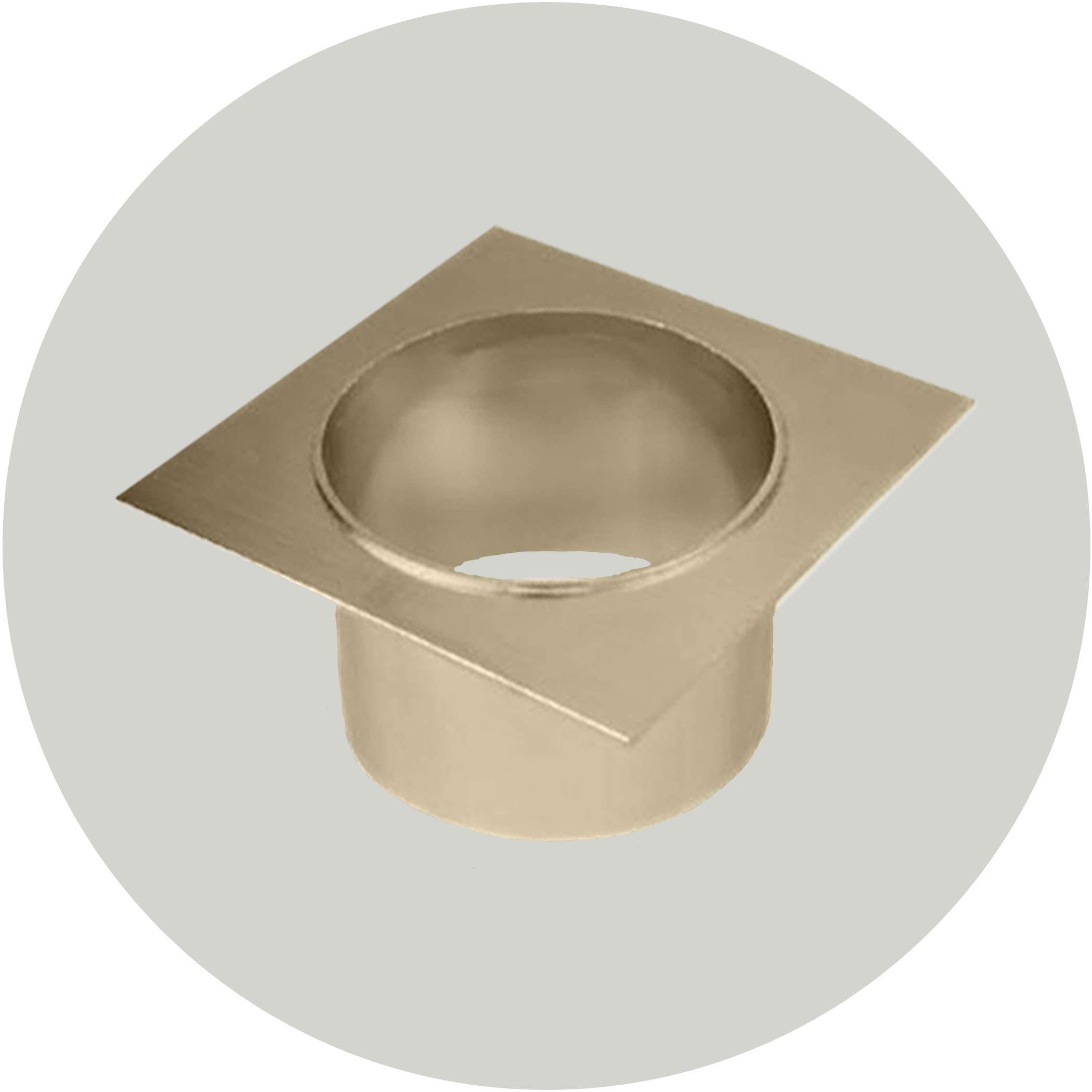

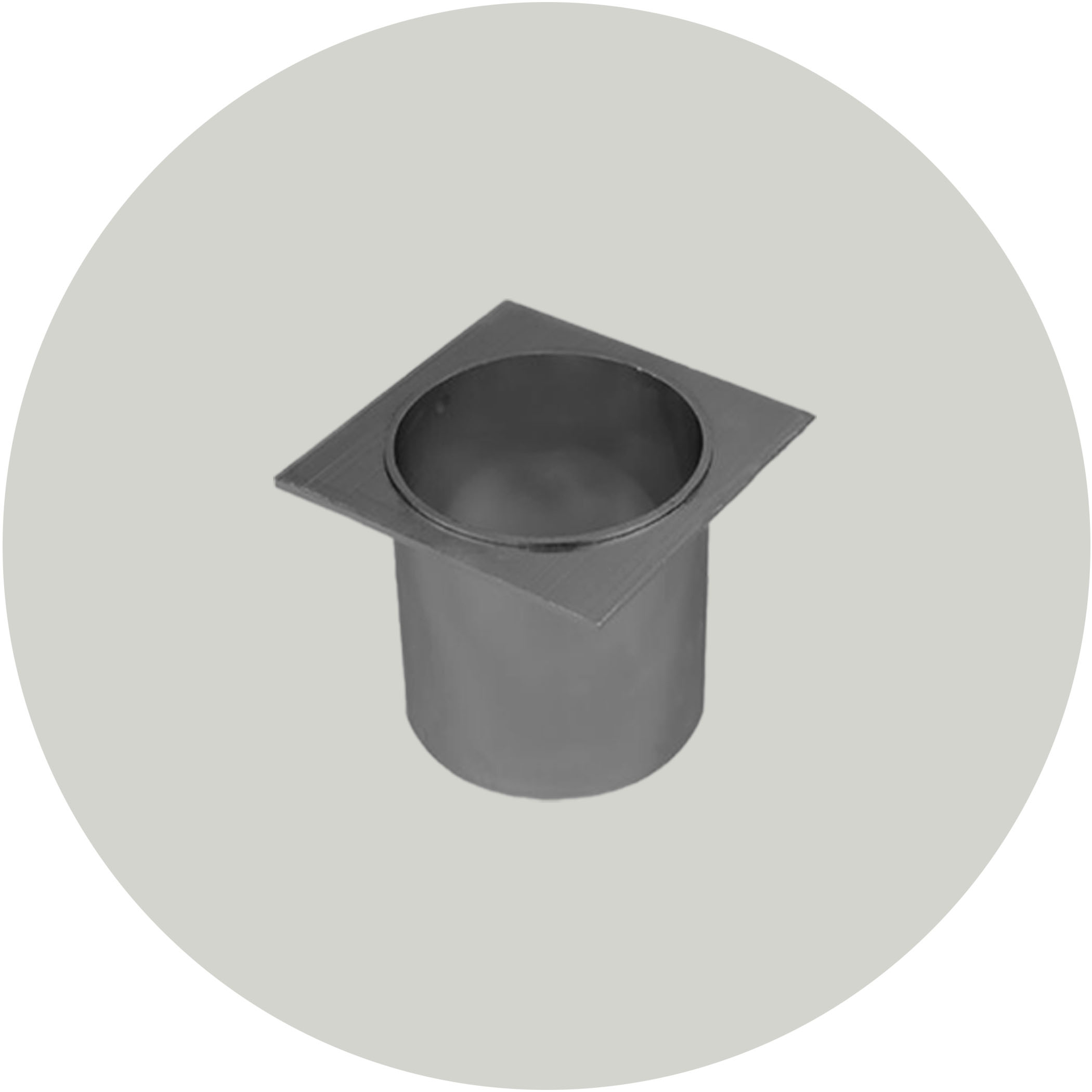

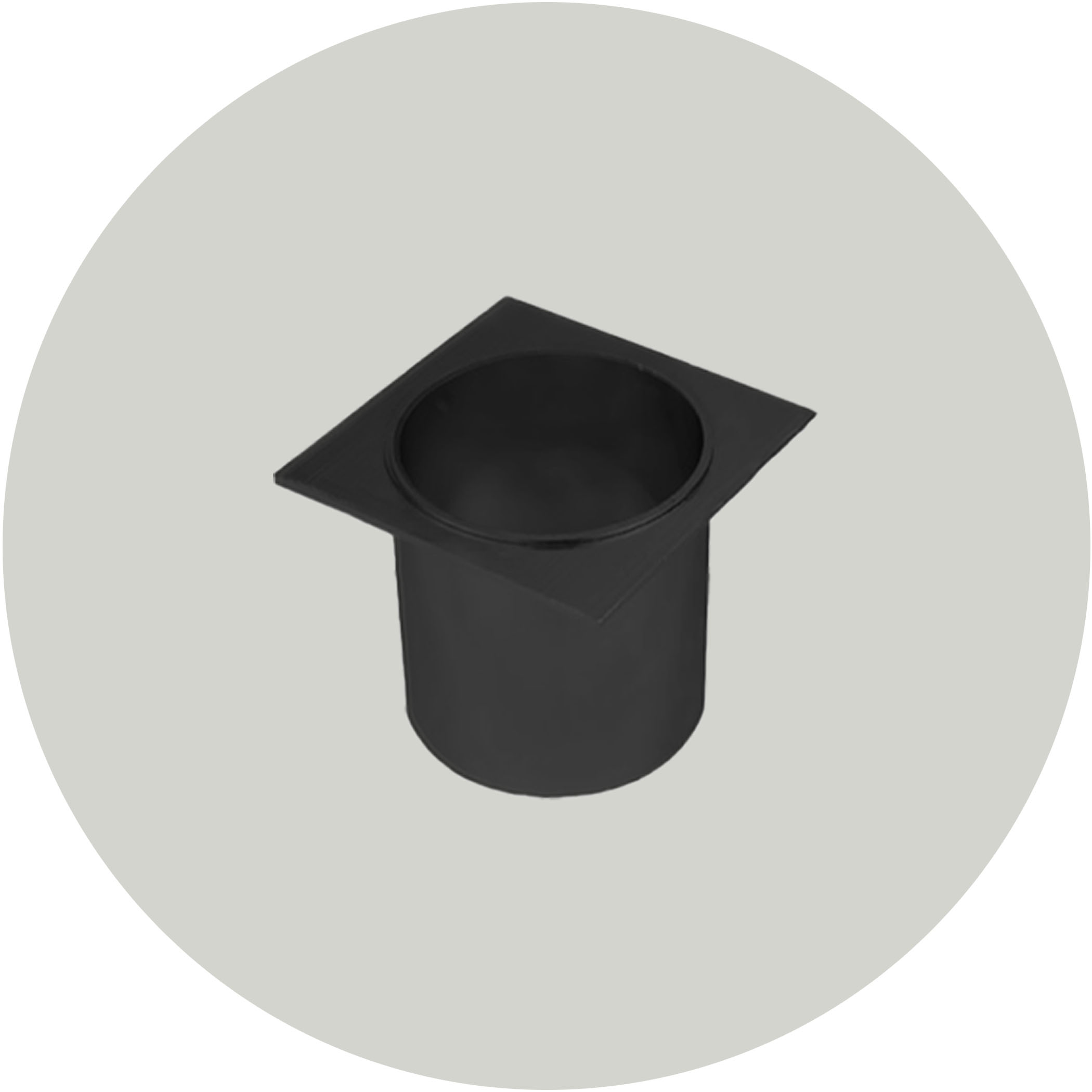

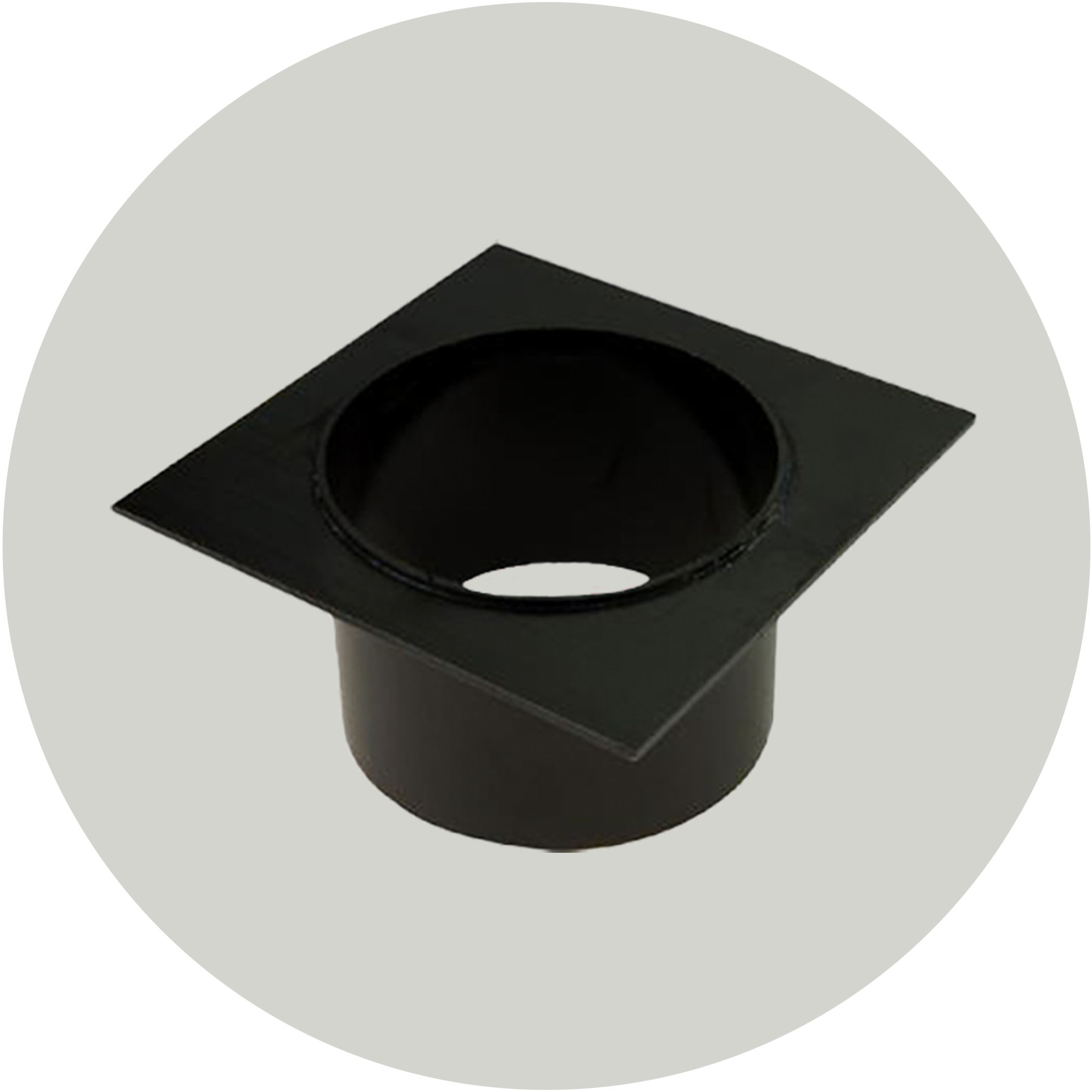

Replacement or extra waste outlets for Lauxes linear and tile insert grates, in 40, 50, 72 and 80 mm. They come in six finishes with the same names as the grates (anodised colours can vary slightly). Lauxes recommends 80 mm where the grate and plumbing allow.

Colour
Size
$12.50

Description

Lauxes waste outlets connect the grate’s bottom tray to the waste pipe, and Lauxes says they can sit anywhere along the tray. From Lauxes Grates; see the Lauxes range.

Each Lauxes grate on Multifors comes with one matching waste outlet and two matching end caps (thin, or thick where you choose them). Buy one here as a replacement or an extra outlet.

Technical Specifications

Flow rates per outlet size as published by Lauxes; actual flow depends on your plumbing.

WO40 40 mm; depth 34 mm; 18 LPM (DN40)
WO50 50 mm; depth 34 mm; 24 LPM (DN50)
WO72 72 mm; depth 33 mm; 43 LPM (DN72)
WO80 80 mm; depth 33 mm; 68 LPM (DN80)
Colours Silver, Midnight, Gold, Brushed Nickel and Gunmetal, plus Copper in all four sizes (2026 catalogue; the combined tech sheet lists five)
Tech sheet Waste outlet tech sheet (PDF)

What It Fits

How It Is Used

Installation is by a licensed plumber, per Lauxes. Summary of the Lauxes installation guide (PDF), not DIY instructions:

  1. Check the size — it must meet state or territory rules, per Lauxes.
  2. Drill the tray — with a suitable size Lauxes hole saw, in line with the waste pipe.
  3. Fix the outlet — silicone the lip and secure it under the bottom tray.

Important Notes

  • Lauxes says no metal debris is to be left on or in contact with the grate, so clear cutting swarf straight away.
  • Lauxes says its grates and accessories hold WaterMark certification, and that WaterMark products are legally required to be installed by a licensed plumber; your plumber will confirm local requirements.
  • Lauxes notes colours may vary slightly.
  • Bought this from Multifors and something is wrong? Contact us first.

Frequently Asked Questions

Which Lauxes waste outlet size should I choose?

Lauxes recommends 80 mm where the grate and plumbing allow; the size must also meet state or territory requirements. See What It Fits.

How deep are Lauxes waste outlets?

Per Lauxes, the 40 mm and 50 mm outlets are 34 mm deep, and the 72 mm and 80 mm outlets are 33 mm deep.

Key Features

  • Sizes 40, 50, 72 and 80 mm (WO40, WO50, WO72, WO80)
  • Anodised aluminium; Lauxes lists them for indoor and outdoor use
  • Six finishes including Copper, per the 2026 Lauxes catalogue
  • Depth 34 mm (40 and 50 mm) or 33 mm (72 and 80 mm), per Lauxes
  • Lauxes recommends 80 mm where the grate and plumbing allow
  • Can be positioned anywhere along the grate's bottom tray (Lauxes)

Additional information

Dimensions N/A
Accessory Range

Drains

Colour

Brushed Nickel, Gold, Gunmetal, Midnight, Silver

Size

40mm, 50mm, 72mm, 80mm

Frequently asked questions

Which Lauxes waste outlet size should I choose?

Lauxes recommends 80 mm where the grate and plumbing allow; the size must also meet state or territory requirements. See What It Fits.

How deep are Lauxes waste outlets?

Per Lauxes, the 40 mm and 50 mm outlets are 34 mm deep, and the 72 mm and 80 mm outlets are 33 mm deep.
