Description
At 14 mm deep, the NXT14 is the shallowest grate in the NeXT Generation range from Lauxes Grates, and Lauxes states it needs no bedding: it is about as thick as tile and glue. It is 100 mm wide, for indoor and outdoor floors where space is limited. See the Lauxes range.

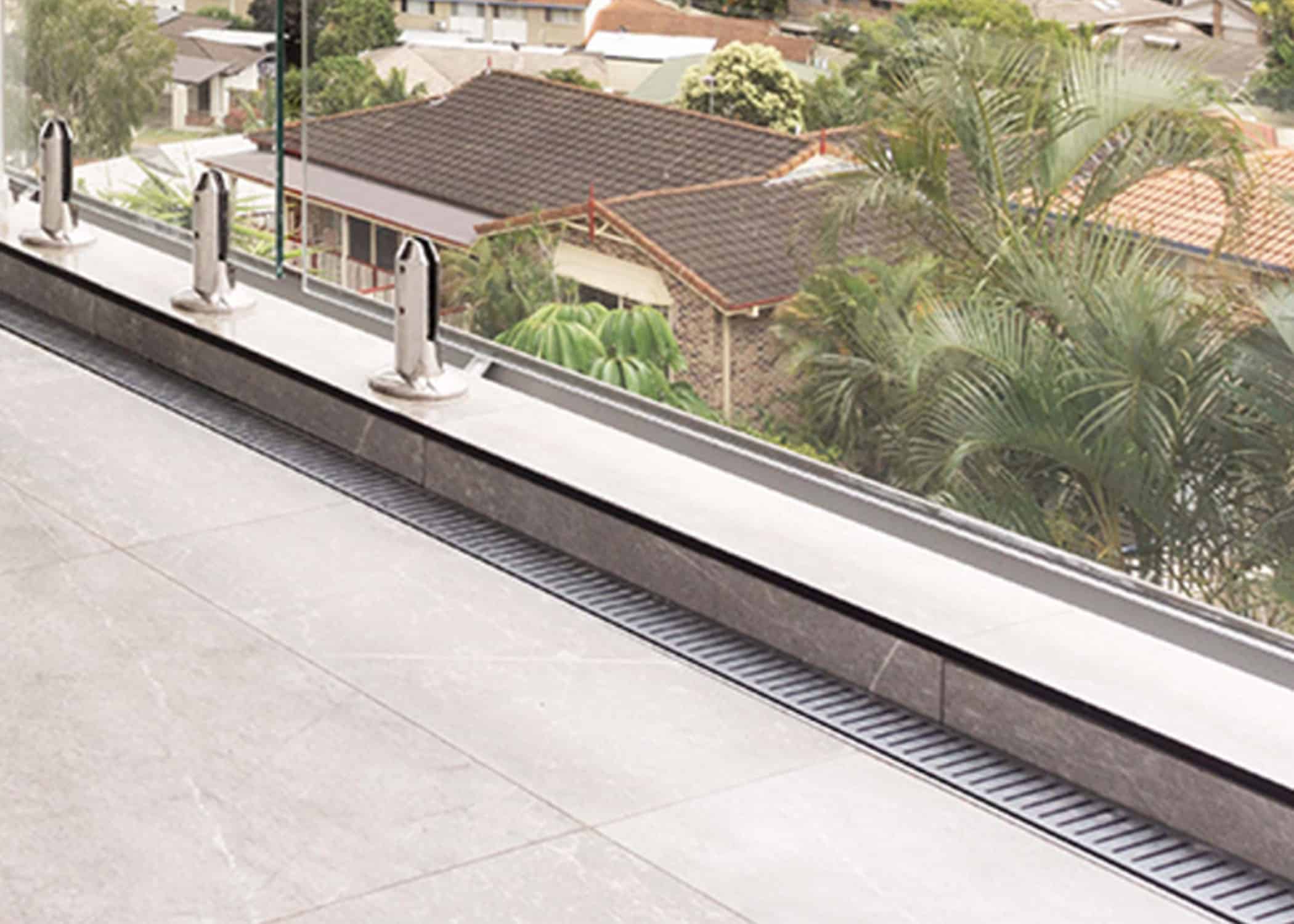

Lauxes notes many customers favour low-profile grates such as the NXT14 for balconies. Side slots stop water tracking; the top rolls out without tools.
Technical Specifications
| Width x depth | 100 mm x 14 mm |
|---|---|
| Material | Anodised aluminium |
| Load rating | Class B, up to 10.2 tonnes on average (per Lauxes) |
| Scope of use | DN90; 40, 50, 72 or 80 mm outlet |
| Full-length weight | 4.4 kg (3.0 m), 8.0 kg (5.6 m) |

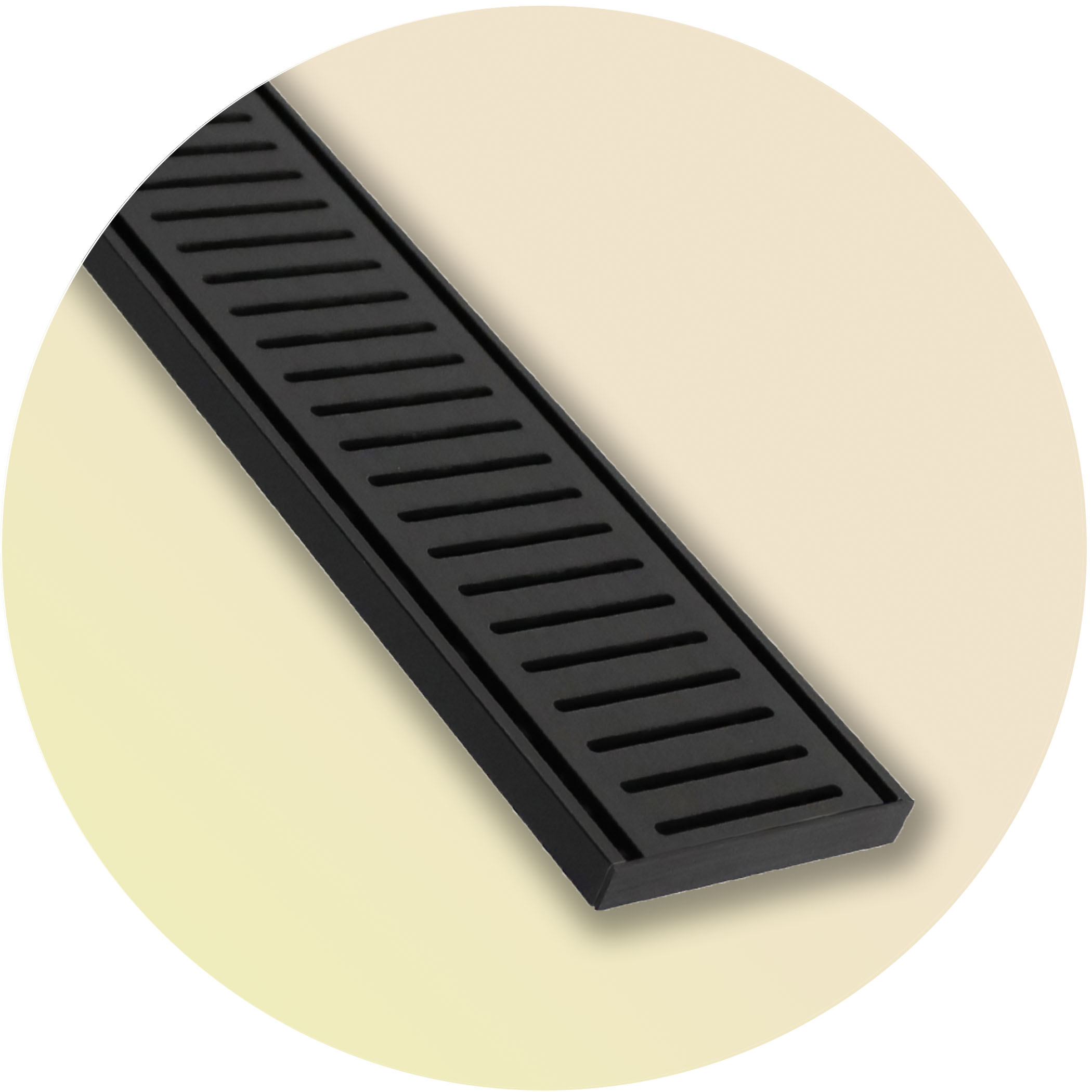

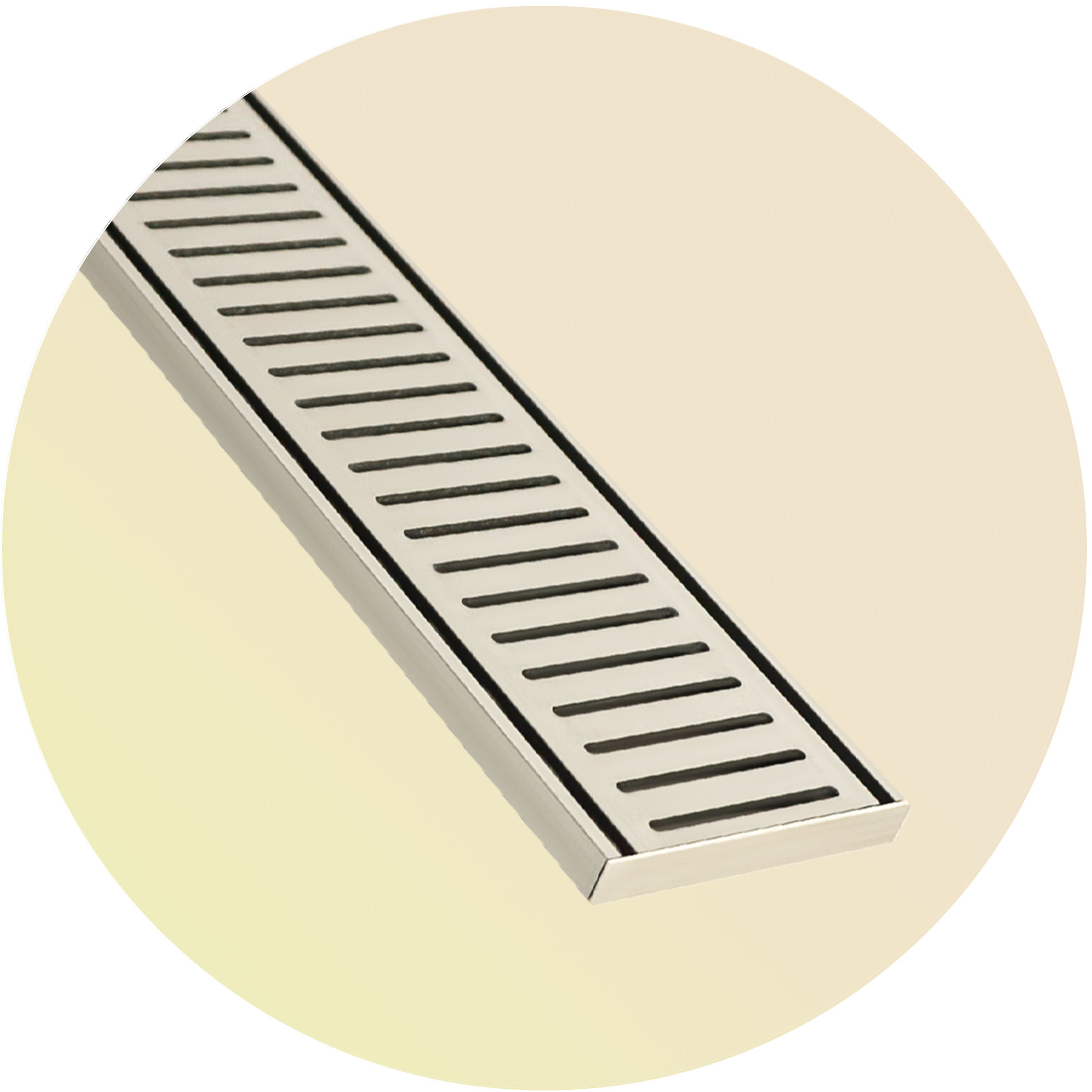

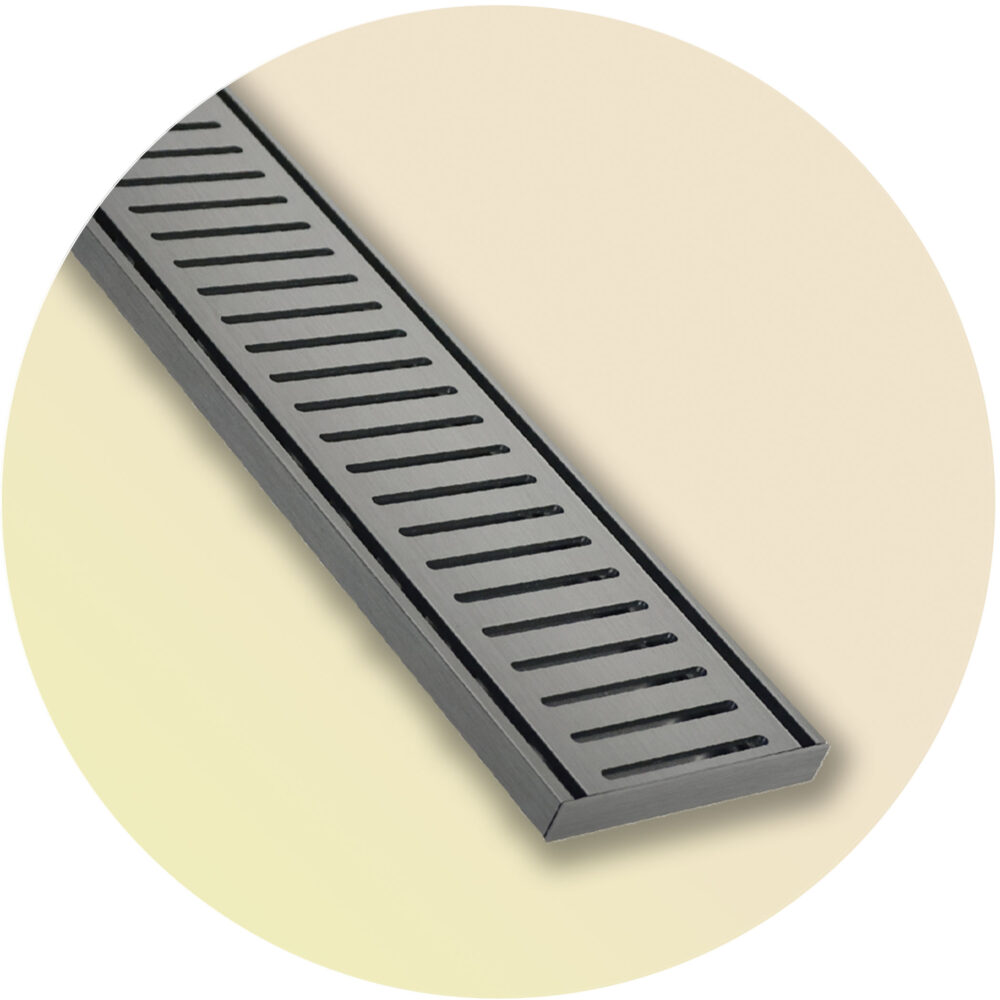

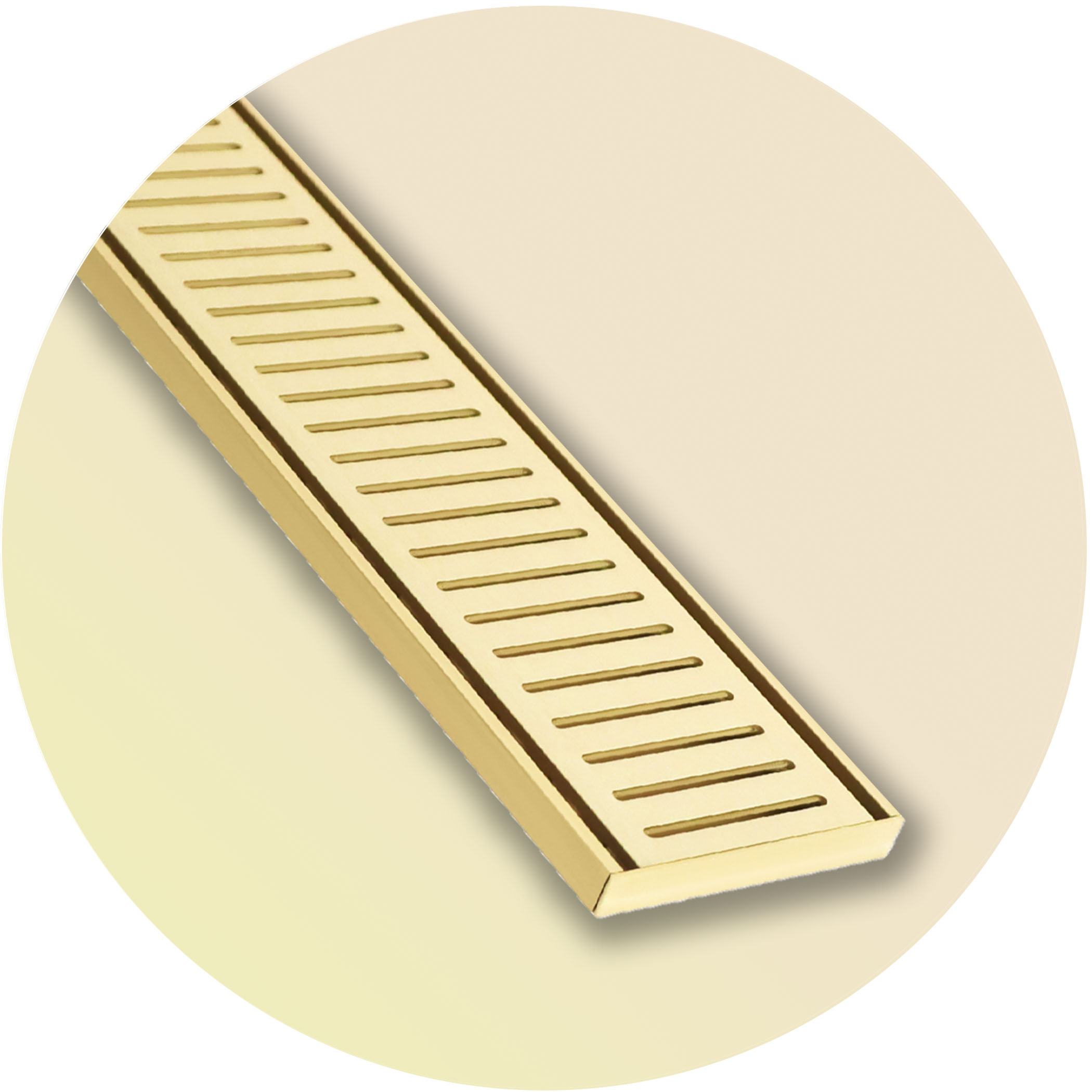

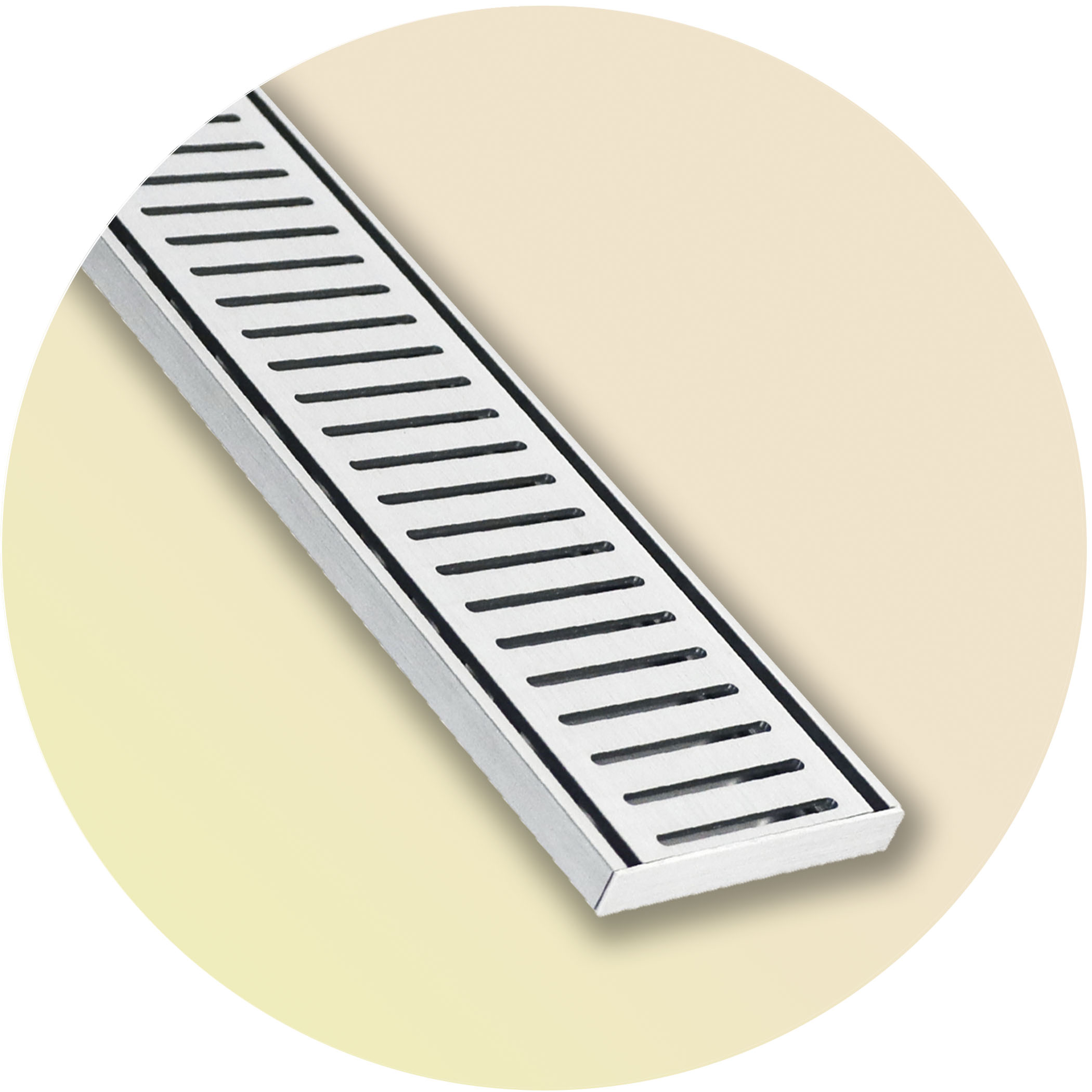

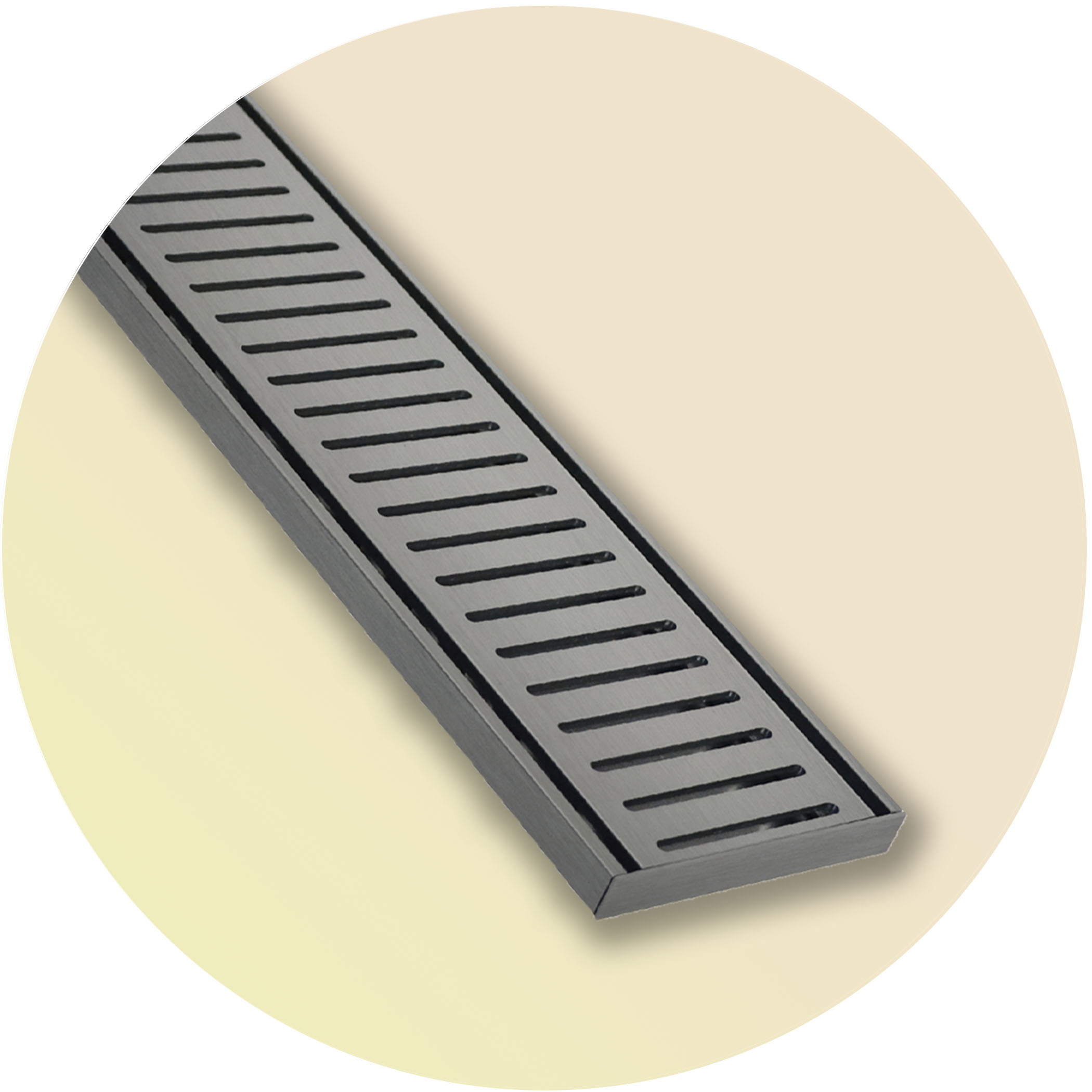

| Colours | Silver, Midnight, Gold, Brushed Nickel, Gunmetal and Copper |
| Certification | WaterMark certified, per Lauxes |
| Tech sheet | Lauxes NXT14 tech sheet (PDF) |
Where to Use
- Balconies with a shallow build-up
- Showers and step-free entries
- Low-height bathroom renovations
- Outdoor tiled areas
How to Install
A licensed plumber must install the grate into the puddle flange. Summary of the Lauxes installation guide (PDF), not DIY instructions:
- Form the provision — with a template 10-20 mm wider than the grate; keep wet cement off the grate.
- Grate goes in last — after any waterproofing, tiling and grout; Lauxes recommends wall tiles do not cover the end caps.
- Size and assemble — trim the tray 3 mm shorter than the finished length (thin caps) and the top 1 mm shorter than the tray’s internal length, then fit the outlet and caps.
- Secure it — level, on large neutral cure silicone blobs that leave a path for trapped water to the puddle flange.
- Finish — clean off residue before it dries; once the blobs set, seal the edge.
Lengths, Colours and What’s Included
Cut to size means you enter the finished grate length you need (600 to 5600 mm); we cut it to that length and charge for the next 700 mm length up, so 2200 mm is charged as 2800 mm and 1400 mm as 1400 mm. Allow for end caps when measuring (the Lauxes guide allowance is in step 3). Or buy a full 3.0 m or 5.6 m length. Cuts up to 3000 mm and full 3.0 m lengths deliver as normal; longer lengths get a delivery quote at checkout, paid once priced, or can be picked up.

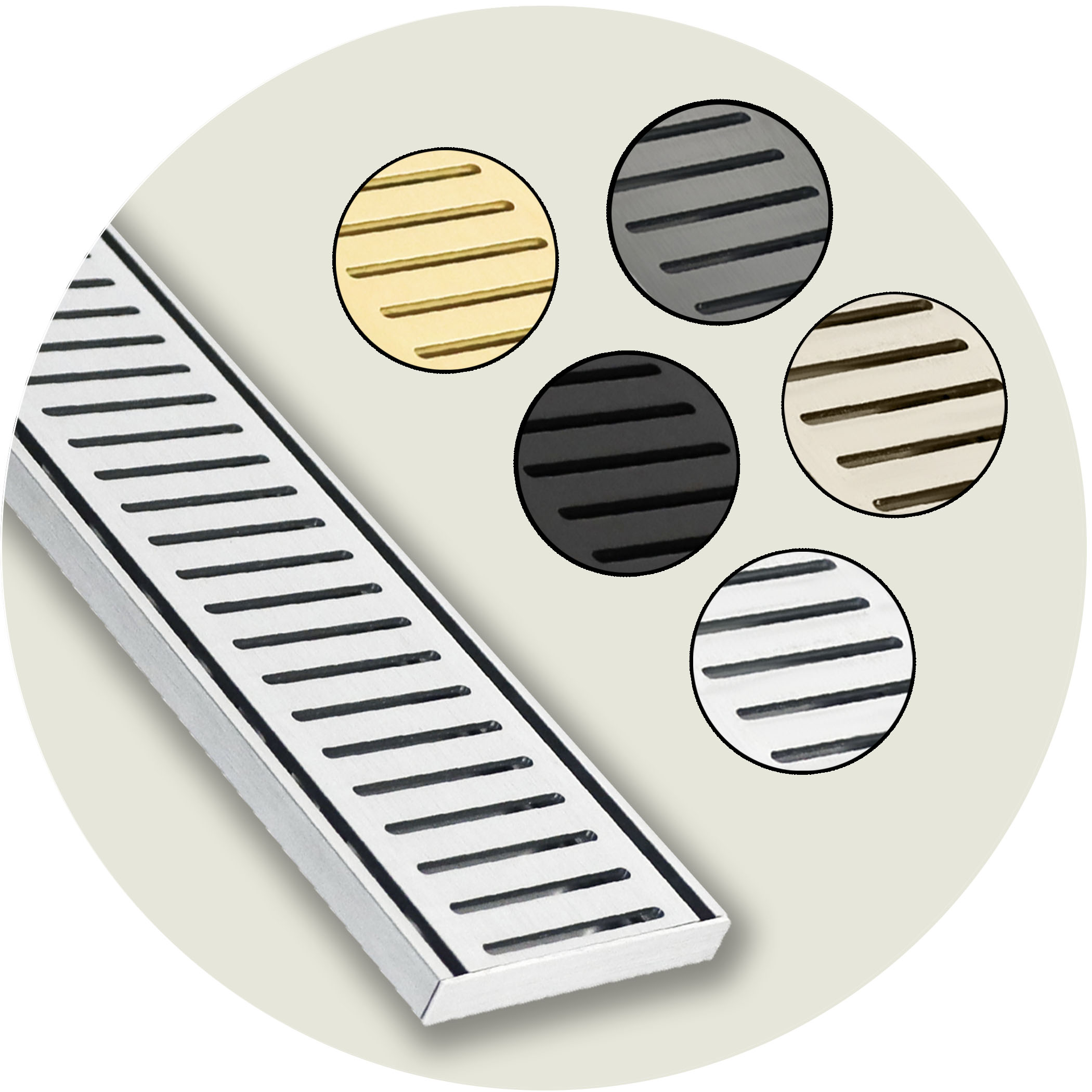

Six colours, including Copper (colours may vary slightly). Included: one matching waste outlet, 40, 50, 72 or 80 mm to your choice, plus two matching thin end caps, in every colour including Copper. In Copper, which Lauxes makes in a full 3.0 m length only, the grate is cut to size up to 3000 mm or sold as a full 3.0 m length.
Important Notes
- Lauxes advises the grate is WaterMark certified and must be installed in a WaterMark puddle flange by a licensed plumber, as legally required; it is not part of the waterproofing.
- Lauxes asks for a soapy-water wash at least every three months, more often near the sea. Check outlet size against local plumbing rules.
- Lauxes’ manufacturer’s warranties have conditions: the Lifetime Rustproof Warranty (original owner) needs a licensed plumber installing to AS 3740, a primary clean right after and no metal deposits; the minimum 25-year fade guarantee needs proper care and installation to AS/NZS 3500.2. Excluded: normal wear, misuse or accidental damage. This manufacturer’s warranty is in addition to your rights under the Australian Consumer Law; contact Multifors first if there’s a problem.
Frequently Asked Questions
Does the Lauxes NXT14 need a mortar bed?
Lauxes says it needs none. A licensed plumber sets it on neutral cure silicone blobs.
Which waste outlet sizes suit the NXT14?
40, 50, 72 or 80 mm (DN90); Lauxes recommends 80 mm.
Can the NXT14 be used outdoors?
Yes; Lauxes lists it for indoor and outdoor use.
