Description
Lauxes Grates describes the NXT21 as designed with balconies in mind and built to perform outdoors. It is a 100 mm wide, 21 mm deep anodised aluminium grate for indoor and outdoor floors. Browse more Lauxes grates.
Side slots stop water tracking; the top rolls out without tools.
Technical Specifications
| Width x depth | 100 mm x 21 mm |
|---|---|
| Material | Anodised aluminium |
| Load rating | Class B, up to 10.2 tonnes on average (per Lauxes) |
| Scope of use | DN90; 40, 50, 72 or 80 mm outlet |
| Full-length weight | 4.8 kg (3.0 m), 8.7 kg (5.6 m) |

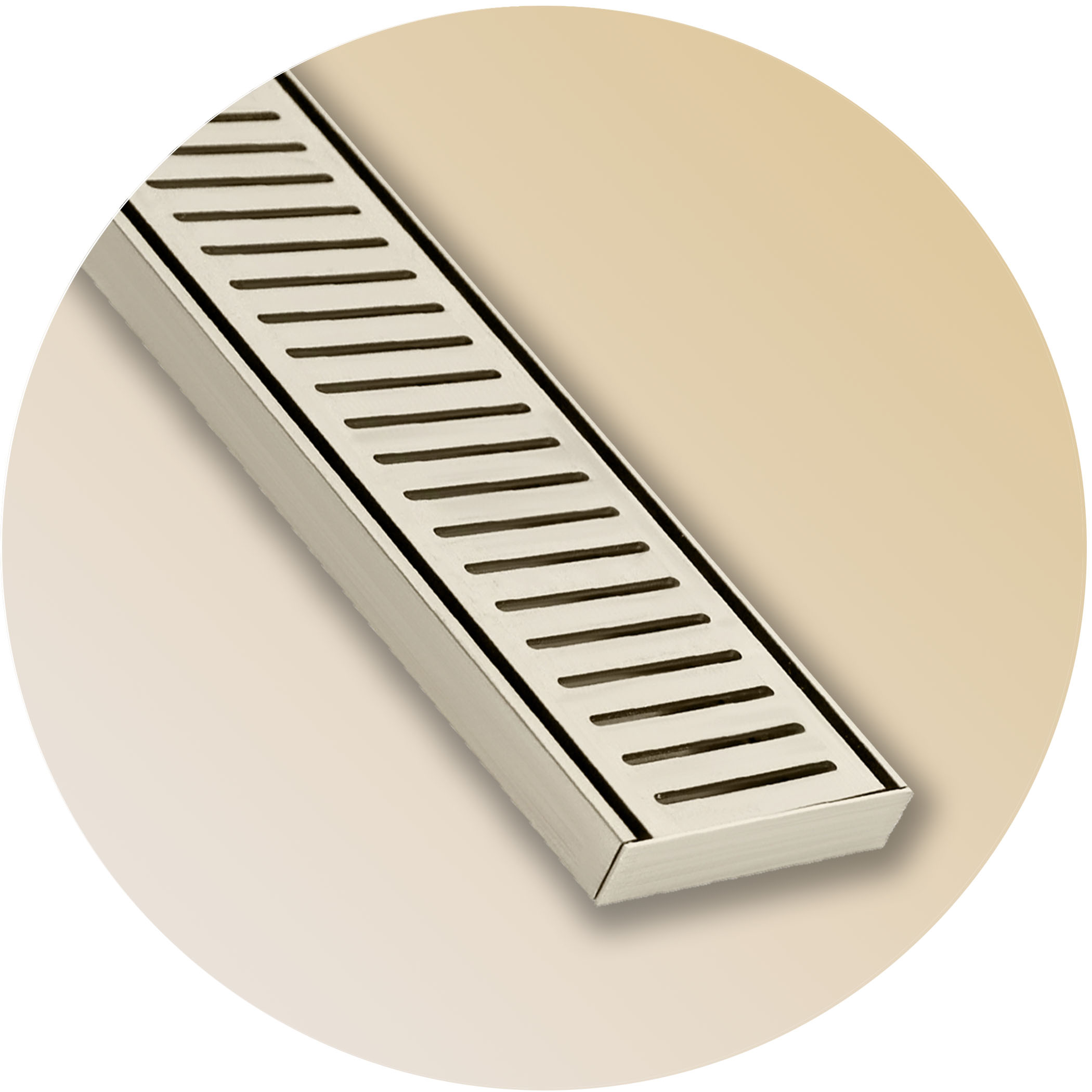

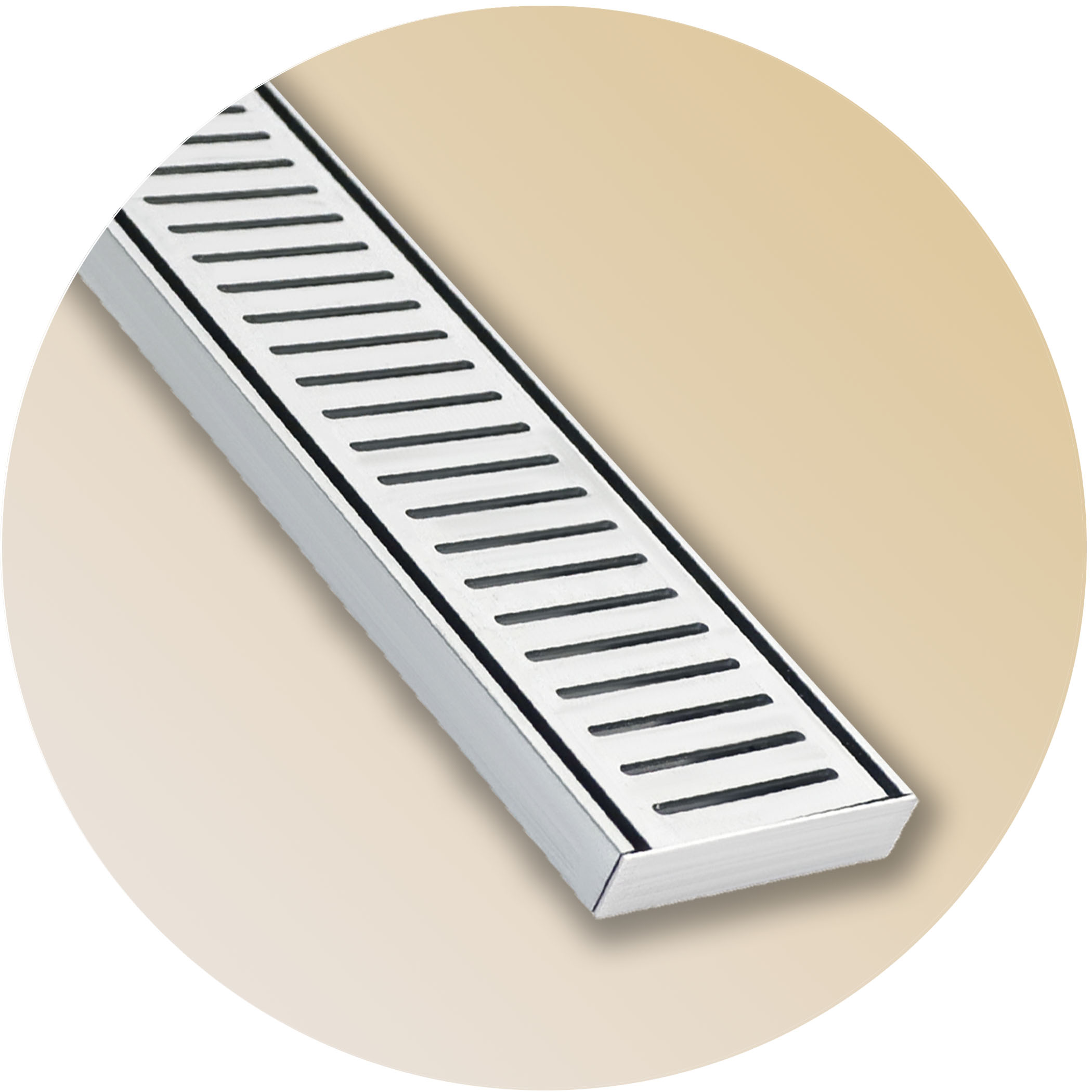

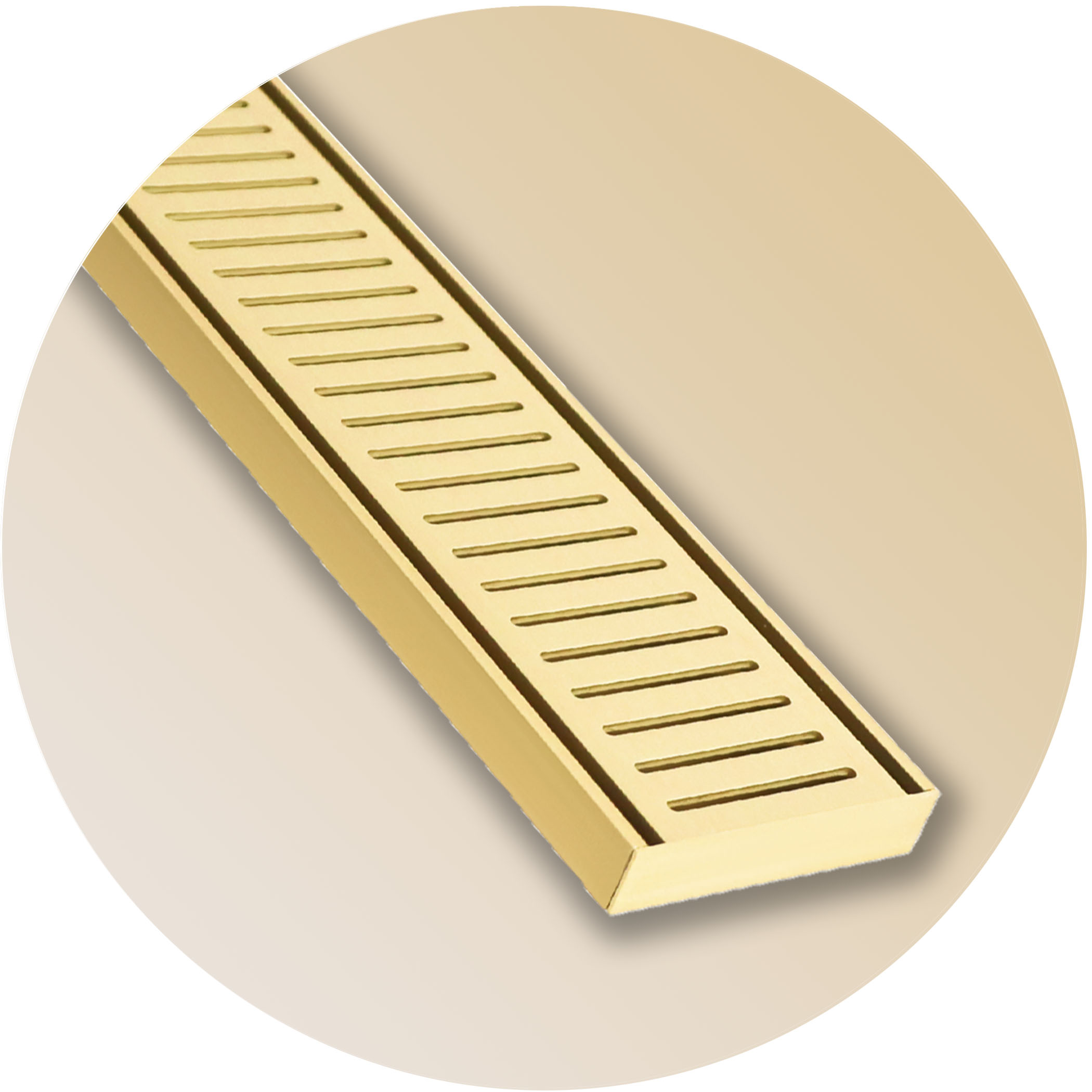

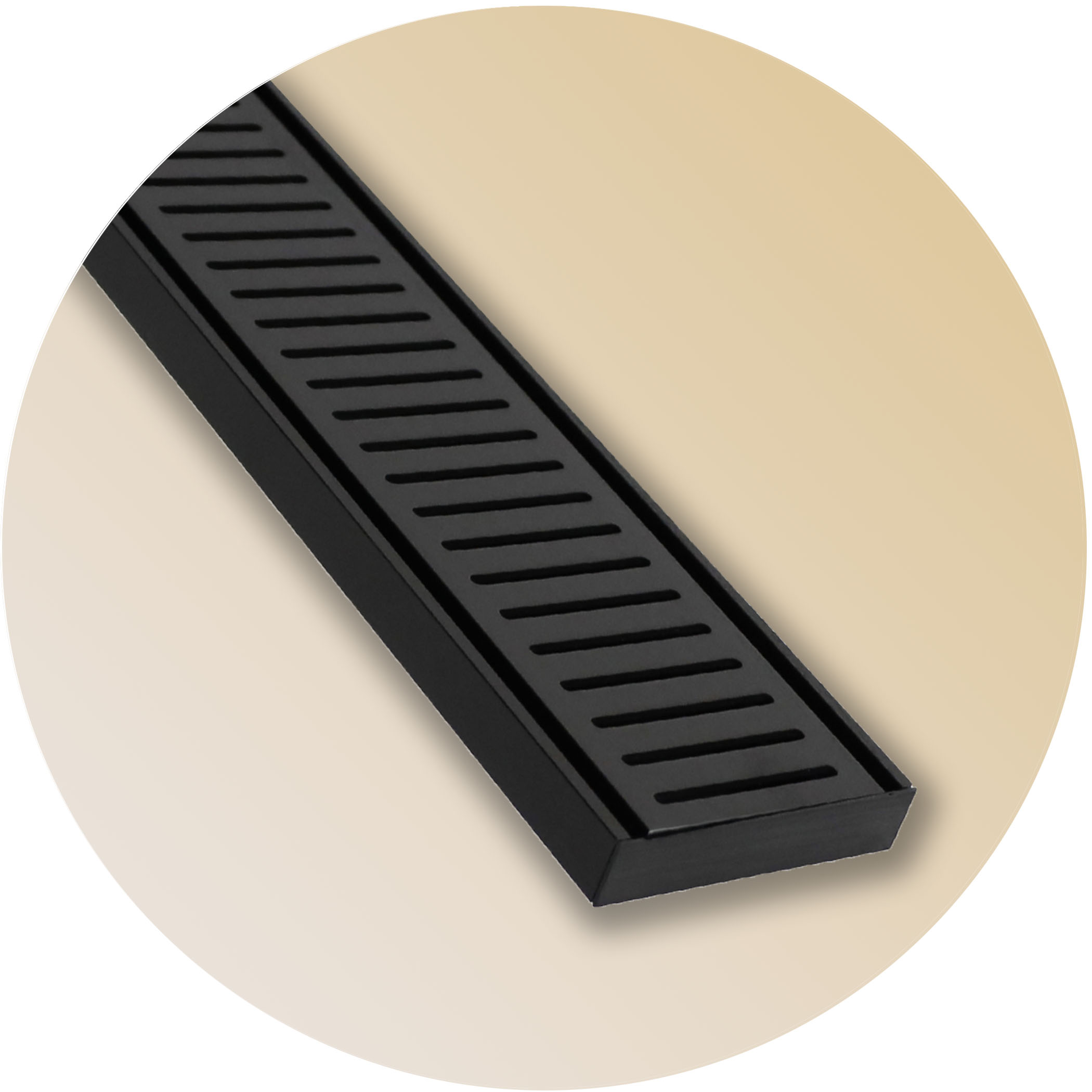

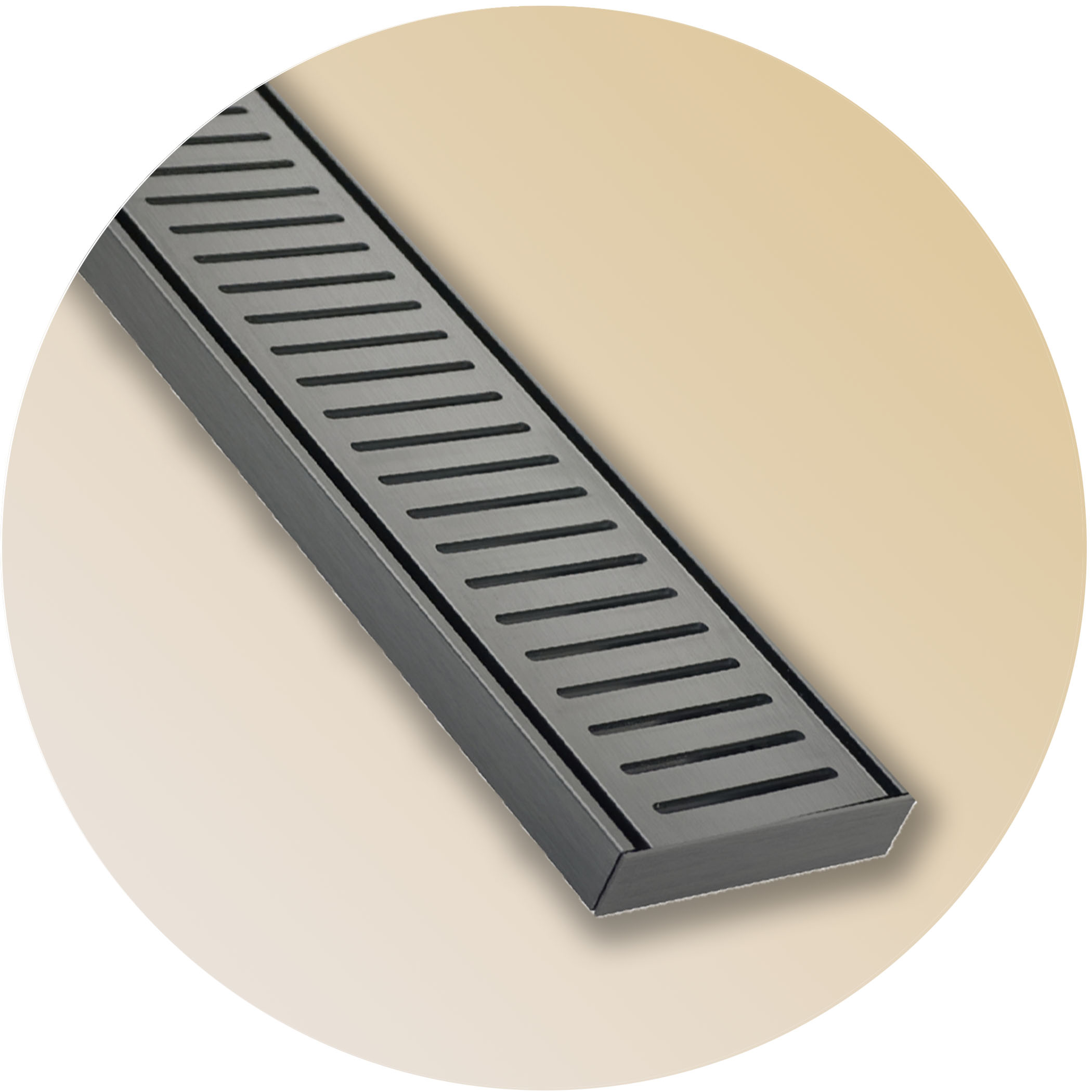

| Colours | Silver, Midnight, Gold, Brushed Nickel, Gunmetal and Copper |
| Certification | WaterMark certified, per Lauxes |
| Tech sheet | Lauxes NXT21 tech sheet (PDF) |
Where to Use
- Balconies and outdoor areas
- Step-free showers
- Bathrooms
- Alfresco areas
How to Install
A licensed plumber must install the grate into the puddle flange. Summary of the Lauxes installation guide (PDF), not DIY instructions:
- Use a template — form the provision with a template 10-20 mm wider than the grate, never the grate itself.
- Tile first — finish any waterproofing, tiling and grout; Lauxes recommends end caps are not covered by wall tiles.
- Cut and assemble — tray 3 mm shorter than the finished length (thin caps) or 10 mm (thick caps), top 1 mm shorter than the tray’s internal length; drill the outlet with a Lauxes hole saw.
- Set on silicone blobs — bed it level on large blobs of neutral cure silicone so trapped water escapes to the puddle flange.
- Finish — clean off residue before it dries; once the blobs set, seal the edge.
Lengths, Colours and What’s Included
Cut to size: enter the finished grate length you need, from 600 to 5600 mm. We cut it to that length and charge for the next 700 mm length up; for example 2200 mm is charged as 2800 mm, and 1400 mm is charged as 1400 mm. Allow for end caps when measuring (the Lauxes guide allowance is in step 3). Full lengths: 3.0 m or 5.6 m. Cuts up to 3000 mm and full 3.0 m lengths deliver as normal; longer lengths get a delivery quote at checkout, paid once priced, or can be picked up.

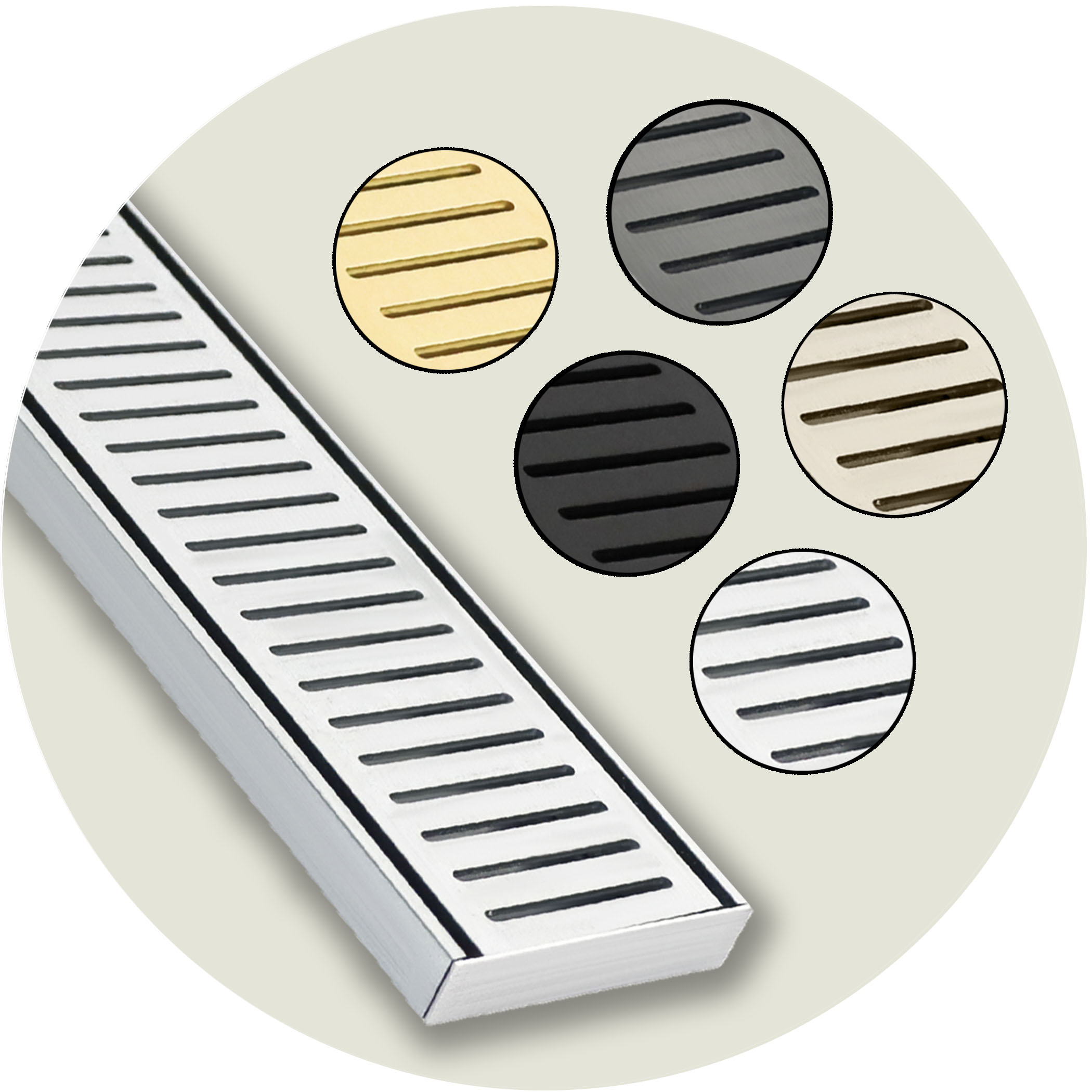

Six colours, including Copper (colours may vary slightly). Each grate comes with two matching end caps, thin (EC21) or thick (TEC21) and one matching waste outlet in your chosen size (40, 50, 72 or 80 mm), in every colour including Copper. Copper is made by Lauxes in a full 3.0 m length only, so in Copper it is cut to size up to 3000 mm or sold as a full 3.0 m length.
Important Notes
- Per Lauxes, the grate is WaterMark certified, not part of the waterproofing, and must be installed in a WaterMark puddle flange by a licensed plumber, as legally required.
- Wash with soapy water at least every three months, more often in marine settings; no abrasives or acids. Outlet size must meet state or territory rules.
- Lauxes gives the original owner a manufacturer’s Lifetime Rustproof Warranty (licensed-plumber install to AS 3740, immediate first clean, no metal particles left on it) and a minimum 25-year guarantee against fading (proper care, install to AS/NZS 3500.2). Normal wear, misuse and accidental damage are excluded. This manufacturer’s warranty is in addition to your rights under the Australian Consumer Law; contact Multifors first if there’s a problem.
Frequently Asked Questions
What is the Lauxes NXT21 designed for?
Balconies and outdoor floors, per Lauxes, which also lists it for indoor use.
What does anti-water tracking mean?
Lauxes says the two slots up both sides of NeXT Generation grates stop water tracking and let you roll the grate out without tools.
Should I choose thin or thick end caps for the NXT21?
Either: Lauxes makes thin (EC21) and thick (TEC21) caps, and you choose at order. Step 3 gives the tray allowance for each.
