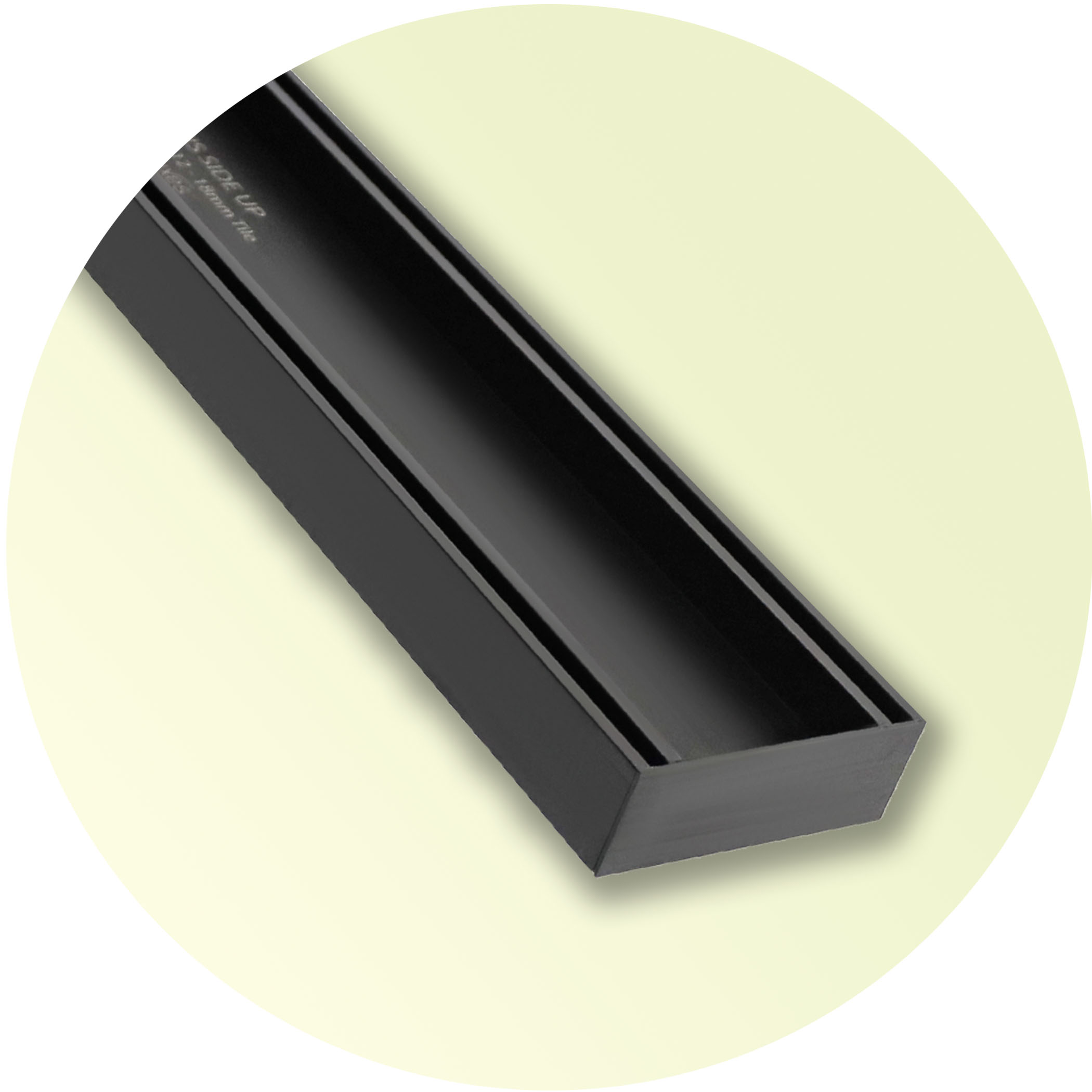

Thick tiles and stone need a deeper tray, and the Tile Insert Plus 35 is the Lauxes answer for them. Its 35 mm deep tray holds tiles up to 20 mm thick, with large format travertine or stone in mind, and Lauxes recommends it for outdoor use. Five anodised finishes.

Colour
Waste outlet

A matching waste outlet and two matching end caps come with every grate, in every length.

Required · Choose 1

Price range: $125.00 through $784.00

You may also need

Description

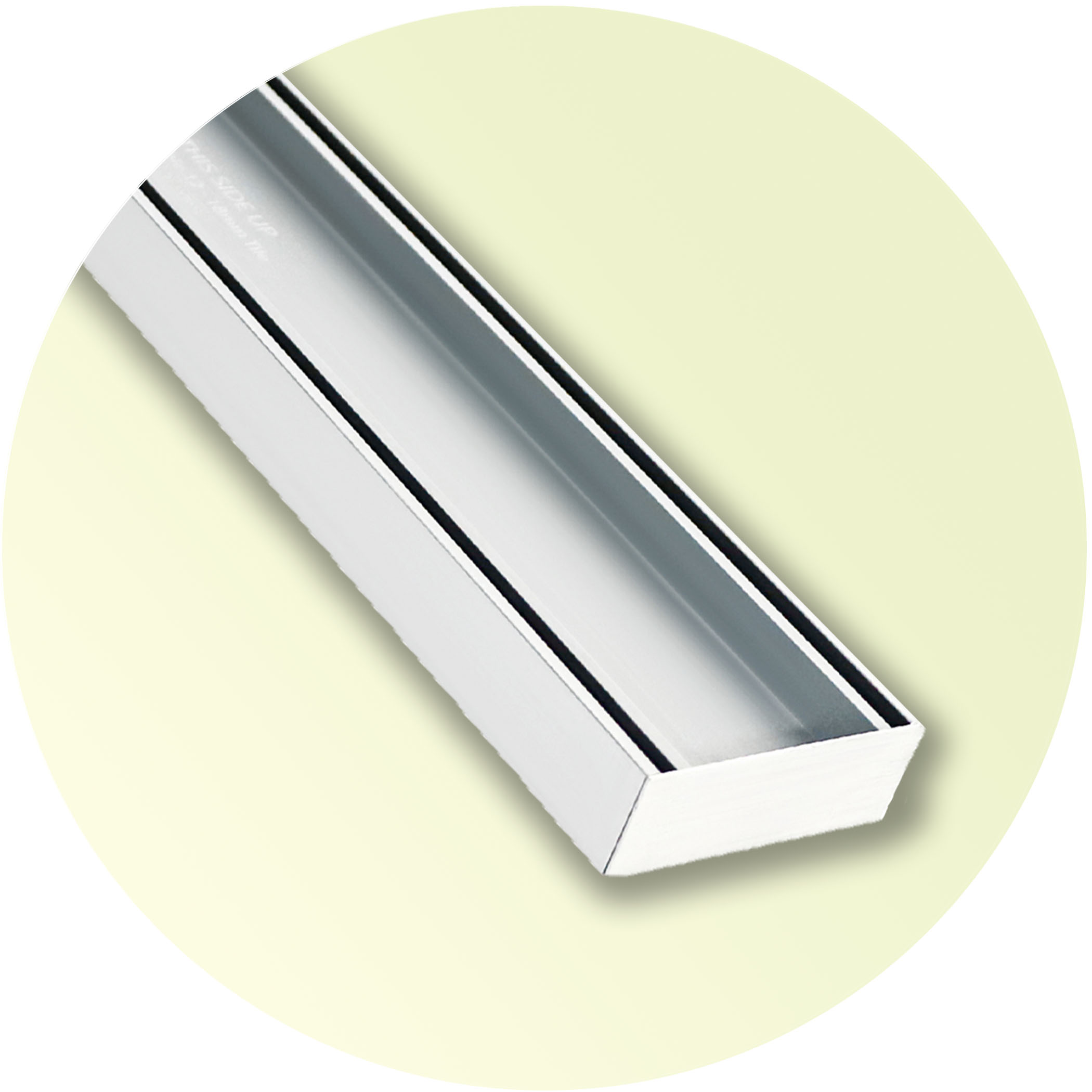

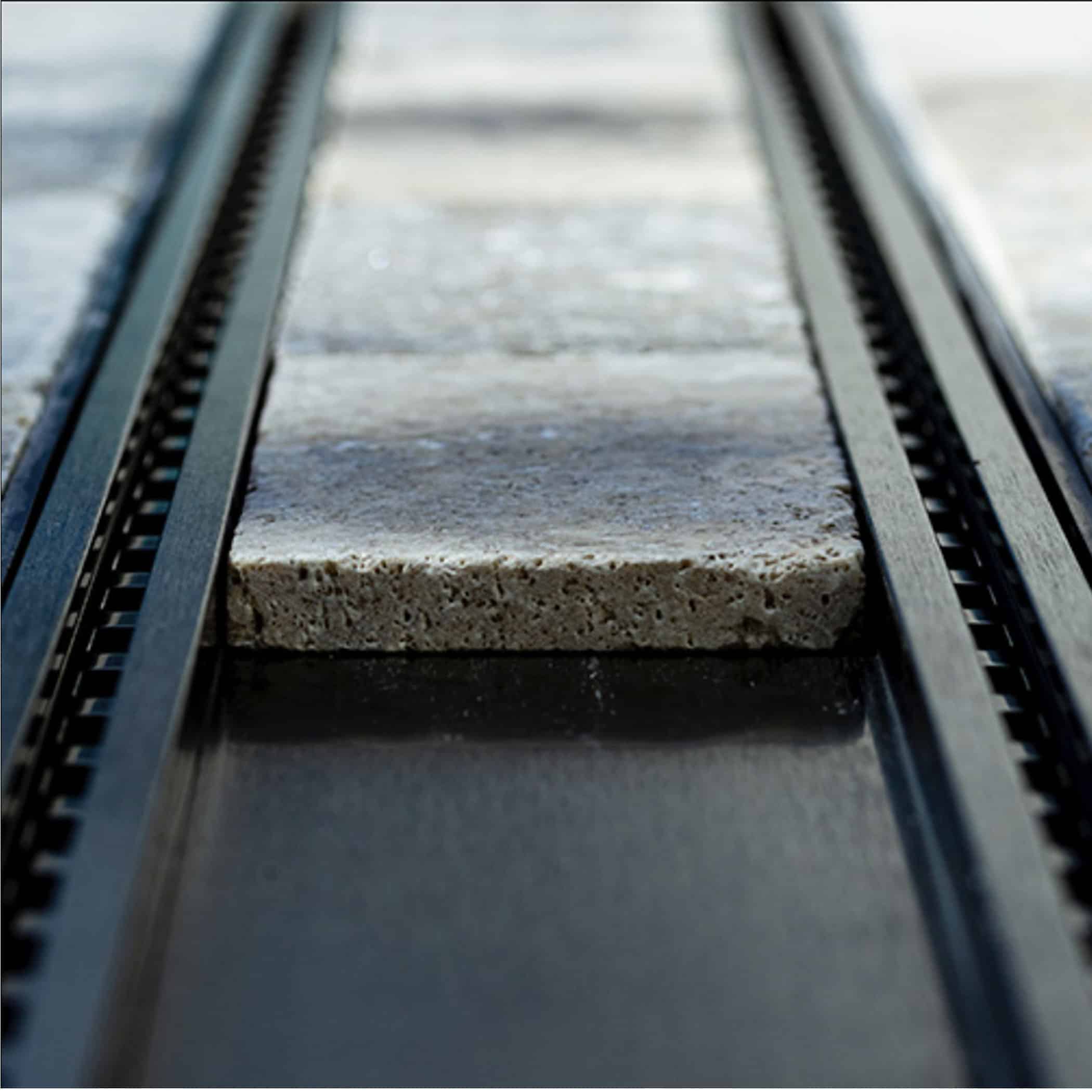

The Tile Insert Plus 35 holds tiles up to 20 mm thick, and the Lauxes Grates tech sheet calls it perfect for large format tiles such as travertine or stone. It is a 100 mm wide, 35 mm deep anodised aluminium tile insert, recommended by Lauxes for outdoor usage. Browse the Lauxes range.

The waste can sit anywhere along the bottom tray. The top rolls out for cleaning.

Technical Specifications

Width x depth 100 mm x 35 mm
Tile thickness Up to 20 mm thick
Material Anodised aluminium
Load rating Class B, up to 10.2 tonnes on average (per Lauxes)
Scope of use DN90; 40, 50, 72 or 80 mm outlet
Full-length weight 5.7 kg (3.0 m), 11.0 kg (5.6 m)

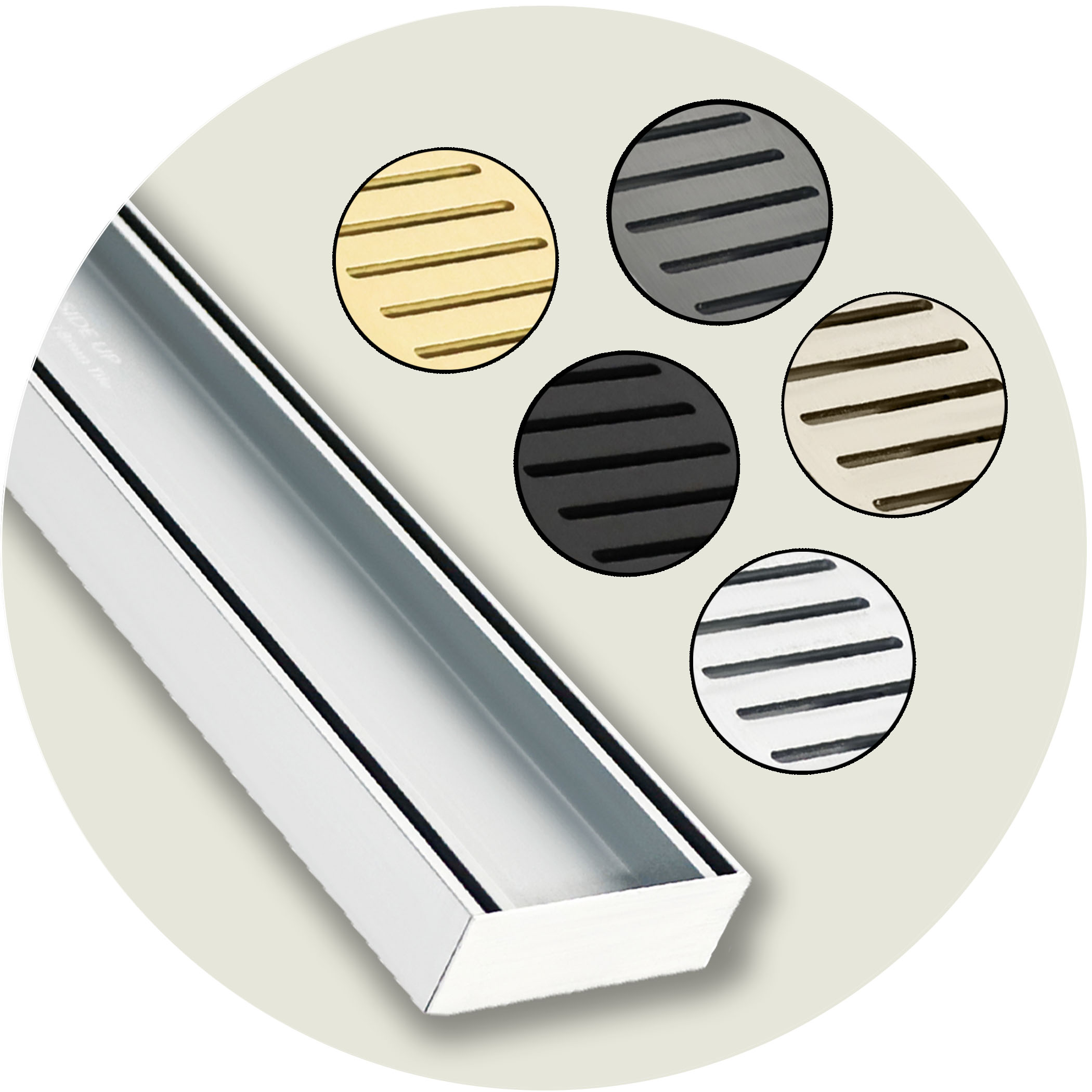

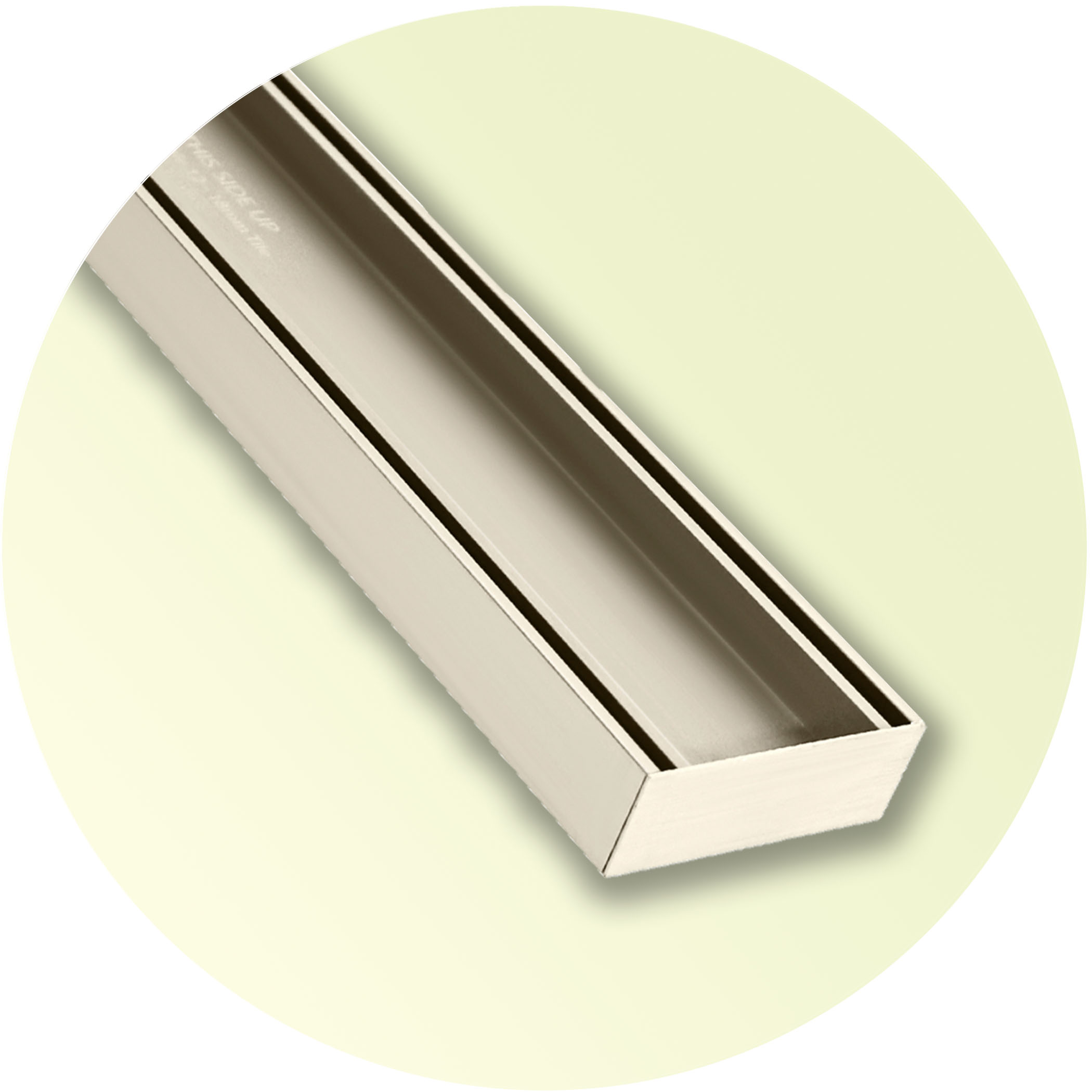

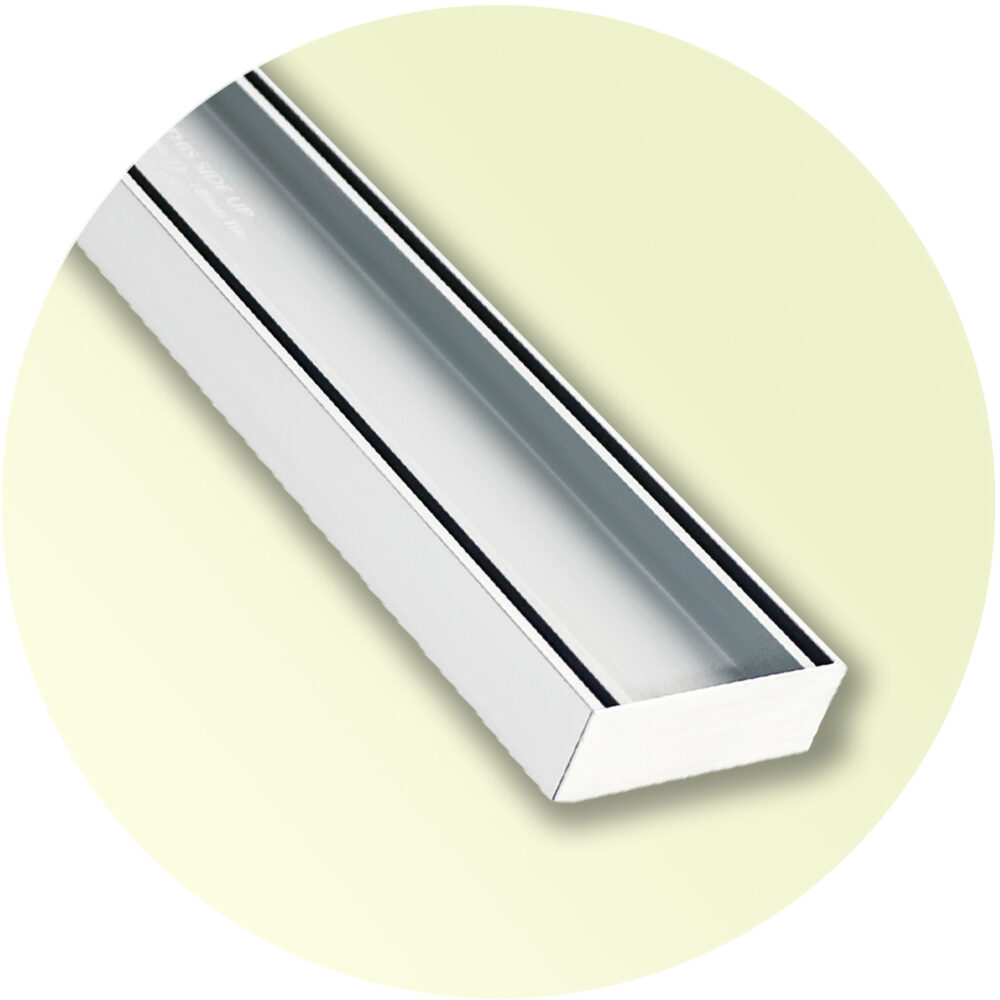

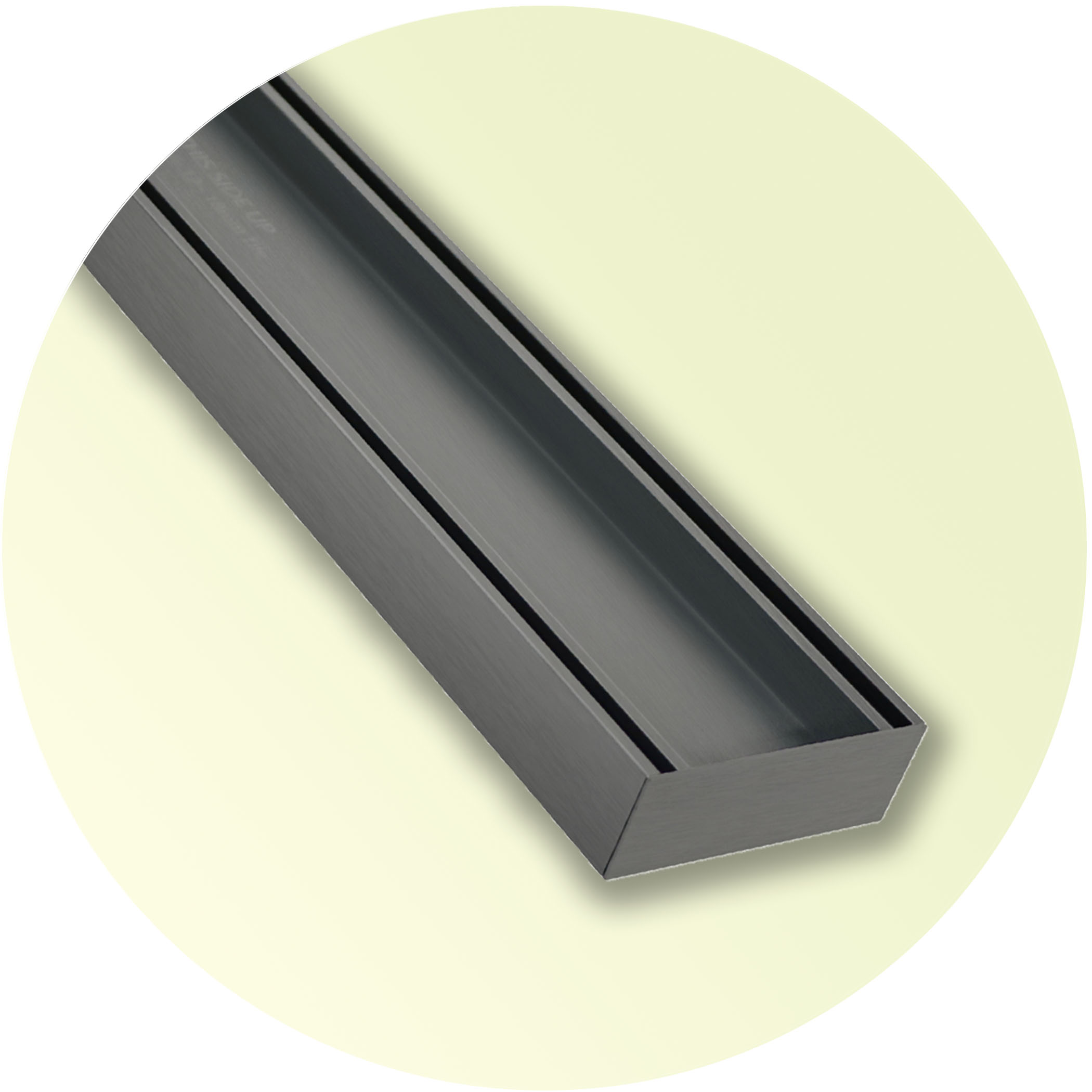

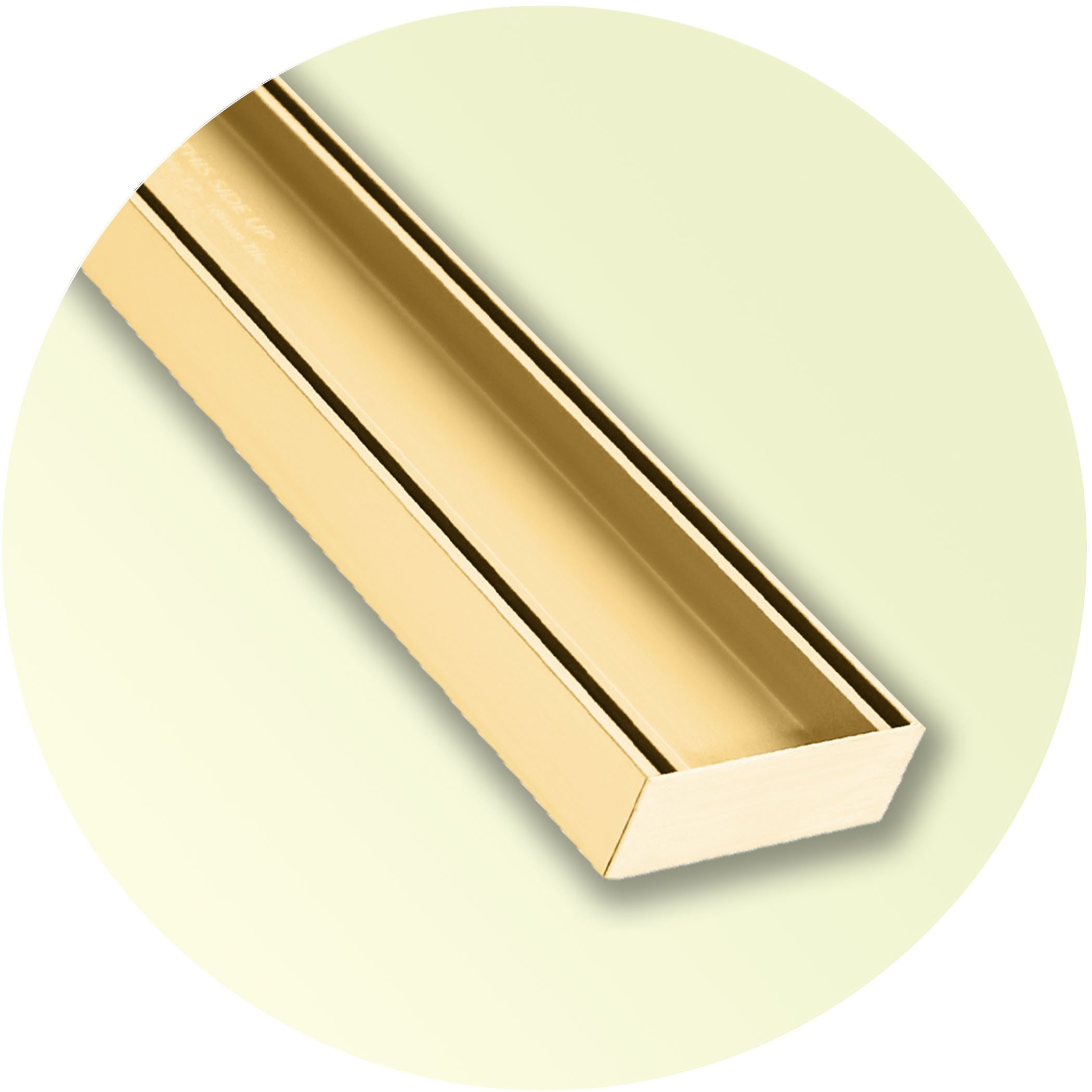

Colours Silver, Midnight, Gold, Brushed Nickel and Gunmetal
Certification WaterMark certified, per Lauxes
Tech sheet Lauxes TIP35 tech sheet (PDF)

Where to Use

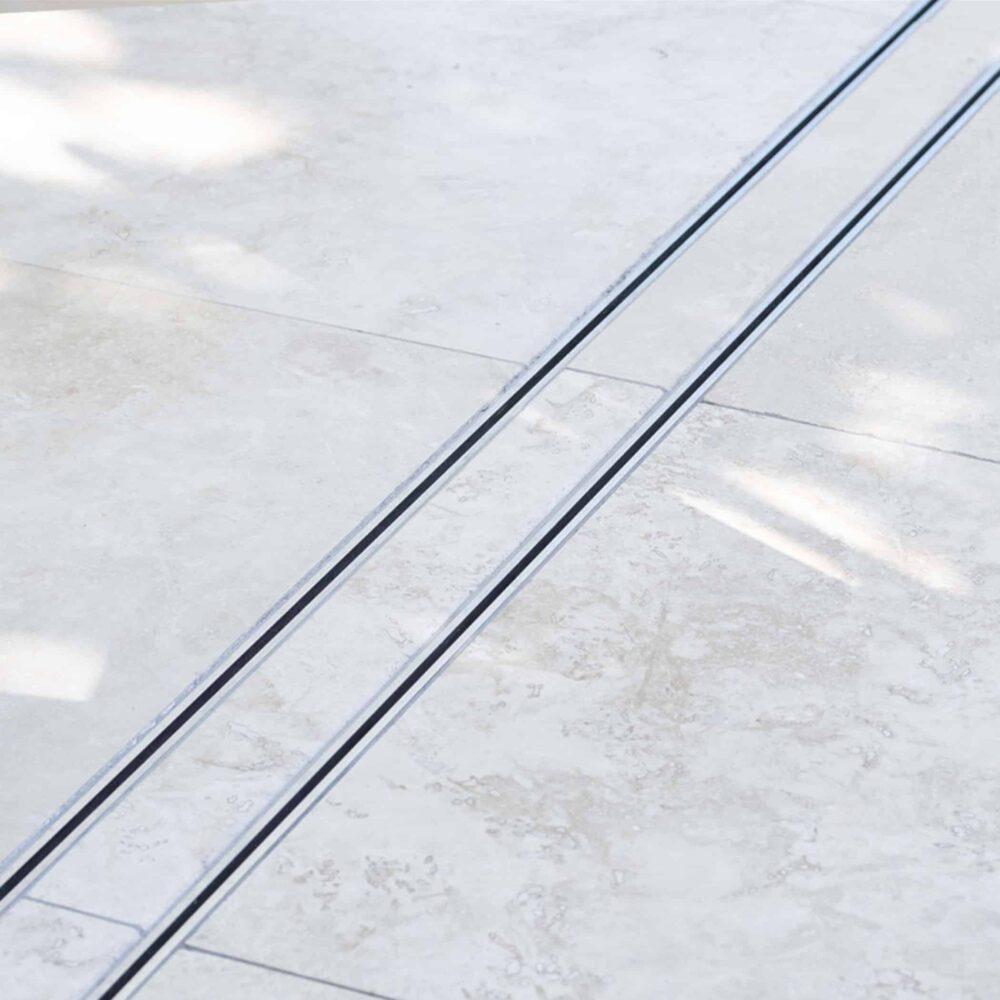

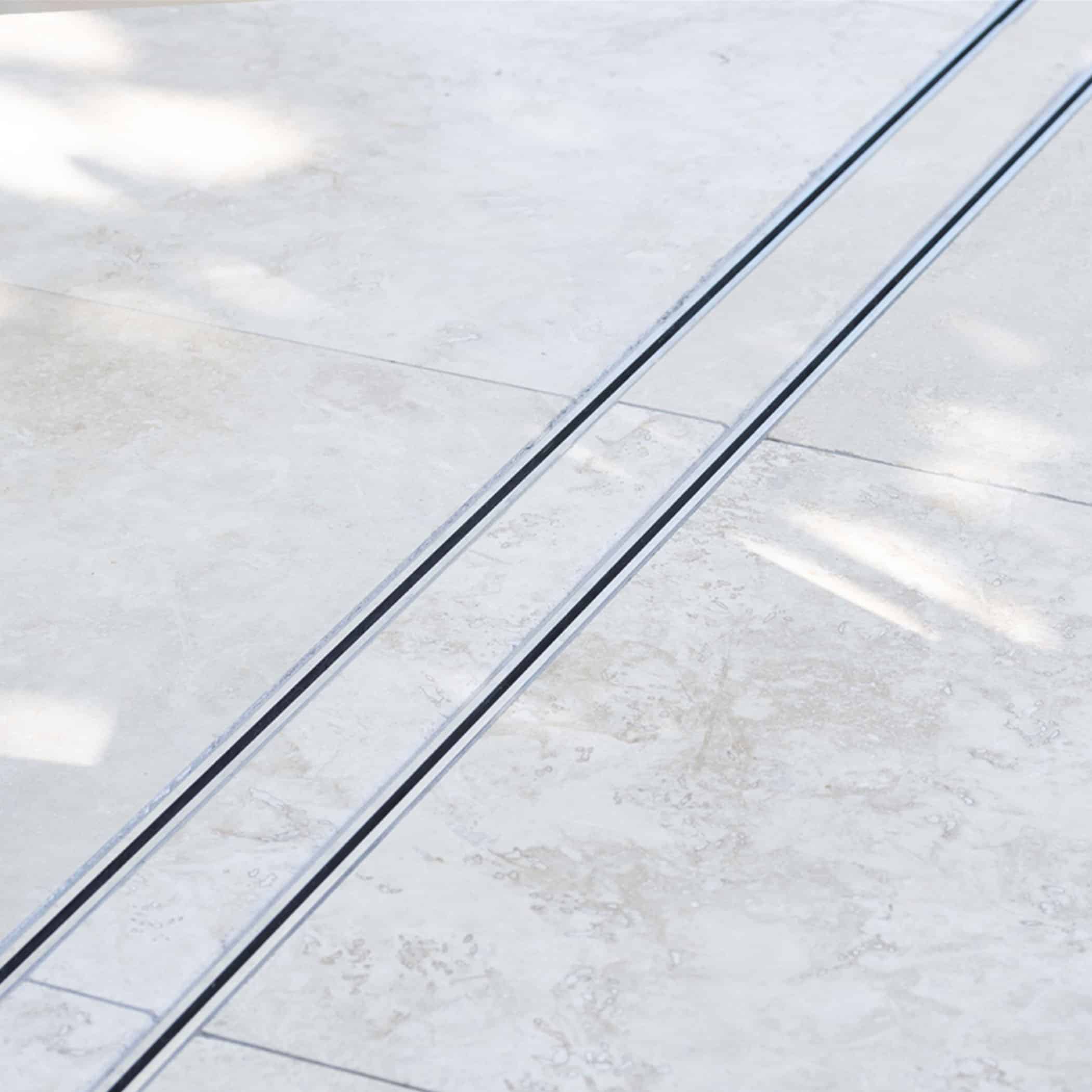

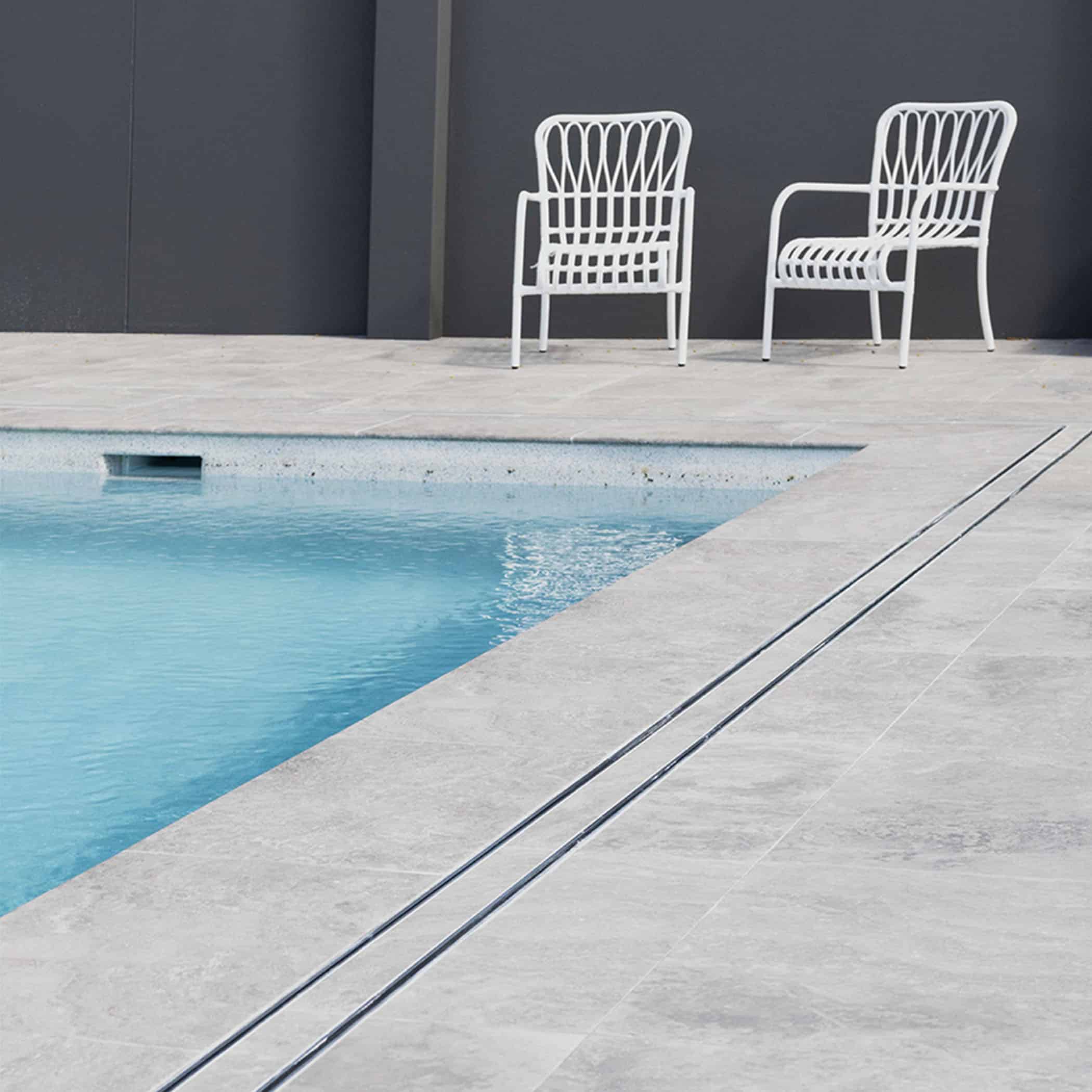

  • Pool surrounds tiled in travertine or natural stone
  • Outdoor entertaining areas
  • Outdoor floors finished in matching tile
  • Other outdoor projects, as Lauxes recommends

How to Install

A licensed plumber must install the grate into the puddle flange. Summary of the Lauxes installation guide (PDF), not DIY instructions:

  1. Template the recess — use a template 10-20 mm wider than the grate; the grate must never touch wet cement.
  2. Grate goes in last — after any waterproofing, tiling and grout; Lauxes recommends wall tiles do not cover the end caps.

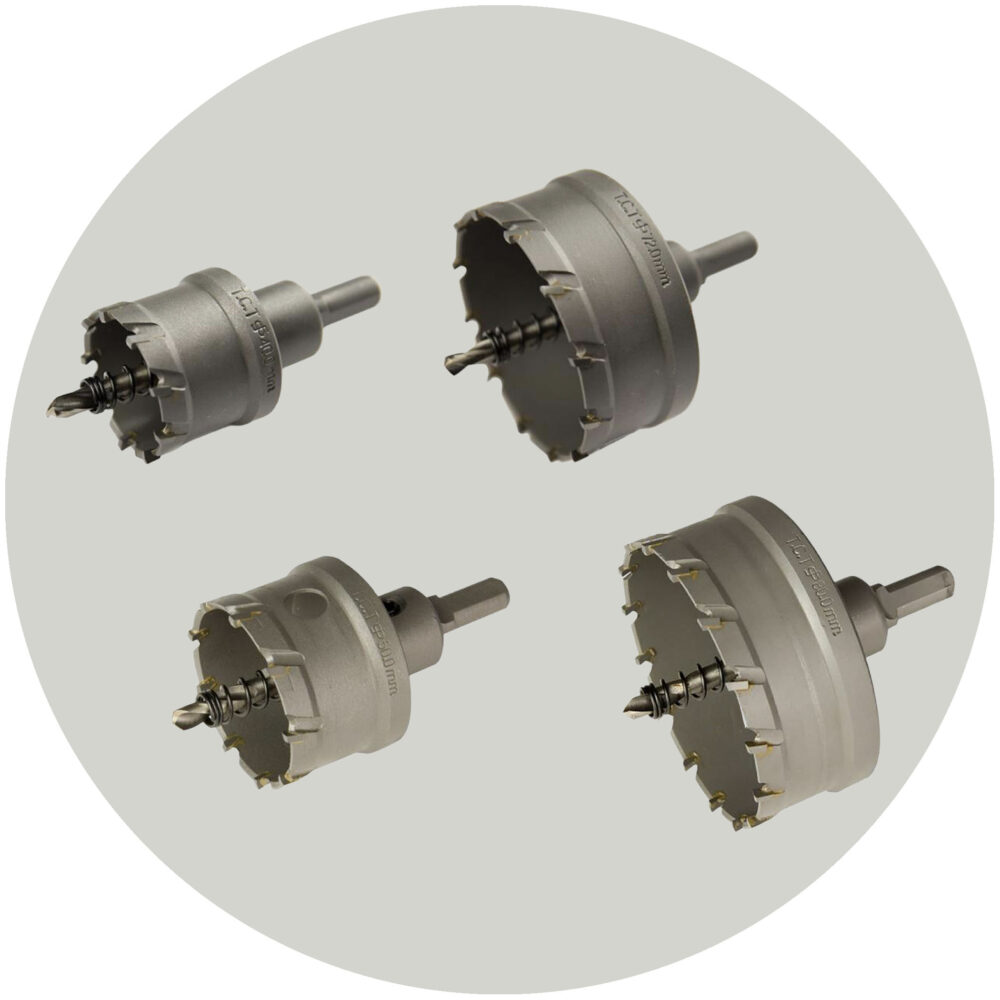

  3. Trim and fit — tray 3 mm shorter than the finished length (thin caps) or 10 mm (thick caps); top 1 mm shorter than the tray’s internal length. Hole-saw the outlet; silicone in caps and outlet.
  4. Bed it level — on large neutral cure silicone blobs, which let trapped water reach the puddle flange. Glue tile in with neutral cure silicone.
  5. Clean and seal — wipe off residue at once; once the blobs dry, silicone the edge.

Lengths, Colours and What’s Included

Order a full 3.0 m or 5.6 m length, or cut to size: enter the finished grate length you need, from 600 to 5600 mm, and we cut it to that length, charging for the next 700 mm length up (2200 mm is charged as 2800 mm; 1400 mm is charged as 1400 mm). Allow for end caps when measuring (the Lauxes guide allowance is in step 3). Over 3000 mm, including full 5.6 m lengths, delivery is quoted at checkout (you pay once it’s priced) or you can pick up; up to 3000 mm delivers as normal.

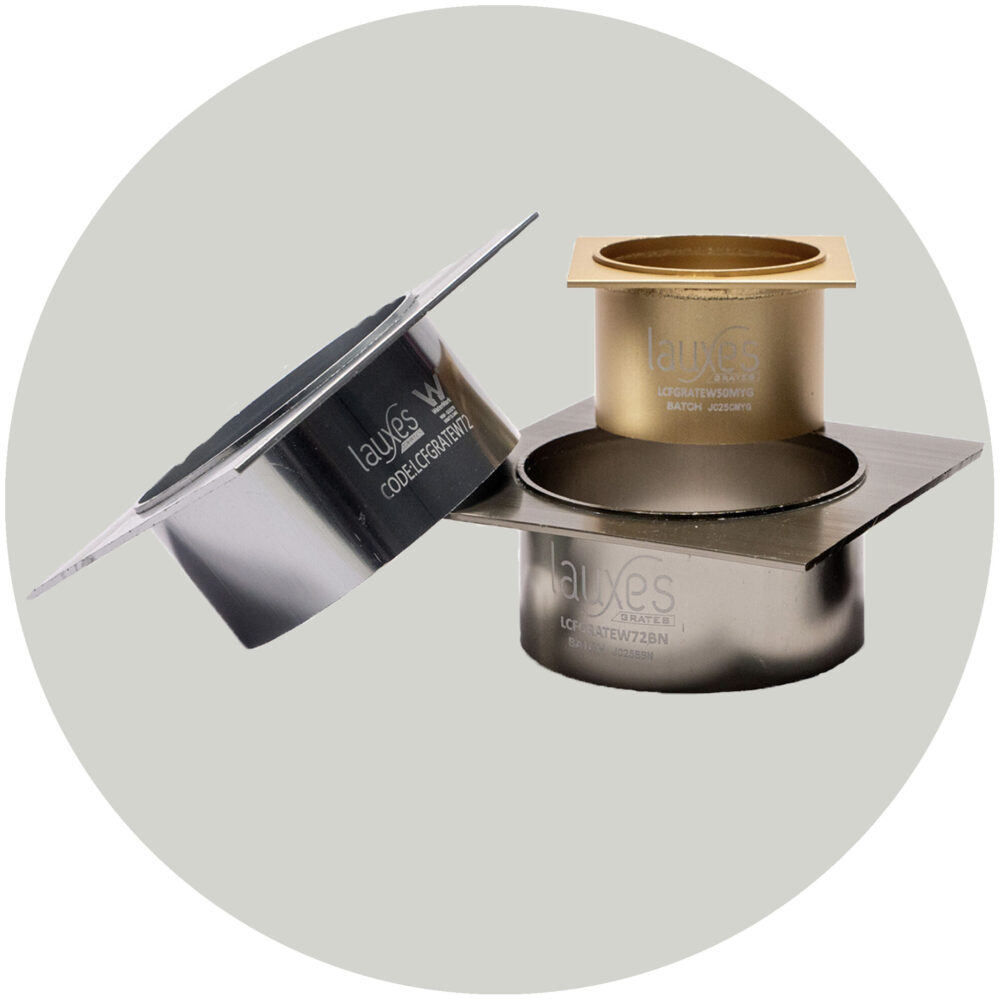

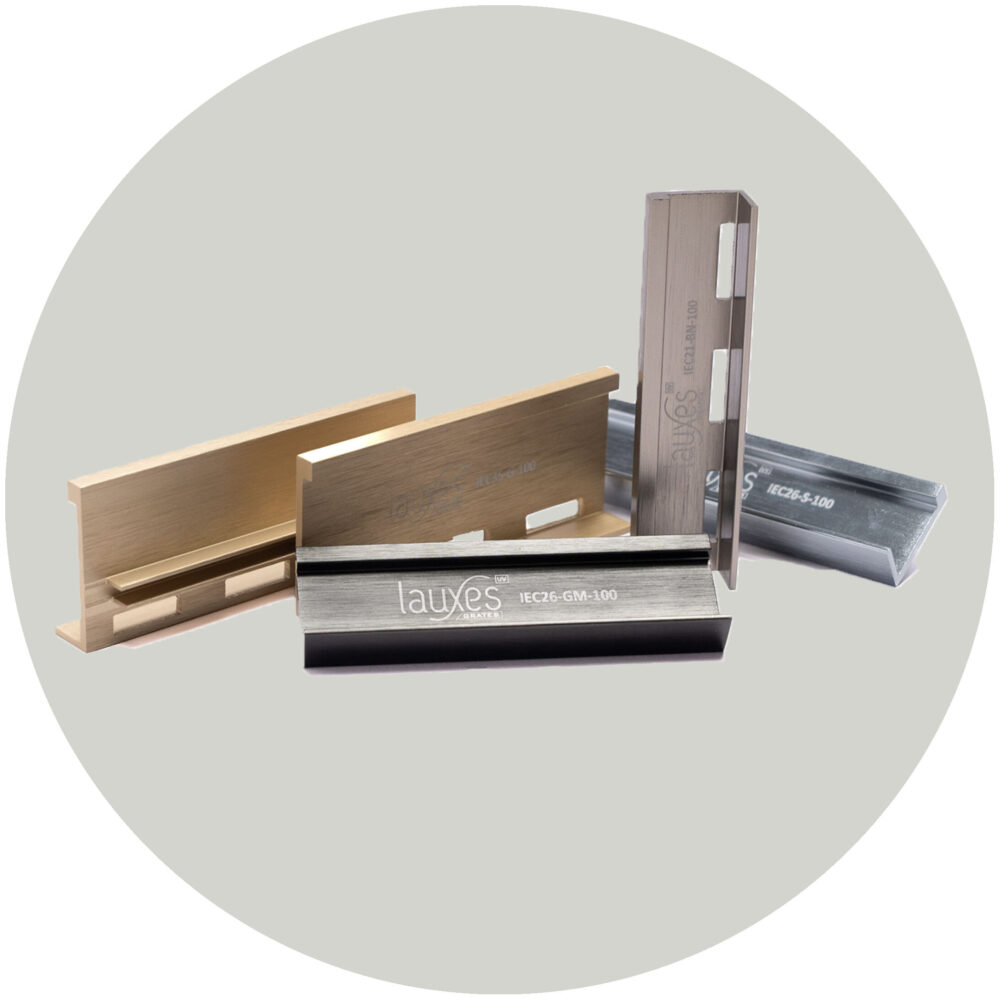

Every grate includes one matching 40, 50, 72 or 80 mm waste outlet of your choice and two matching end caps, thin (EC35) or thick (TEC35). Colours may vary slightly.

Important Notes

  • Per Lauxes, the grate is WaterMark certified, not part of the waterproofing, and must be installed in a WaterMark puddle flange by a licensed plumber, as legally required.
  • Clean with soapy water at least every three months, more in marine areas; never abrasives or acids. Confirm outlet size with your plumber.
  • Lauxes’ manufacturer’s warranty: a Lifetime Rustproof Warranty for the original owner (licensed plumber installing to AS 3740, an initial clean straight after, no metal debris) and a minimum 25-year fade guarantee (proper care, installation to AS/NZS 3500.2). Normal wear, misuse and accidental damage are excluded. This manufacturer’s warranty is in addition to your rights under the Australian Consumer Law; contact Multifors first if there’s a problem.

Frequently Asked Questions

What tile thickness does the Lauxes TIP35 take?

Up to 20 mm thick, as stated on the Lauxes tech sheet, catalogue and product page.

Is the Tile Insert Plus 35 for indoor or outdoor use?

Outdoor, per the Lauxes tech sheet, although its catalogue says indoor/outdoor.

Which waste outlets suit the TIP35?

40, 50, 72 or 80 mm (DN90). Lauxes recommends 80 mm and lists 68 LPM for DN80, noting flow depends largely on the connected plumbing.

Key Features

  • 35 mm deep tile insert designed for thicker tiles
  • Holds tiles up to 20 mm thick
  • Suits large format tiles such as travertine or stone, per Lauxes
  • Recommended for outdoor usage (Lauxes tech sheet)
  • No water tracking, with an easy roll-out system for cleaning
  • Lauxes rates it Class B, up to 10.2 tonnes on average
  • Waste can be positioned anywhere along the bottom tray

Additional information

Length

Cut to size, Full length 3.0 m, Full length 5.6 m

Colour

Brushed Nickel, Gold, Gunmetal, Midnight, Silver

Variation

Matching 40mm Waste Outlet, Matching 50mm Waste Outlet, Matching 72mm Waste Outlet, Matching 80mm Waste Outlet

Accessory Range

Drains

Frequently asked questions

What tile thickness does the Lauxes TIP35 take?

Up to 20 mm thick, as stated on the Lauxes tech sheet, catalogue and product page.

Is the Tile Insert Plus 35 for indoor or outdoor use?

Outdoor, per the Lauxes tech sheet, although its catalogue says indoor/outdoor.

Which waste outlets suit the TIP35?

40, 50, 72 or 80 mm (DN90). Lauxes recommends 80 mm and lists 68 LPM for DN80, noting flow depends largely on the connected plumbing.
