Description

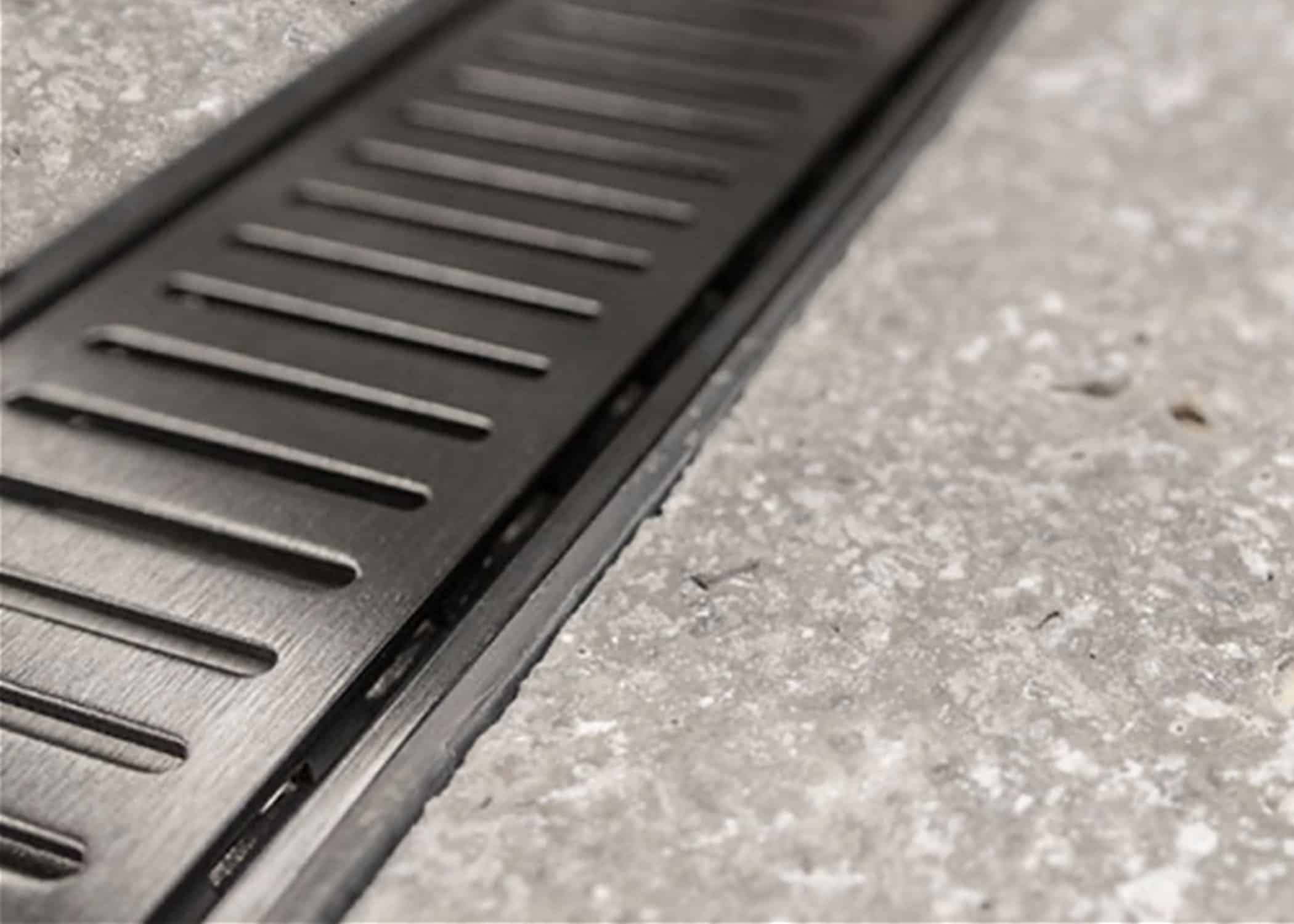

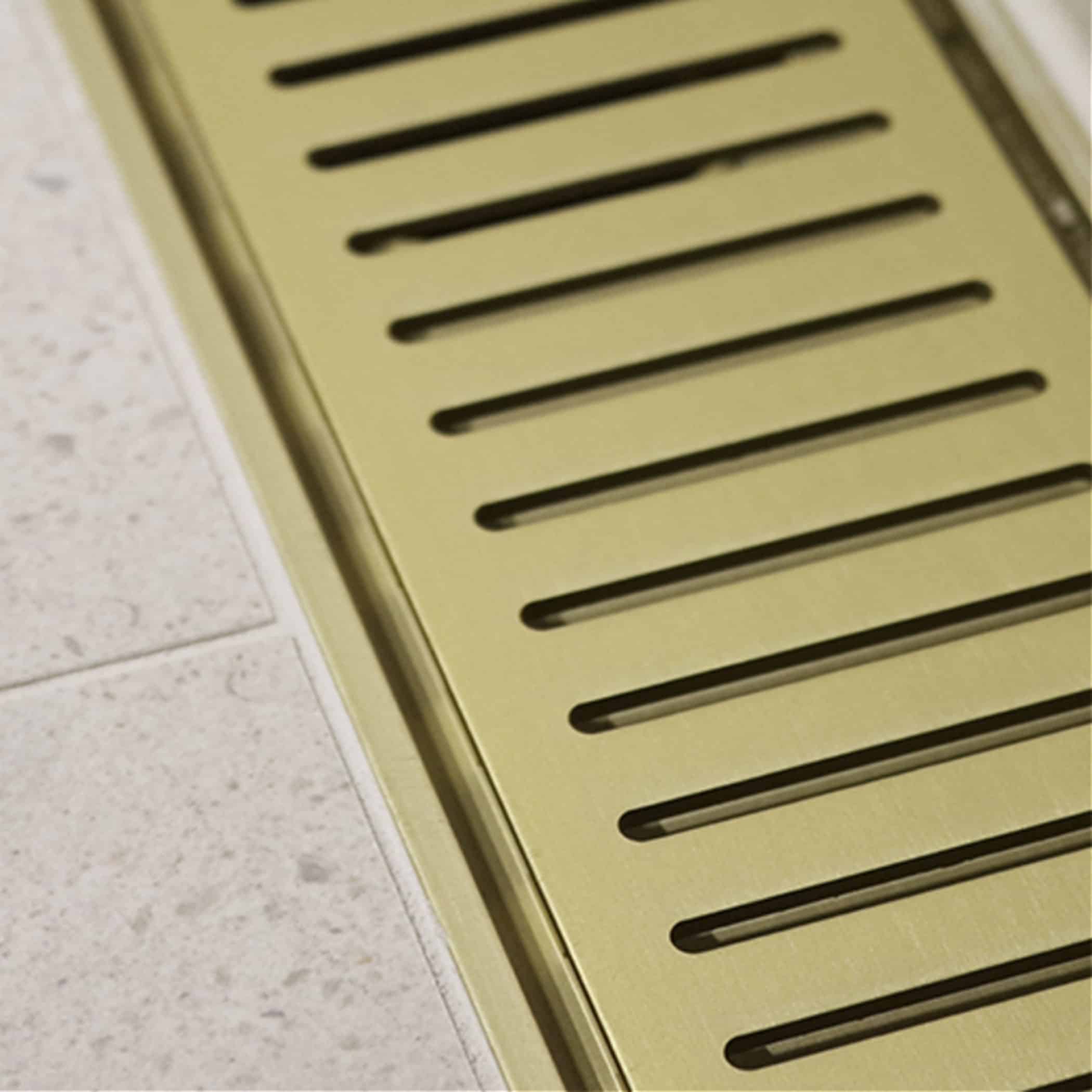

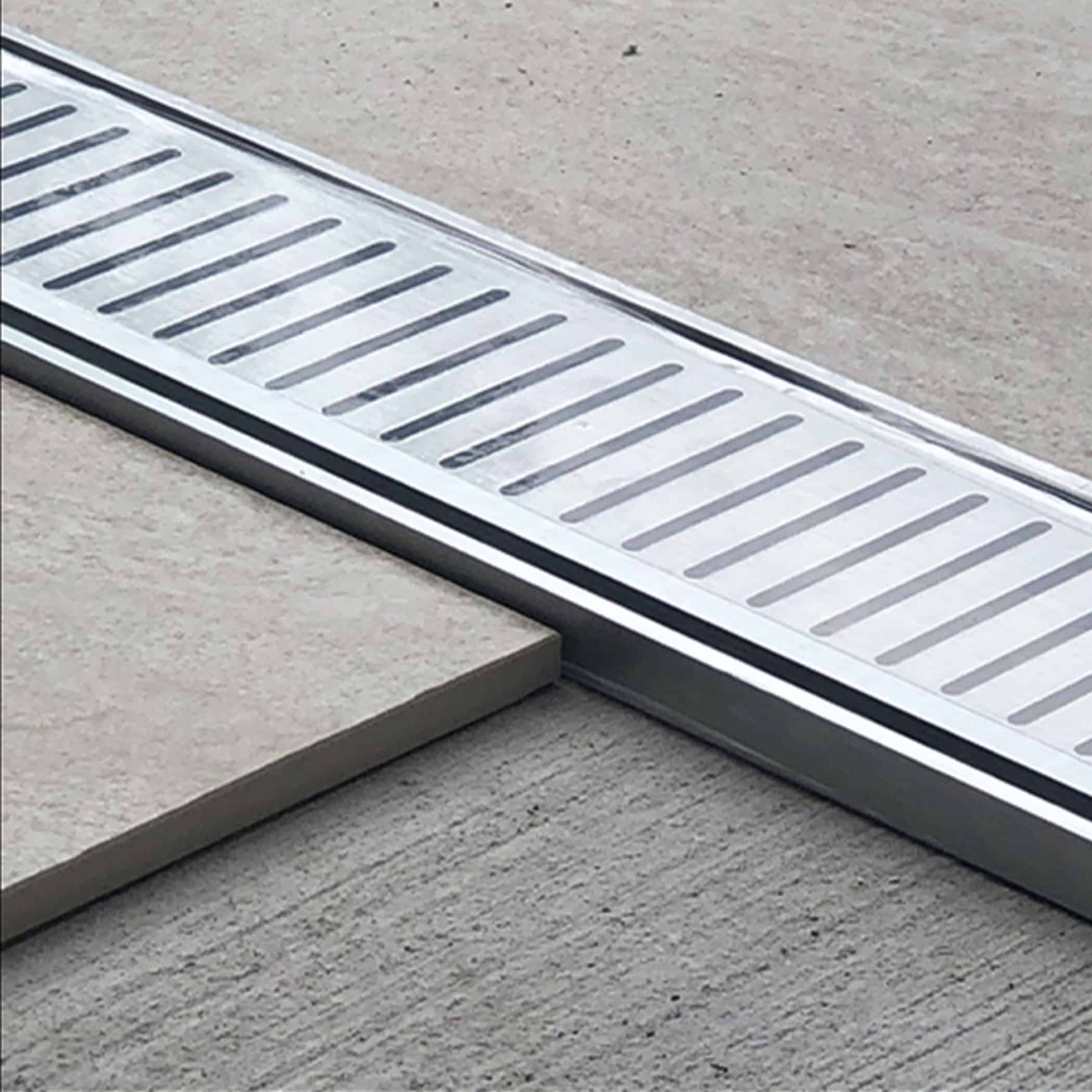

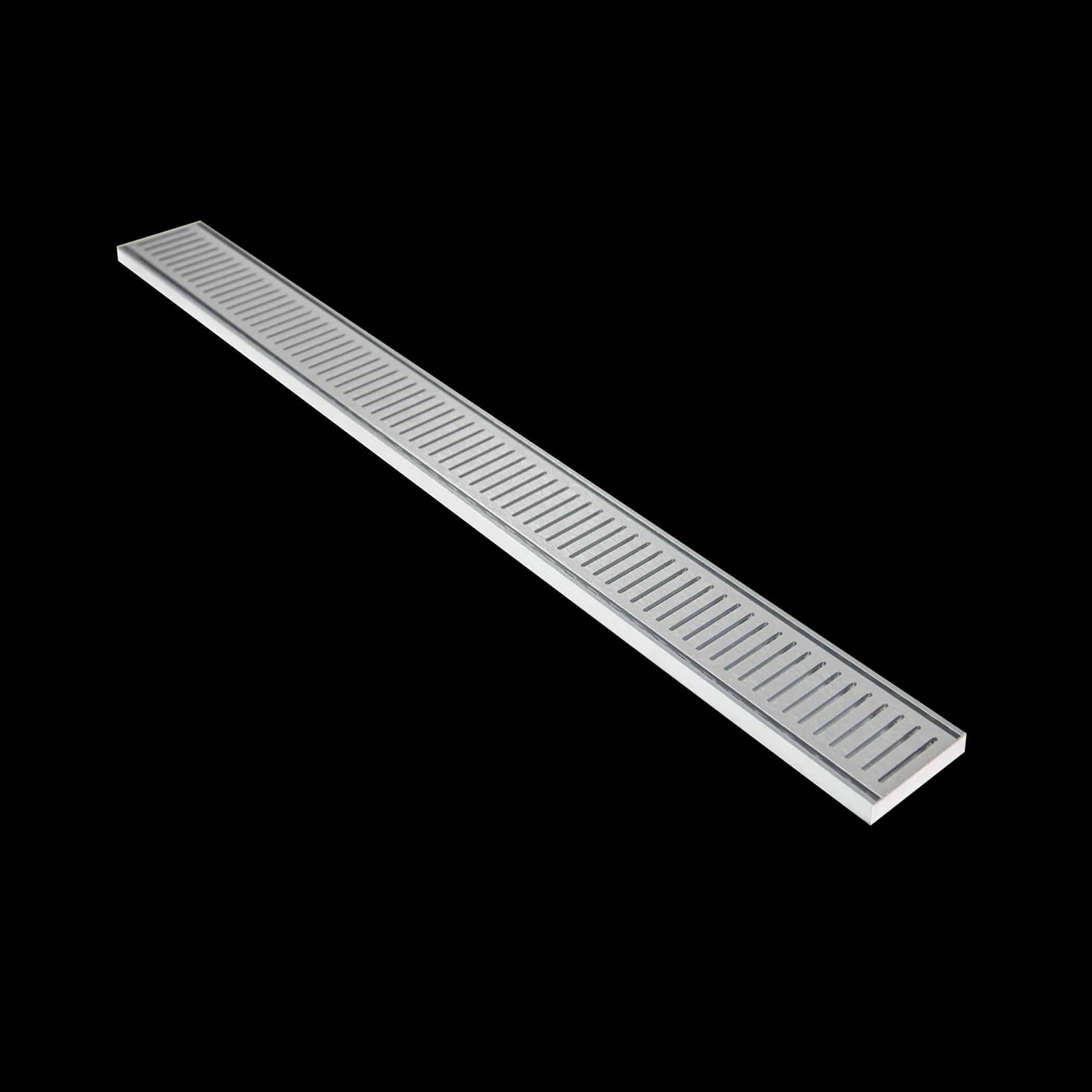

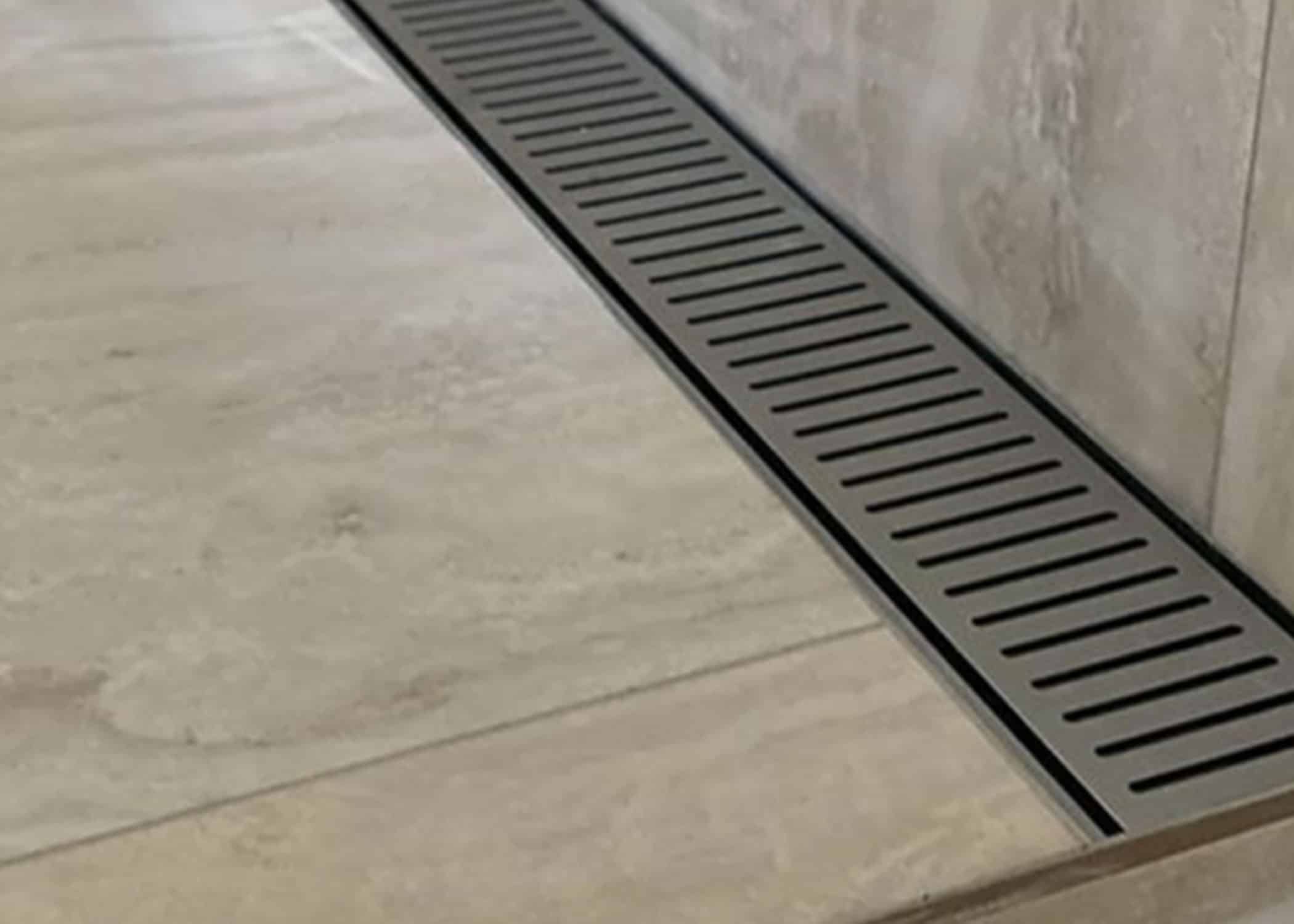

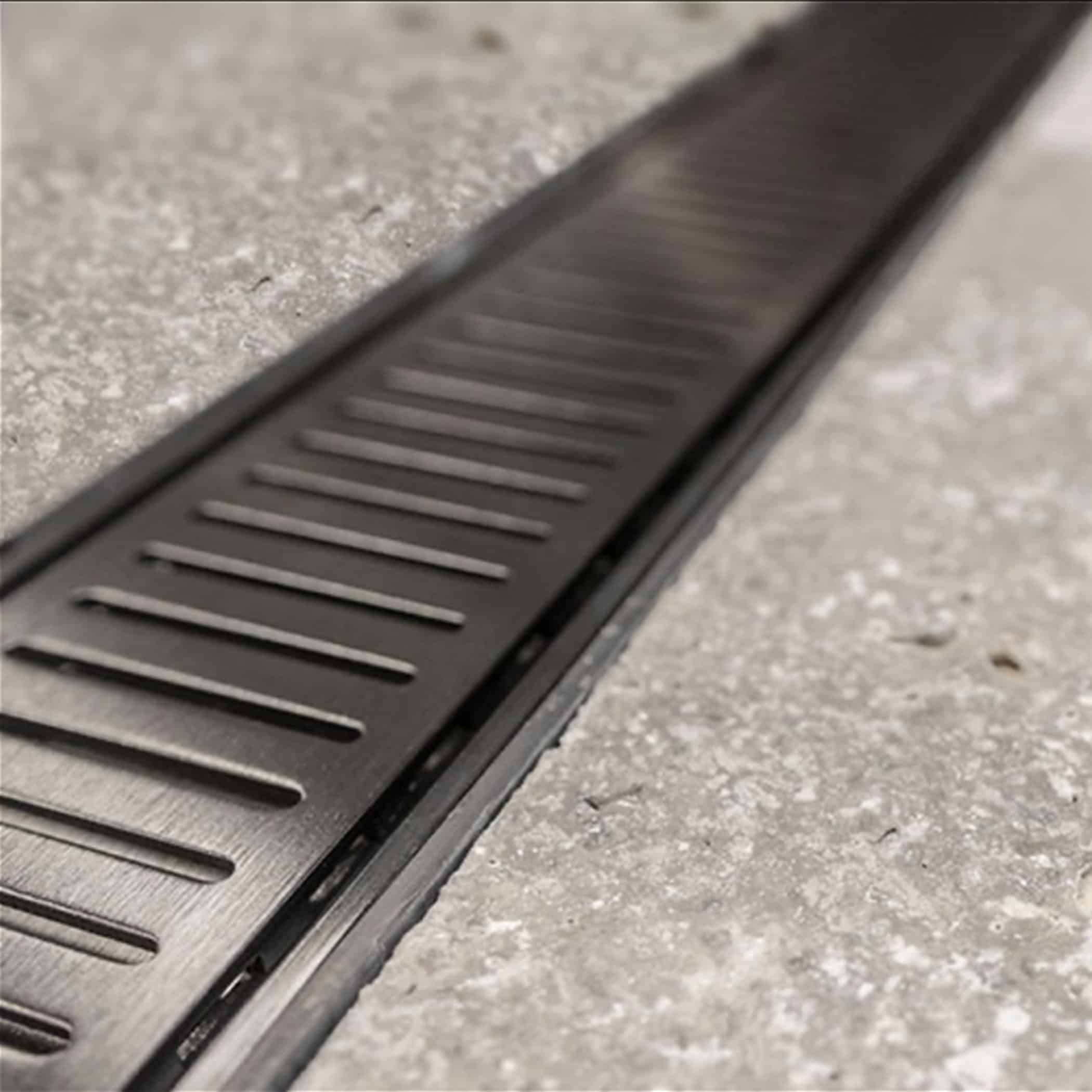

Lauxes NXT26 Linear Floor Grate is an anti-tracking, anodised aluminium grate built for both indoor and outdoor linear drainage, with a 100mm wide by 26mm deep cross-section that suits a genuinely wide range of shower, wet-room and outdoor drainage applications. As part of the NeXT Generation range, it’s engineered to sit flush with surrounding tile and glue at roughly the same overall thickness, avoiding an awkward step or ledge at the drain line.
No bedding is required for installation, and the easy roll-out tray design means ongoing maintenance and cleaning doesn’t require lifting surrounding tile or disturbing the installation — a genuine practical advantage over grates that are harder to access once tiled in. Being UV stable and backed by both a 25-year fade warranty and a lifetime rustproof warranty gives real confidence for outdoor installations exposed to sun and weather, not just protected indoor wet areas.

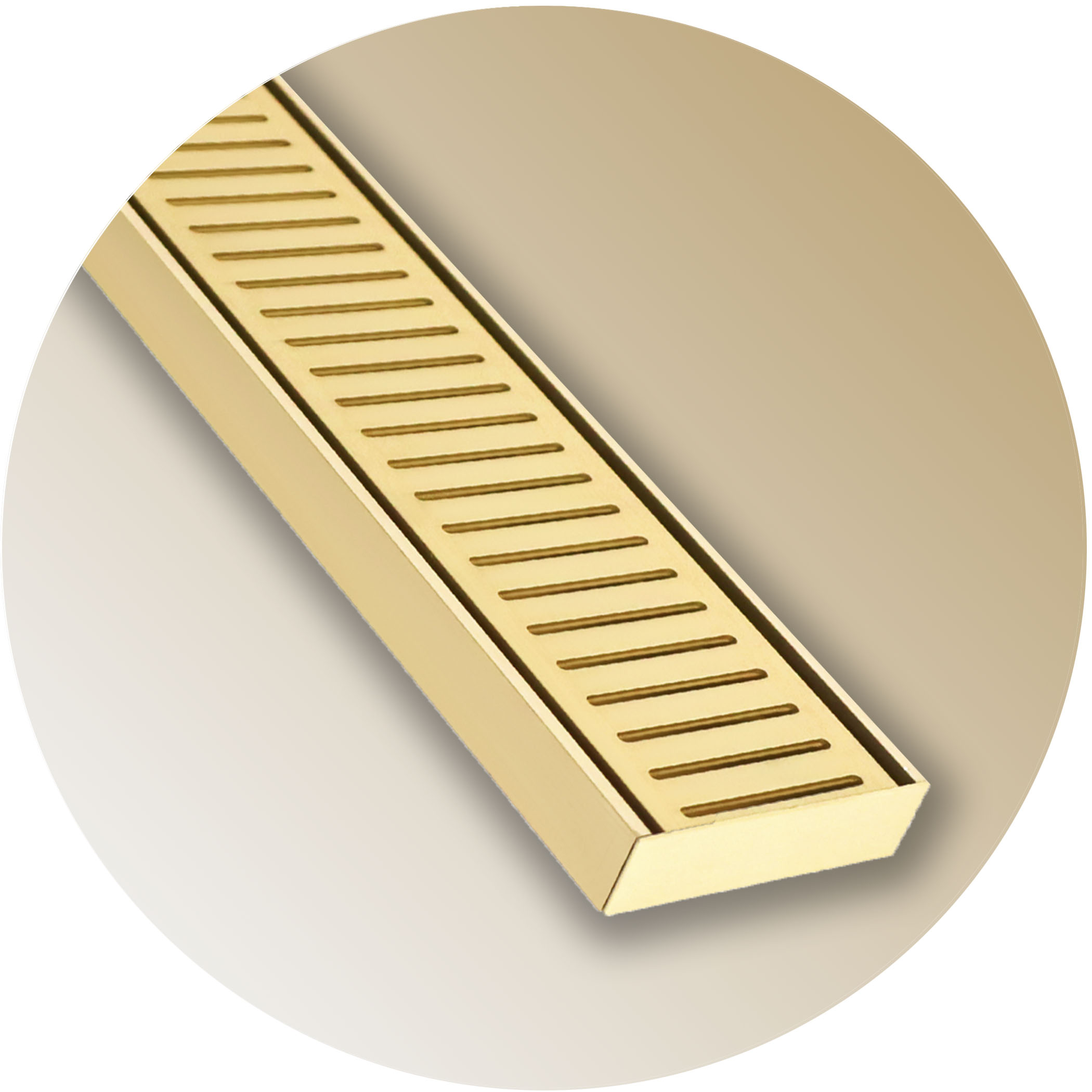

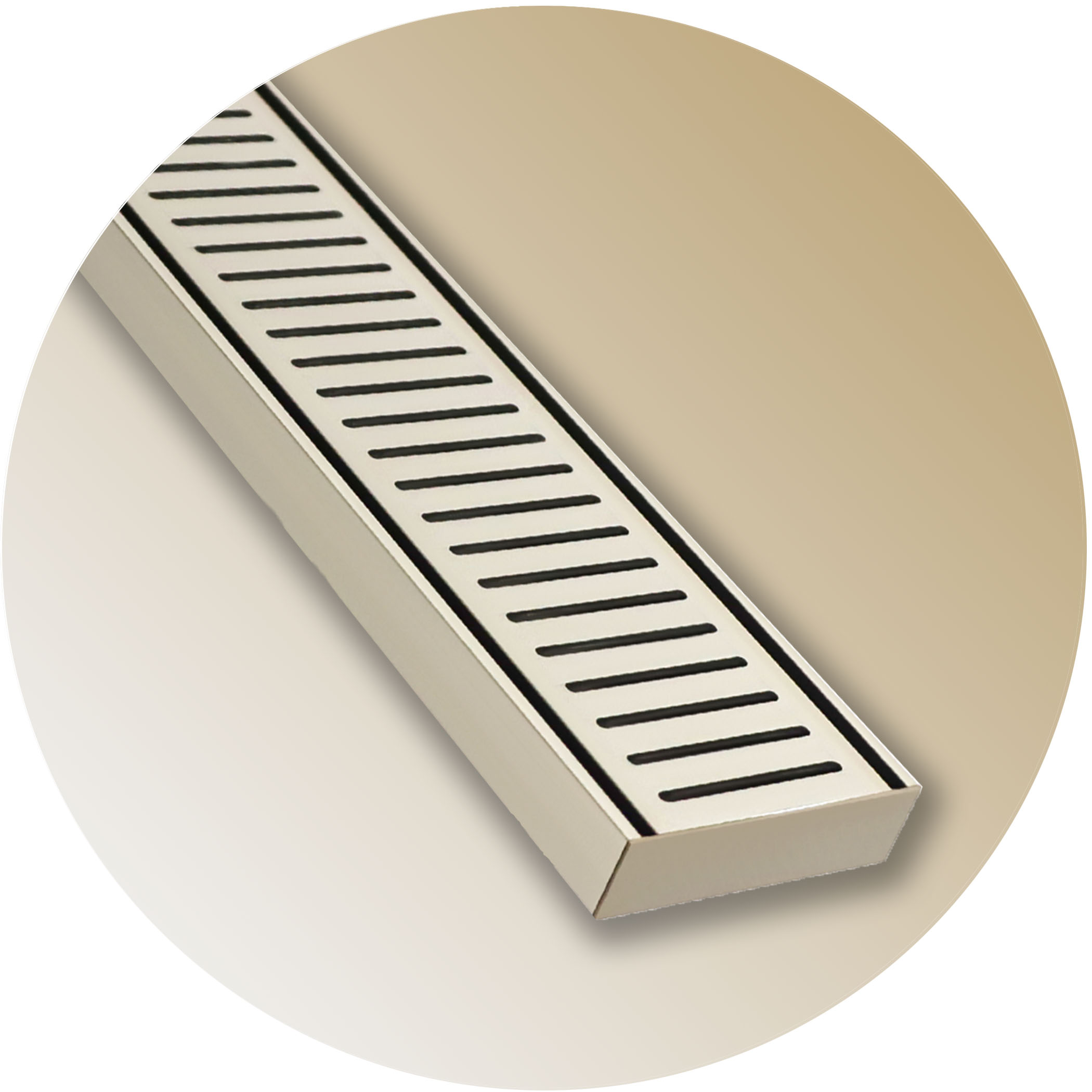

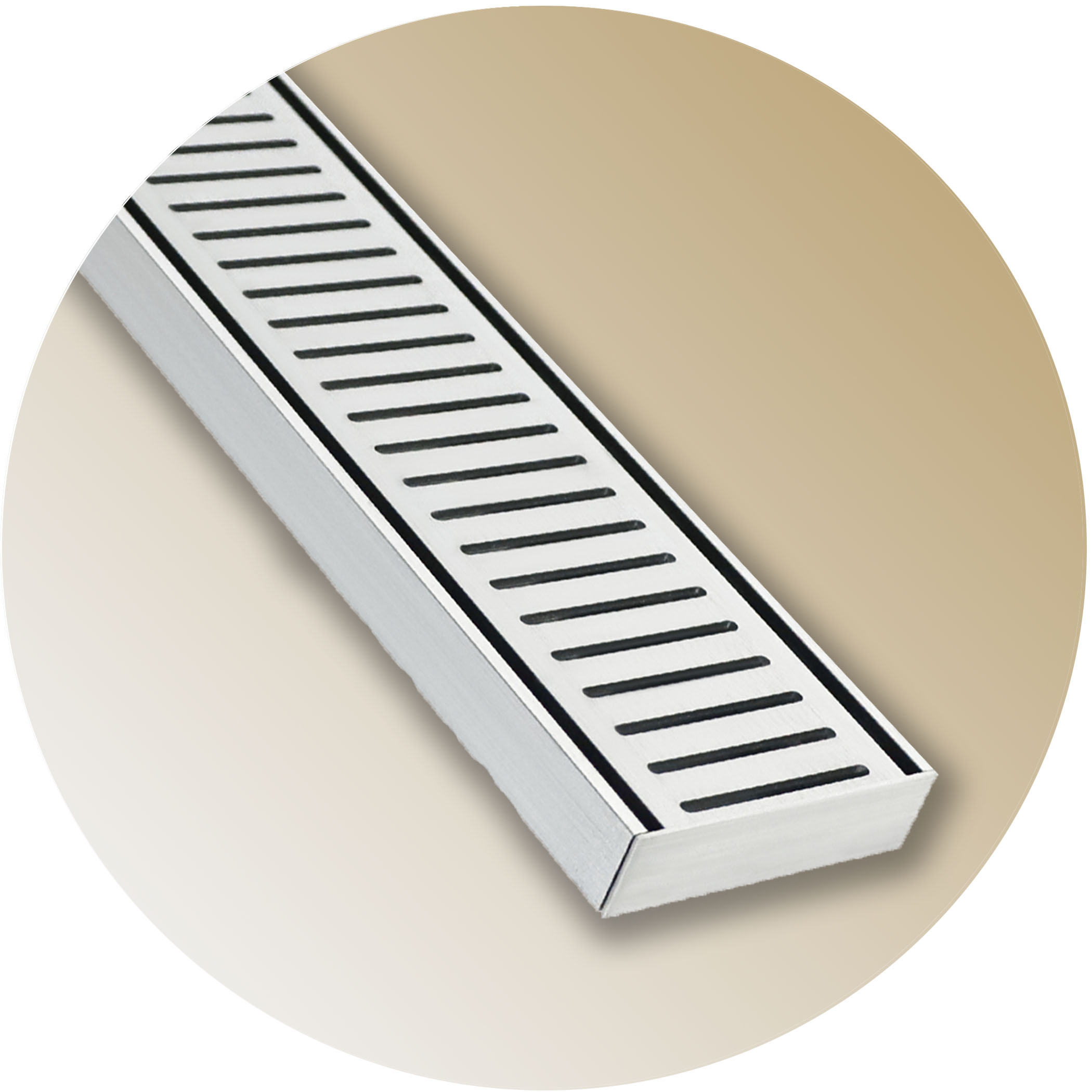

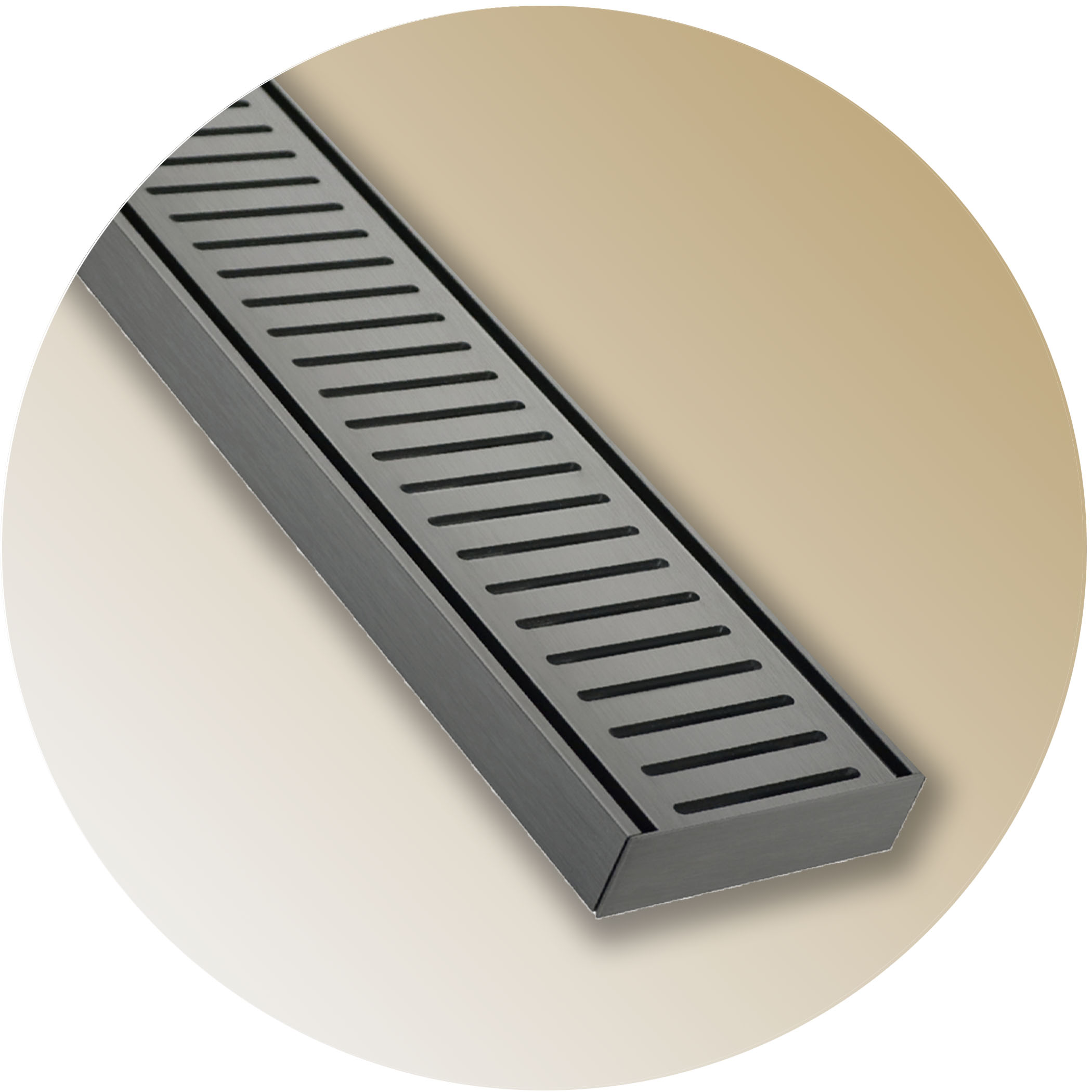

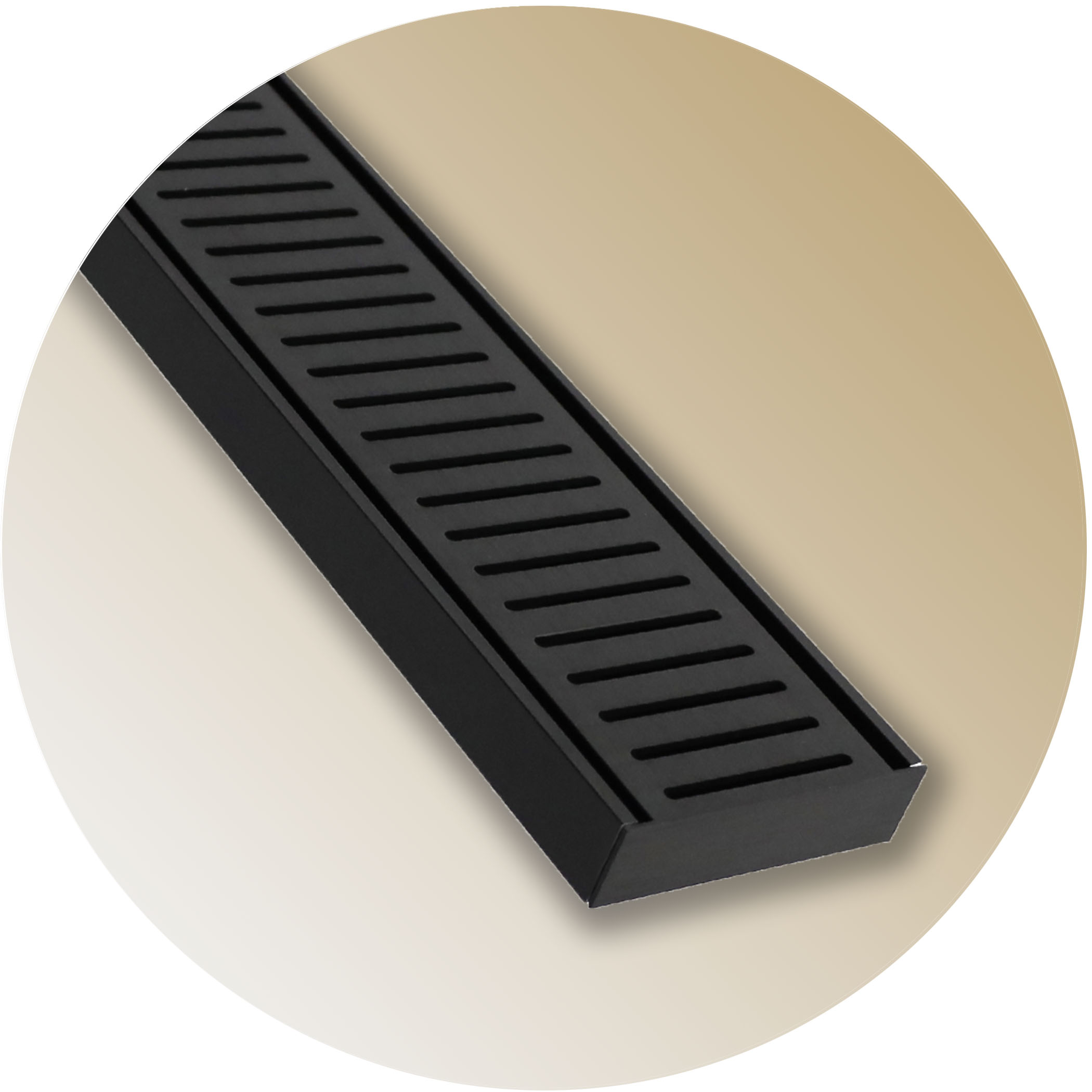

Available in lengths from 0.6m to 5.6m in 5mm increments, and extendable further with Lauxes 180° extension joiners, it covers everything from a small ensuite shower to a long linear drain running the length of an outdoor entertaining area. Five anodised finishes — Silver, Midnight, Gold, Brushed Nickel and Gunmetal — let it be matched to the surrounding fixtures and fittings rather than being limited to a single generic metal tone.
Choosing between the five available finishes lets the NXT26 coordinate directly with tapware, shower screens and other bathroom or outdoor hardware rather than defaulting to a single generic silver tone, which matters increasingly as matt black, brushed nickel and gunmetal fixtures become standard specification choices in contemporary bathroom and outdoor design. Its thick-as-tile-and-glue profile also keeps the transition between grate and surrounding surface genuinely flush rather than creating a step.
Technical Specifications

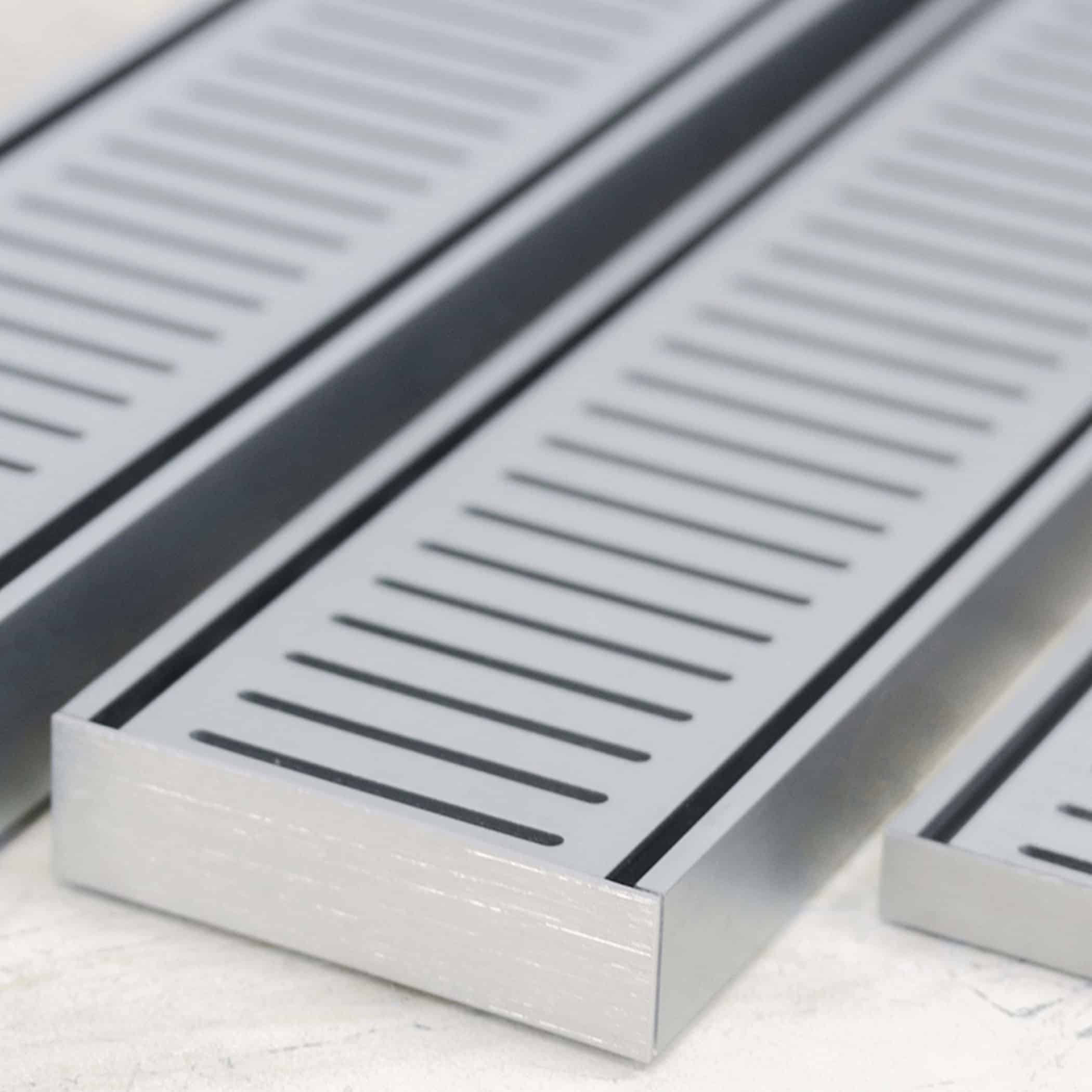

| Cross-section | 100mm wide x 26mm deep |
|---|---|
| Length range | 0.6m to 5.6m in 5mm increments |
| Spigot options | 40mm, 50mm, 72mm or 80mm |

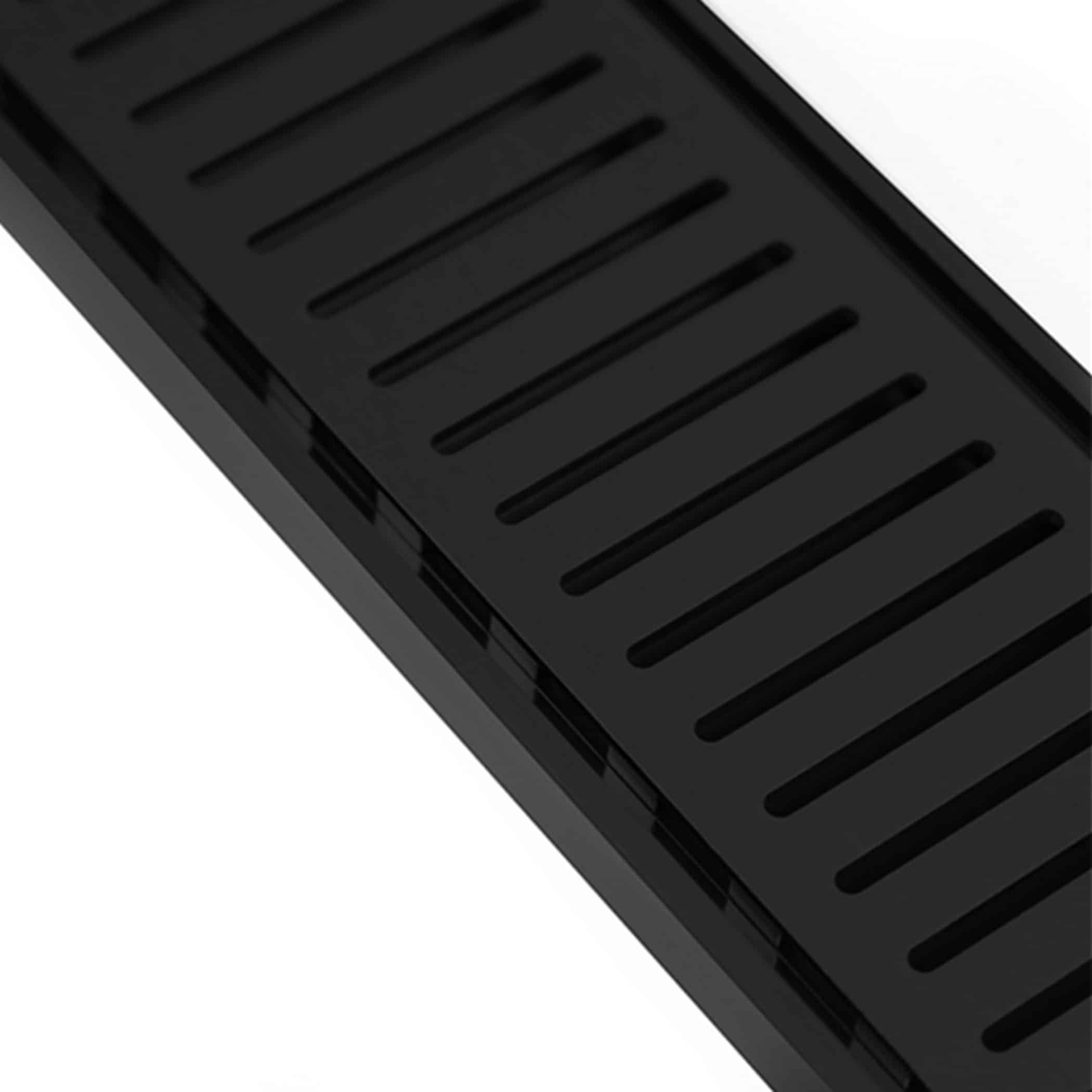

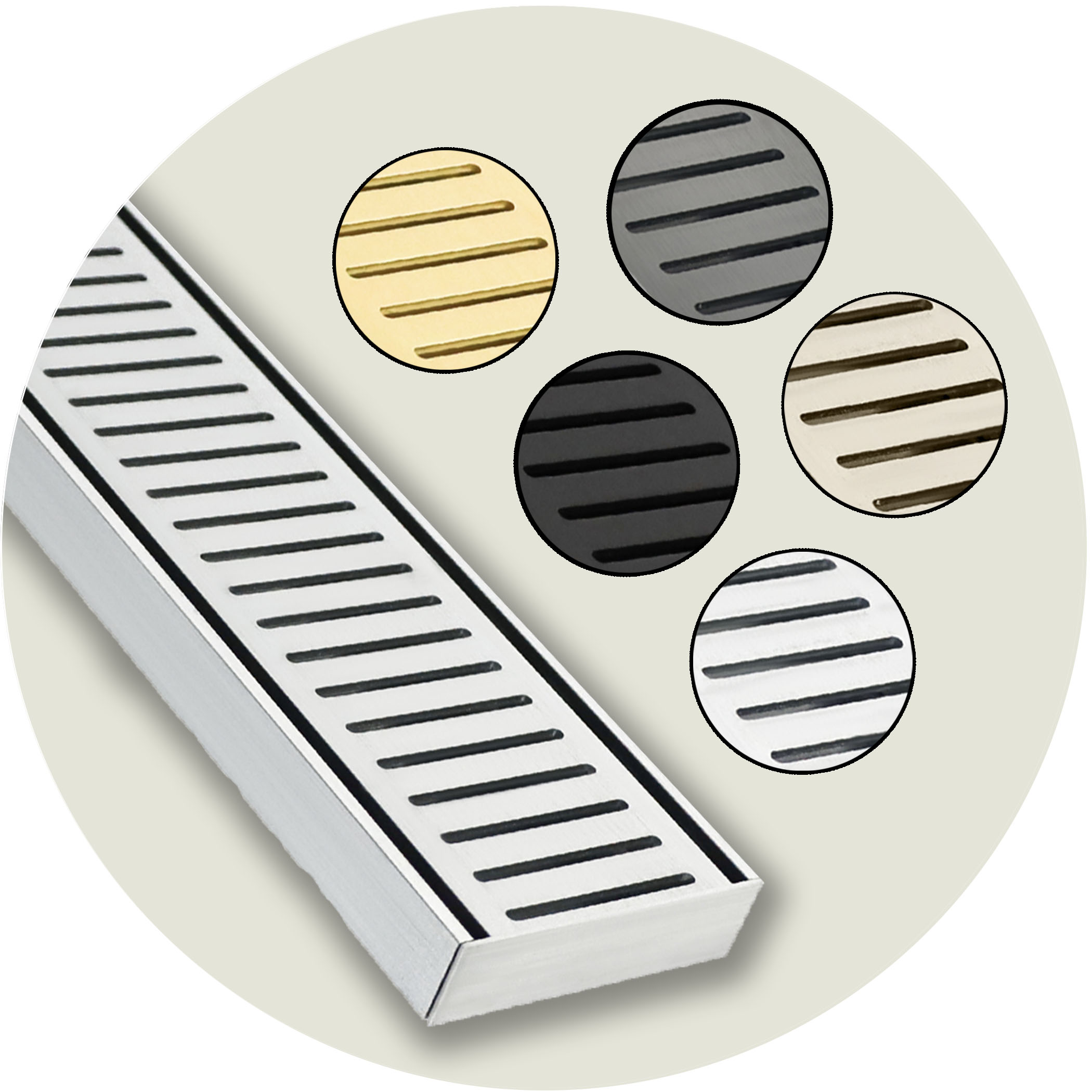

| Finishes | Silver, Midnight, Gold, Brushed Nickel, Gunmetal |
| Warranty | 25-year fade warranty, lifetime rustproof warranty |
Where to Use

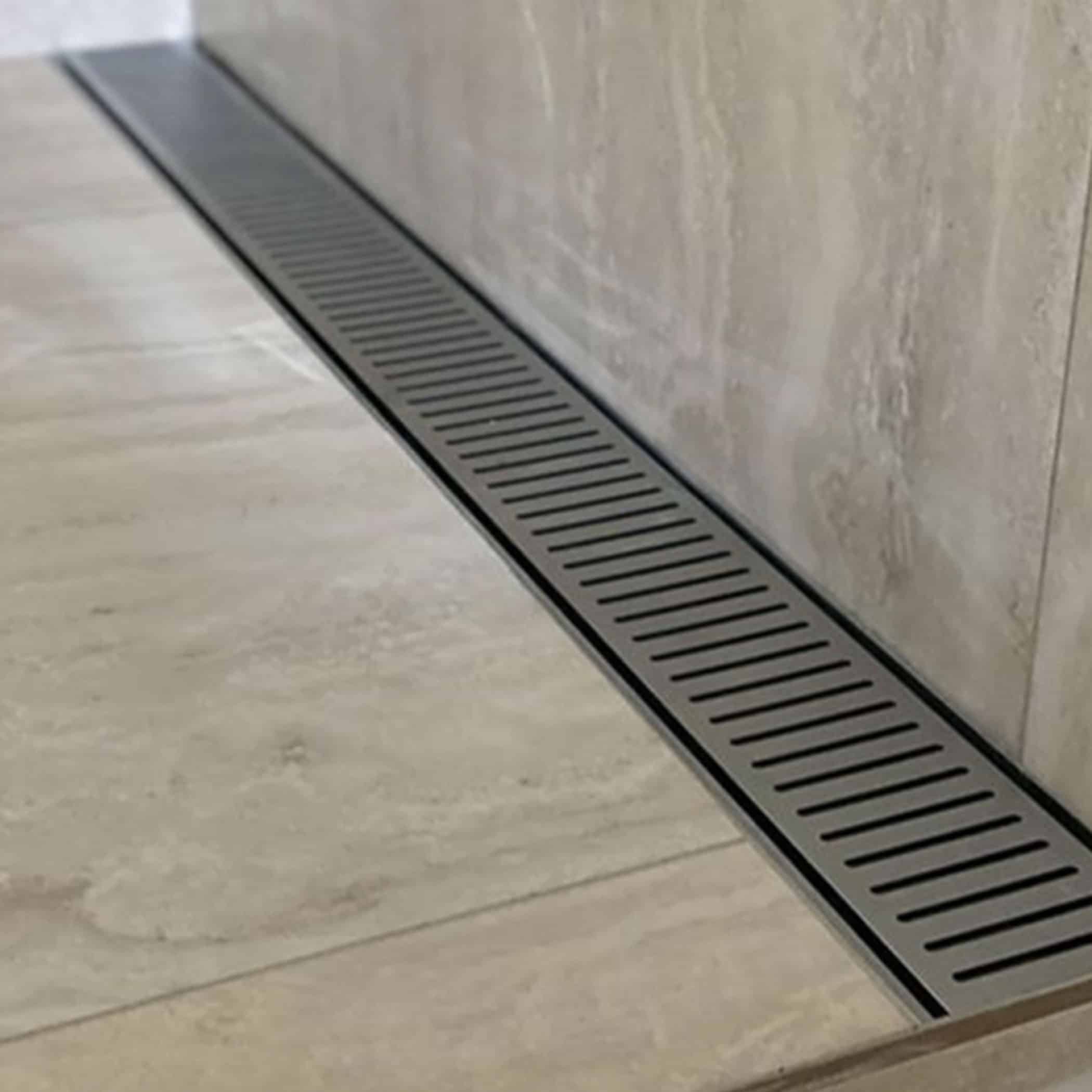

- Indoor shower and wet-room linear drainage

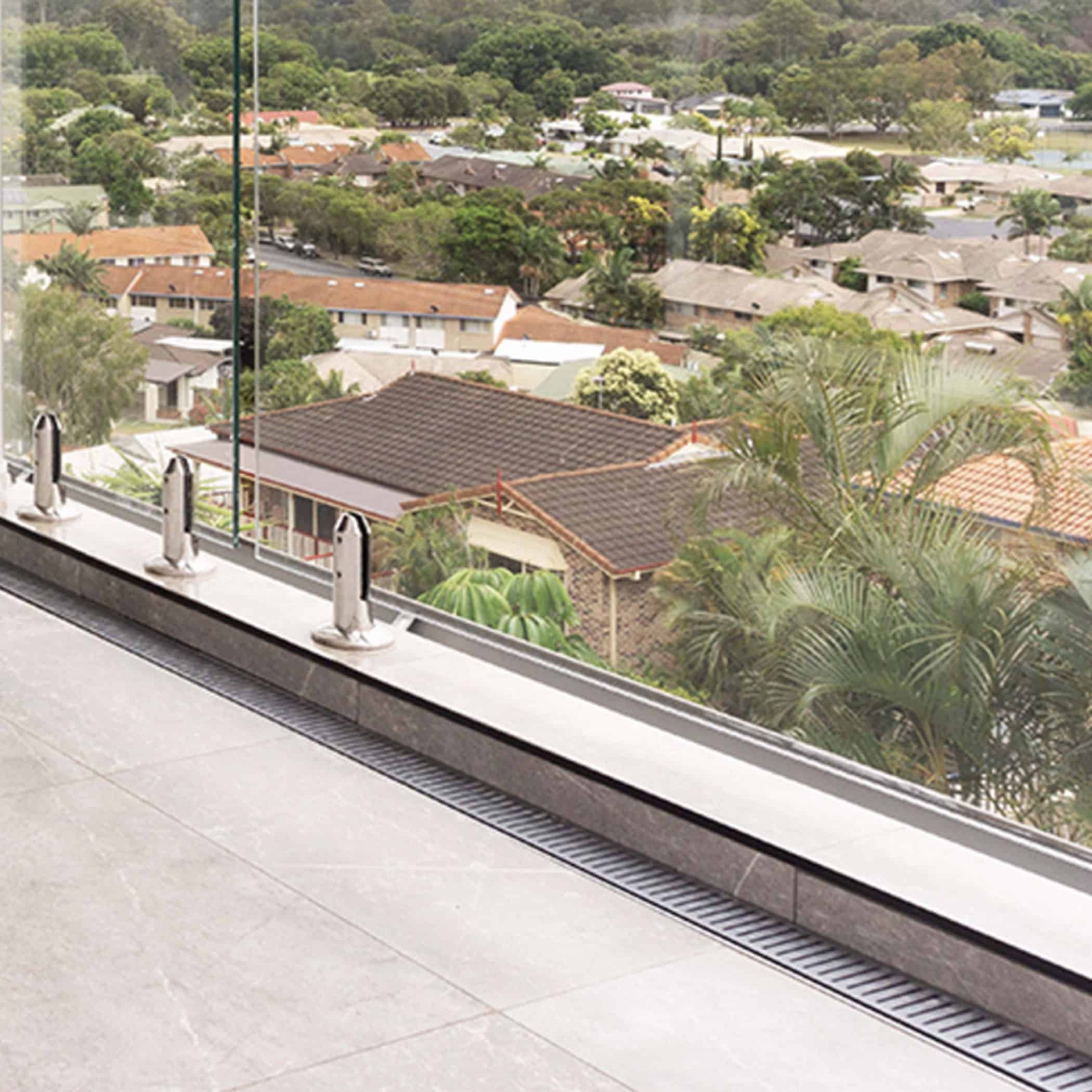

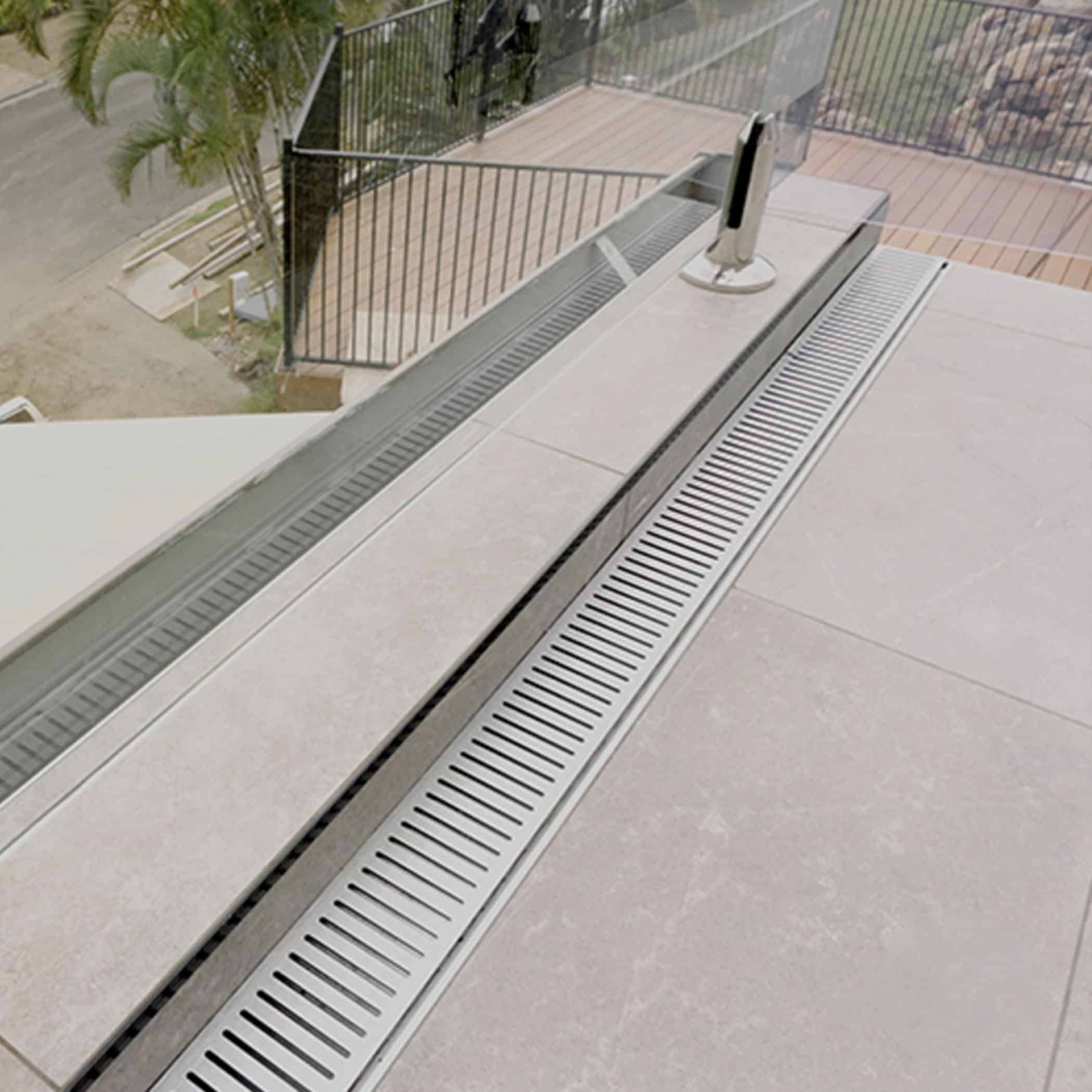

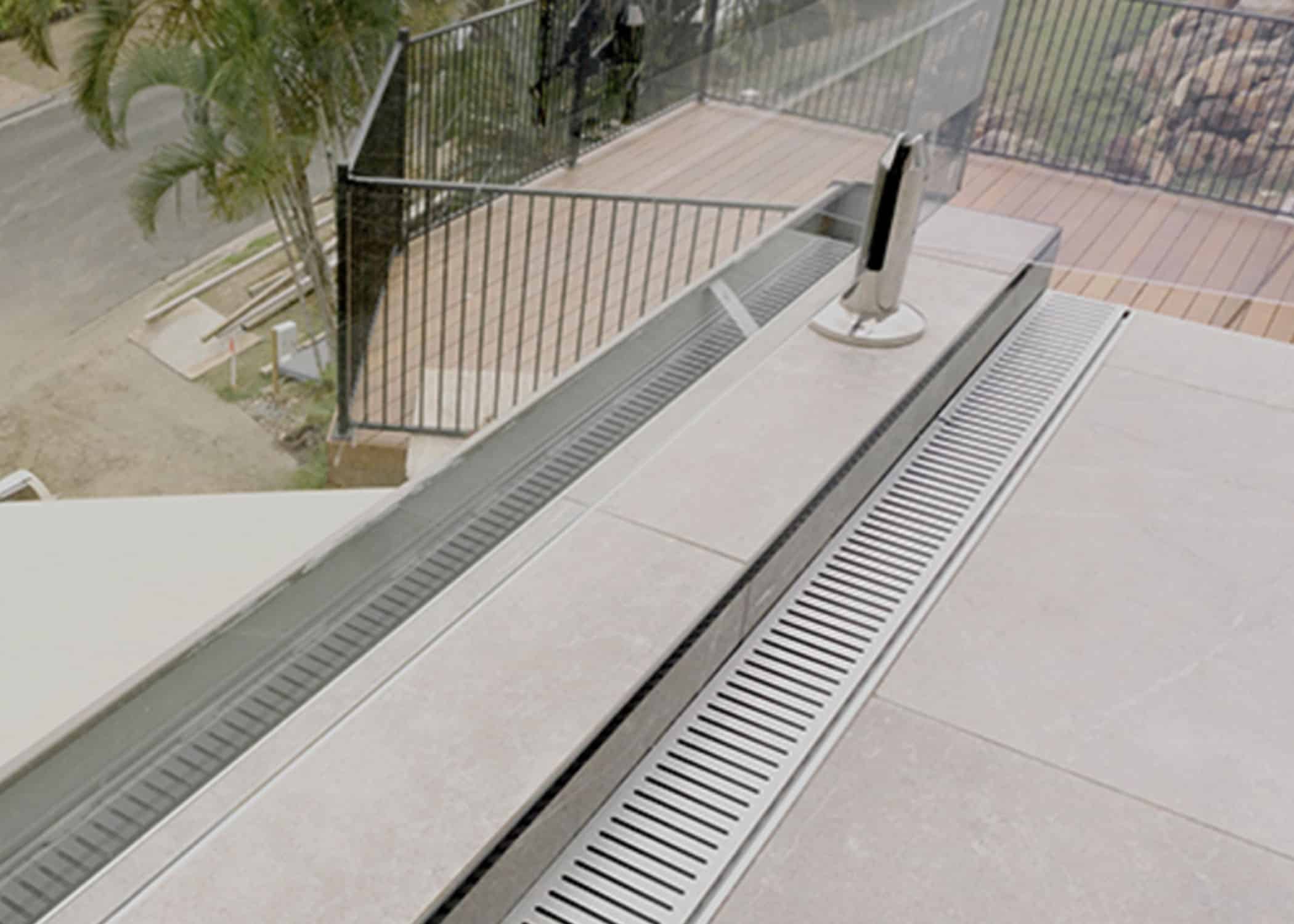

- Outdoor entertaining areas, balconies and pool surrounds
- Renovations wanting a flush, no-bedding-required drain solution
How to Apply
- Select the length and spigot — matched to the drainage run and plumbing connection.
- Position the waste outlet — anywhere along the bottom tray to suit the plumbing layout.
- Install without bedding — set the grate body in place as part of the tiling process.
- Cut to length on site if needed — trim to the exact run required.
- Fit end caps — complete the installation with the included end caps.
Important Notes
- Confirm the correct spigot size for the connecting drainage pipework before ordering.
- Extension beyond 5.6m requires Lauxes 180° extension joiners.
- Roll out the tray periodically for cleaning to maintain free drainage.
