Lauxes Standard Floor Grate SFG

By Lauxes

Browse all long drains →

Tags:
Brands:
Price range: $120.00 through $756.00

Choose how you’ll get it

Delivery

Enter your postcode for a delivery date.

Pick up Free

Choose collection point

Collect from: Port Melbourne

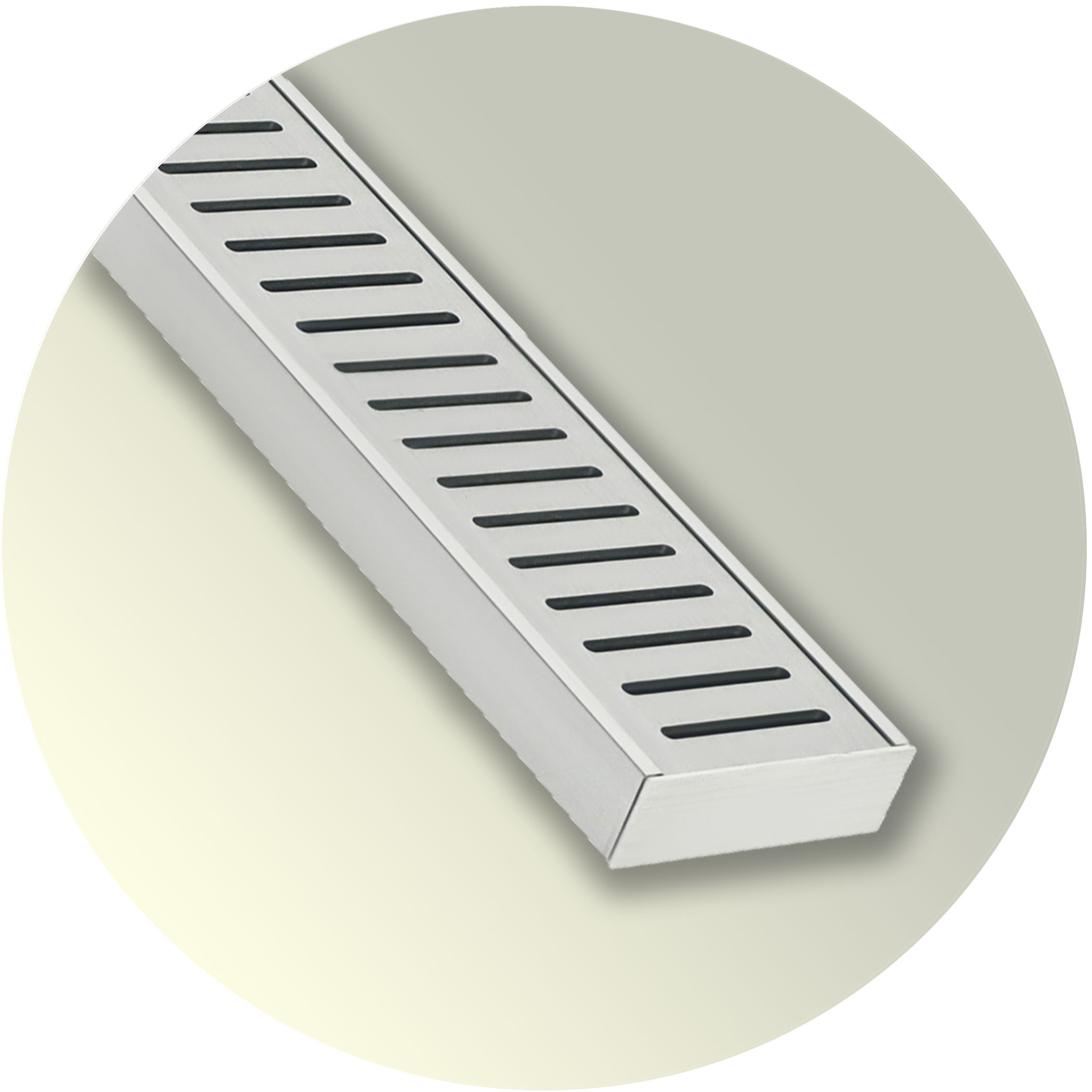

The original Lauxes grate, the Standard Floor Grate keeps a compact 70 mm profile that Lauxes says is best suited to renovations and retrofit projects. It is 23 mm deep, made from UV-stabilised anodised aluminium, and fitted with a 40 mm or 50 mm outlet. Suits homes and commercial sites.

Colour
Waste outlet

A matching waste outlet and two matching end caps come with every grate, in every length.

Price range: $120.00 through $756.00

You may also need

Description

The Standard Floor Grate is the original of the Lauxes Grates range, which Lauxes says is best suited to renovations and retrofit projects needing a compact 70 mm profile. It is 23 mm deep, in anodised aluminium. See the wider Lauxes range at Multifors.

The narrow body limits the outlet: Lauxes says only 40 mm and 50 mm outlets suit the 70 mm width.

Technical Specifications

Width x depth 70 mm x 23 mm
Material Anodised aluminium
Load rating Class B, up to 10.2 tonnes on average (per Lauxes)
Scope of use DN50; 40 or 50 mm outlet
Full-length weight 4.1 kg (3.0 m), 8.0 kg (5.6 m)

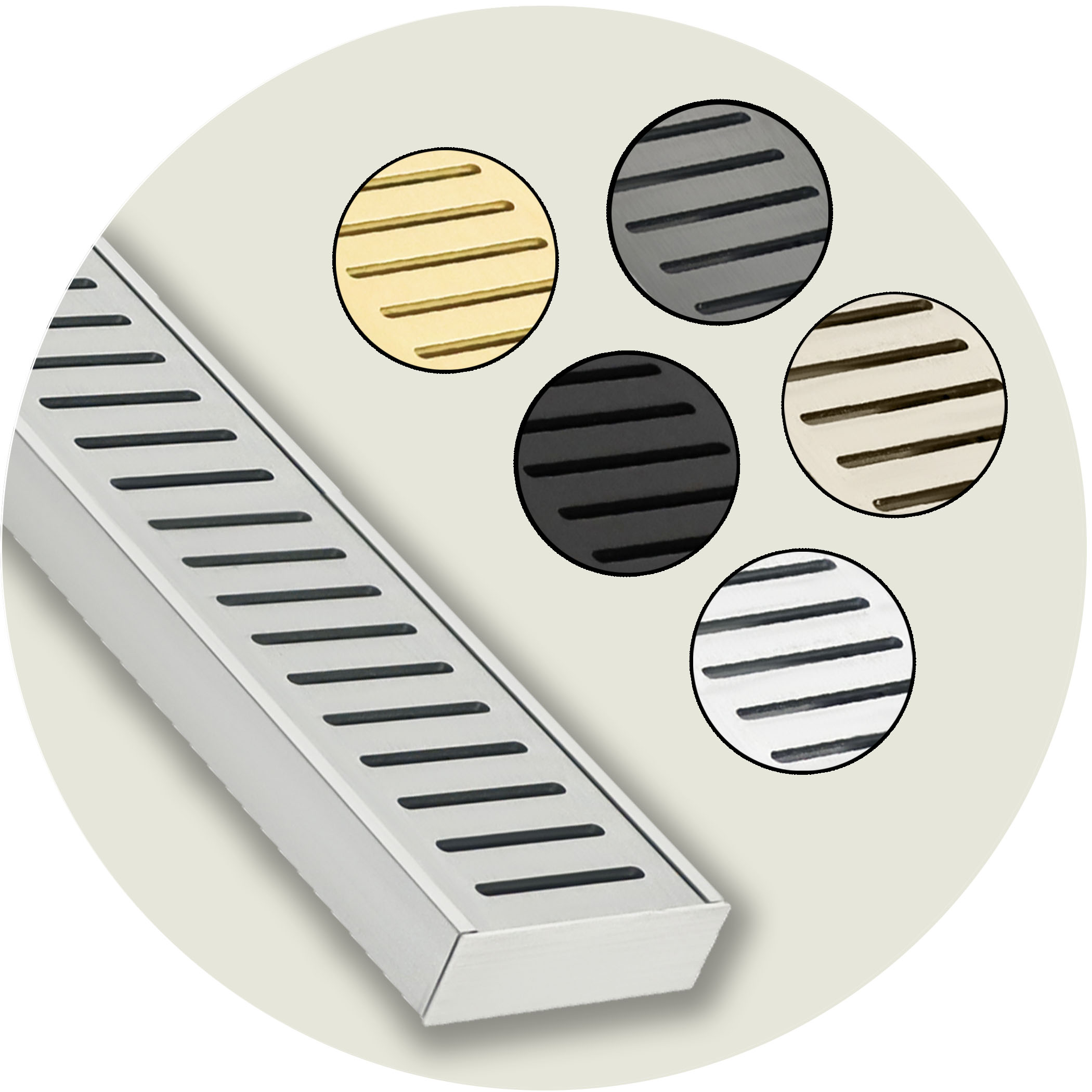

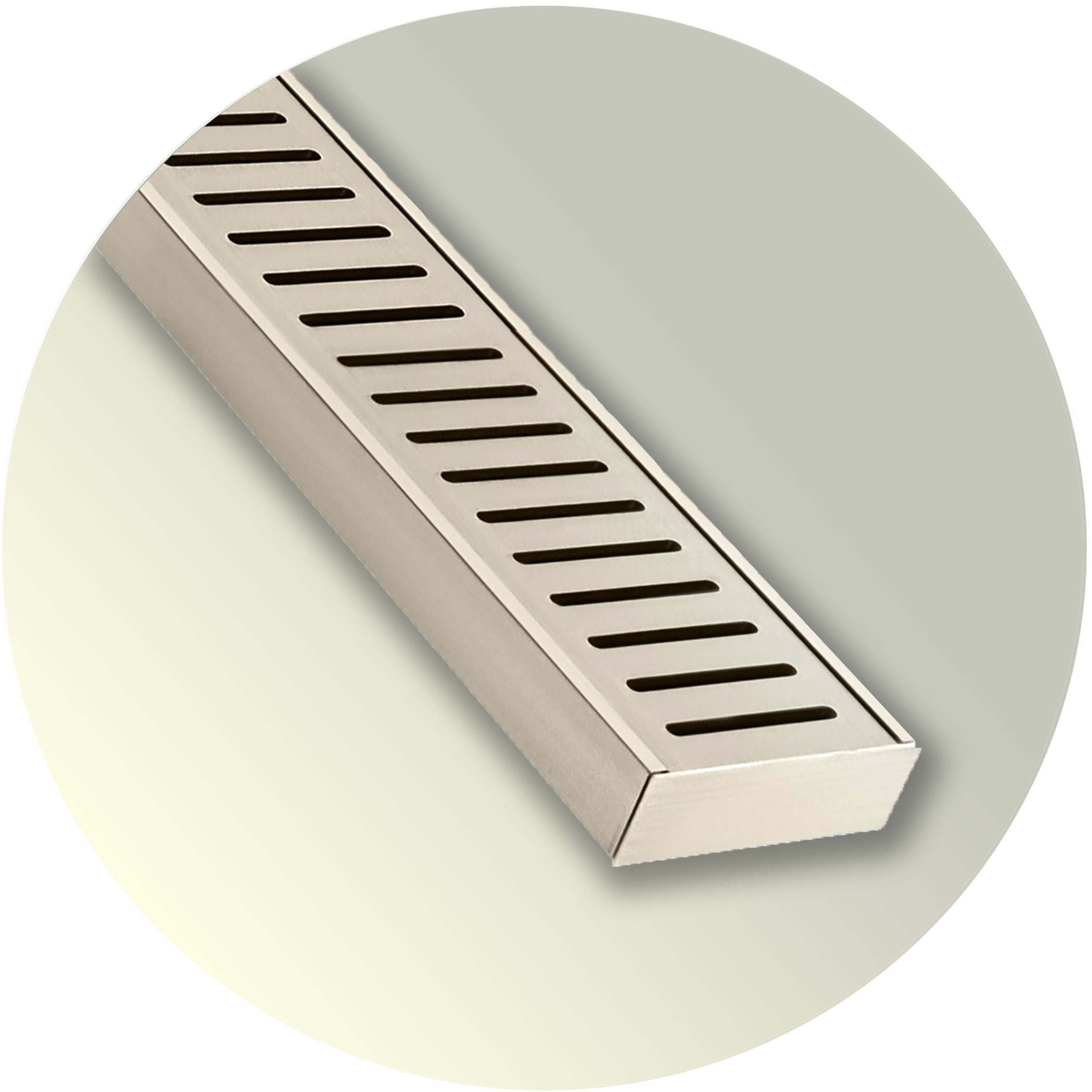

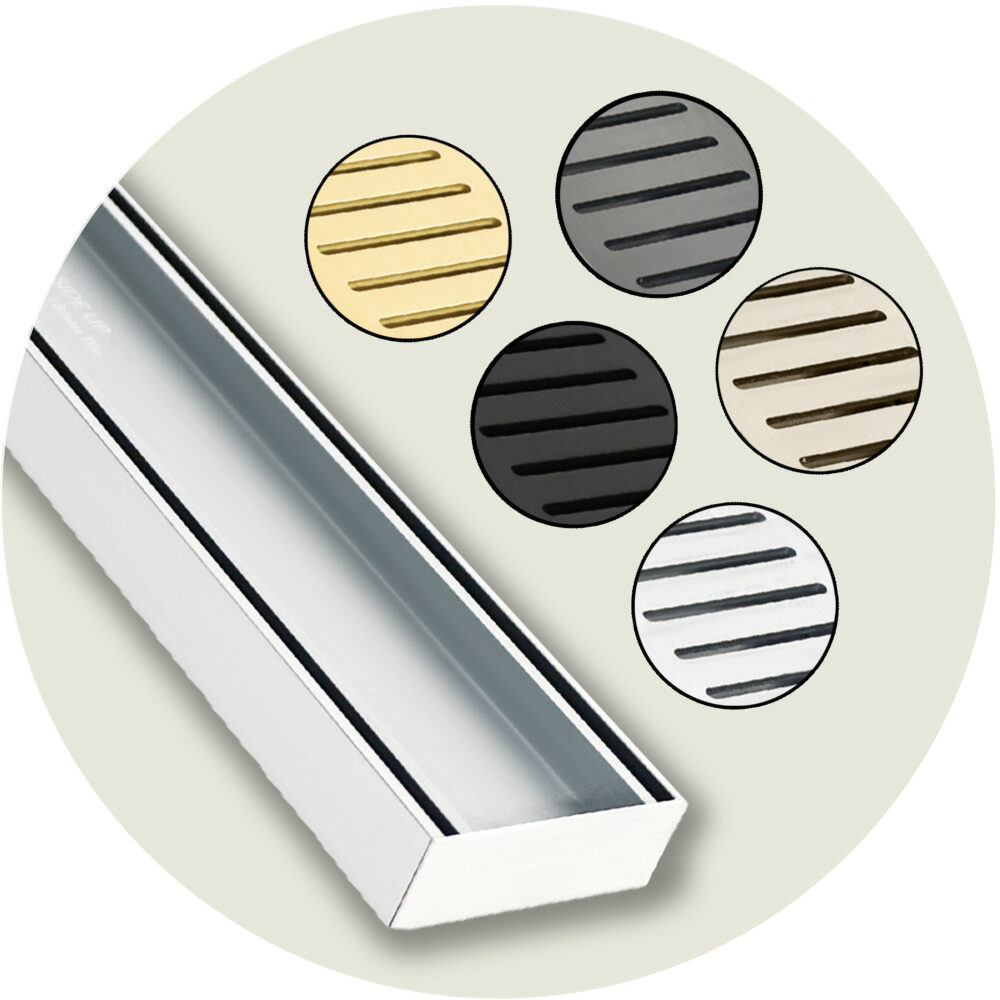

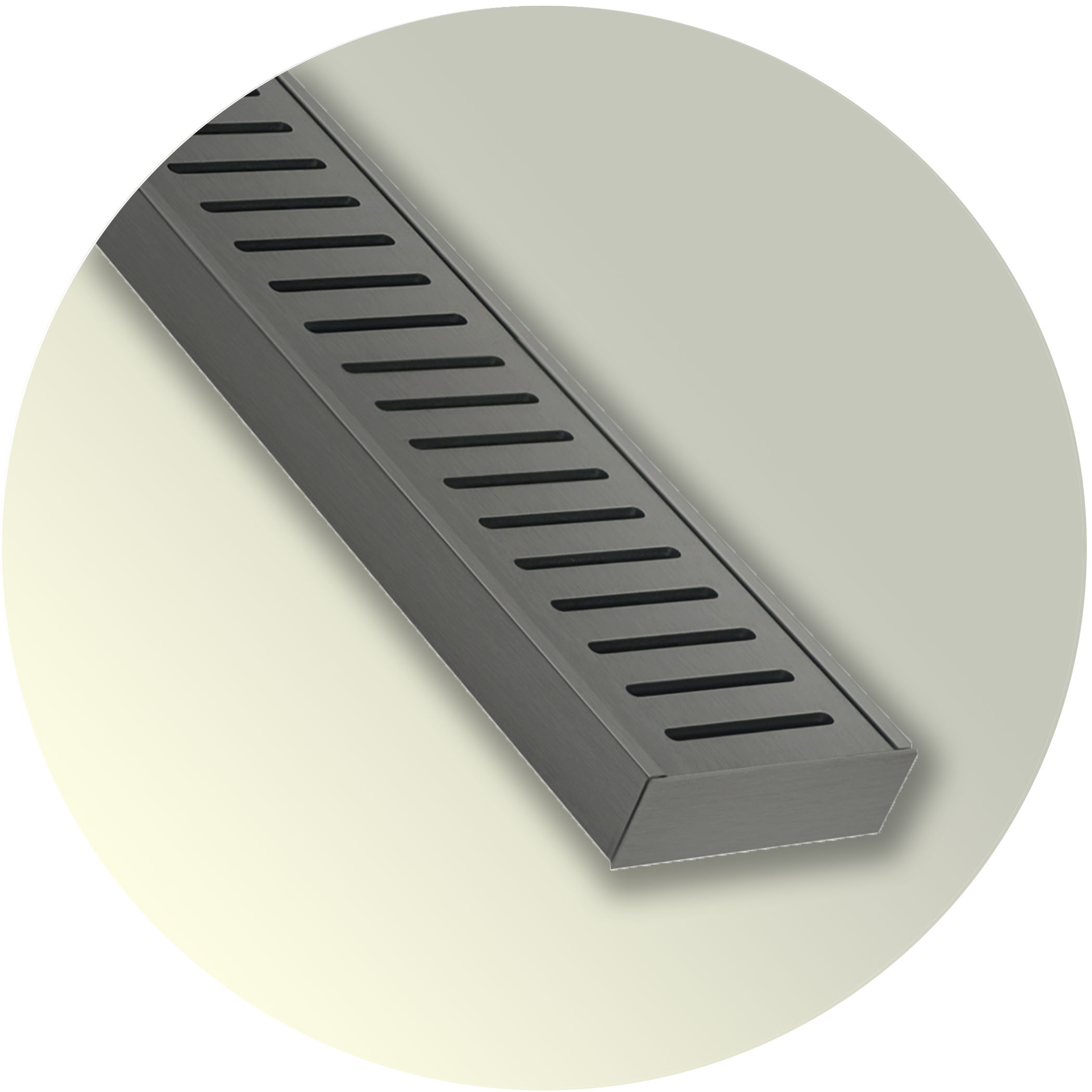

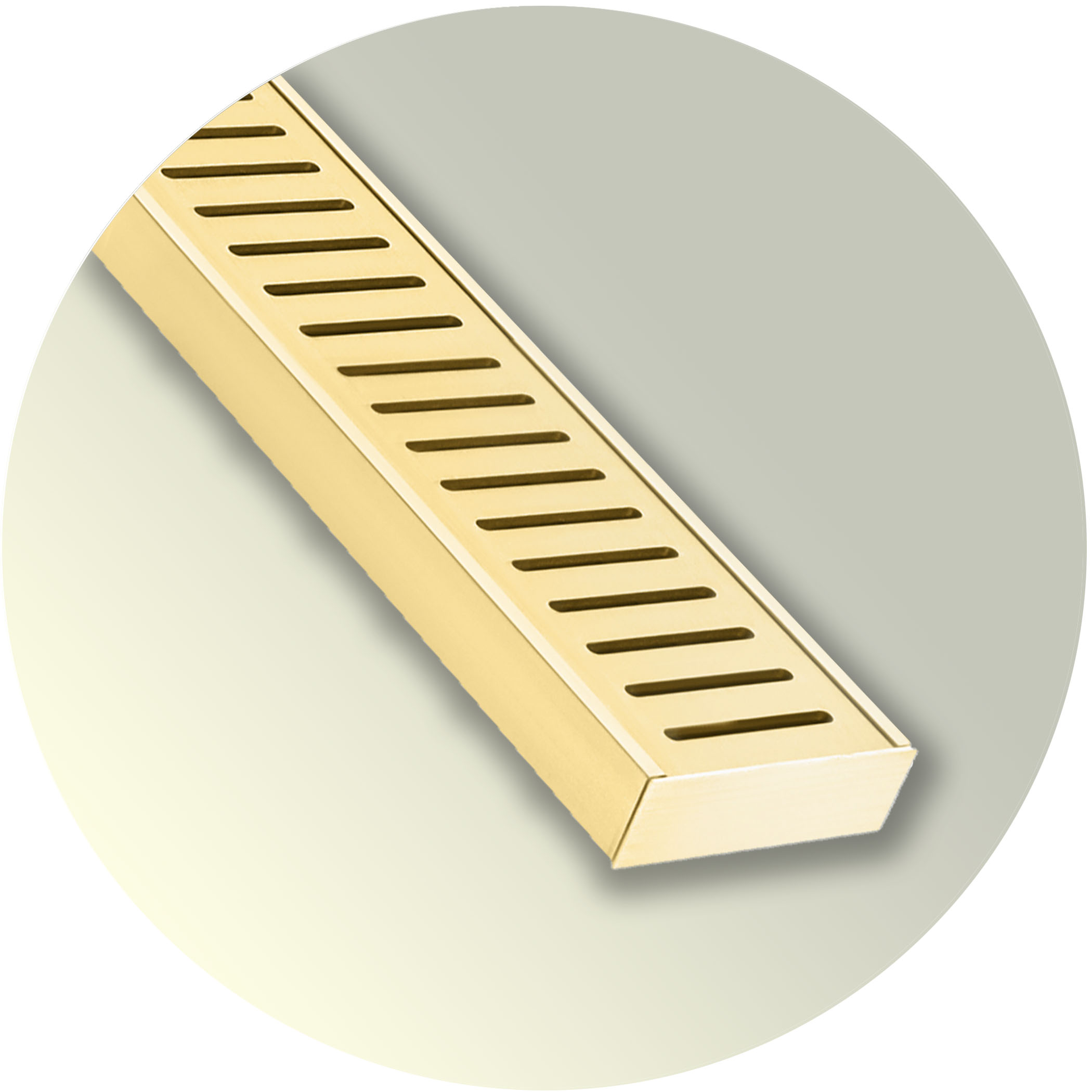

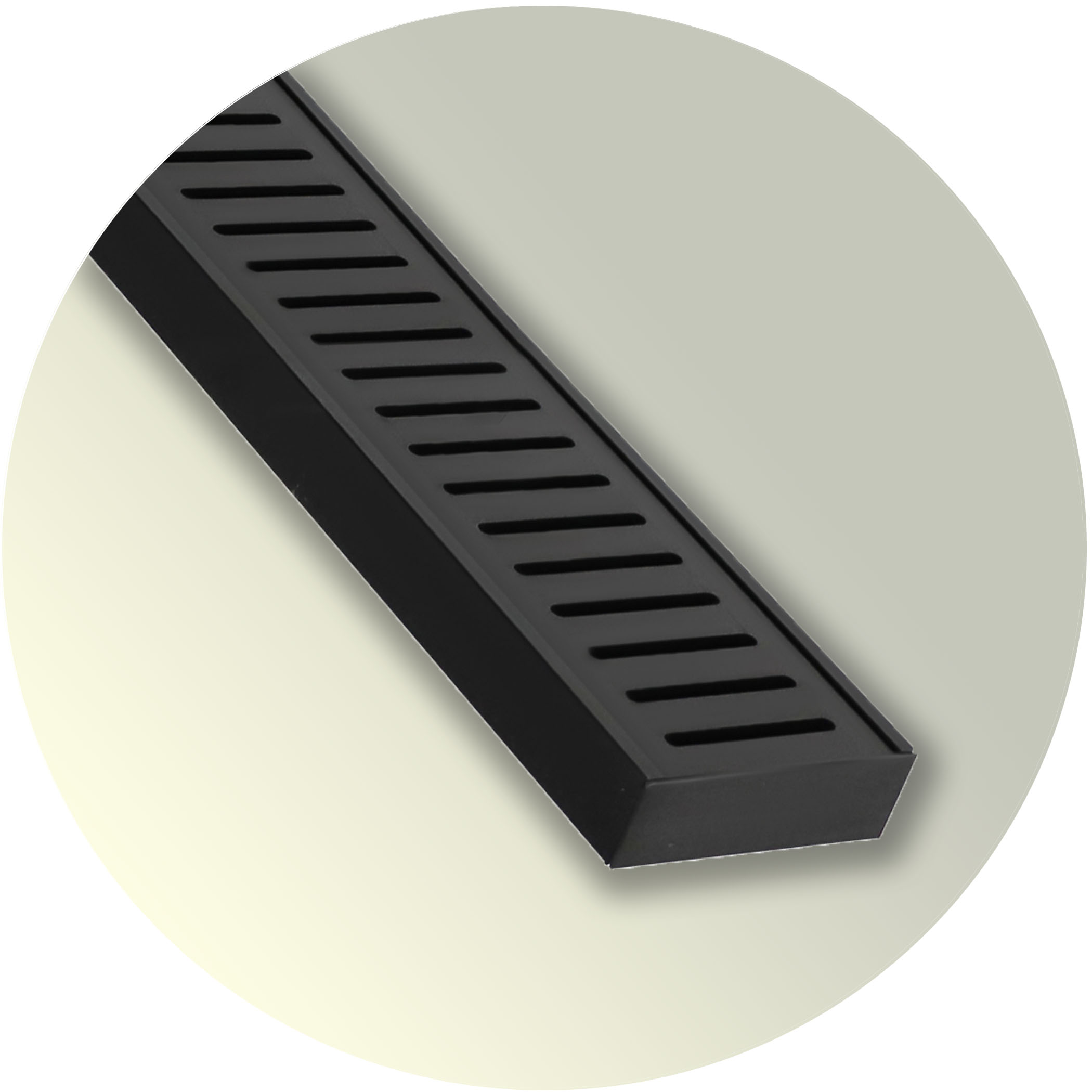

Colours Silver, Midnight, Gold, Brushed Nickel and Gunmetal
Certification WaterMark certified, per Lauxes
Tech sheet Lauxes SFG23 tech sheet (PDF)

Where to Use

  • Renovations, which Lauxes says it is best suited to
  • Retrofits needing a compact 70 mm profile
  • Commercial projects, which Lauxes lists it for
  • Indoor and outdoor floors, per the Lauxes tech sheet

How to Install

A licensed plumber installs this grate into the puddle flange. Per the Lauxes installation guide (PDF):

  1. Template the recess — use a template 10-20 mm wider than the grate; the grate must never touch wet cement.
  2. Grate goes in last — after any waterproofing, tiling and grout; Lauxes recommends wall tiles do not cover the end caps.
  3. Trim and fit — tray 3 mm shorter than the finished length (thin caps); top 1 mm shorter than the tray’s internal length. Hole-saw the outlet; silicone in caps and outlet.
  4. Set on silicone blobs — bed it level on large blobs of neutral cure silicone so trapped water escapes to the puddle flange.
  5. Clean, then seal — remove residue immediately; seal the edge once the blobs have dried.

Lengths, Colours and What’s Included

Cut to size: enter the finished grate length you need, from 600 to 5600 mm. We cut it to that length and charge for the next 700 mm length up; for example 2200 mm is charged as 2800 mm, and 1400 mm is charged as 1400 mm. Allow for end caps when measuring (the Lauxes guide allowance is in step 3). Full lengths: 3.0 m or 5.6 m. For full 5.6 m lengths and cuts over 3000 mm, request a delivery quote at checkout and pay once it’s priced, or pick up; up to 3000 mm delivers as normal.

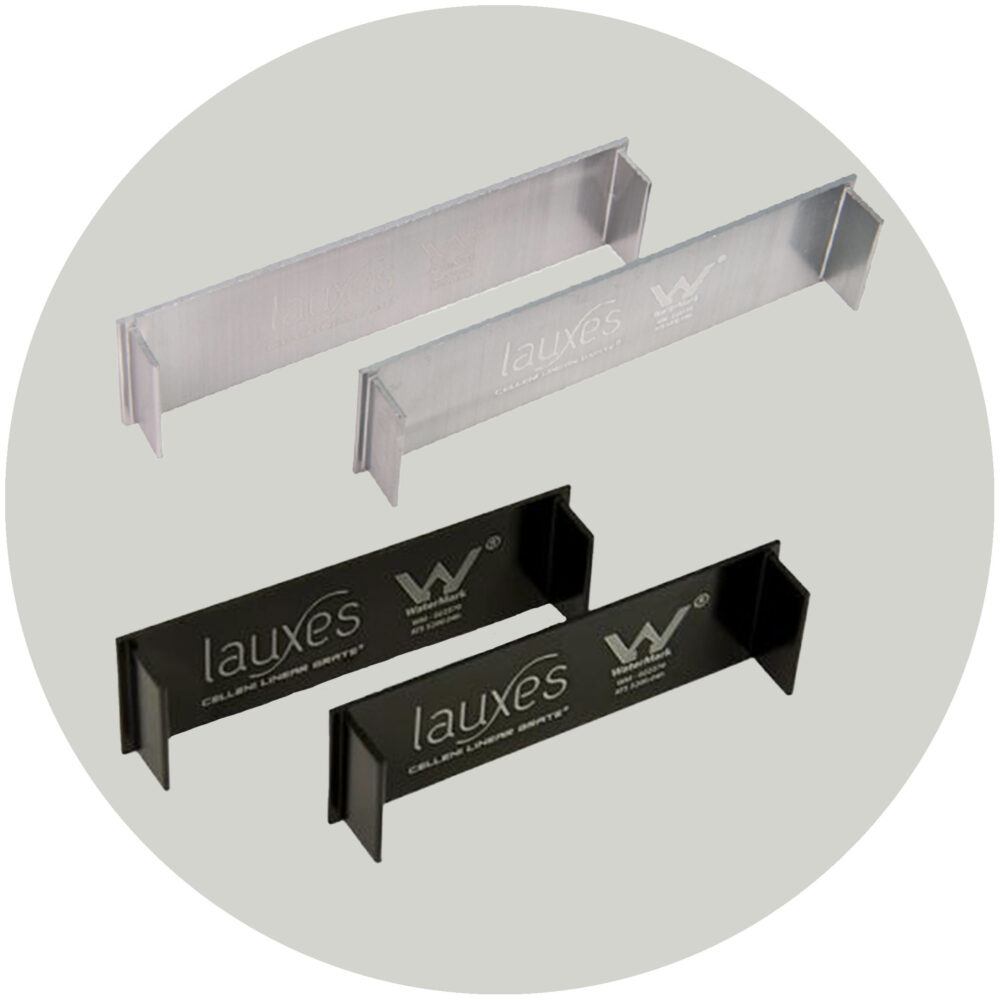

Every grate includes one matching 40 or 50 mm waste outlet of your choice and two matching thin end caps (EC23). Colours may vary slightly.

Important Notes

  • Lauxes advises its grates are WaterMark certified, are not part of the waterproofing, and must go in a WaterMark puddle flange, installed by a licensed plumber as legally required.
  • Lauxes asks for a soapy-water wash at least every three months, more often near the sea. Check outlet size against local plumbing rules.
  • Lauxes gives the original owner a manufacturer’s Lifetime Rustproof Warranty (licensed-plumber install to AS 3740, immediate first clean, no metal particles left on it) and a minimum 25-year guarantee against fading (proper care, install to AS/NZS 3500.2). Normal wear, misuse and accidental damage are excluded. This manufacturer’s warranty is in addition to your rights under the Australian Consumer Law; contact Multifors first if there’s a problem.

Frequently Asked Questions

What size is the Lauxes Standard Floor Grate?

The SFG23 is 70 mm wide and 23 mm deep, per the Lauxes tech sheet.

Which waste outlets fit the Standard Floor Grate?

Only 40 mm and 50 mm outlets, because of its 70 mm width (DN50). Lauxes lists 18 LPM (DN40) and 24 LPM (DN50).

What is the difference between the SFG and the NXT grates?

Lauxes says its newer NXT range has two side slots that stop water tracking and let the grate roll out without tools. The SFG is narrower: 70 mm against 100 mm.

Key Features

  • The original grate in the Lauxes range
  • Compact 70 mm wide x 23 mm deep profile
  • Best suited to renovations and retrofit projects, per Lauxes
  • Takes a 40 or 50 mm waste outlet (DN50)
  • Lauxes rates it Class B, up to 10.2 tonnes on average
  • For residential and commercial use, indoors and outdoors (Lauxes)
  • Lauxes Lifetime Rustproof Warranty (original owner) and minimum 25-year fade guarantee (conditions apply)

Additional information

Length

Cut to size, Full length 3.0 m, Full length 5.6 m

Colour

Brushed Nickel, Gold, Gunmetal, Midnight, Silver

Variation

Matching 40mm Waste Outlet, Matching 50mm Waste Outlet

Accessory Range

Drains

Frequently asked questions

What size is the Lauxes Standard Floor Grate?

The SFG23 is 70 mm wide and 23 mm deep, per the Lauxes tech sheet.

Which waste outlets fit the Standard Floor Grate?

Only 40 mm and 50 mm outlets, because of its 70 mm width (DN50). Lauxes lists 18 LPM (DN40) and 24 LPM (DN50).

What is the difference between the SFG and the NXT grates?

Lauxes says its newer NXT range has two side slots that stop water tracking and let the grate roll out without tools. The SFG is narrower: 70 mm against 100 mm.
