Description
Lauxes STI26 Slimline Tile Insert Grate is designed to take a tile insert matching the surrounding floor, so the grate itself all but disappears into the finished floor rather than standing out as a visible metal strip. At 100mm wide and 26mm deep, it’s one of the deeper options in the Lauxes tile insert range, suiting applications where a thicker tile or additional fall is needed.
Its no-bedding-required design and easy roll-out tray genuinely simplify both installation and ongoing maintenance — the tray lifts out for cleaning without needing to disturb the surrounding tile work. Being UV stable with a 25-year fade warranty and a lifetime rustproof warranty means it’s rated for genuine outdoor use as well as indoor bathrooms, not just a residential wet-area product limited to covered areas.
Technical Specifications
| Dimensions (cross section) | 100mm wide x 26mm deep |
|---|---|
| Length availability | 0.6m to 5.6m, in 5mm increments |
| Included items | 2 end caps; choice of 40mm, 50mm, 72mm or 80mm spigot |

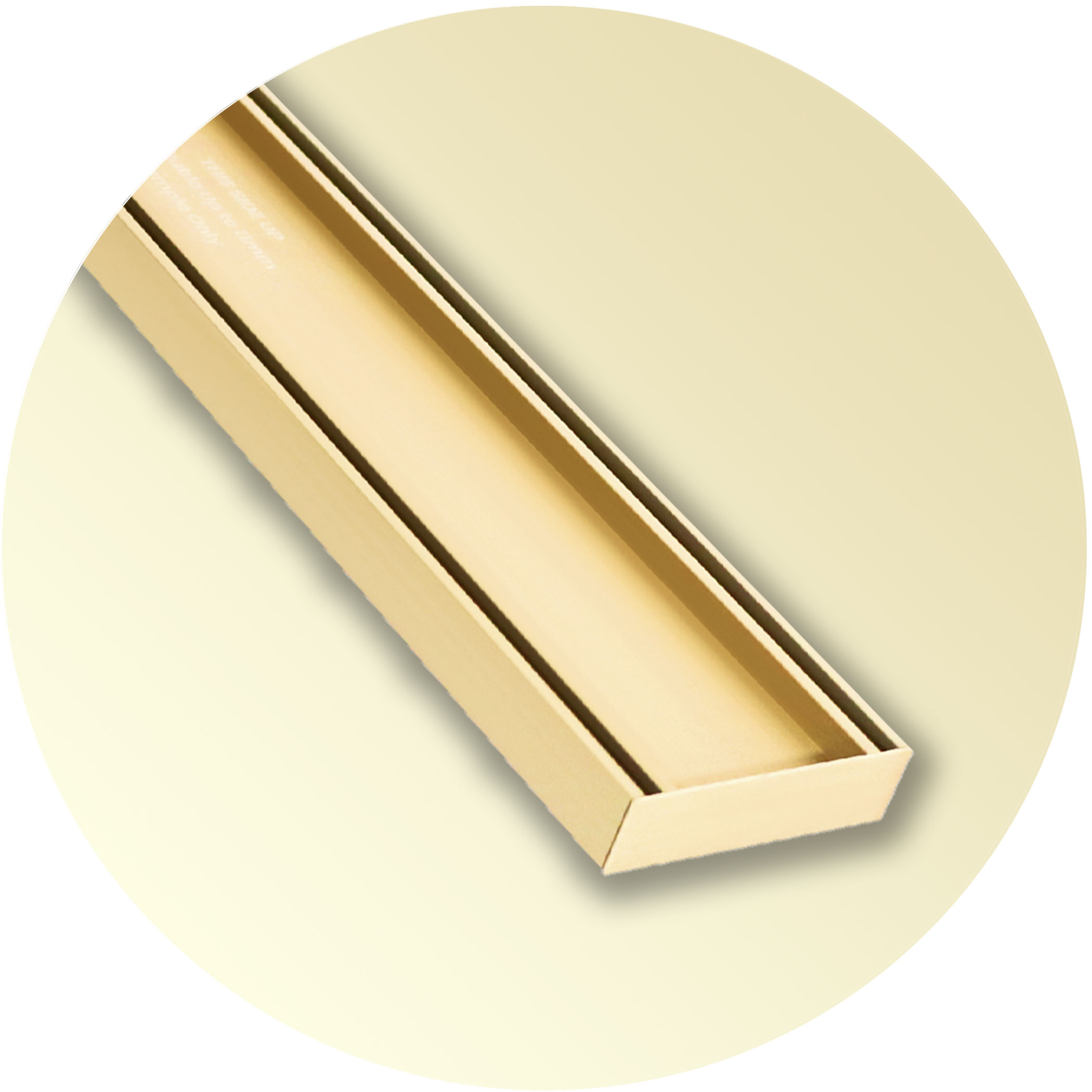

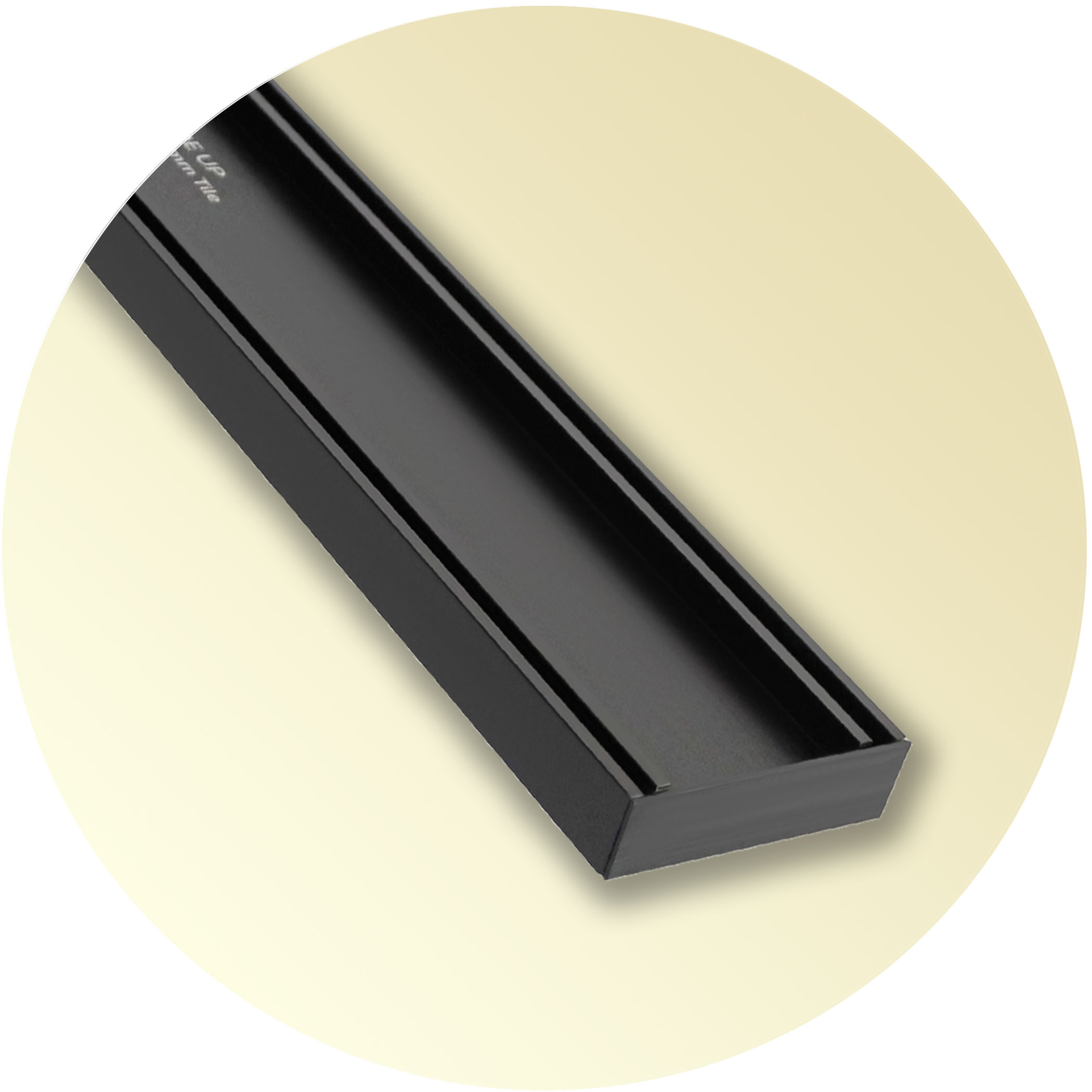

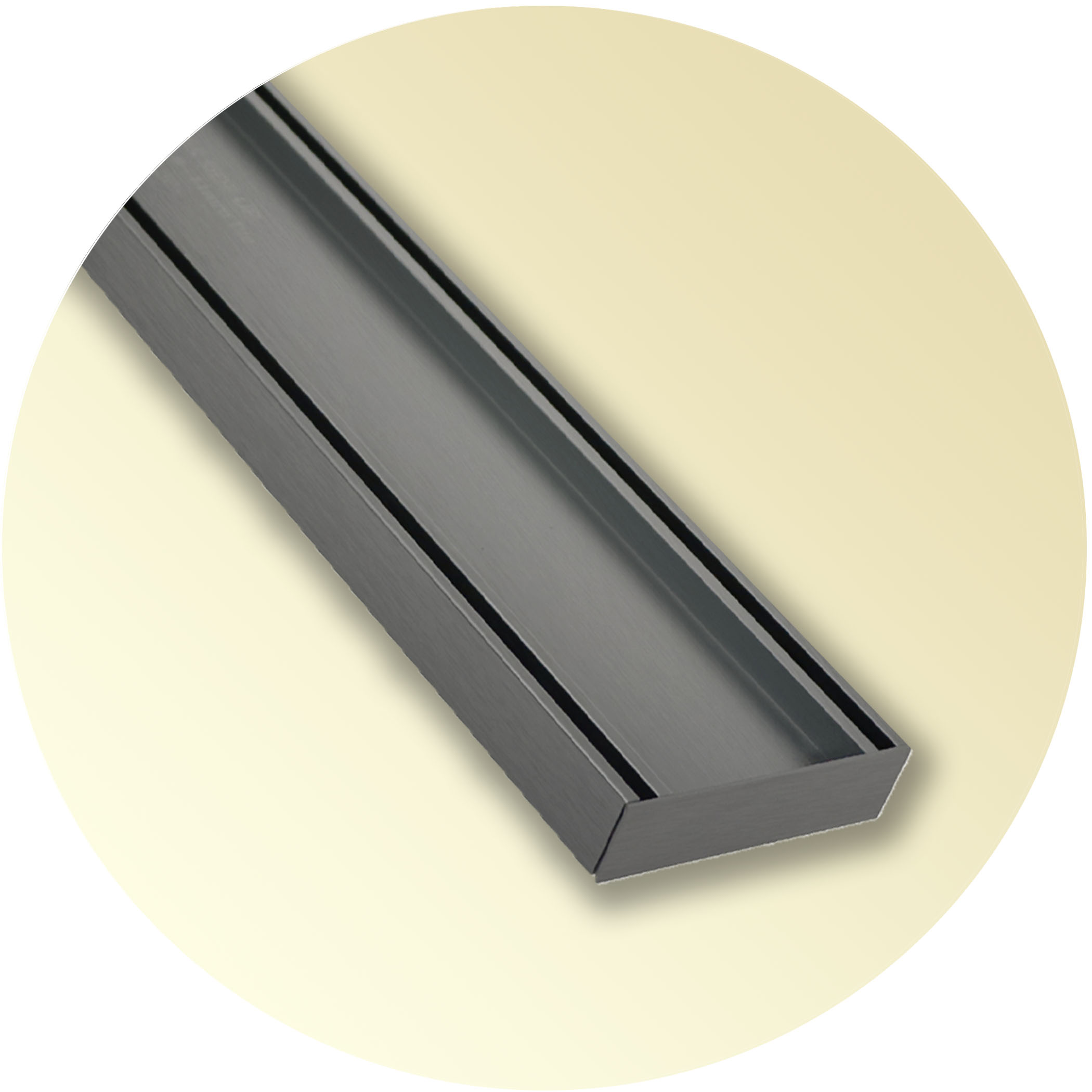

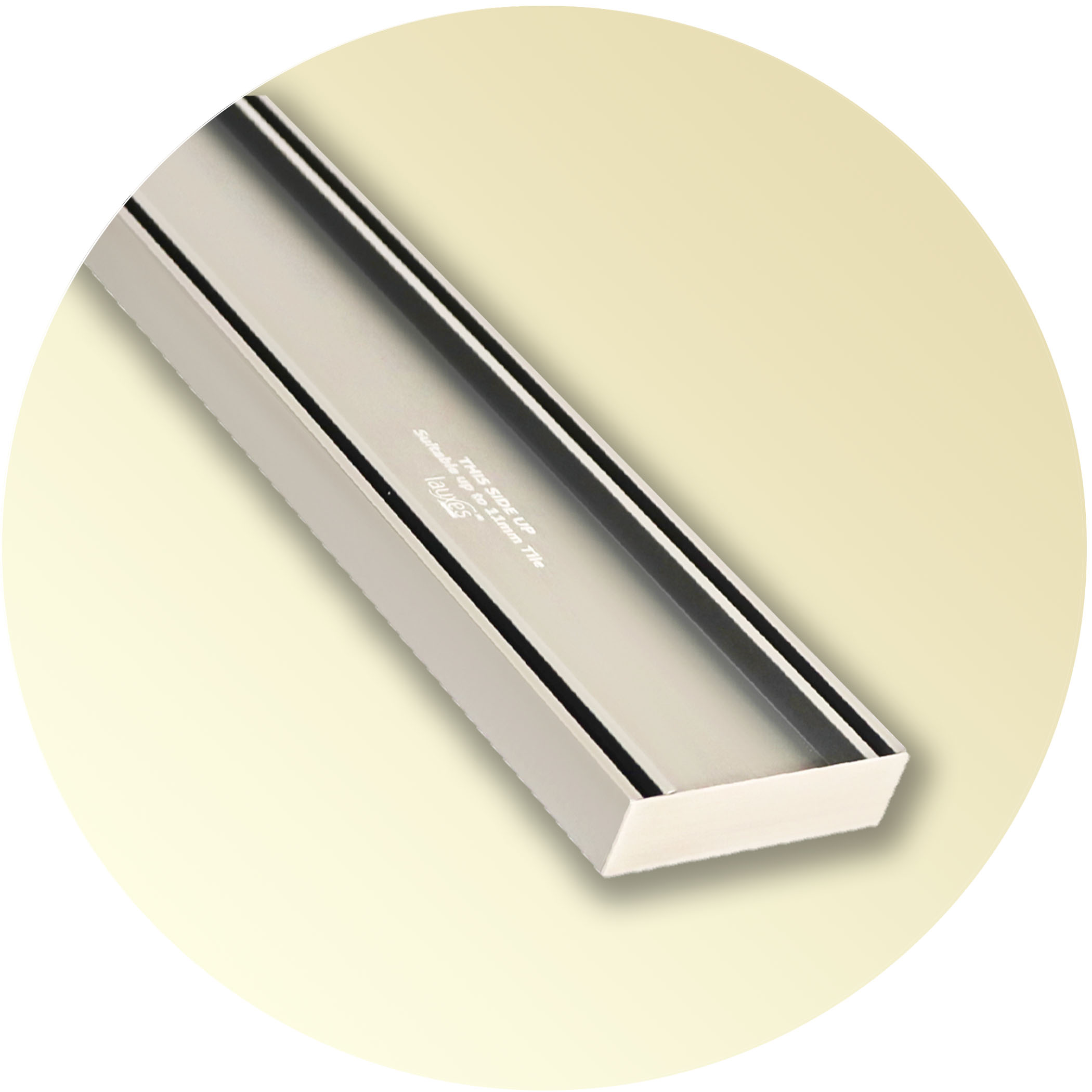

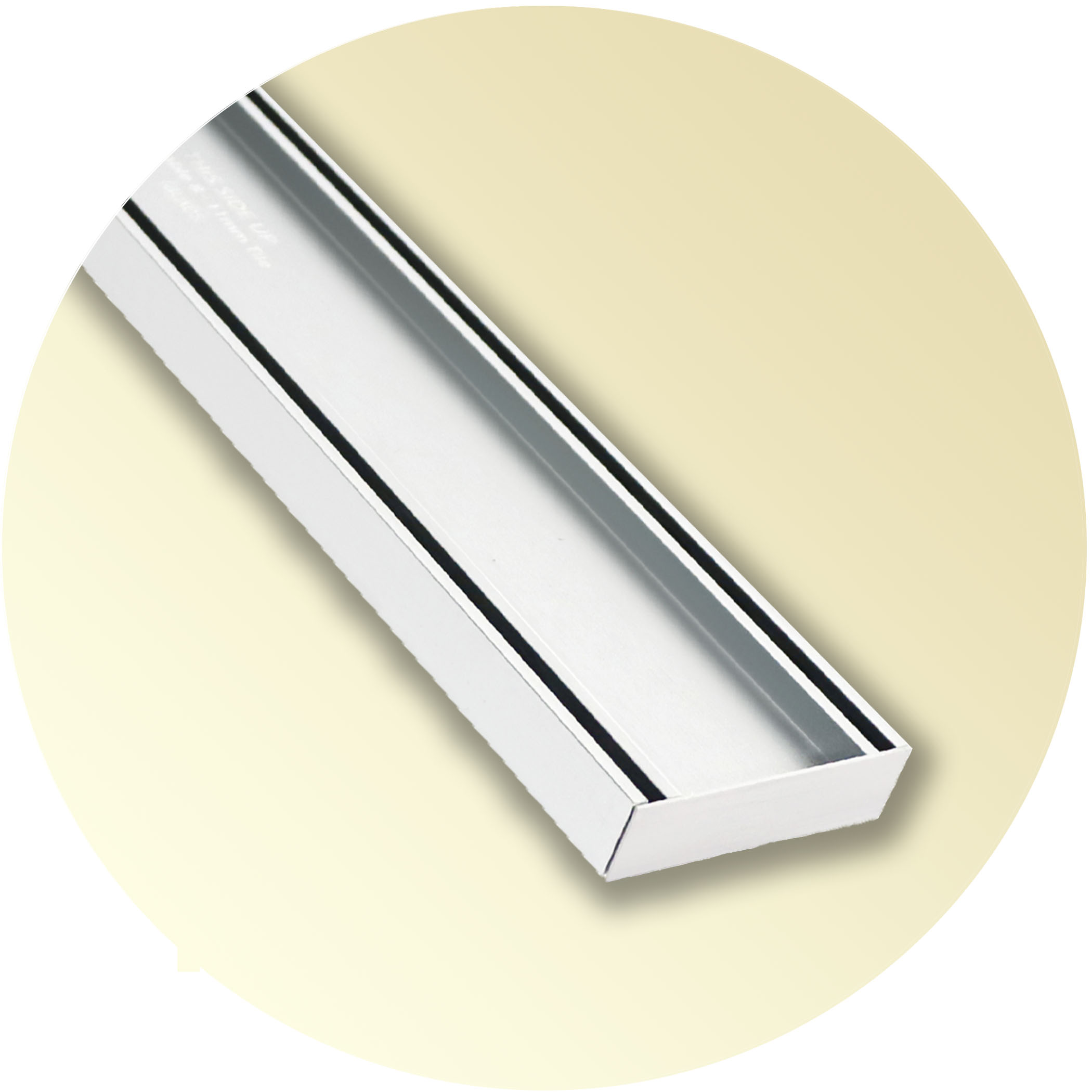

| Finishes | Silver, Midnight, Gold, Brushed Nickel, Gunmetal |
| Fade warranty | 25 years |
| Rust warranty | Lifetime |
Where to Use
- Indoor and outdoor shower and wet-area drainage
- Applications needing a tile-matched, near-invisible grate finish
- Floors requiring the waste outlet positioned flexibly along the tray
How to Apply
- Select the length — choose from 0.6m to 5.6m in 5mm increments, or plan for extension joiners on longer runs.
- Cut to size onsite — trim to the exact required length as needed.
- Position the spigot — select the correct 40mm, 50mm, 72mm or 80mm spigot for the waste outlet location.
- Install without bedding — set the grate into the prepared floor per standard tile-insert grate practice.
- Fit the tile insert — insert tile matching the surrounding floor into the grate body.
Important Notes
- The roll-out tray design allows easy access for cleaning without disturbing the surrounding tile.

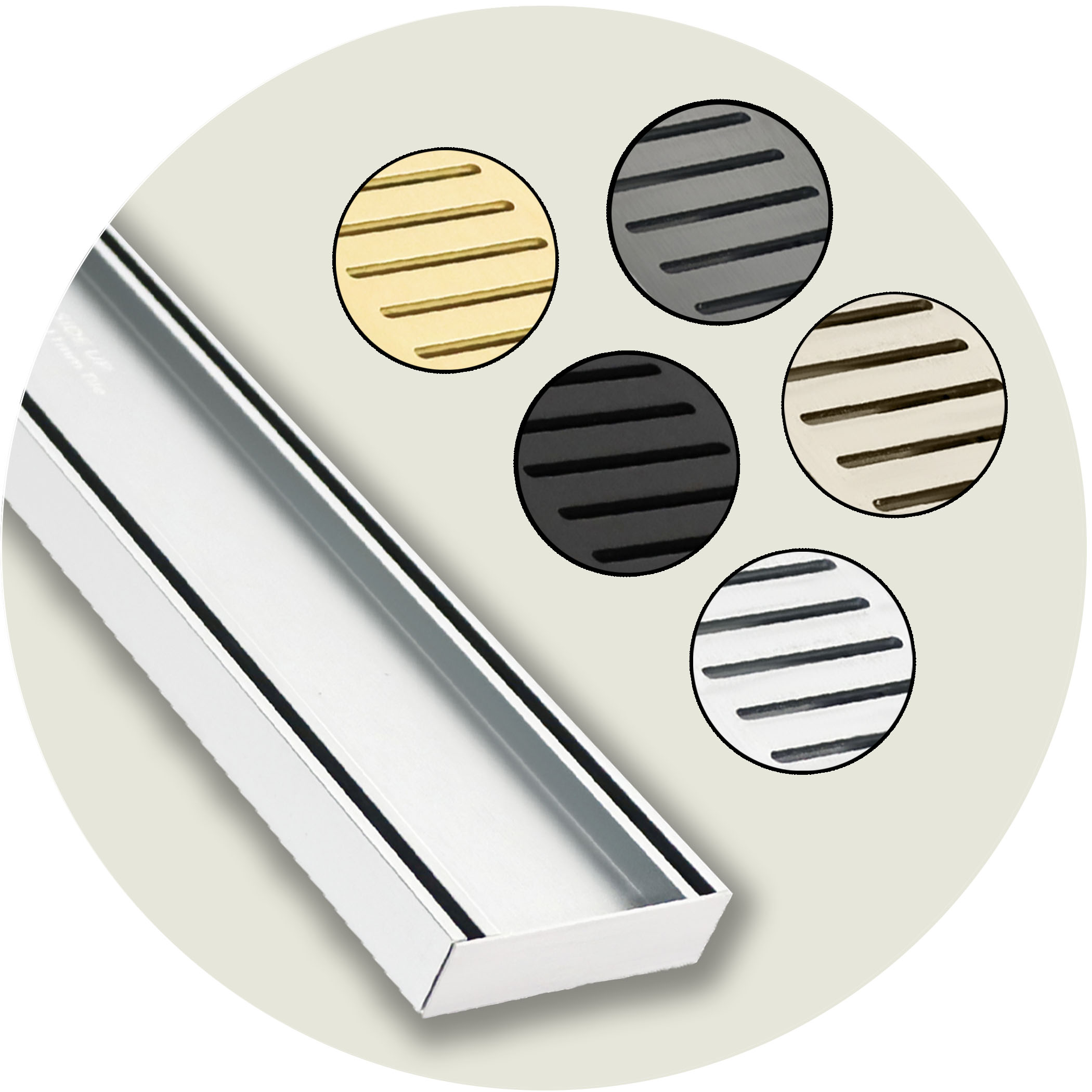

- Available in five finishes to suit different fitting and fixture colour schemes.
- Extendable beyond 5.6m using Lauxes 180° extension joiners for longer runs.
A tile insert grate only genuinely disappears into the floor if the depth is matched correctly to the tile being used, which is why the STI26’s 26mm depth sits deliberately deeper than some of the shallower options in the Lauxes range — it’s built to accommodate a thicker stone or porcelain tile without the insert sitting proud of, or recessed below, the surrounding floor level. Getting that depth match right at the specification stage avoids a mismatch that’s expensive and disruptive to correct once the floor is tiled and grouted.
