Description

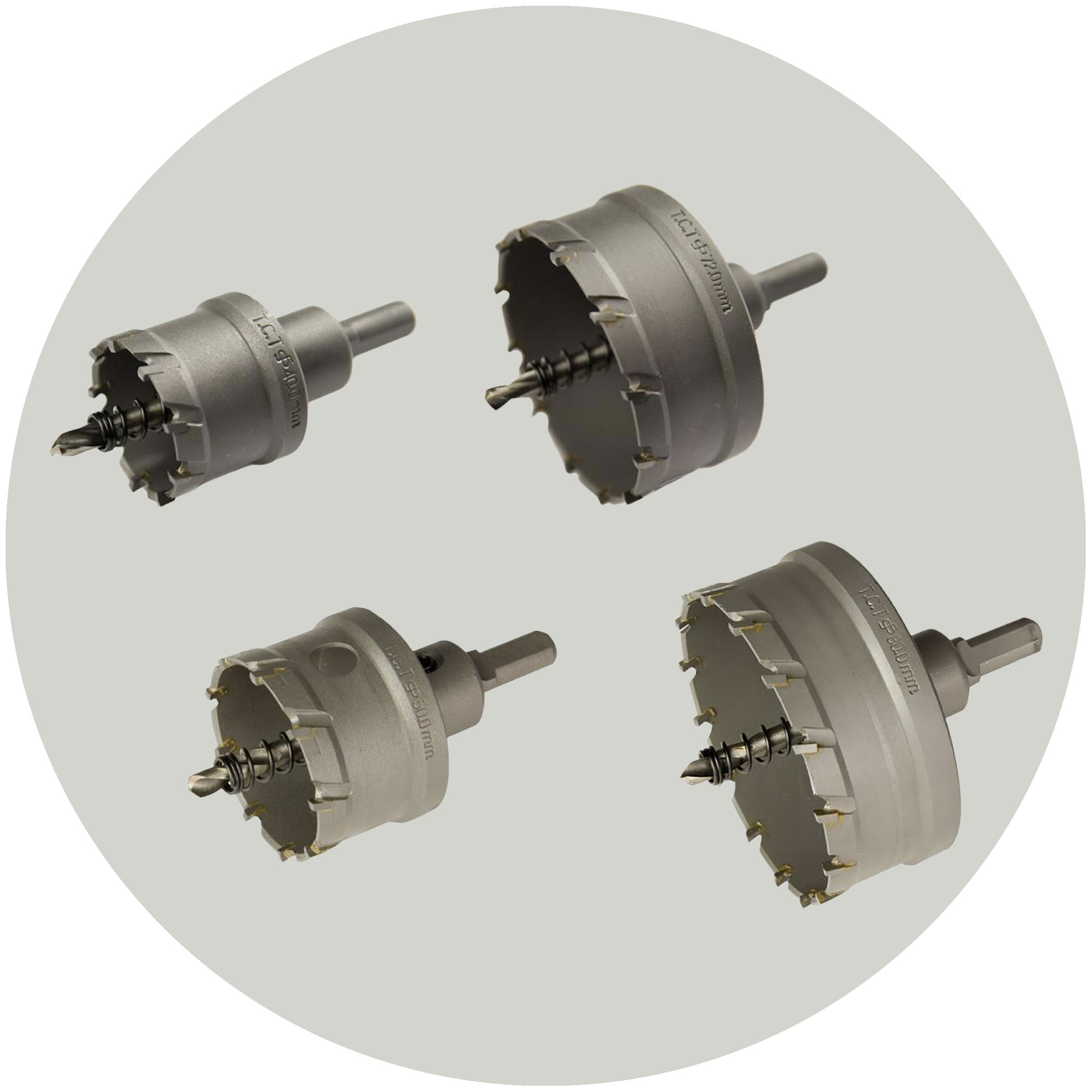

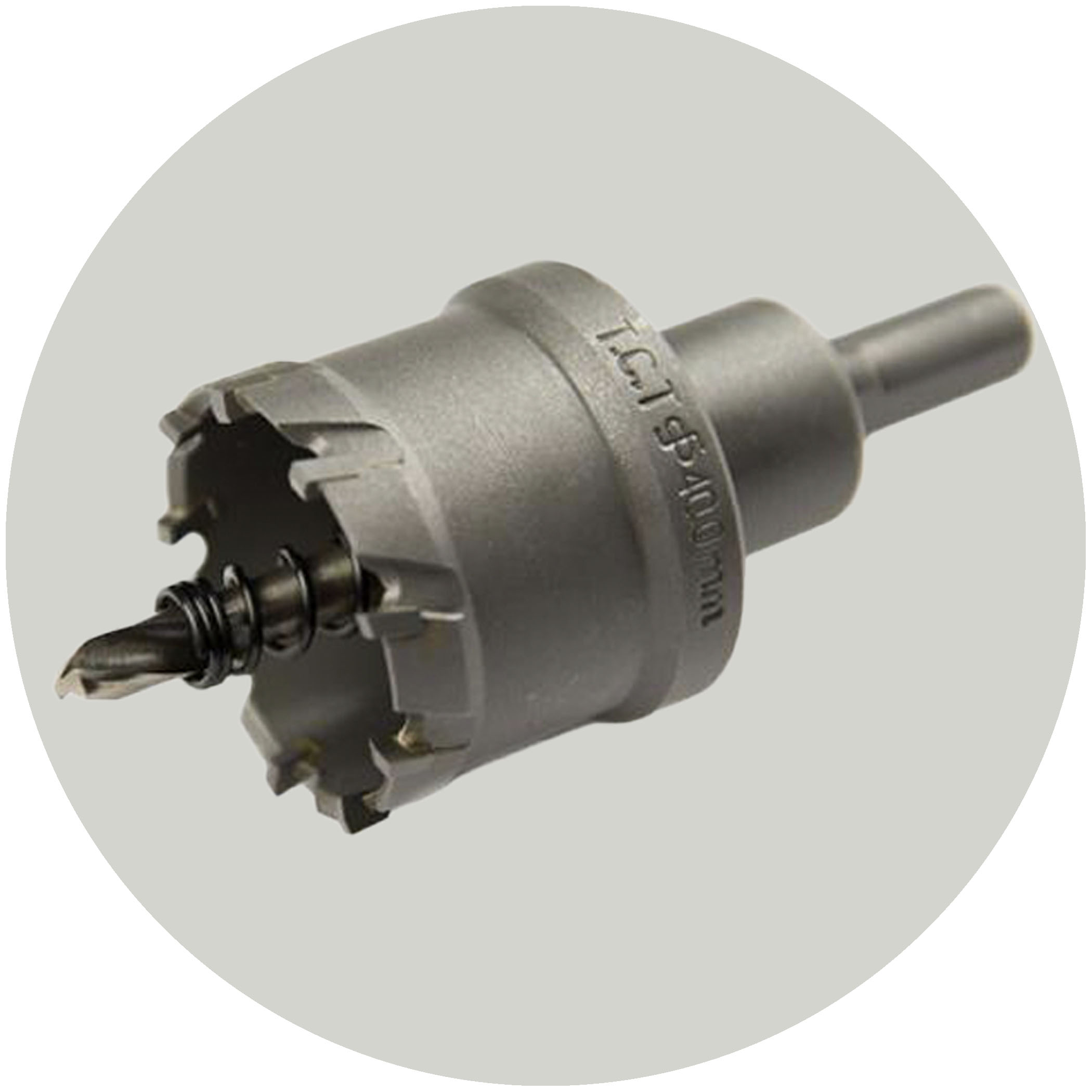

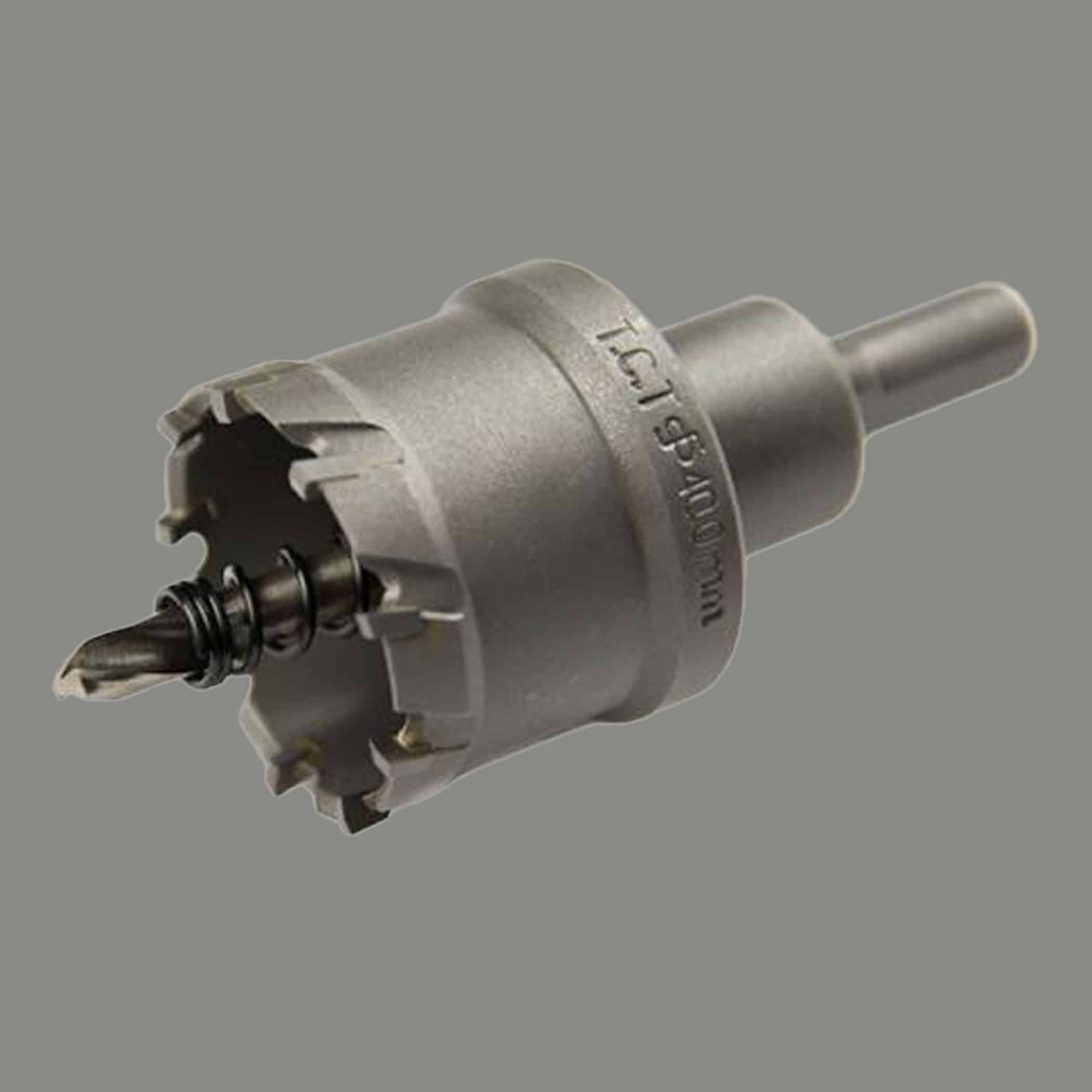

Lauxes’ cutting instructions recommend a Lauxes TCT hole saw for drilling the waste outlet hole in a grate’s bottom tray. Lauxes Grates sells them in HS40, HS50, HS72 and HS80, and its 2026 catalogue says each comes as a complete assembly. See the Lauxes range.
Lauxes grates come with an outlet and end caps; the outlet hole is drilled in the tray to line up with the waste pipe, using a suitable size Lauxes hole saw for the outlet, per Lauxes.
Technical Specifications
| HS40 | 40 mm |
|---|---|

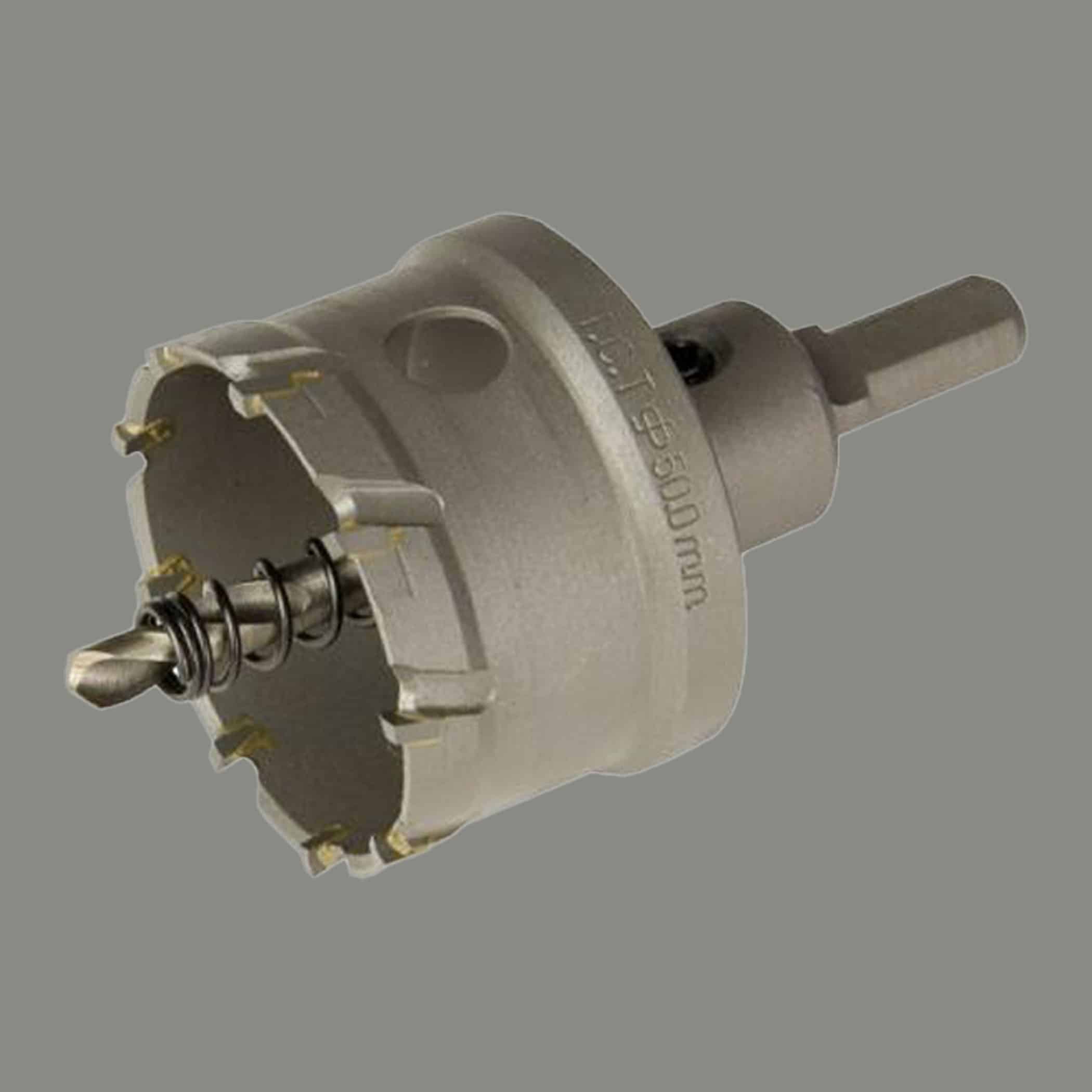

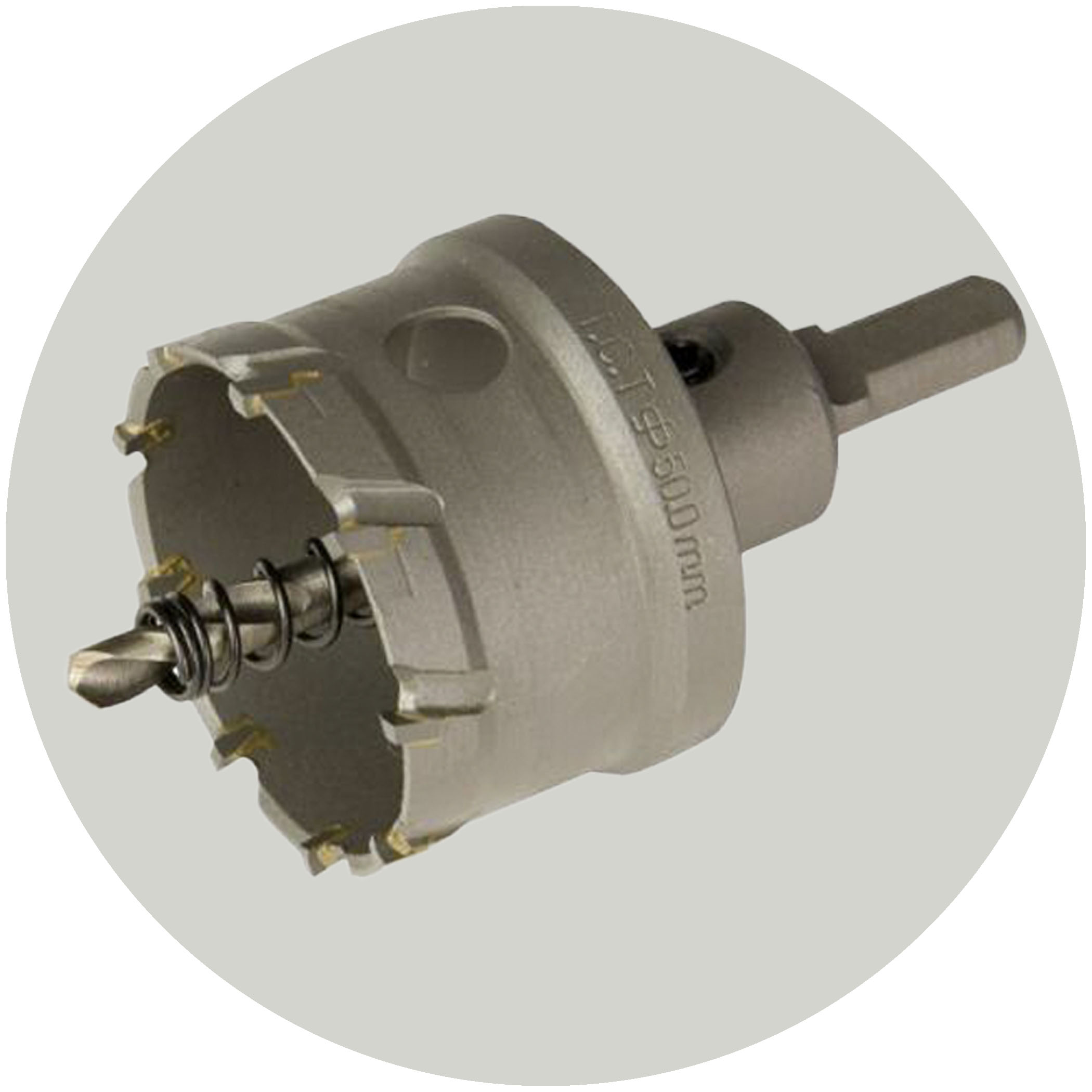

| HS50 | 50 mm |

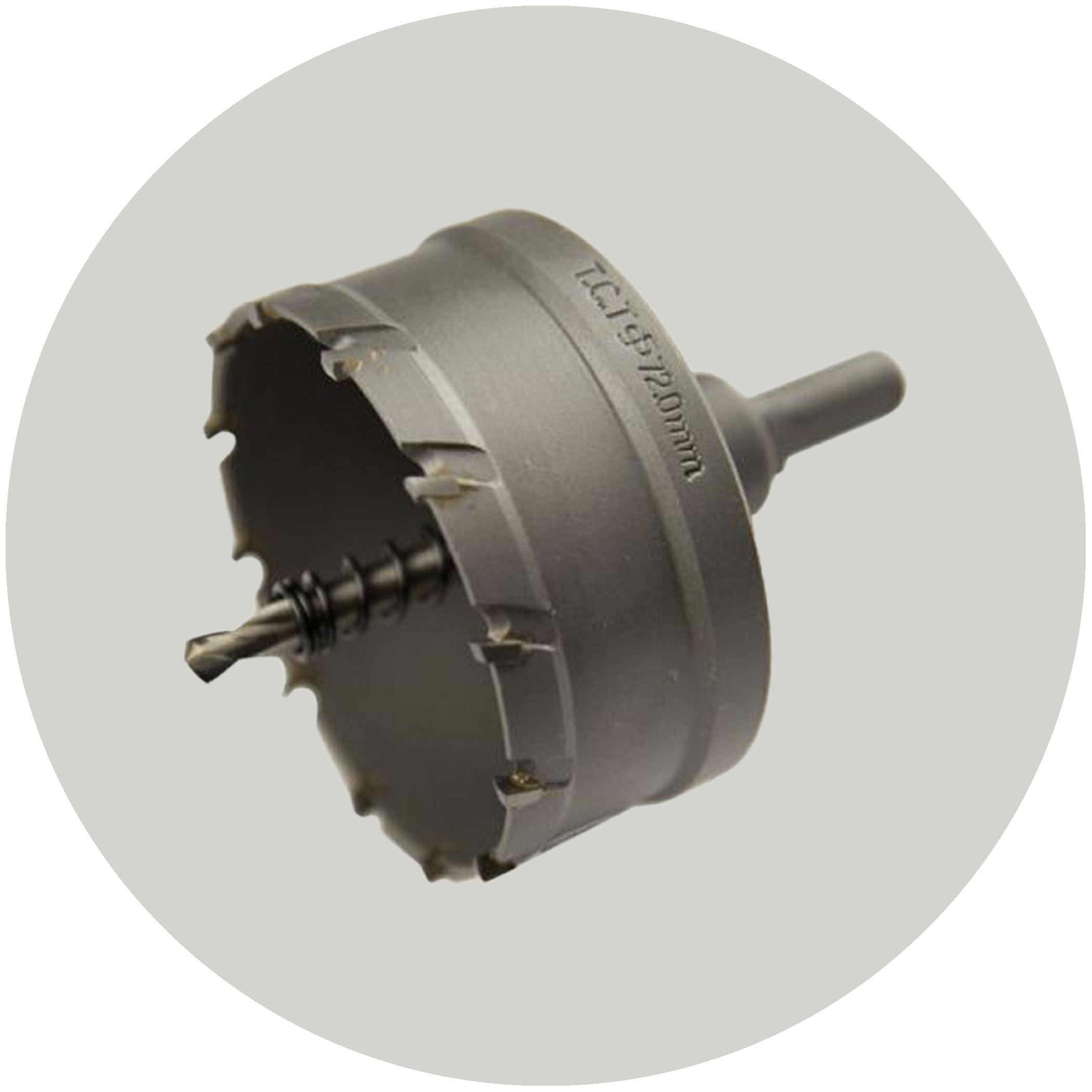

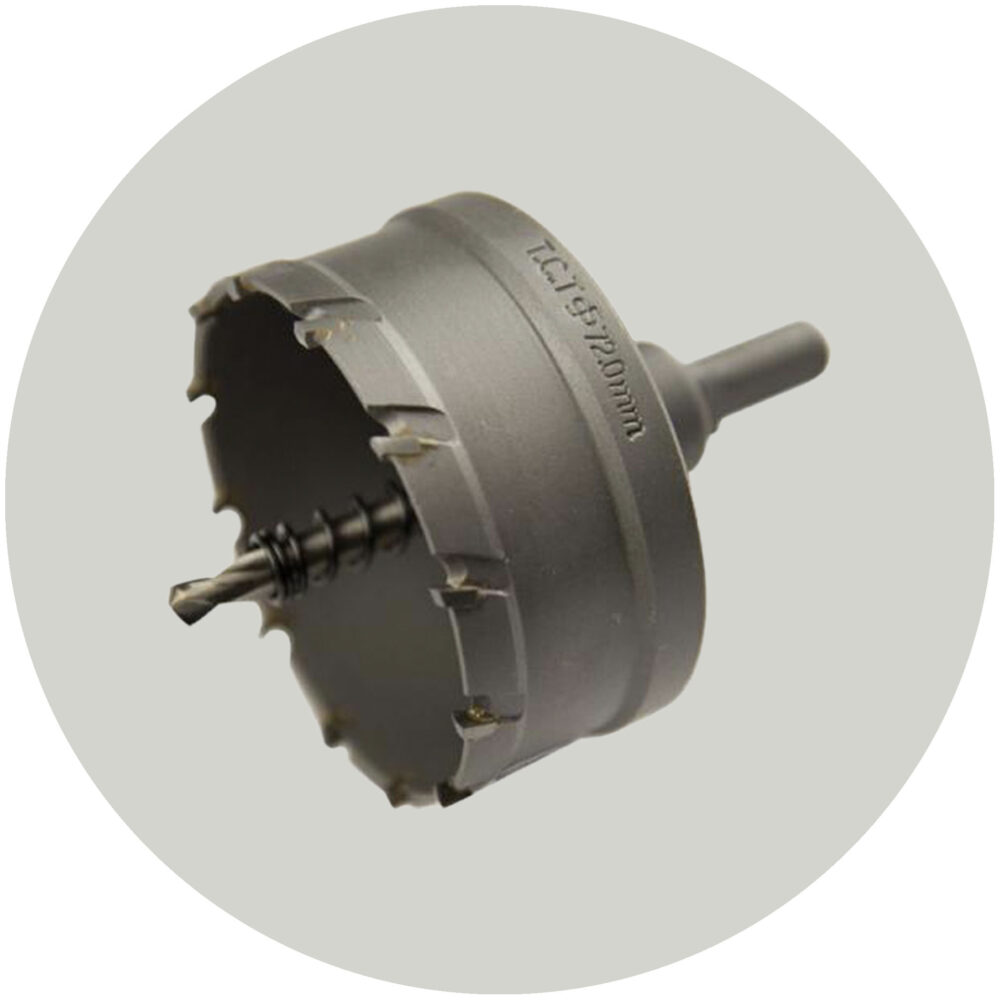

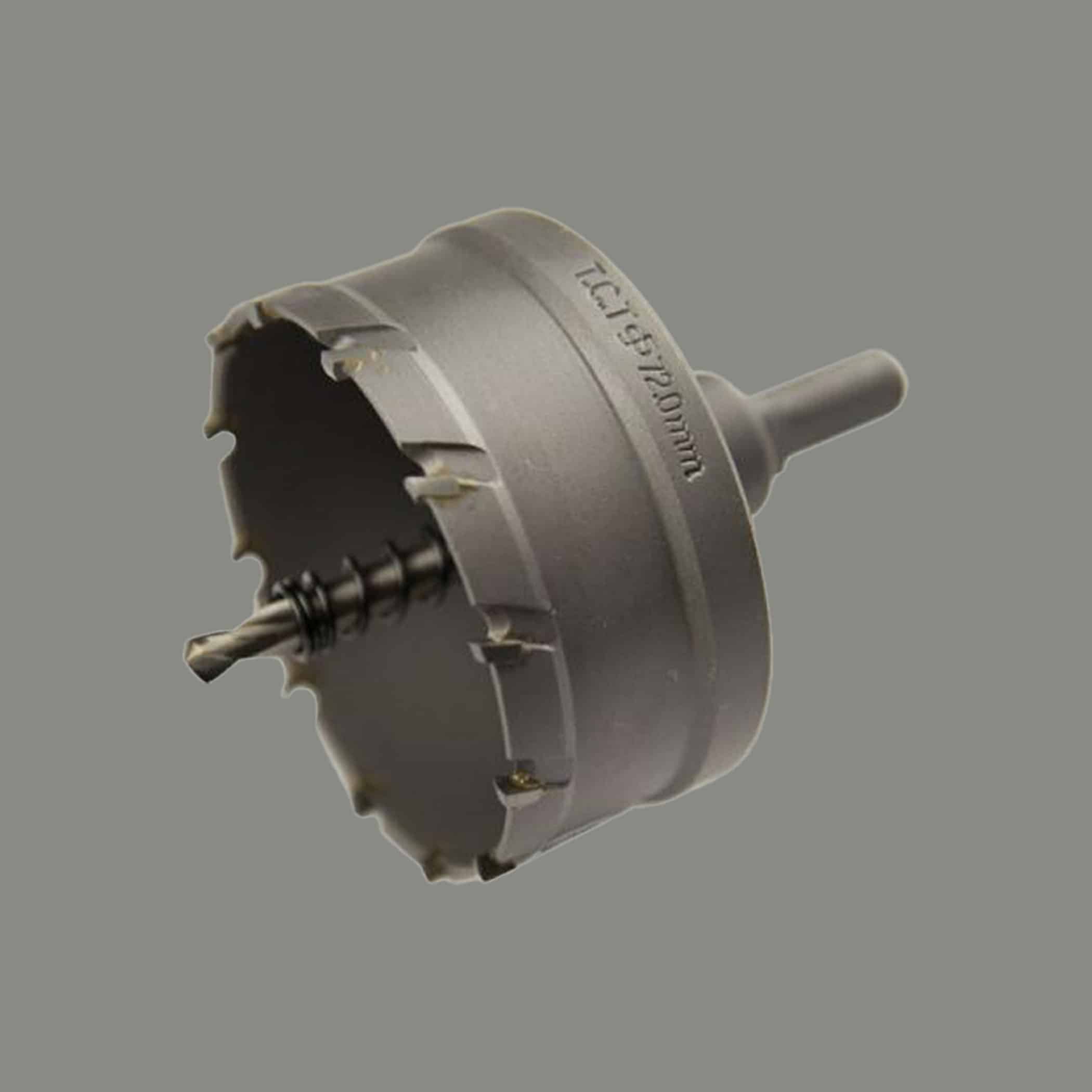

| HS72 | 72 mm |

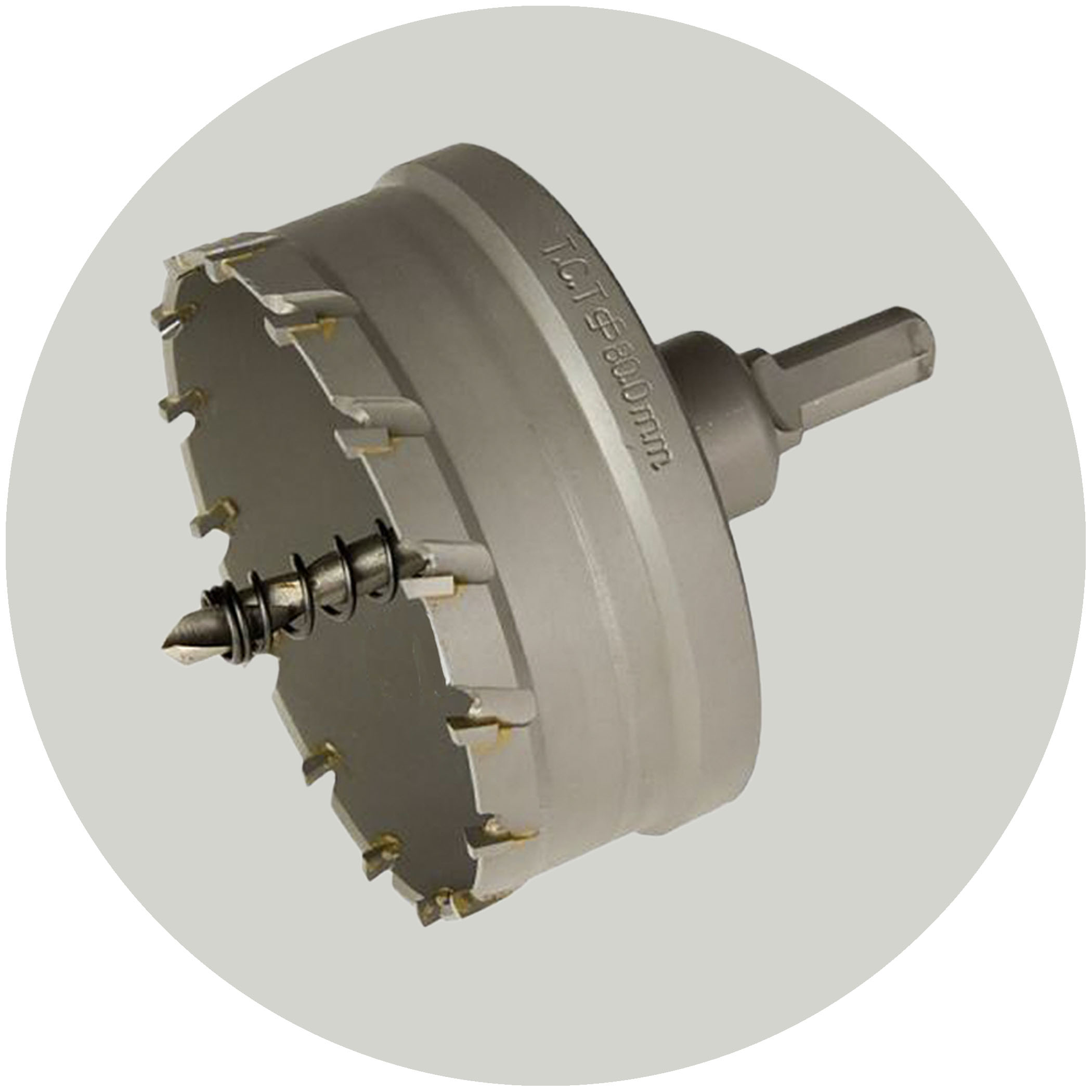

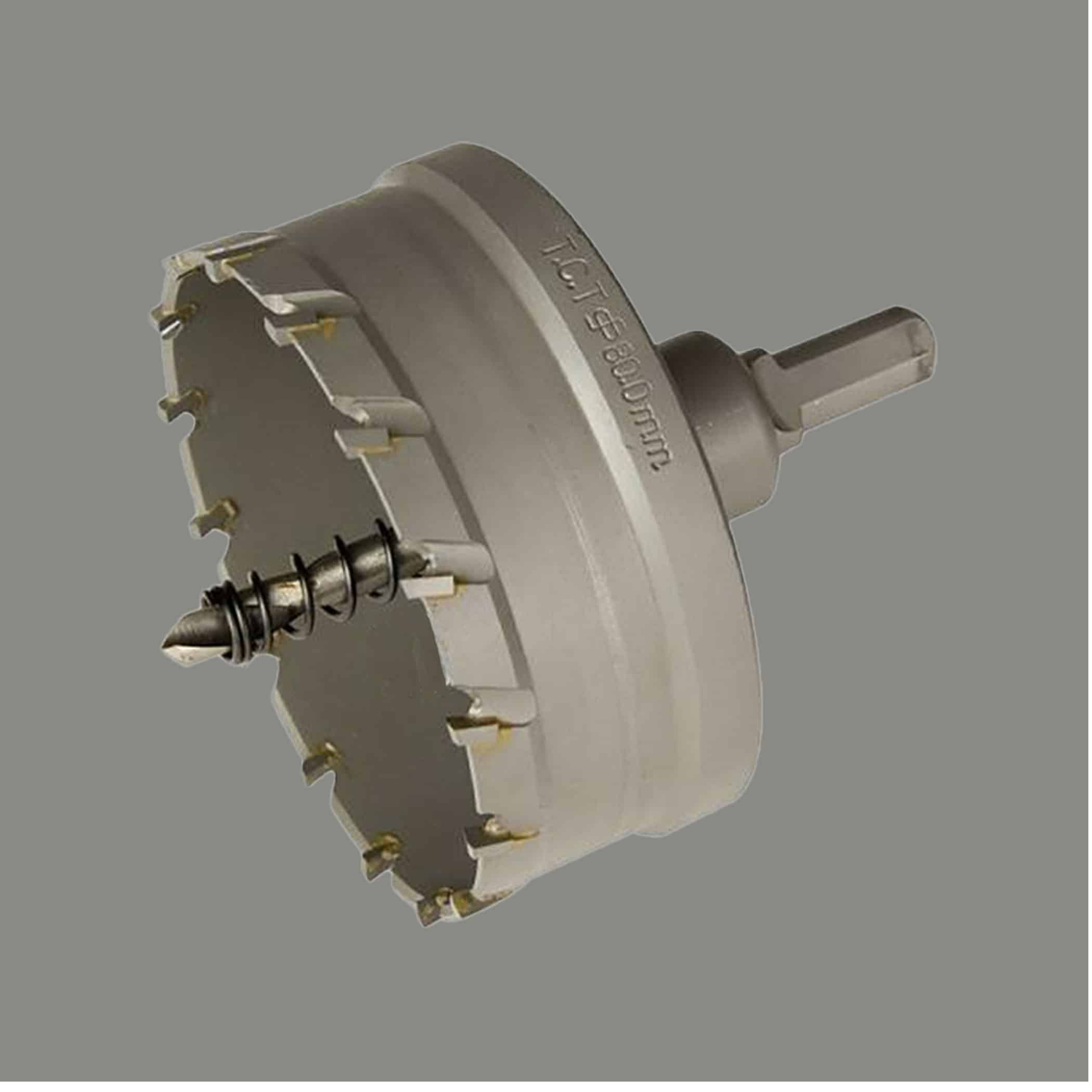

| HS80 | 80 mm |
| Type | TCT hole saw (cutting instructions); complete assembly, no separate arbor and pilot drill (2026 catalogue) |
| Tech sheet | Lauxes 2026 catalogue (hole saws) (PDF) |
What It Fits
- All NXT grates: NXT14, NXT21, NXT26, NXT35
- Tile inserts: STI21 (72 or 80 mm outlet), STI26, TIP35
- SFG23 (70 mm wide): 40 or 50 mm outlet only
How It Is Used
A licensed plumber installs Lauxes grates. What the Lauxes installation guide (PDF) says, in brief (not DIY instructions):
- Mark the position — the outlet can go anywhere along the bottom tray, in line with the waste pipe.
- Drill the hole — with a suitable size Lauxes hole saw for the outlet, per Lauxes’ cutting instructions.
- Fit the outlet — silicone the outlet lip and secure it to the underside of the tray.
Important Notes
- Lauxes says no metal debris is to be left on or in contact with the grate, so clear cutting swarf straight away.
- For cutting the grate itself, Lauxes’ cutting instructions (PDF) recommend a compound mitre saw with a multi-material blade of 80 tooth or more.
- For any problem with an item bought here, contact Multifors first.
Frequently Asked Questions
Do I need an arbor or pilot drill with the Lauxes hole saw?
No. Lauxes’ 2026 catalogue says the hole saw comes as a complete assembly, with no requirement to buy a separate arbor and pilot drill.
Which hole saw size do I need?
Lauxes’ cutting instructions say to use a suitable size Lauxes hole saw for your outlet. Its catalogue lists HS40, HS50, HS72 and HS80 beside its 40, 50, 72 and 80 mm outlets.
