Description

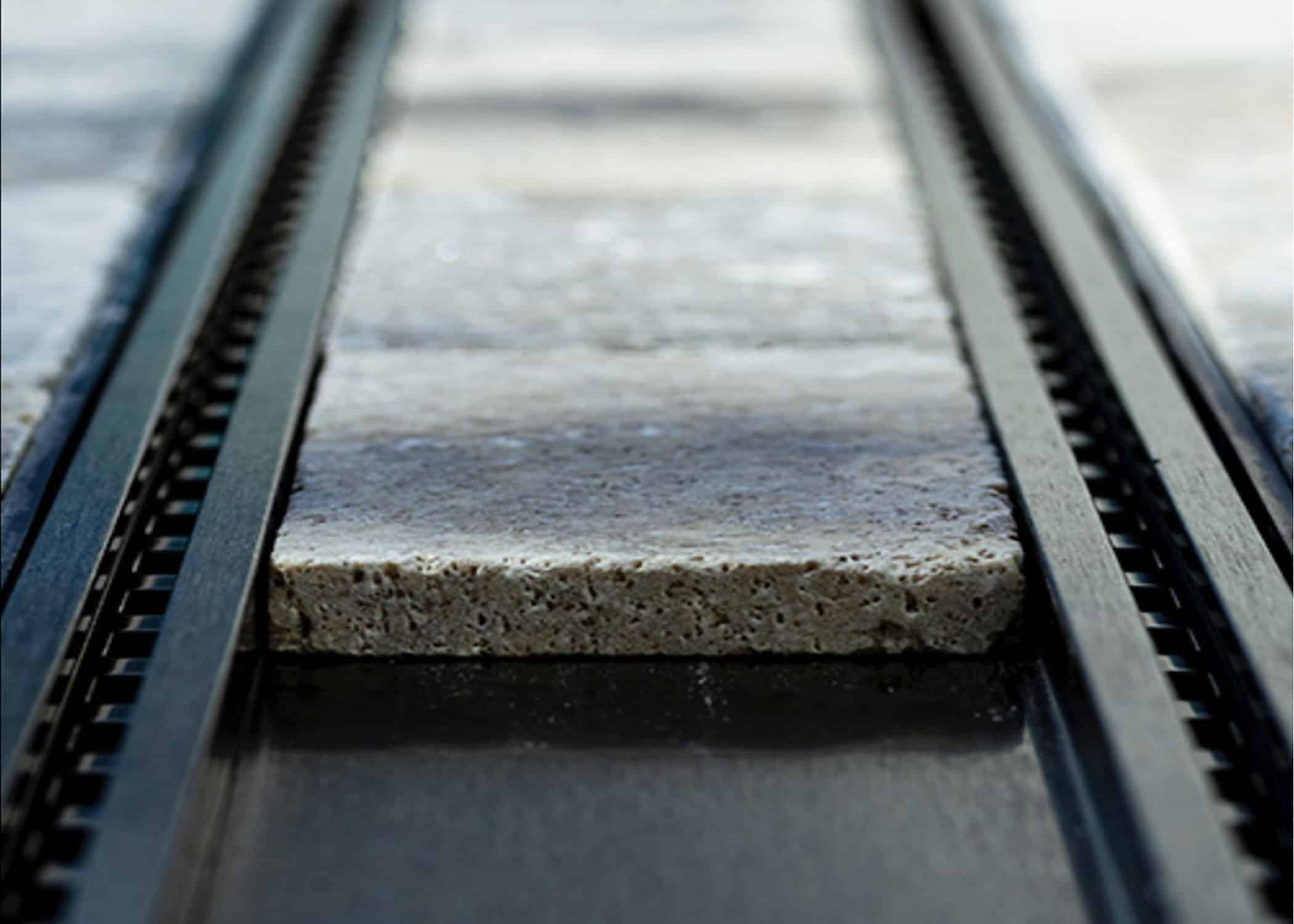

At 21 mm deep, the Slimline Tile Insert 21 is the shallowest grate in the Lauxes Grates tile insert range; Lauxes says it makes falls easier to achieve where height is limited. It is 100 mm wide. Explore the Lauxes range.
It holds tile up to 10 mm; Lauxes recommends a minimum 72 mm outlet.
Technical Specifications
| Width x depth | 100 mm x 21 mm |
|---|---|
| Tile thickness | Up to 10 mm thick |
| Material | Anodised aluminium |
| Load rating | Class B, up to 10.2 tonnes on average (per Lauxes) |
| Scope of use | DN90; 72 or 80 mm outlet (minimum 72 mm recommended) |
| Full-length weight | 4.3 kg (3.0 m), 7.8 kg (5.6 m) |

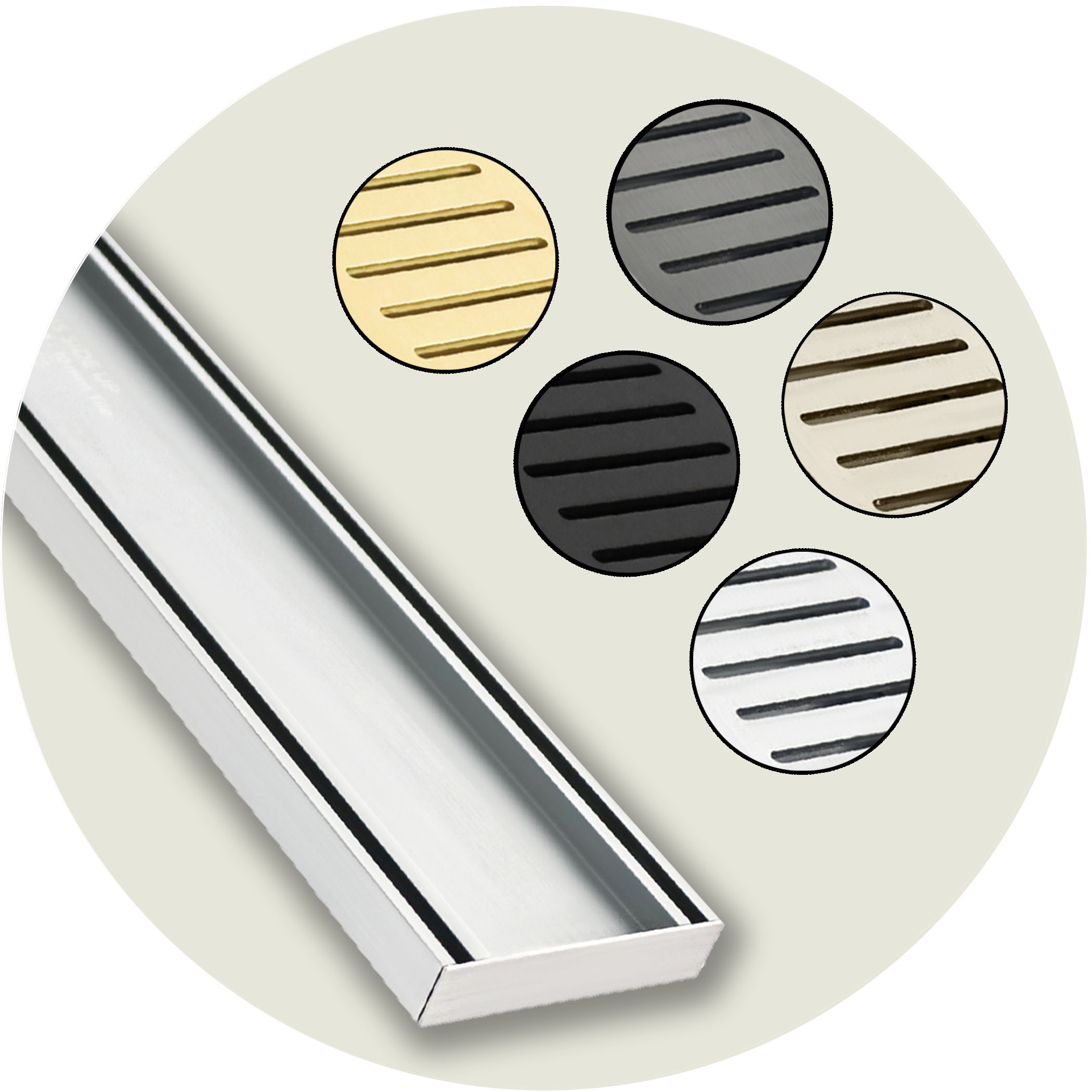

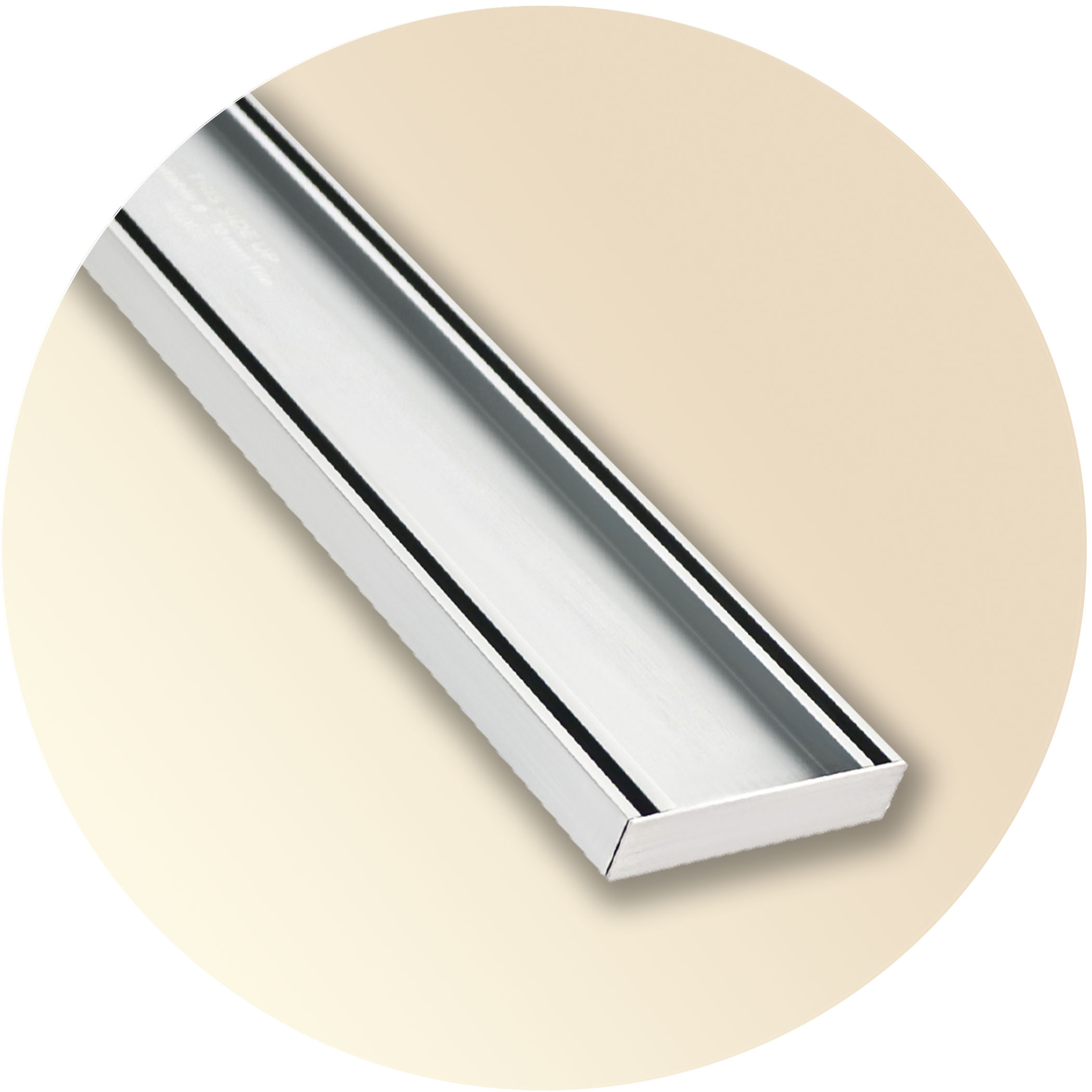

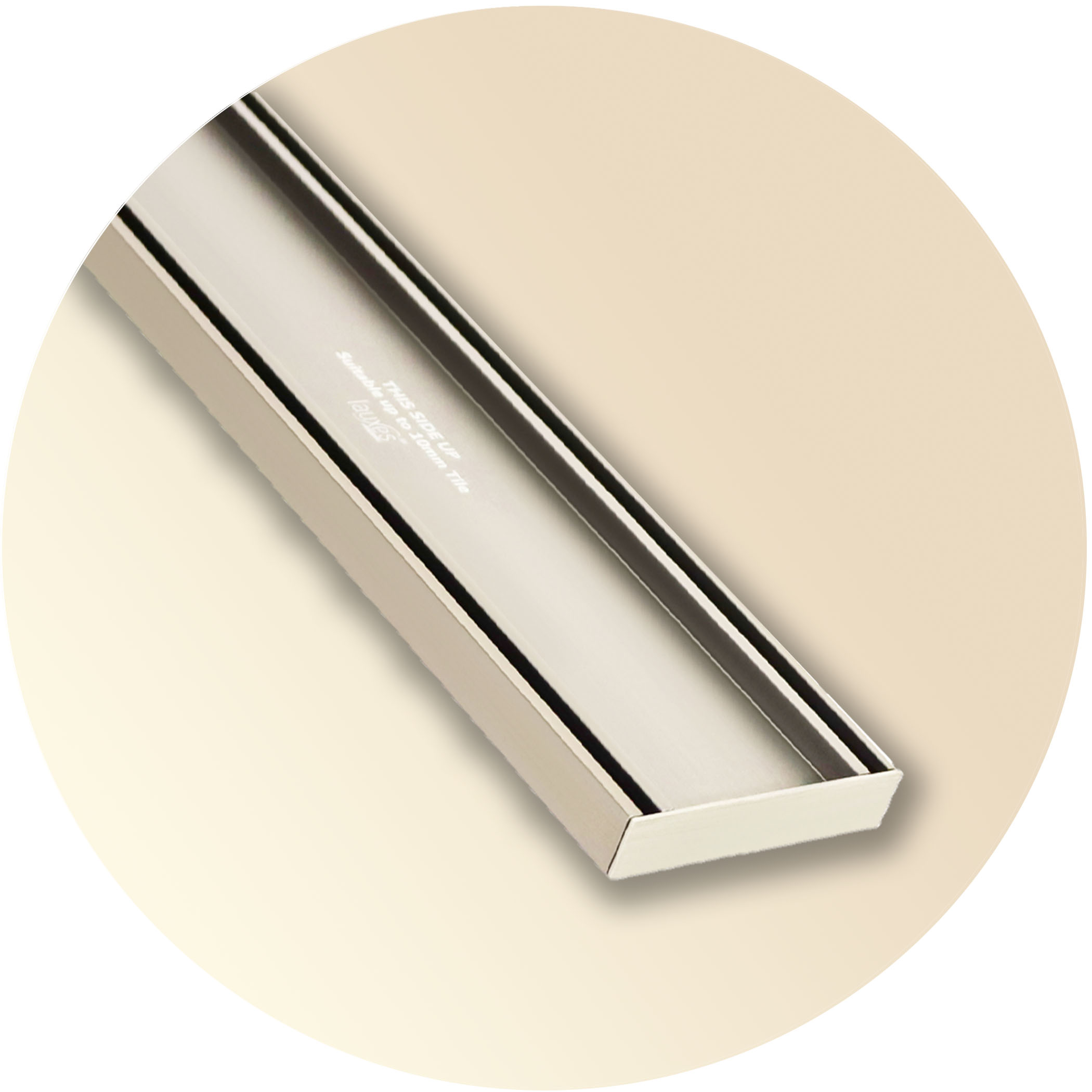

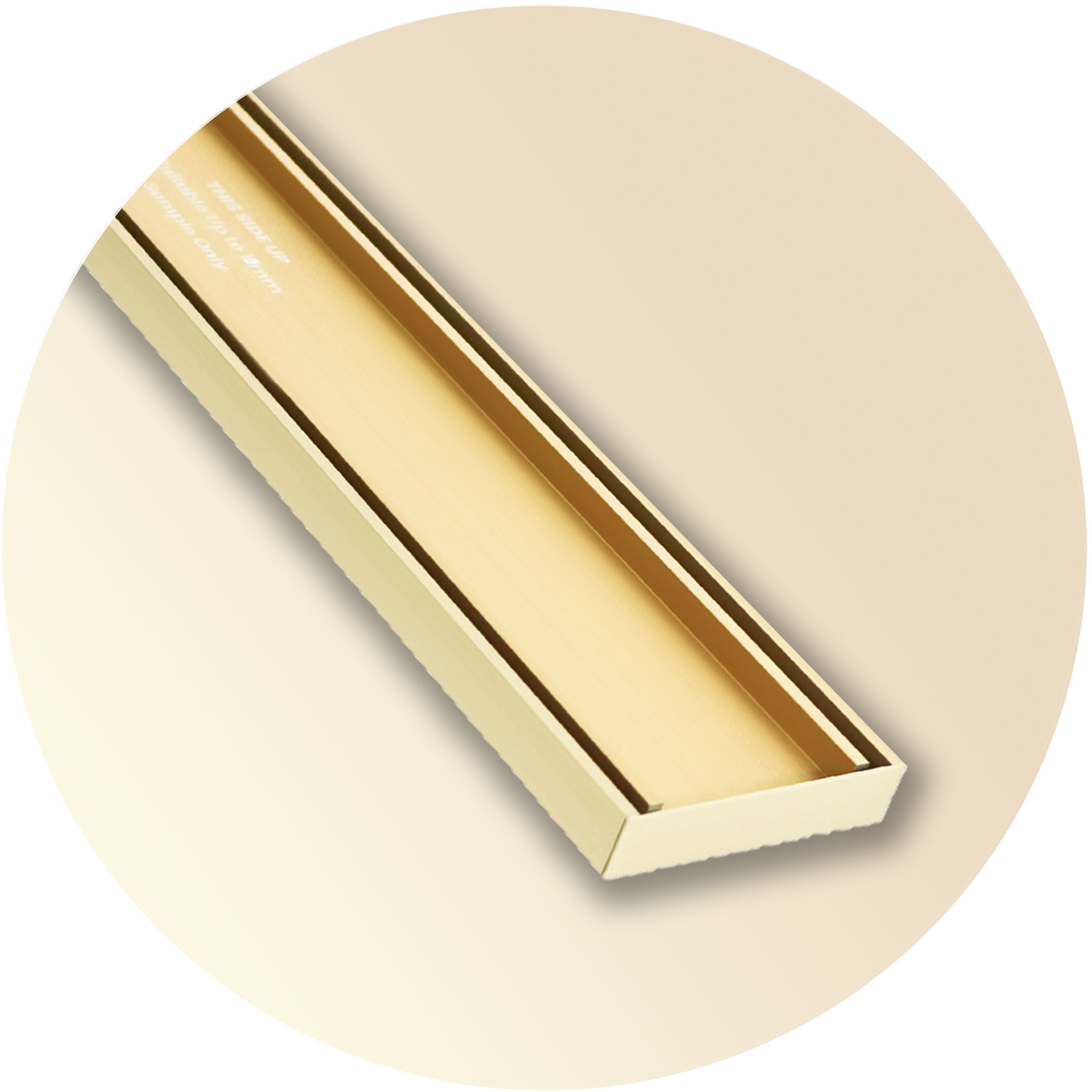

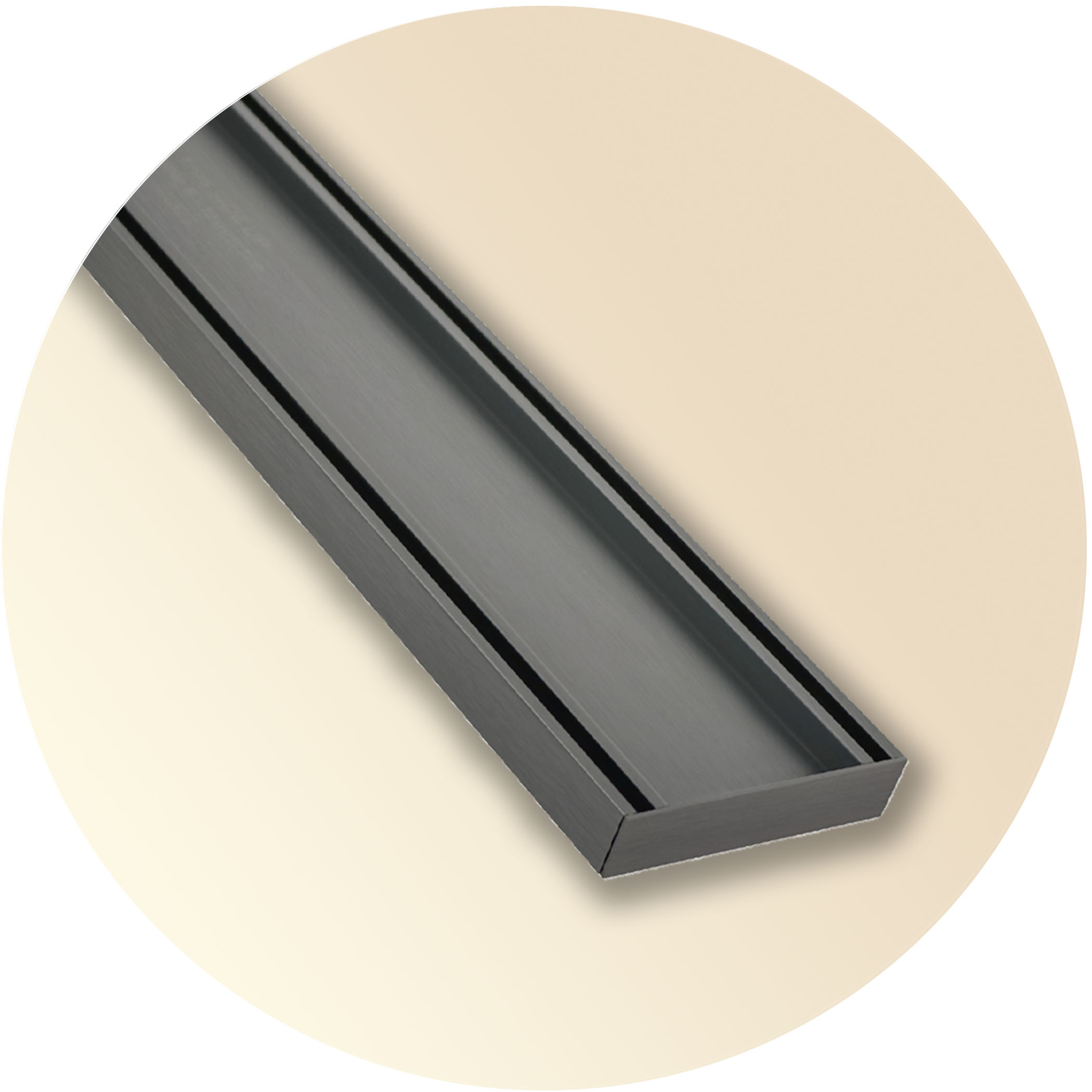

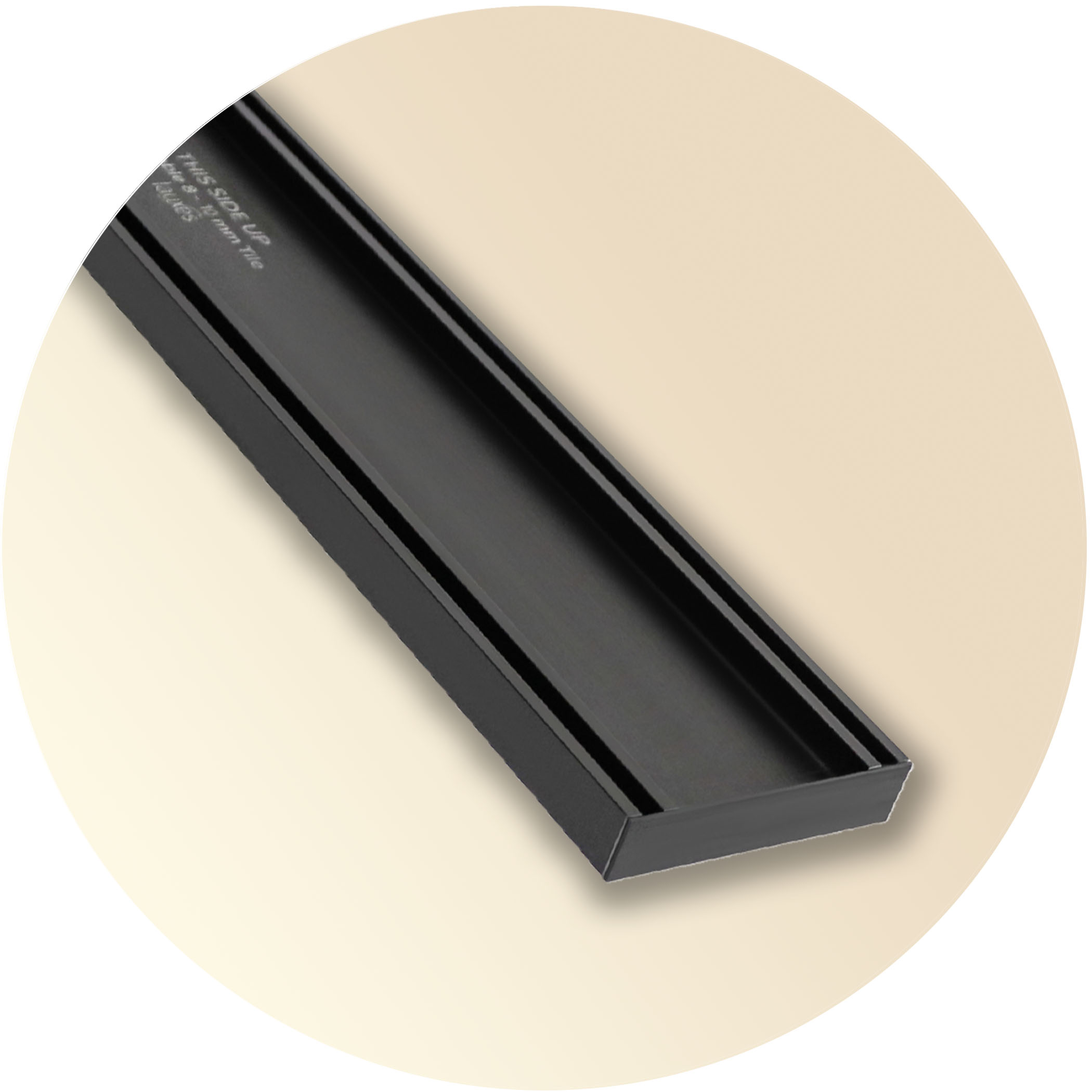

| Colours | Silver, Midnight, Gold, Brushed Nickel, Gunmetal and Copper |
| Certification | WaterMark certified, per Lauxes |
| Tech sheet | Lauxes STI21 tech sheet (PDF) |
Where to Use
- Low-height renovations
- Showers tiled across the drain
- Ensuites
- Indoor and outdoor floors
How to Install
Installation into the puddle flange is by a licensed plumber. From the Lauxes installation guide (PDF):
- Use a template — form the provision with a template 10-20 mm wider than the grate, never the grate itself.
- Grate goes in last — after any waterproofing, tiling and grout; Lauxes recommends wall tiles do not cover the end caps.
- Cut and assemble — tray 3 mm shorter than the finished length (thin caps) or 10 mm (thick caps), top 1 mm shorter than the tray’s internal length; drill the outlet with a Lauxes hole saw.
- Bed it level — on large neutral cure silicone blobs, which let trapped water reach the puddle flange. Glue tile in with neutral cure silicone.
- Clean, then seal — remove residue immediately; seal the edge once the blobs have dried.
Lengths, Colours and What’s Included
Order a full 3.0 m or 5.6 m length, or cut to size: enter the finished grate length you need, from 600 to 5600 mm, and we cut it to that length, charging for the next 700 mm length up (2200 mm is charged as 2800 mm; 1400 mm is charged as 1400 mm). Allow for end caps when measuring (the Lauxes guide allowance is in step 3). Over 3000 mm, including full 5.6 m lengths, delivery is quoted at checkout (you pay once it’s priced) or you can pick up; up to 3000 mm delivers as normal.
Six colours, including Copper (colours may vary slightly). Every grate includes one matching 72 or 80 mm waste outlet of your choice and two matching end caps, thin (EC21) or thick (TEC21), in every colour including Copper. In Copper, which Lauxes makes in a full 3.0 m length only, the grate is cut to size up to 3000 mm or sold as a full 3.0 m length.
Important Notes
- Lauxes advises the grate is WaterMark certified and must be installed in a WaterMark puddle flange by a licensed plumber, as legally required; it is not part of the waterproofing.
- Clean with soapy water at least every three months, more in marine areas; never abrasives or acids. Confirm outlet size with your plumber.
- Lauxes’ manufacturer’s warranty: a Lifetime Rustproof Warranty for the original owner (licensed plumber installing to AS 3740, an initial clean straight after, no metal debris) and a minimum 25-year fade guarantee (proper care, installation to AS/NZS 3500.2). Normal wear, misuse and accidental damage are excluded. This manufacturer’s warranty is in addition to your rights under the Australian Consumer Law; contact Multifors first if there’s a problem.
Frequently Asked Questions
What tile thickness fits the Lauxes STI21?
Up to 10 mm, per the Lauxes tech sheet.
Which waste outlet should I use with the STI21?
72 or 80 mm: Lauxes recommends a minimum 72 mm outlet for the STI21.
Should I choose the STI21 or the STI26?
The STI21 when height is tight; the STI26 (26 mm deep) for tiles up to 11 mm or smaller outlets.
