Lauxes NXT35 Linear Floor Grate

By Lauxes

Browse all long drains →

SKU: WD-Lauxes-NXT35
Tags: ,
Brands:
Price range: $130.00 through $812.00

Choose how you’ll get it

Delivery

Enter your postcode for a delivery date.

Pick up Free

Choose collection point

Collect from: Port Melbourne

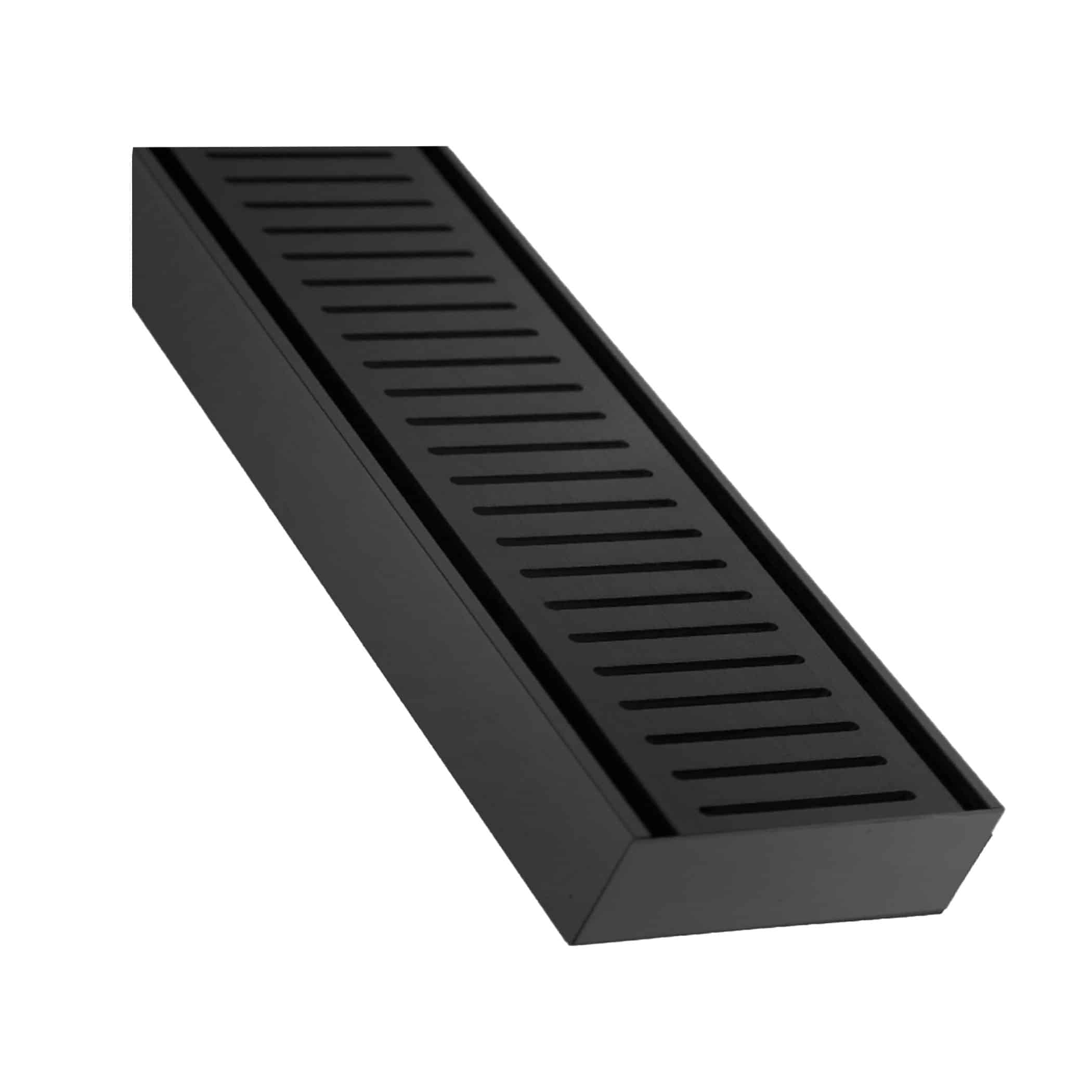

For outdoor areas that need extra drainage, the NXT35 is the deepest grate in the Lauxes NXT range at 35 mm. Lauxes lists it for outdoor applications such as pool surrounds and entertaining areas. Available in five anodised finishes, cut to size or in full lengths, with a matching outlet and end caps.

Colour
Waste outlet

A matching waste outlet and two matching end caps come with every grate, in every length.

Required · Choose 1

Price range: $130.00 through $812.00

You may also need

Description

At 35 mm, the NXT35 is the deepest NeXT Generation grate from Lauxes Grates, in 100 mm wide anodised aluminium. Lauxes describes the NXT35 for pool surrounds, outdoor entertaining areas and driveways, where additional drainage is required. See the Lauxes collection.

Its tech sheet lists it for outdoor applications, and it keeps the anti-tracking slots and roll-out top.

Technical Specifications

Width x depth 100 mm x 35 mm
Material Anodised aluminium
Load rating Class B, up to 10.2 tonnes on average (per Lauxes)
Scope of use DN90; 40, 50, 72 or 80 mm outlet
Full-length weight 6.2 kg (3.0 m), 12.0 kg (5.6 m)

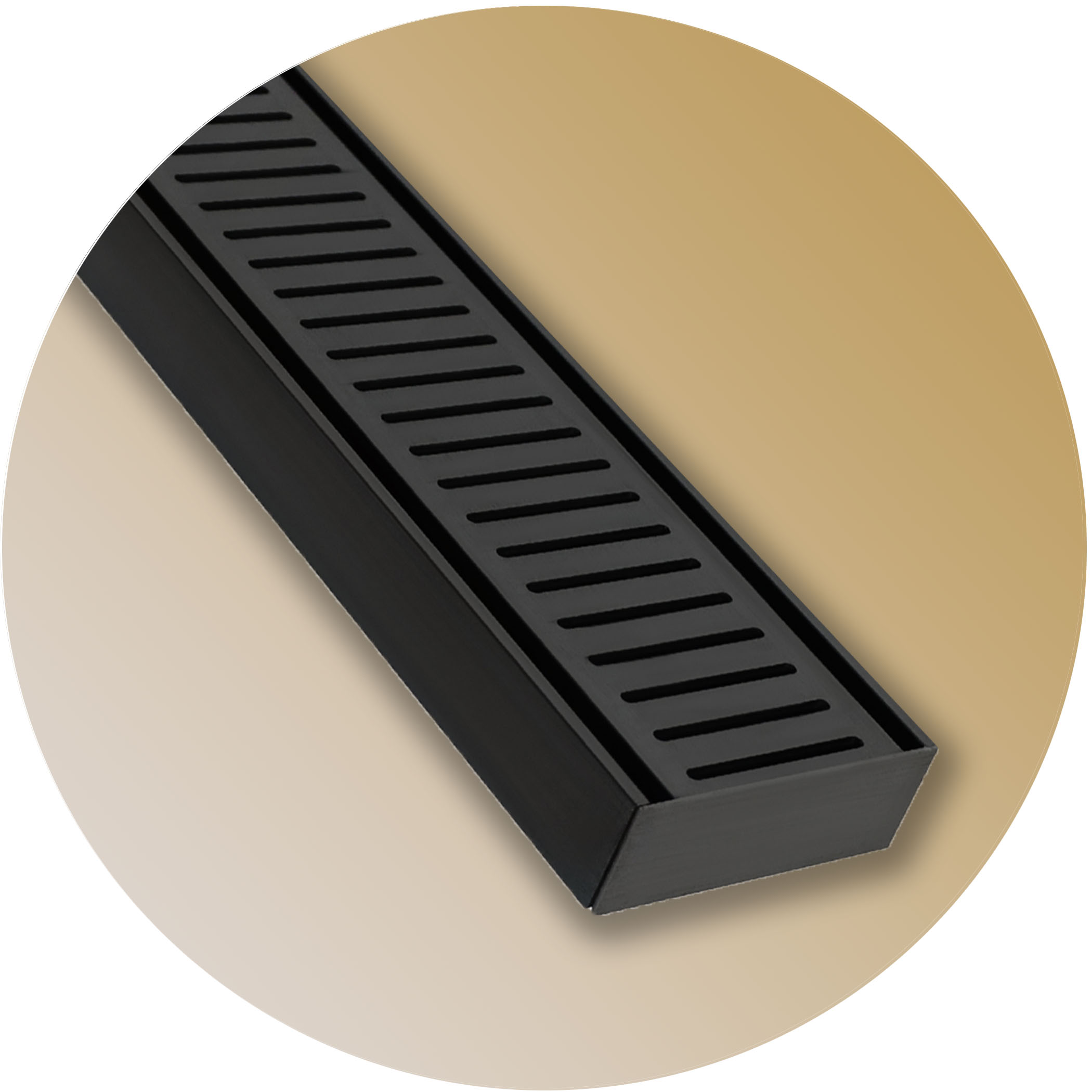

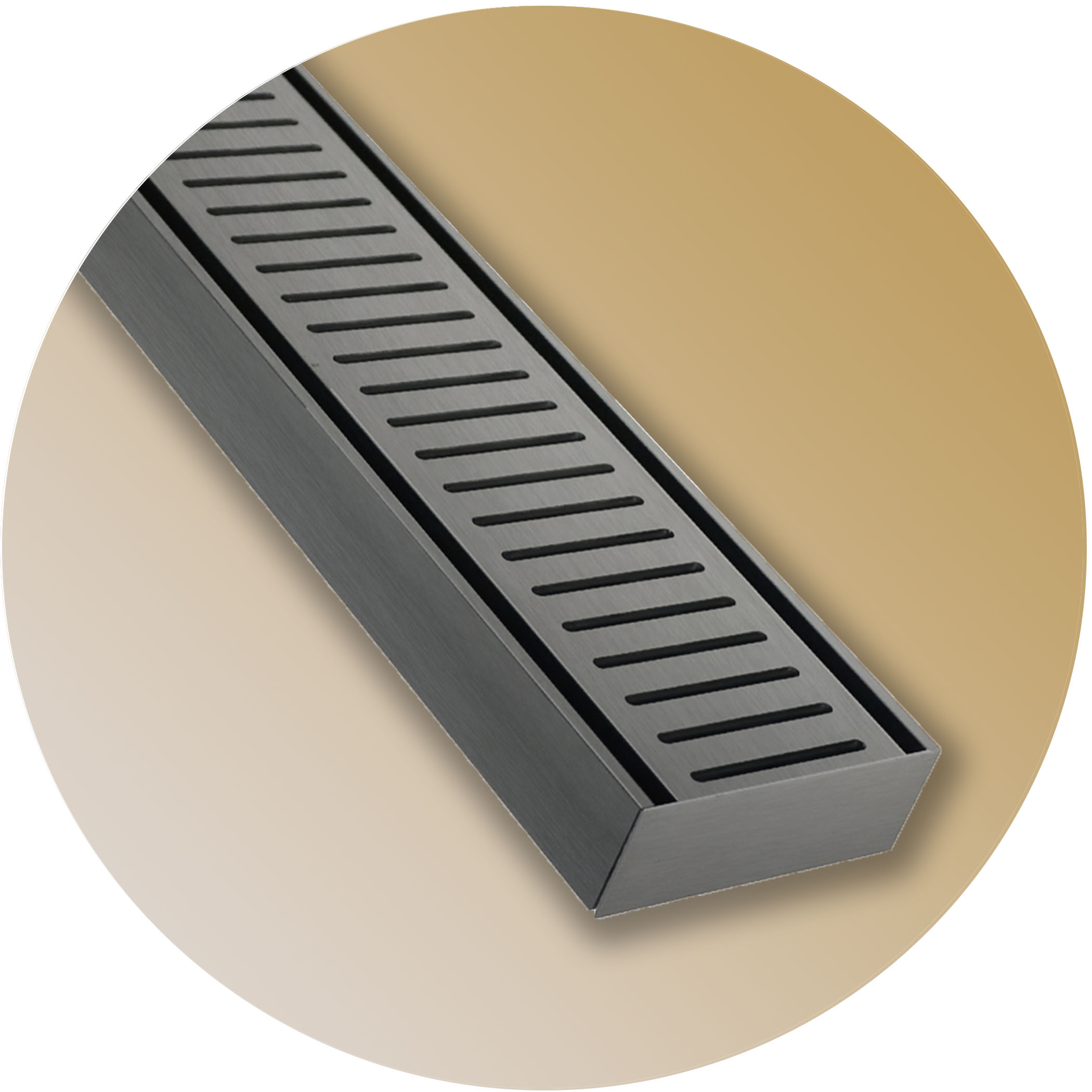

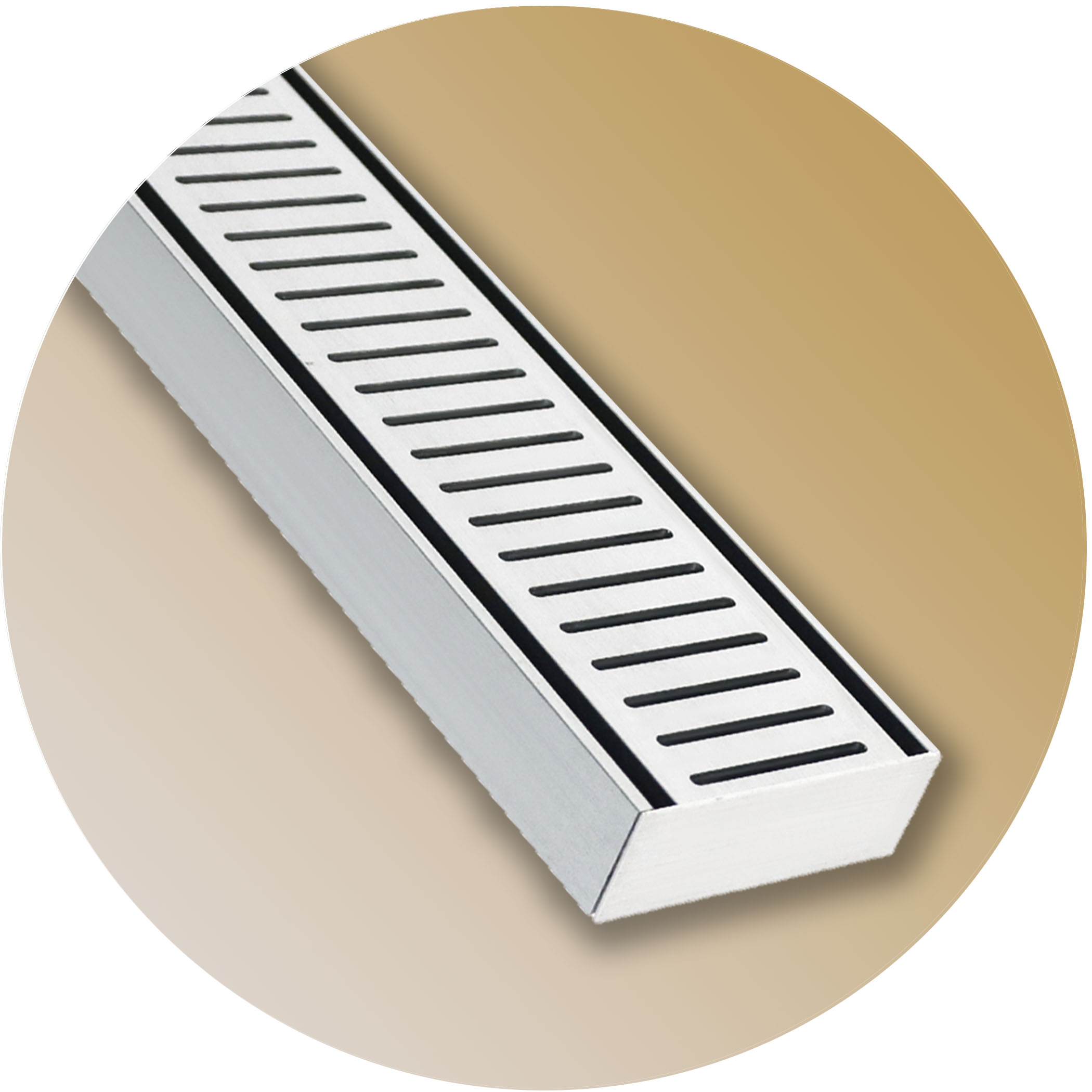

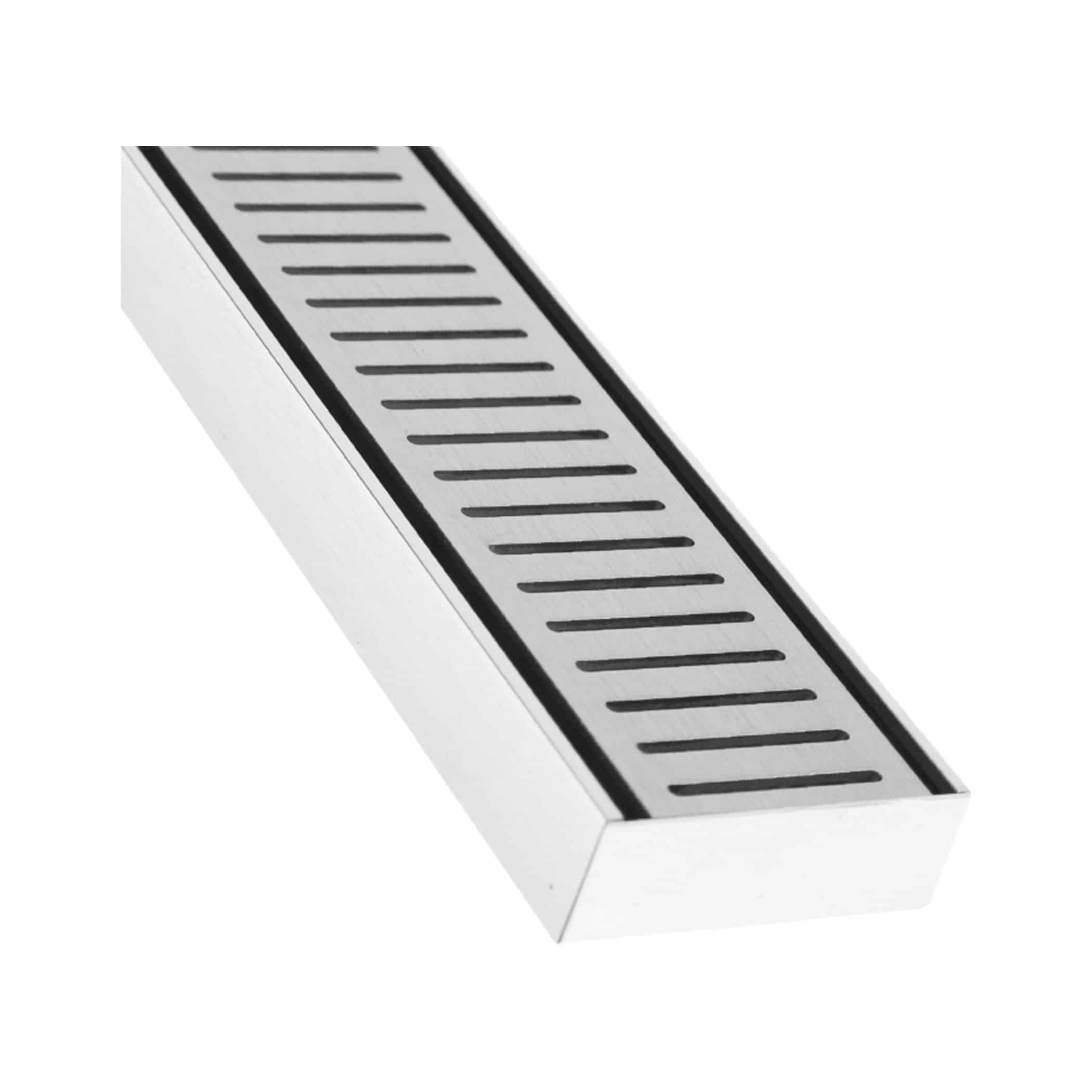

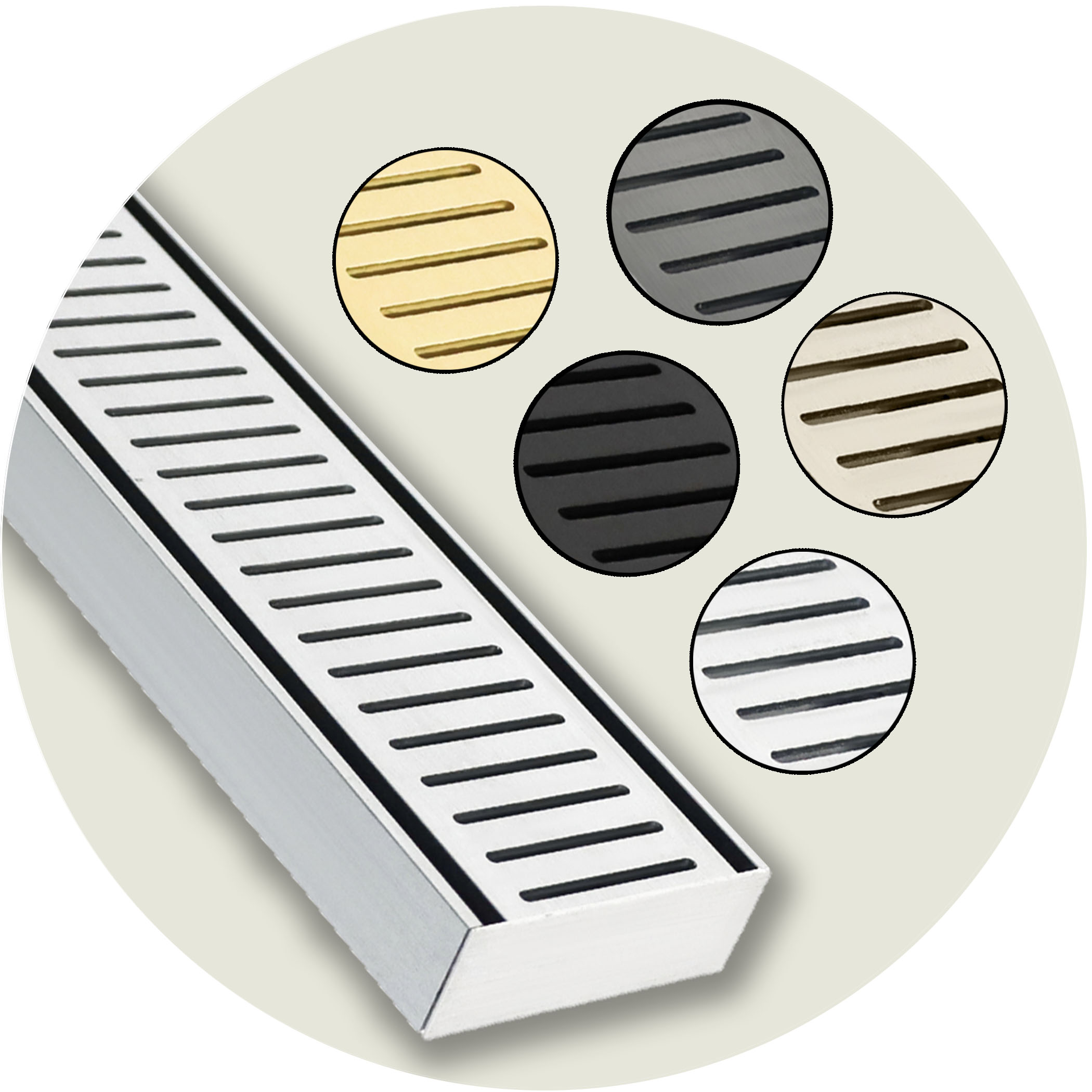

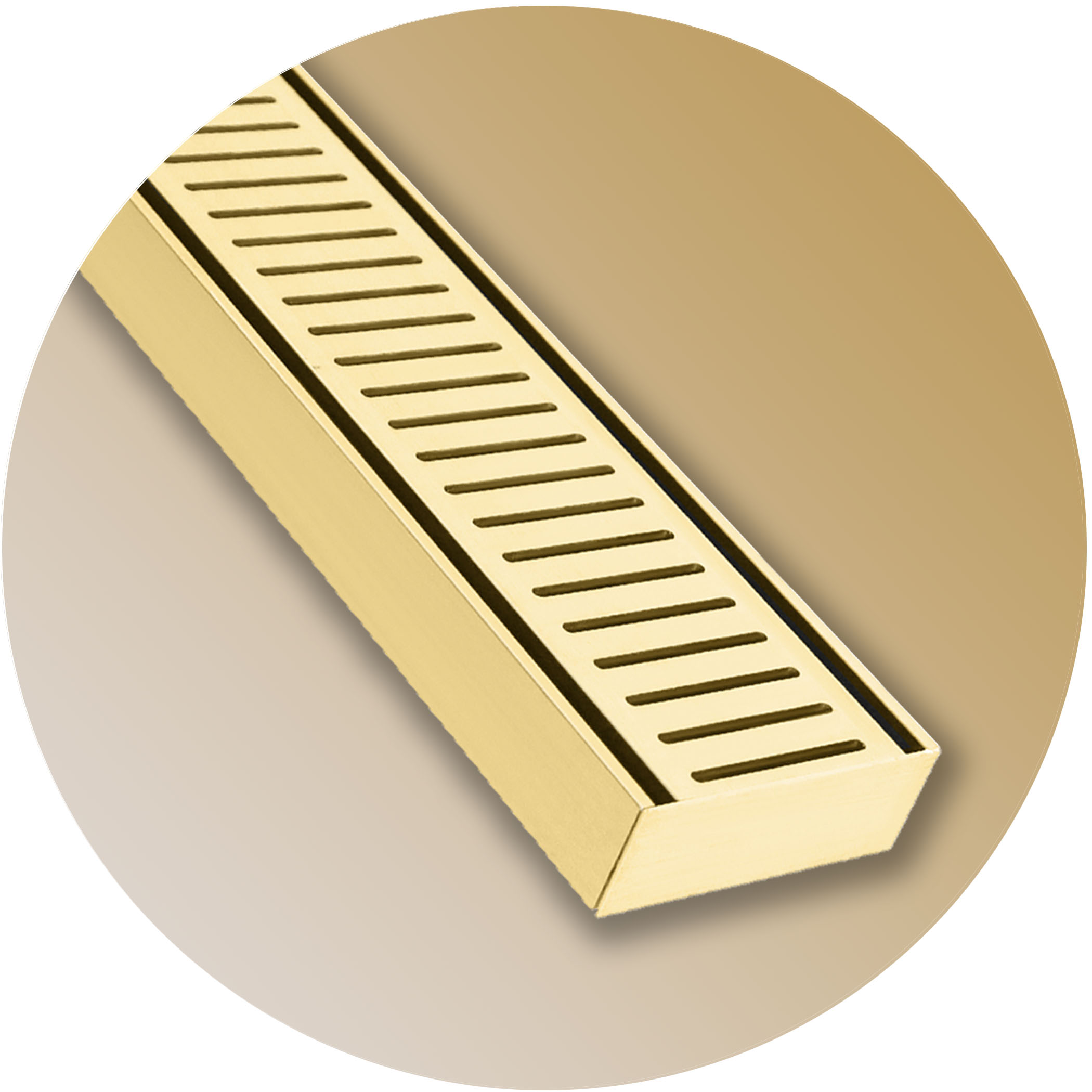

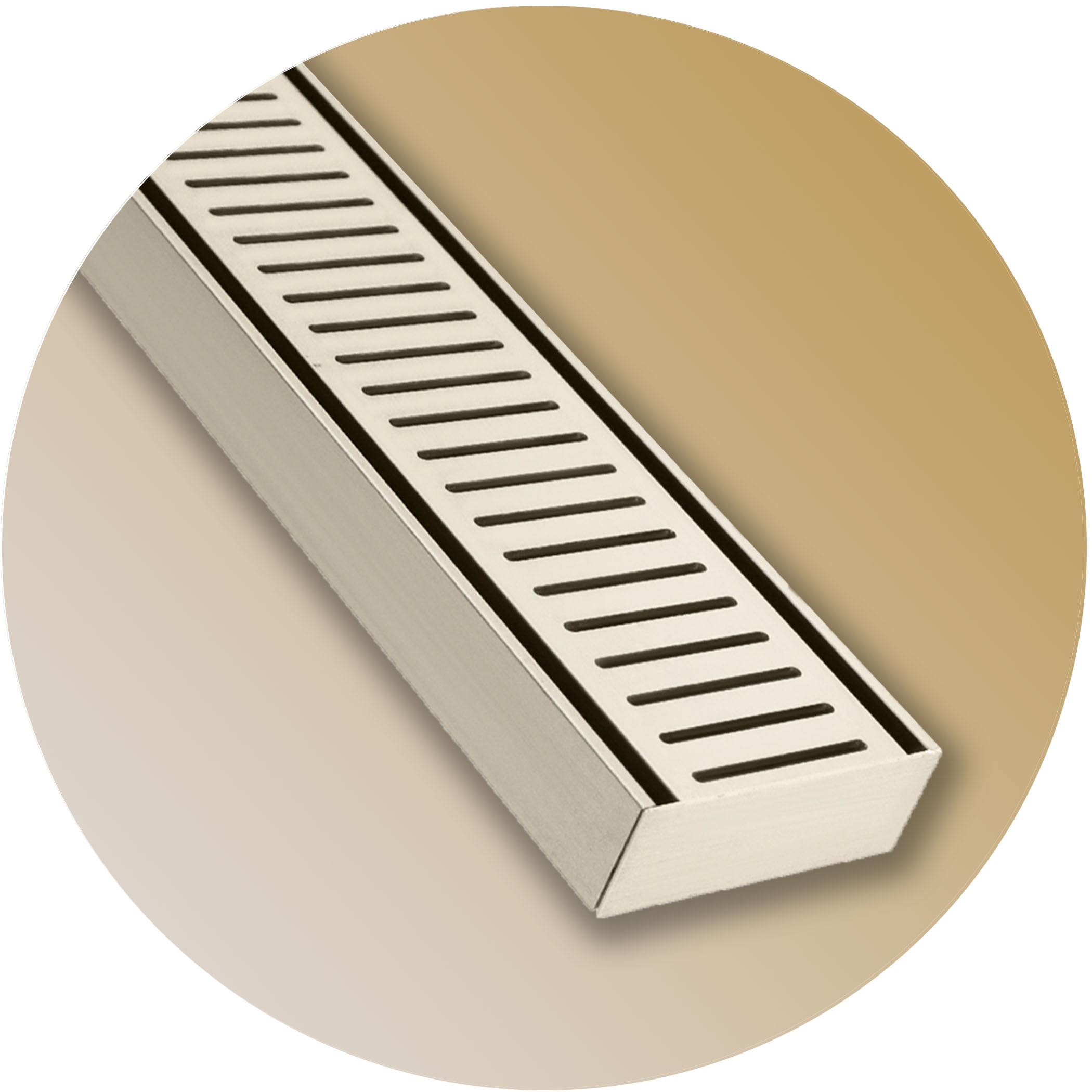

Colours Silver, Midnight, Gold, Brushed Nickel and Gunmetal
Certification WaterMark certified, per Lauxes
Tech sheet Lauxes NXT35 tech sheet (PDF)

Where to Use

  • Pool surrounds, with regular cleaning per Lauxes
  • Outdoor entertaining areas
  • Alfresco and courtyard floors
  • Outdoor areas needing more drainage

How to Install

A licensed plumber installs this grate into the puddle flange. Per the Lauxes installation guide (PDF):

  1. Template the recess — use a template 10-20 mm wider than the grate; the grate must never touch wet cement.
  2. Tile before the grate — complete any waterproofing and tiling first; Lauxes recommends keeping wall tiles off the end caps.
  3. Size and assemble — trim the tray 3 mm shorter than the finished length (thin caps) or 10 mm (thick caps) and the top 1 mm shorter than the tray’s internal length, then fit the outlet and caps.
  4. Bed it level — on large neutral cure silicone blobs, which let trapped water reach the puddle flange.
  5. Clean, then seal — remove residue immediately; seal the edge once the blobs have dried.

Lengths, Colours and What’s Included

Cut to size: enter the finished grate length you need, from 600 to 5600 mm. We cut it to that length and charge for the next 700 mm length up; for example 2200 mm is charged as 2800 mm, and 1400 mm is charged as 1400 mm. Allow for end caps when measuring (the Lauxes guide allowance is in step 3). Full lengths: 3.0 m or 5.6 m. Over 3000 mm, including full 5.6 m lengths, delivery is quoted at checkout (you pay once it’s priced) or you can pick up; up to 3000 mm delivers as normal.

Every grate includes one matching 40, 50, 72 or 80 mm waste outlet of your choice and two matching end caps, thin (EC35) or thick (TEC35). Colours may vary slightly.

Important Notes

  • Lauxes advises the grate is WaterMark certified and must be installed in a WaterMark puddle flange by a licensed plumber, as legally required; it is not part of the waterproofing.
  • Wash with soapy water at least every three months, more often in marine settings; no abrasives or acids. Check outlet size against local plumbing rules.
  • Lauxes gives the original owner a manufacturer’s Lifetime Rustproof Warranty (licensed-plumber install to AS 3740, immediate first clean, no metal particles left on it) and a minimum 25-year guarantee against fading (proper care, install to AS/NZS 3500.2). Normal wear, misuse and accidental damage are excluded. This manufacturer’s warranty is in addition to your rights under the Australian Consumer Law; contact Multifors first if there’s a problem.

Frequently Asked Questions

Is the Lauxes NXT35 for indoor or outdoor use?

Outdoor, per the Lauxes tech sheet; its product page also mentions indoor use.

Can the NXT35 be used around a saltwater pool?

Lauxes says its grates can be used around salt water if cleaned and maintained regularly, more often in marine settings, without acidic or abrasive products. Poor care can void the fade warranty.

Can the NXT35 take vehicle traffic?

Lauxes lists driveways among its uses and rates it Class B, up to 10.2 tonnes on average. Load depends on the installation: check the Lauxes tech sheet and confirm with your licensed plumber or installer.

Key Features

  • Deepest grate in the Lauxes NXT range: 100 mm wide x 35 mm deep
  • Outdoor-focused, per the Lauxes tech sheet
  • Lauxes rates it Class B, up to 10.2 tonnes on average
  • Anti-water tracking design with easy roll-out top
  • Five anodised finishes: Silver, Midnight, Gold, Brushed Nickel, Gunmetal
  • WaterMark certified, per Lauxes
  • Lauxes Lifetime Rustproof Warranty (original owner) and minimum 25-year fade guarantee (conditions apply)

Additional information

Length

Cut to size, Full length 3.0 m, Full length 5.6 m

Colour

Brushed Nickel, Gold, Gunmetal, Midnight, Silver

Variation

Matching 40mm Waste Outlet, Matching 50mm Waste Outlet, Matching 72mm Waste Outlet, Matching 80mm Waste Outlet

Accessory Range

Drains

Frequently asked questions

Is the Lauxes NXT35 for indoor or outdoor use?

Outdoor, per the Lauxes tech sheet; its product page also mentions indoor use.

Can the NXT35 be used around a saltwater pool?

Lauxes says its grates can be used around salt water if cleaned and maintained regularly, more often in marine settings, without acidic or abrasive products. Poor care can void the fade warranty.

Can the NXT35 take vehicle traffic?

Lauxes lists driveways among its uses and rates it Class B, up to 10.2 tonnes on average. Load depends on the installation: check the Lauxes tech sheet and confirm with your licensed plumber or installer.
