Lauxes Drainage Grates Thick End Caps

By Lauxes

Browse all long drain accessories →

SKU: WD-Laux-ThickEC
Tags:
Brands:
$22.00

Choose how you’ll get it

Delivery

Enter your postcode for a delivery date.

Pick up Free

Choose collection point

Collect from: Port Melbourne

Thick end caps are the alternative to thin caps on six Lauxes grates: TEC21, TEC26 and TEC35 each suit one NXT grate and one tile insert of the same depth. The Lauxes guide has the bottom tray cut 10 mm shorter for them, against 3 mm for thin caps.

Colour
Variation
$22.00

Description

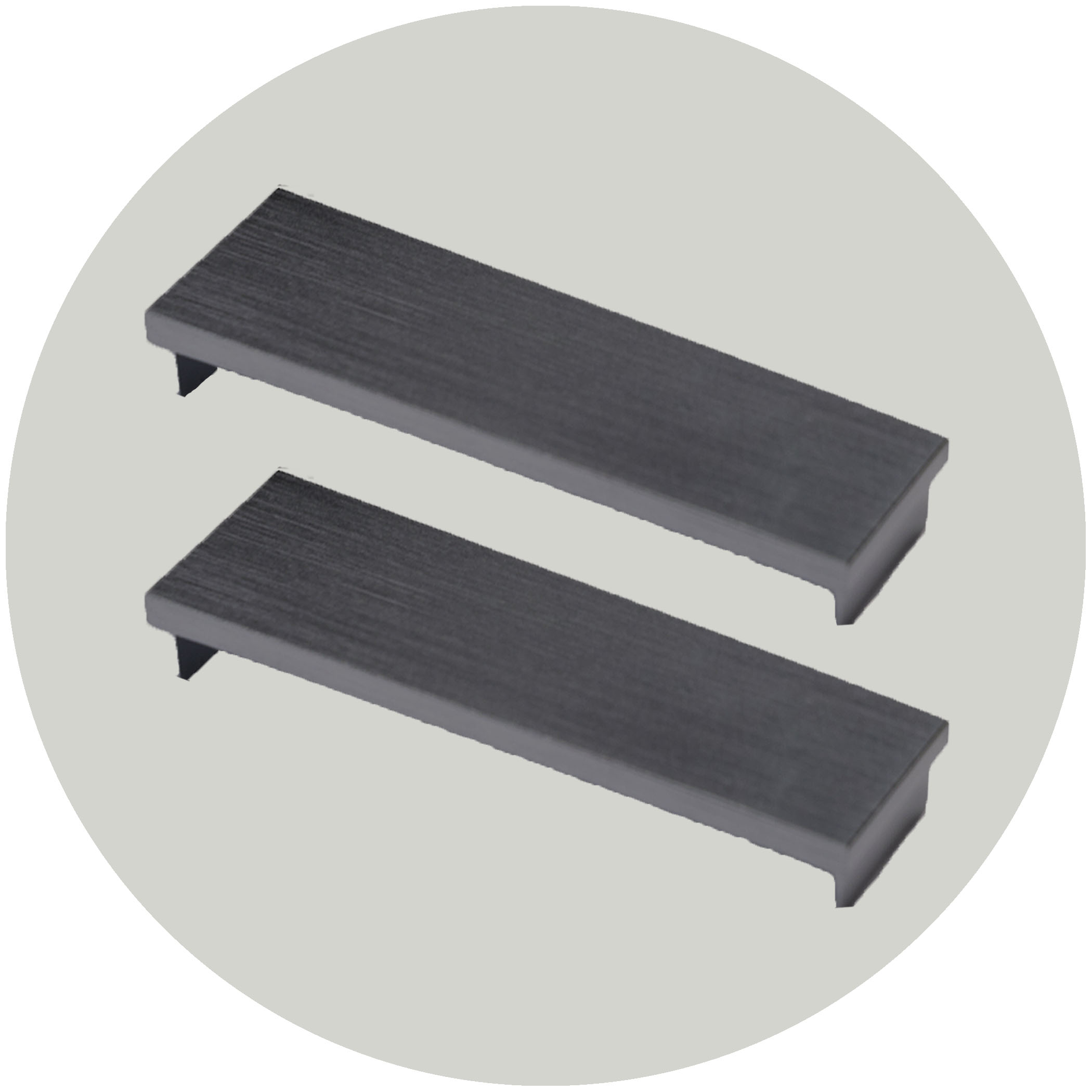

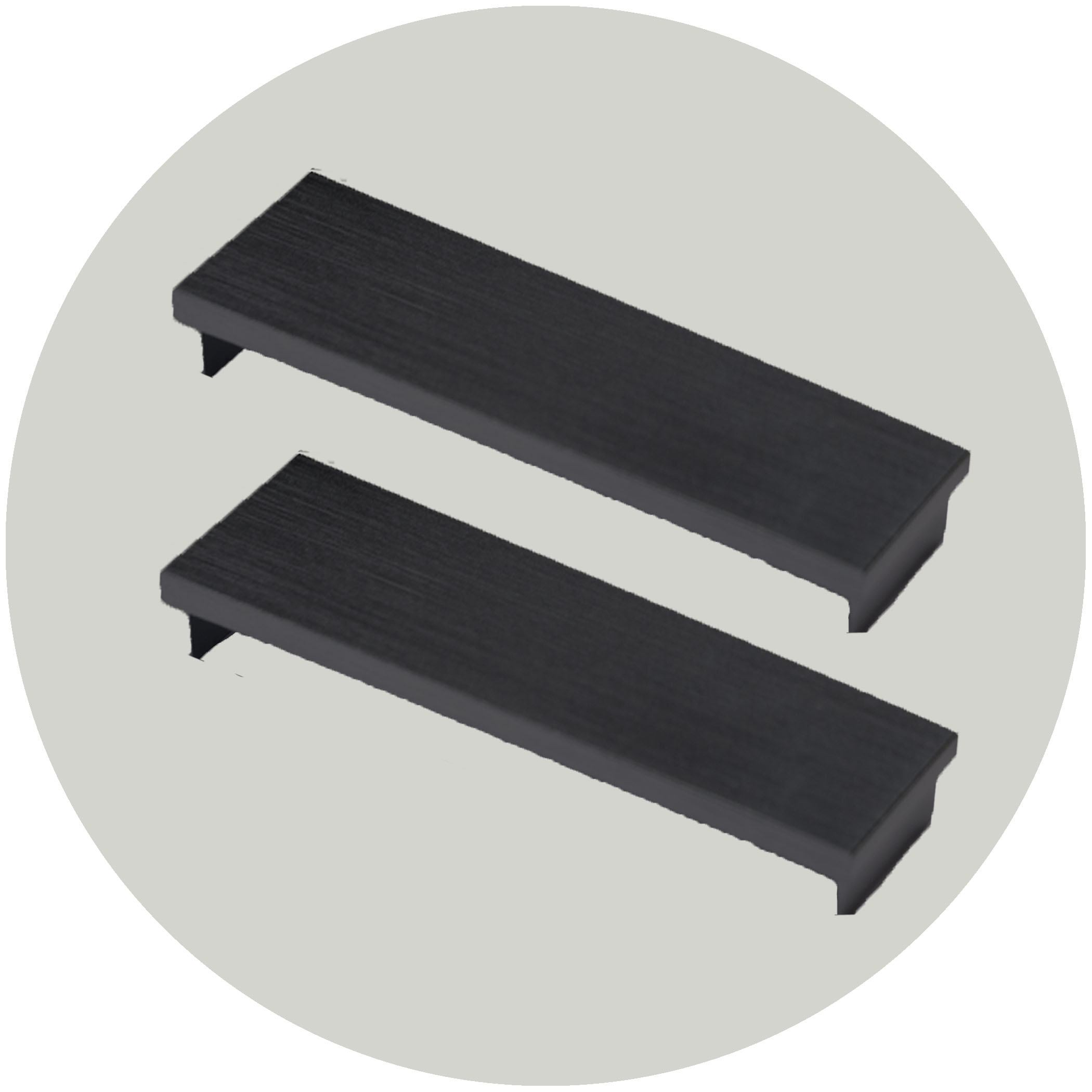

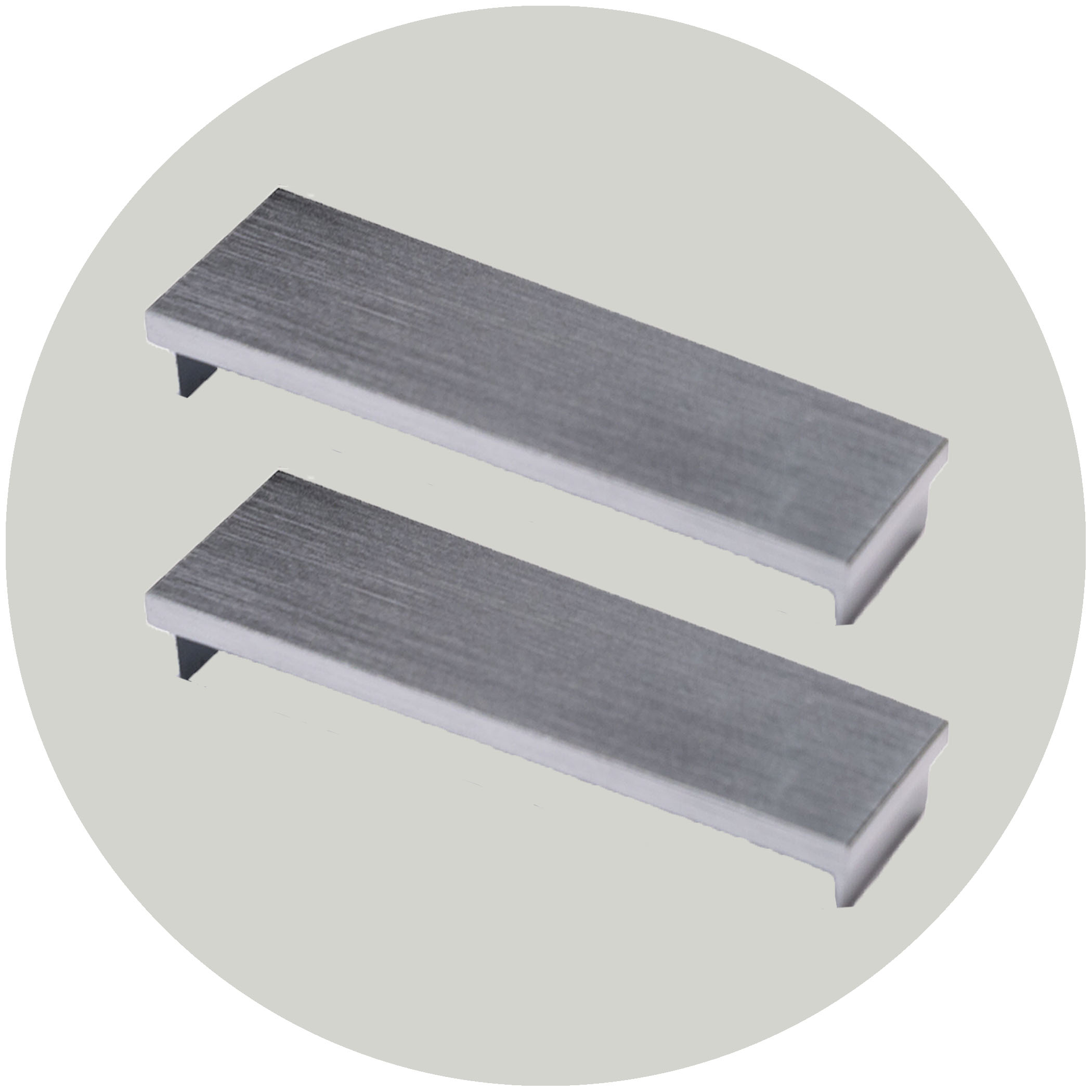

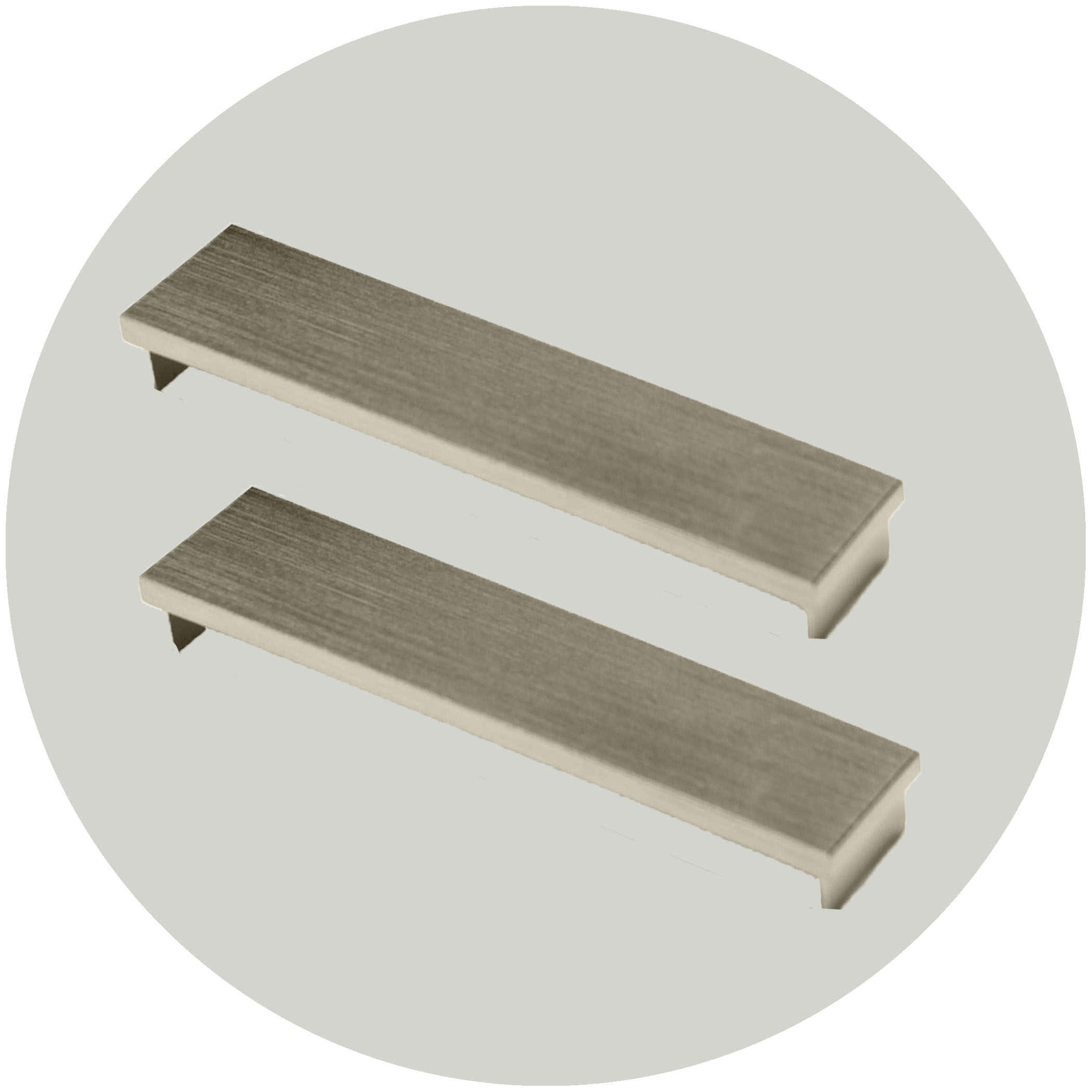

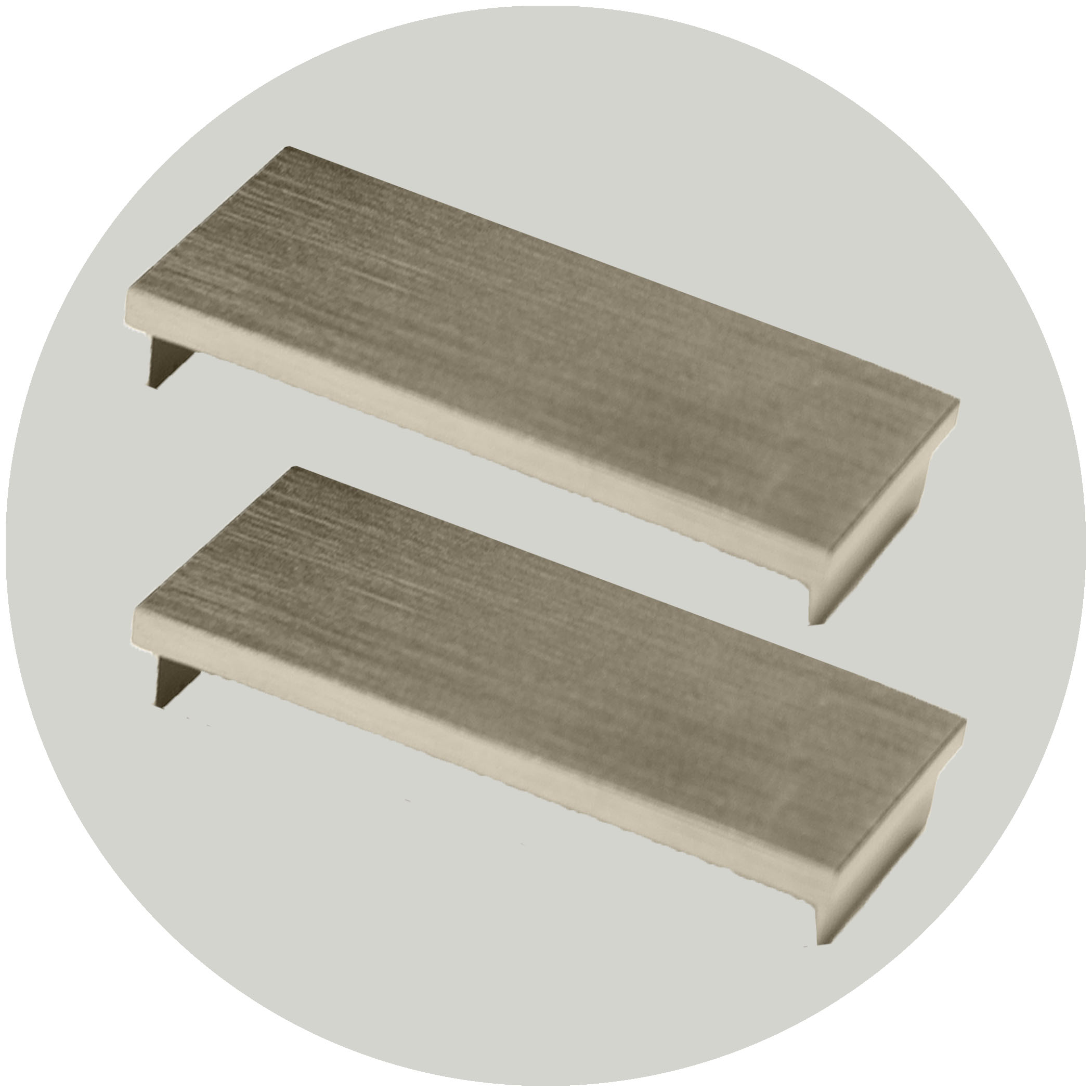

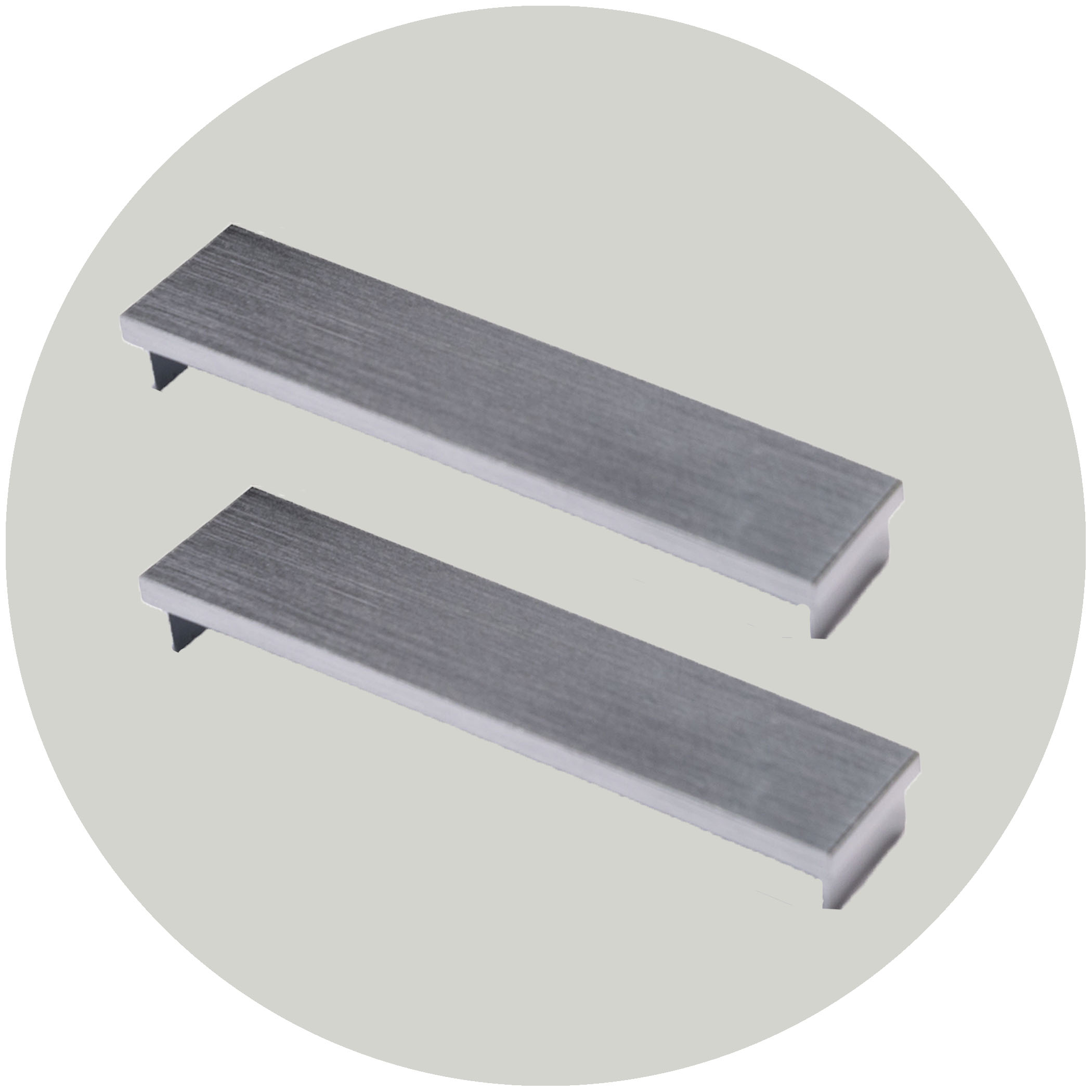

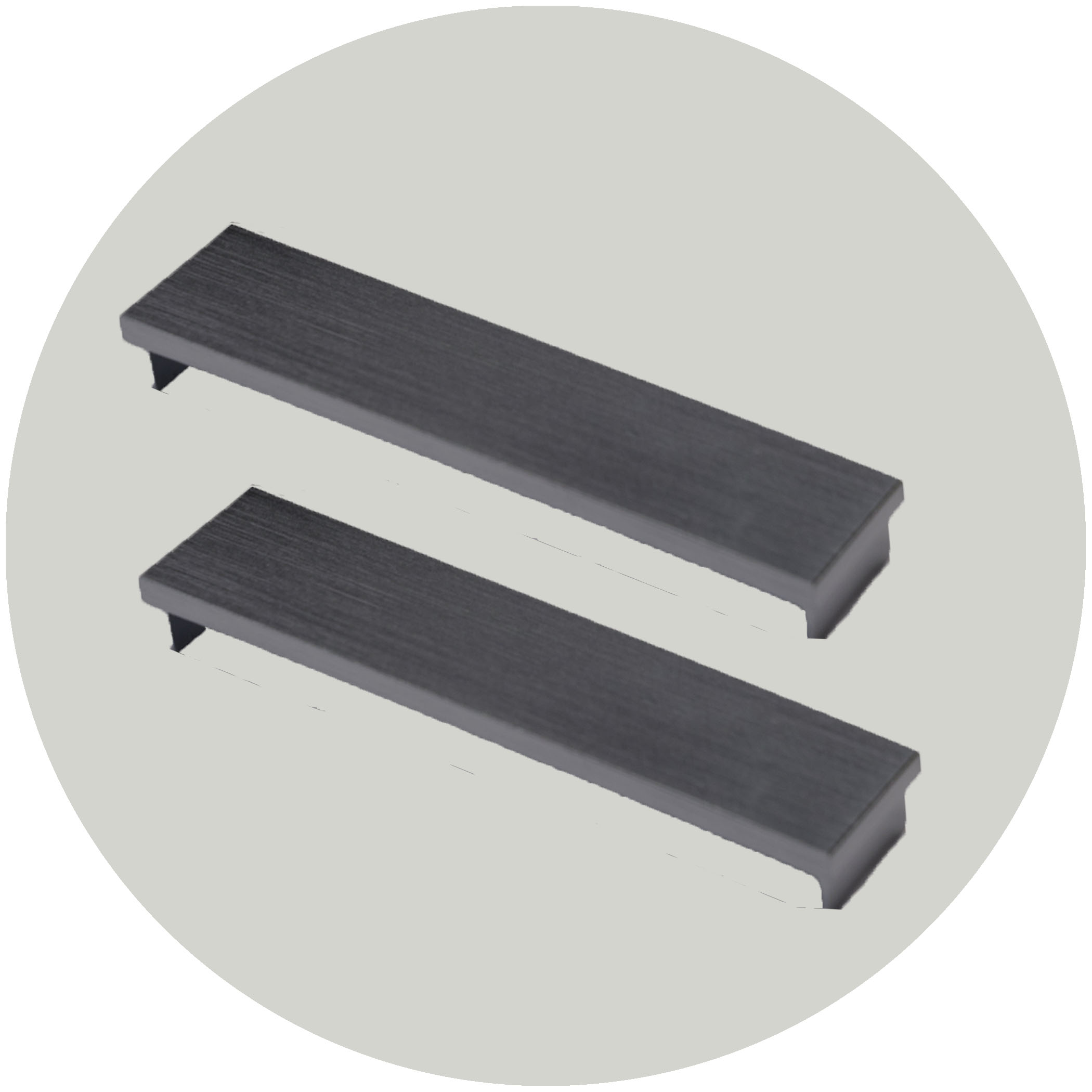

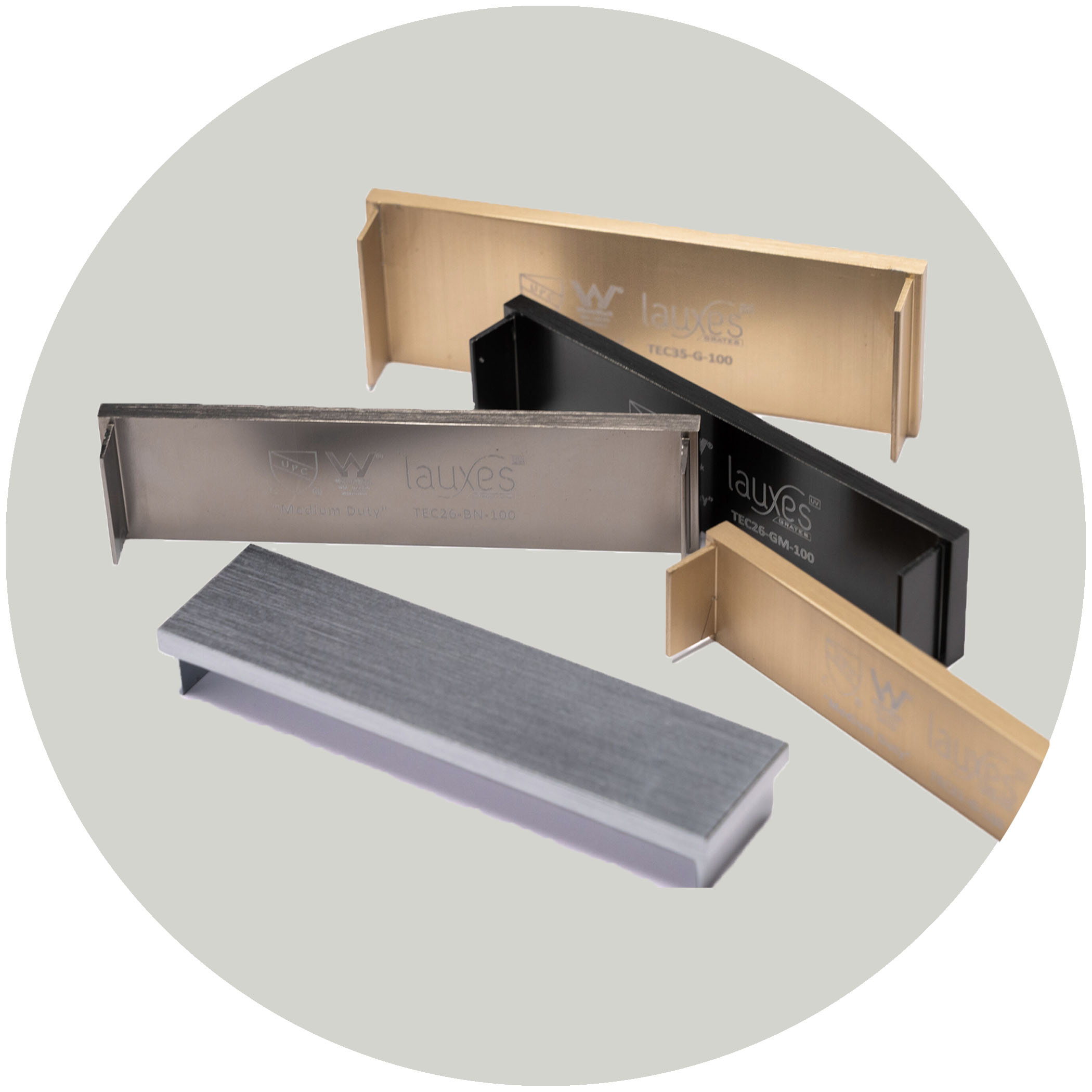

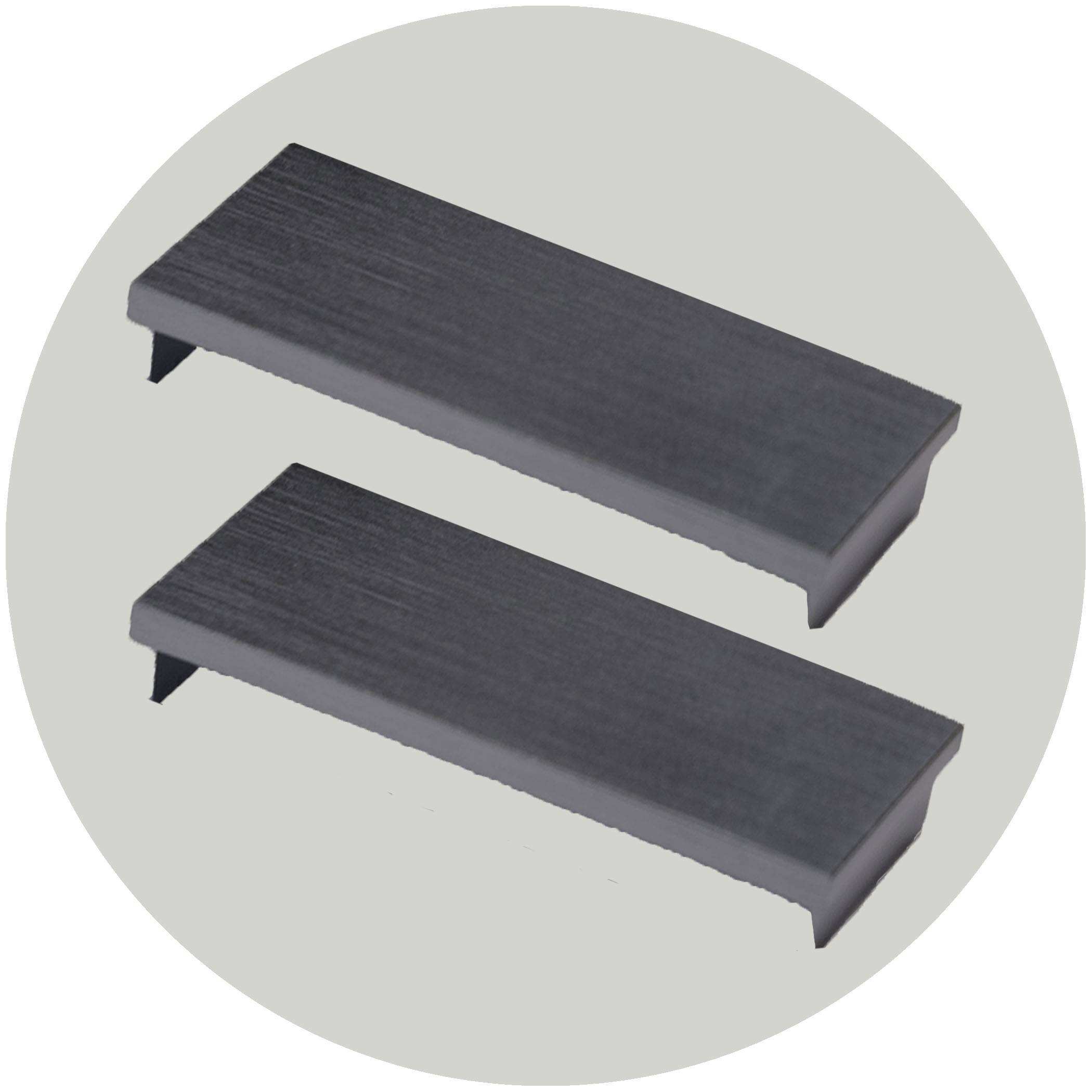

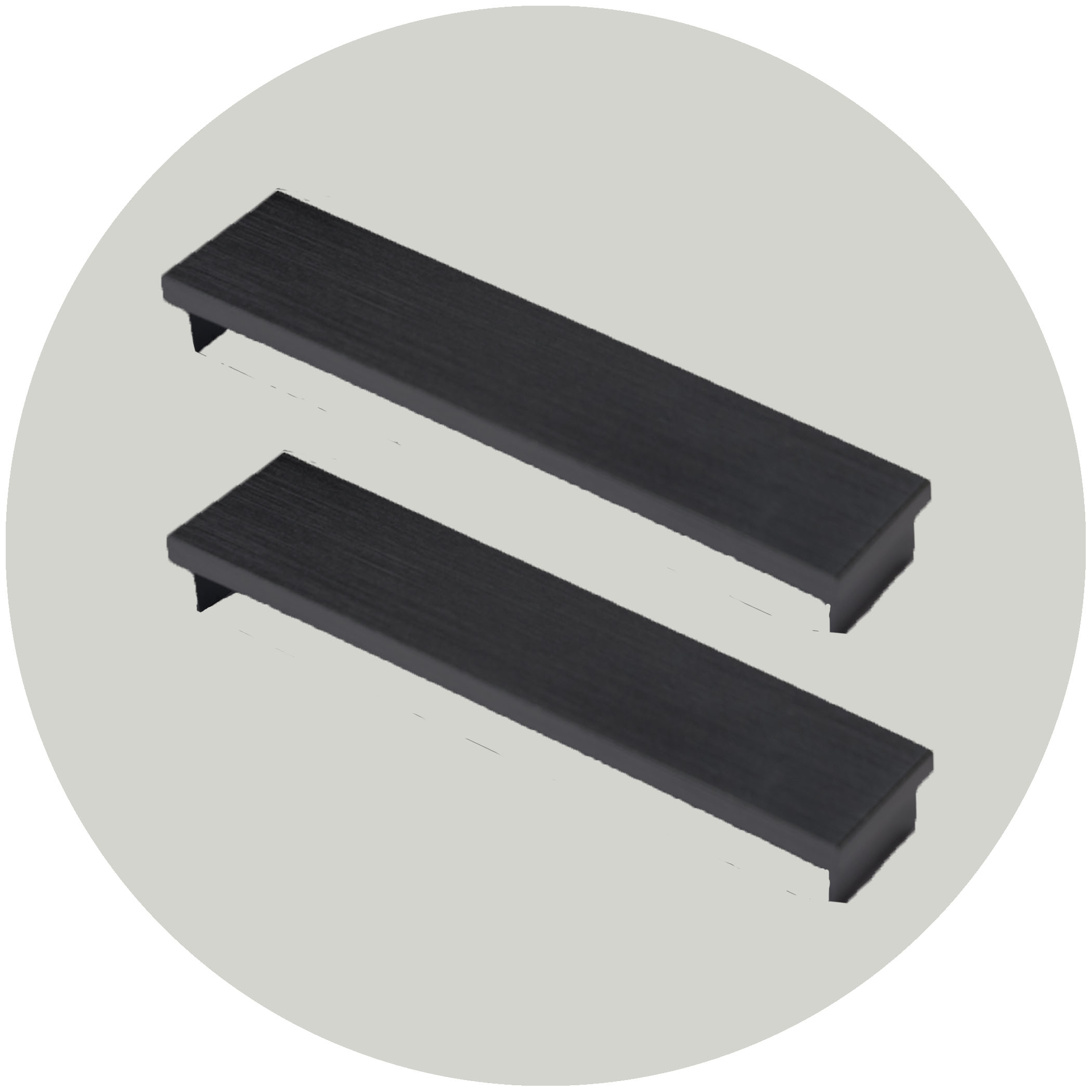

Thick end caps from Lauxes Grates close the ends of the bottom tray on NXT and tile insert grates 21 mm deep or more, as an alternative to thin caps. Each is 100 mm wide and matches the grate’s depth. Lauxes supplies them as a pair. See the Lauxes range.

Each Lauxes grate on Multifors comes with one matching waste outlet and two matching end caps (thin, or thick where you choose them). Buy thick caps here to replace thick caps, or to switch from thin; the tray is then cut 10 mm shorter instead of 3 mm.

Technical Specifications

TEC21 21 x 100 mm
TEC26 26 x 100 mm
TEC35 35 x 100 mm
Colours Silver, Midnight, Gold, Brushed Nickel and Gunmetal; Copper in TEC21 and TEC26 (2026 catalogue; the combined tech sheet lists five)
Tech sheet Thick end cap tech sheet (PDF)

What It Fits

How It Is Used

A licensed plumber installs Lauxes grates. What the Lauxes installation guide (PDF) says, in brief (not DIY instructions):

  1. Cut for the cap — the Lauxes guide requires the bottom tray to be cut 10 mm shorter than the finished length for thick end caps (3 mm for thin).
  2. Silicone and insert — neutral cure silicone on the end of the grate, cap inserted, then a bead on the outside of the tray.

Important Notes

  • Not available from Multifors for the NXT14 or SFG23; use thin end caps.
  • Lauxes says no metal debris is to be left on or in contact with the grate, so clear cutting swarf straight away.
  • Lauxes says its grates and accessories hold WaterMark certification, and that WaterMark products are legally required to be installed by a licensed plumber; your plumber will confirm local requirements.
  • Lauxes notes colours may vary slightly.
  • If something is wrong with an item you bought here, contact Multifors first.

Frequently Asked Questions

Which grates take Lauxes thick end caps?

TEC21 fits NXT21 and STI21, TEC26 fits NXT26 and STI26, and TEC35 fits NXT35 and TIP35.

Do thick end caps change how the grate is cut?

Yes. The Lauxes guide cuts the bottom tray 10 mm shorter than the finished length for thick end caps, against 3 mm for thin caps.

Key Features

  • Sizes TEC21, TEC26 and TEC35 (21, 26 and 35 x 100 mm)
  • For NXT21, NXT26, NXT35, STI21, STI26 and TIP35 (not NXT14 or SFG23)
  • Lauxes guide: bottom tray cut 10 mm shorter than the finished length
  • Copper in TEC21 and TEC26 (2026 catalogue)
  • Lauxes supplies thick end caps as a pair
  • Lauxes recommends neutral cure silicone

Additional information

Weight 0.01 kg
Accessory Range

Drains

Colour

Brushed Nickel, Gold, Gunmetal, Midnight, Silver

Variation

Suit 21mm NXT and STI Grates, Suit 26mm NXT and STI Grates, Suit 35mm NXT and STI Grates

Frequently asked questions

Which grates take Lauxes thick end caps?

TEC21 fits NXT21 and STI21, TEC26 fits NXT26 and STI26, and TEC35 fits NXT35 and TIP35.

Do thick end caps change how the grate is cut?

Yes. The Lauxes guide cuts the bottom tray 10 mm shorter than the finished length for thick end caps, against 3 mm for thin caps.
