Lauxes Drainage Grates Internal End Caps

By Lauxes

Browse all long drain accessories →

SKU: WD-Laux-IntEC
Brands:
$12.50

Choose how you’ll get it

Delivery

Enter your postcode for a delivery date.

Pick up Free

Choose collection point

Collect from: Port Melbourne

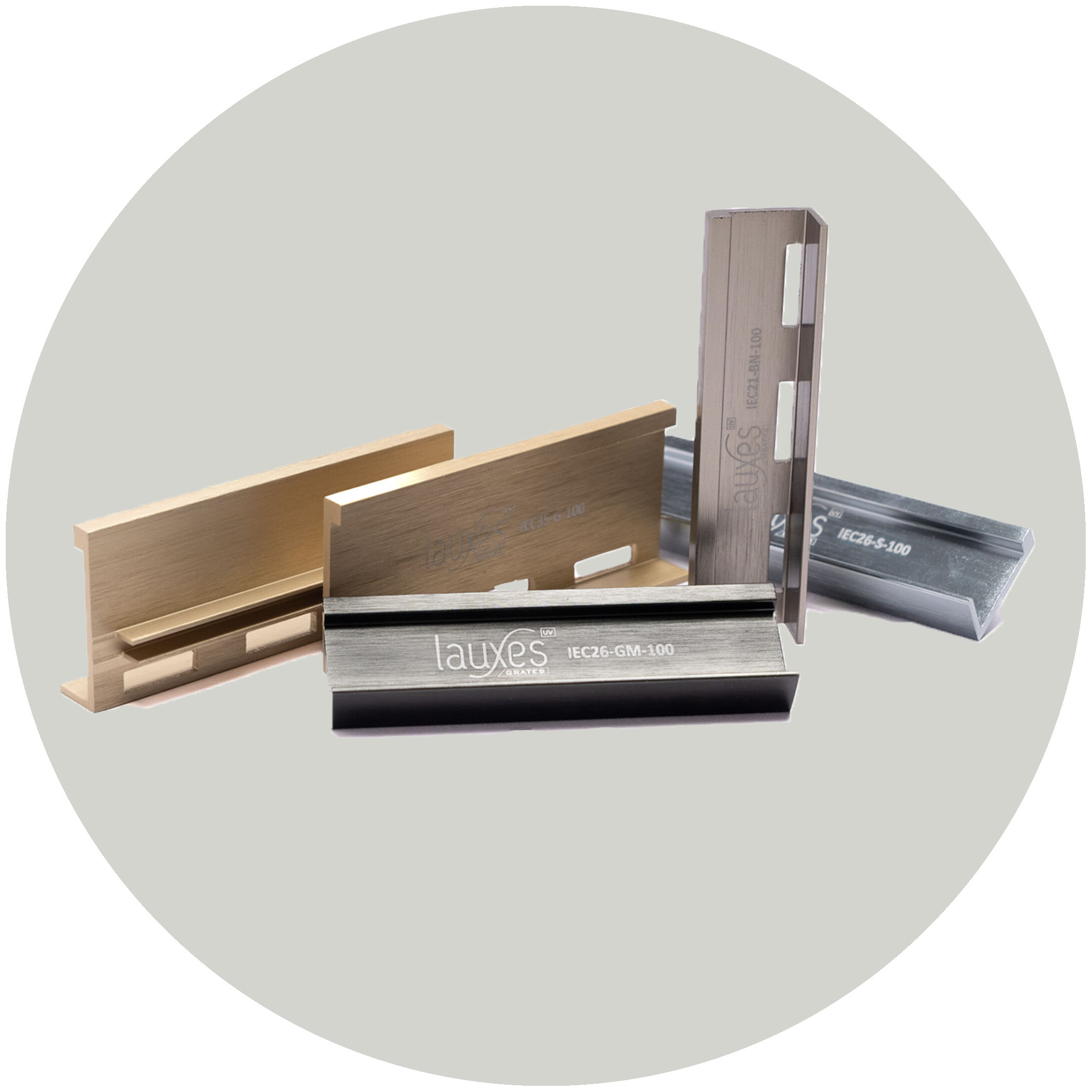

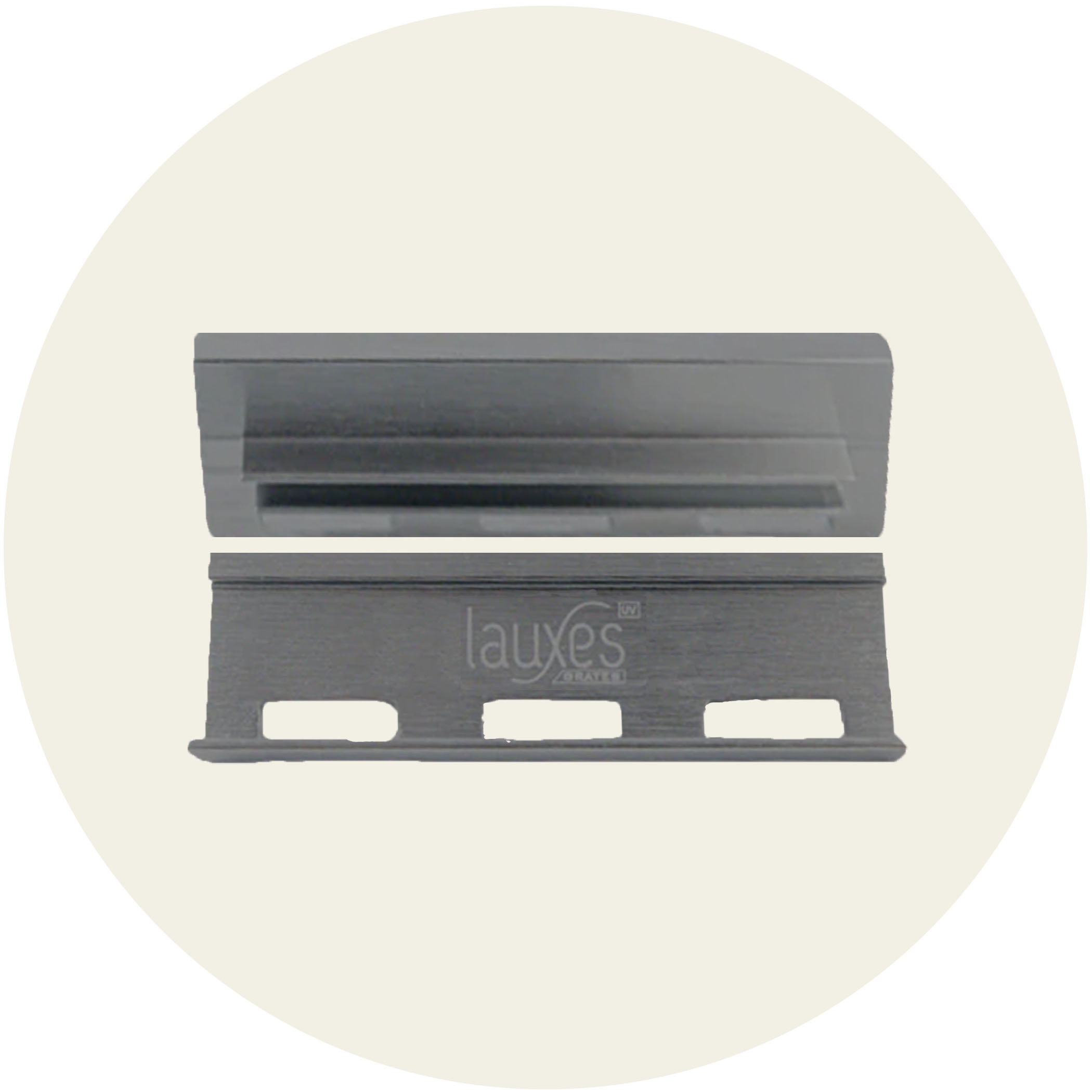

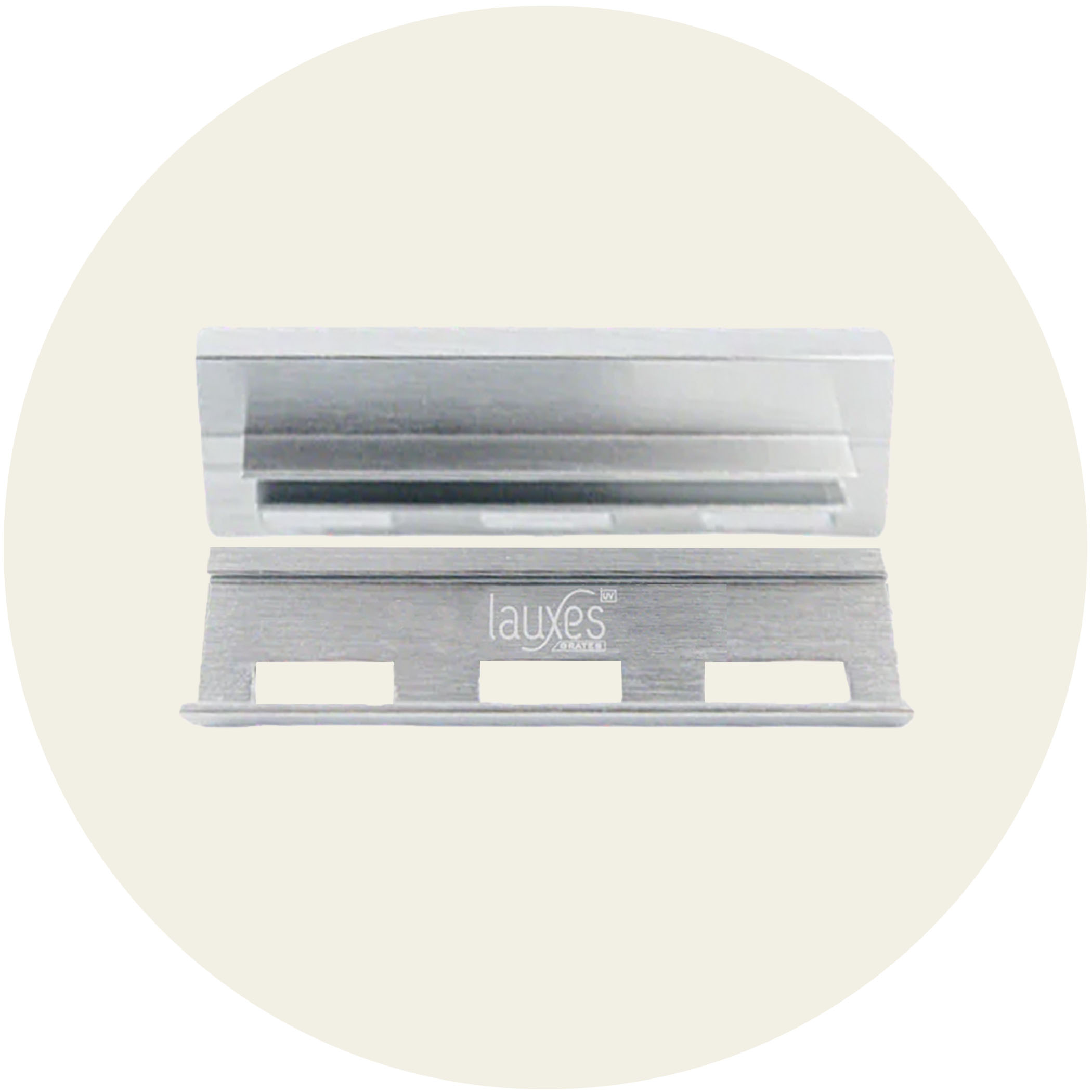

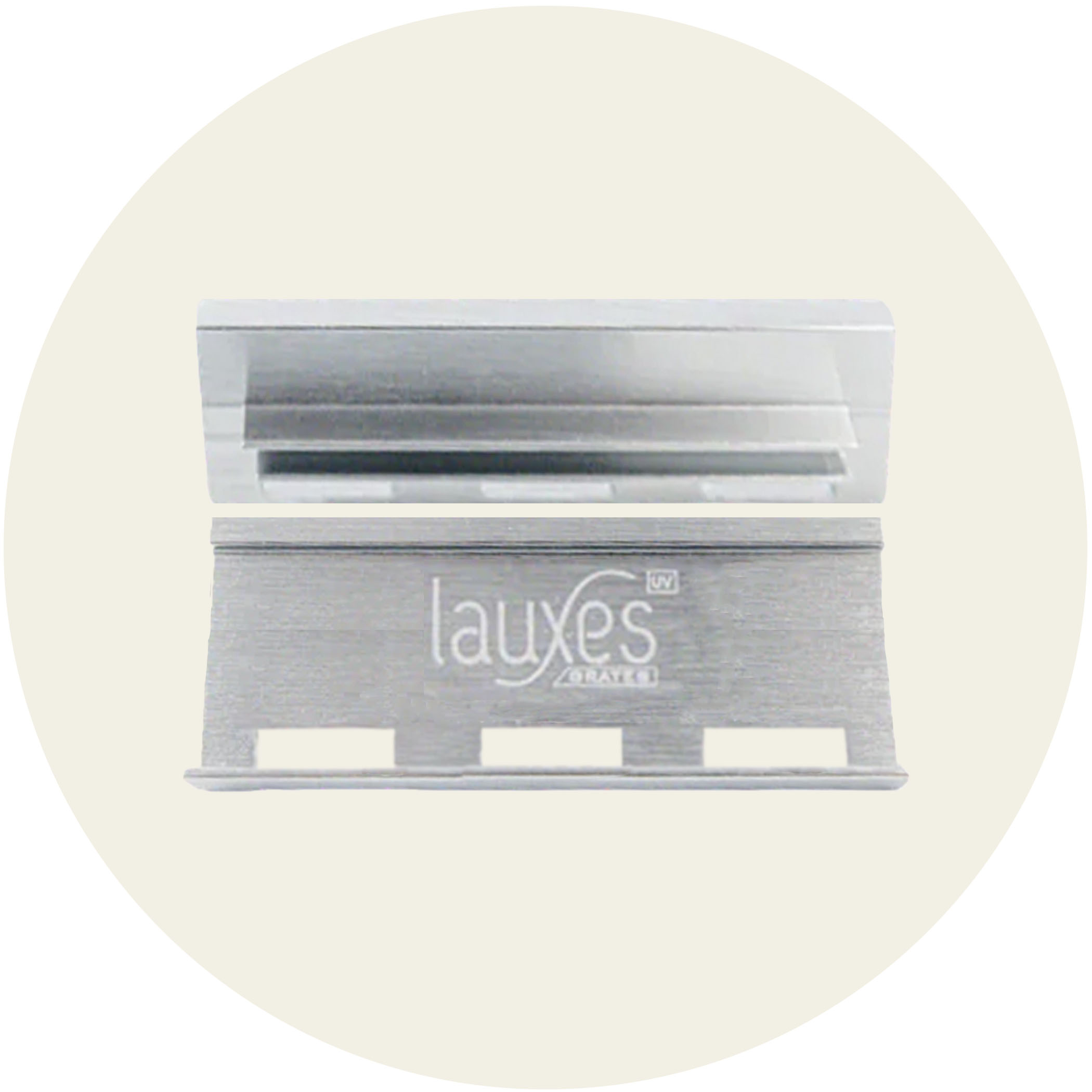

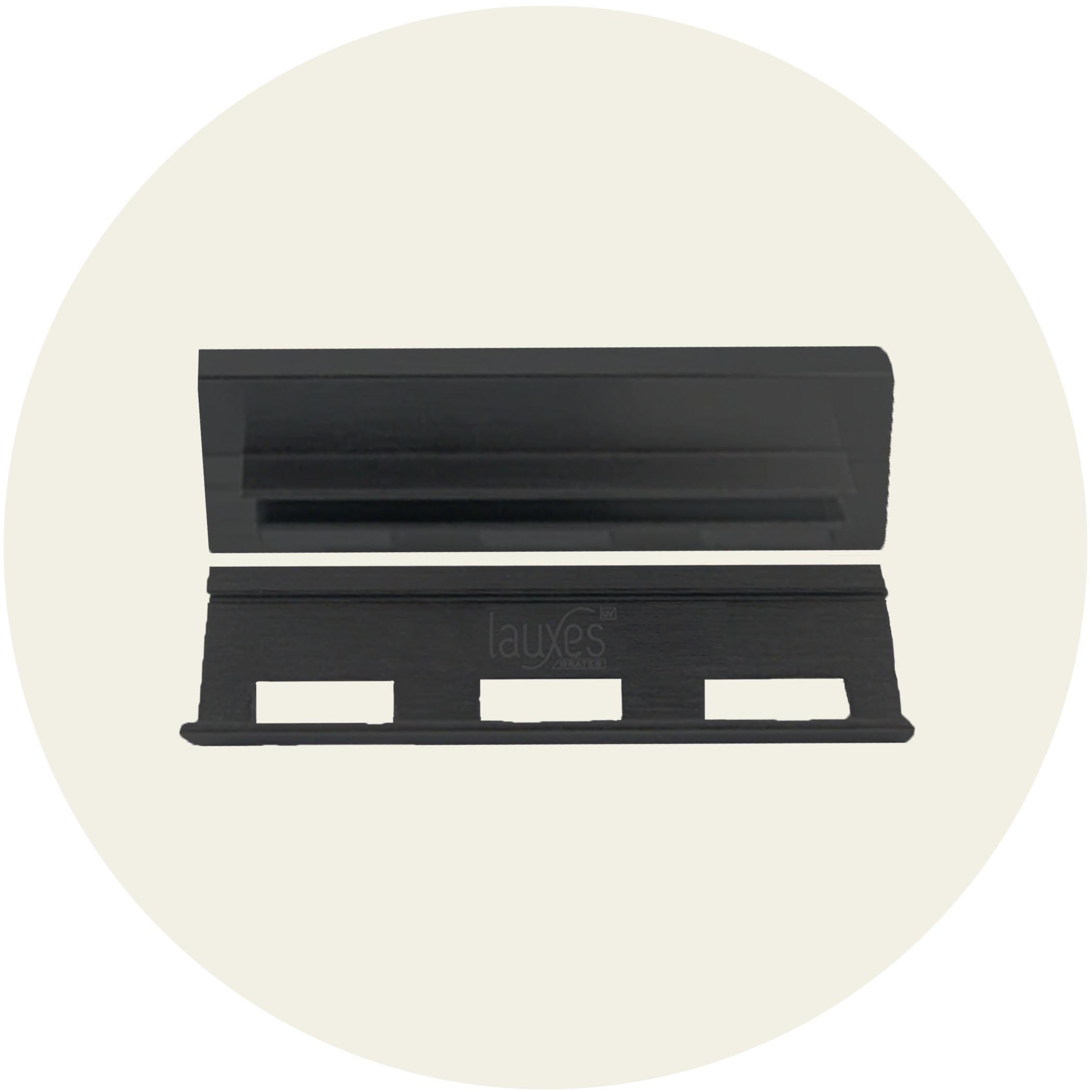

Internal end caps cap the tiled insert of a Lauxes tile insert grate, at the end of the top tray, for an even, framed finish. They are extra to the two end caps that close the bottom tray, not a replacement. IEC21, IEC26 and IEC35 suit the STI21, STI26 and TIP35.

Colour
Variation
$12.50

Description

Lauxes says internal end caps are installed at the end of the top (insert) tray, capping the tiled insert for consistent spacing around all four sides. Lauxes Grates describes each size as suitable for all Tile Insert 21, Tile Insert 26 or Tile Insert Plus grates, and supplies them as a pair. See the Lauxes range.

Each Lauxes grate on Multifors comes with two matching end caps for the bottom tray. Internal end caps are an extra part for the top tray: they do not replace those caps.

Technical Specifications

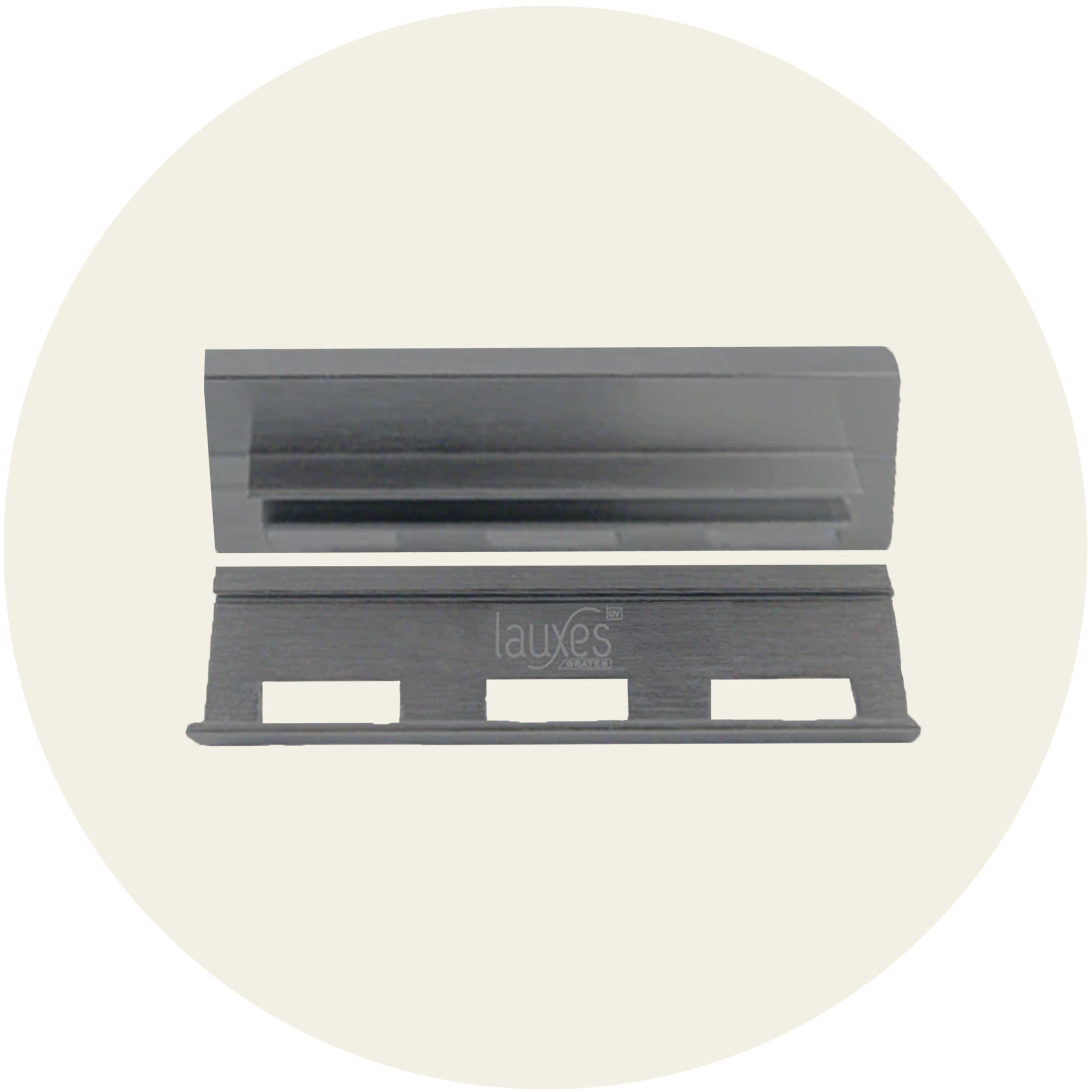

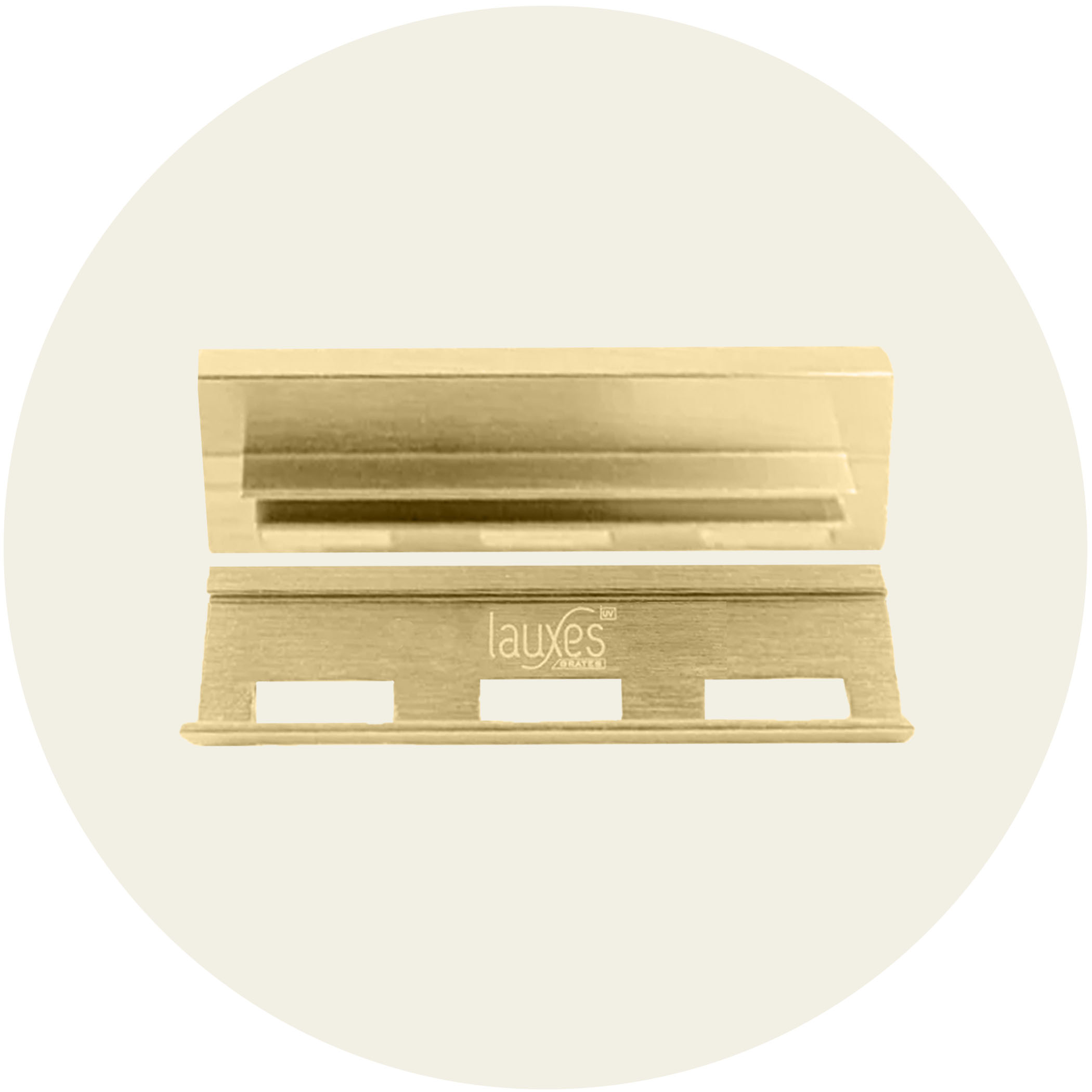

IEC21 21 x 100 mm

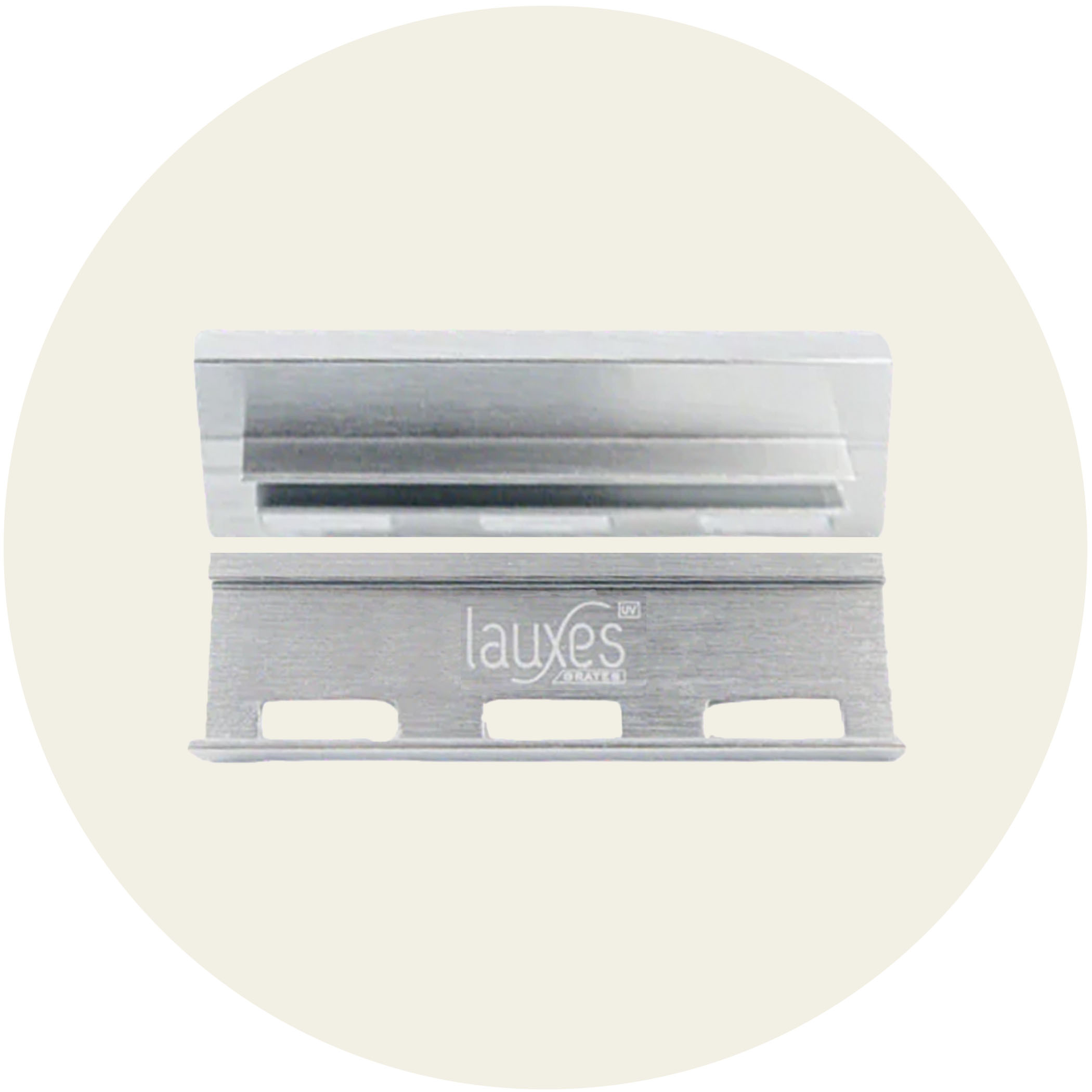

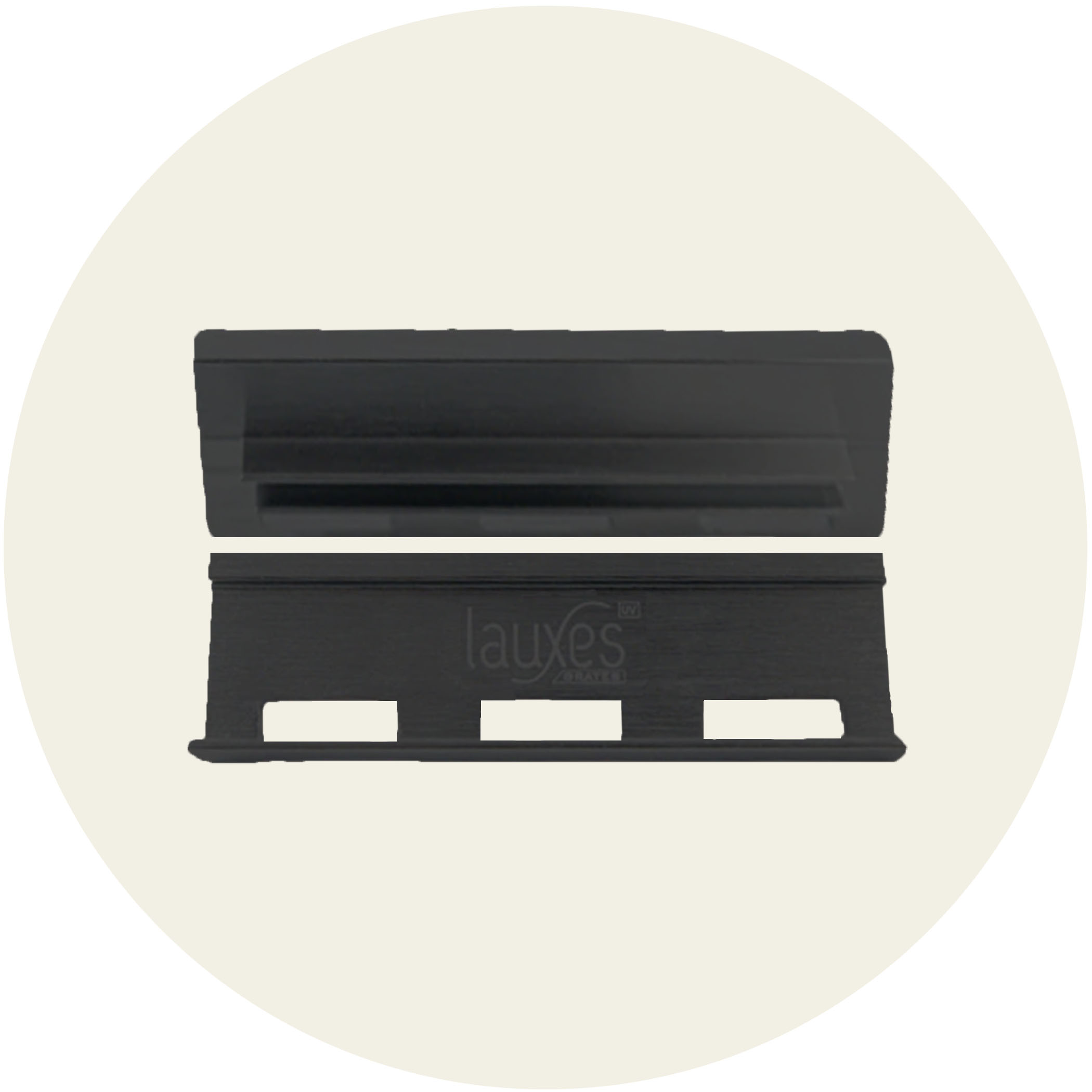

IEC26 26 x 100 mm

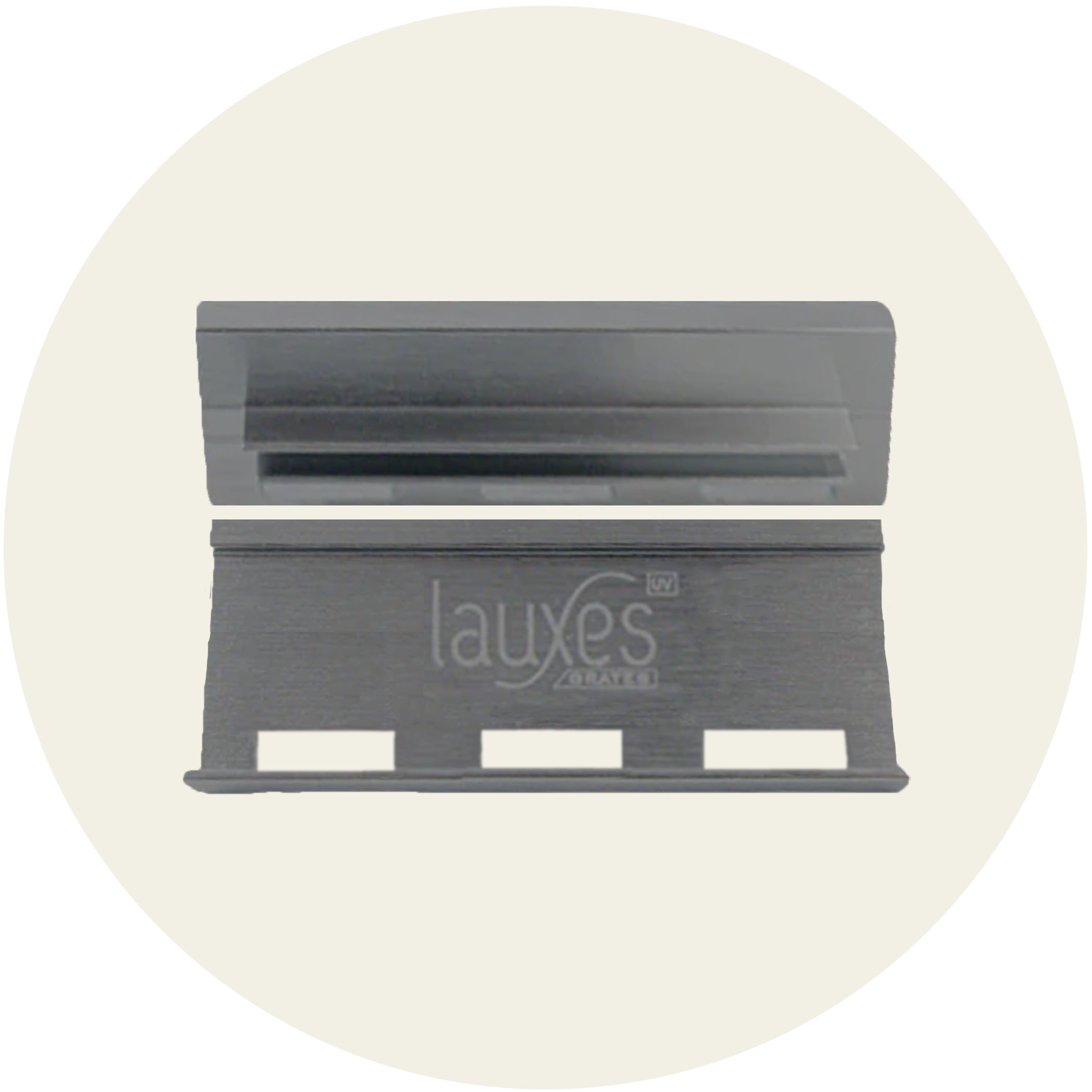

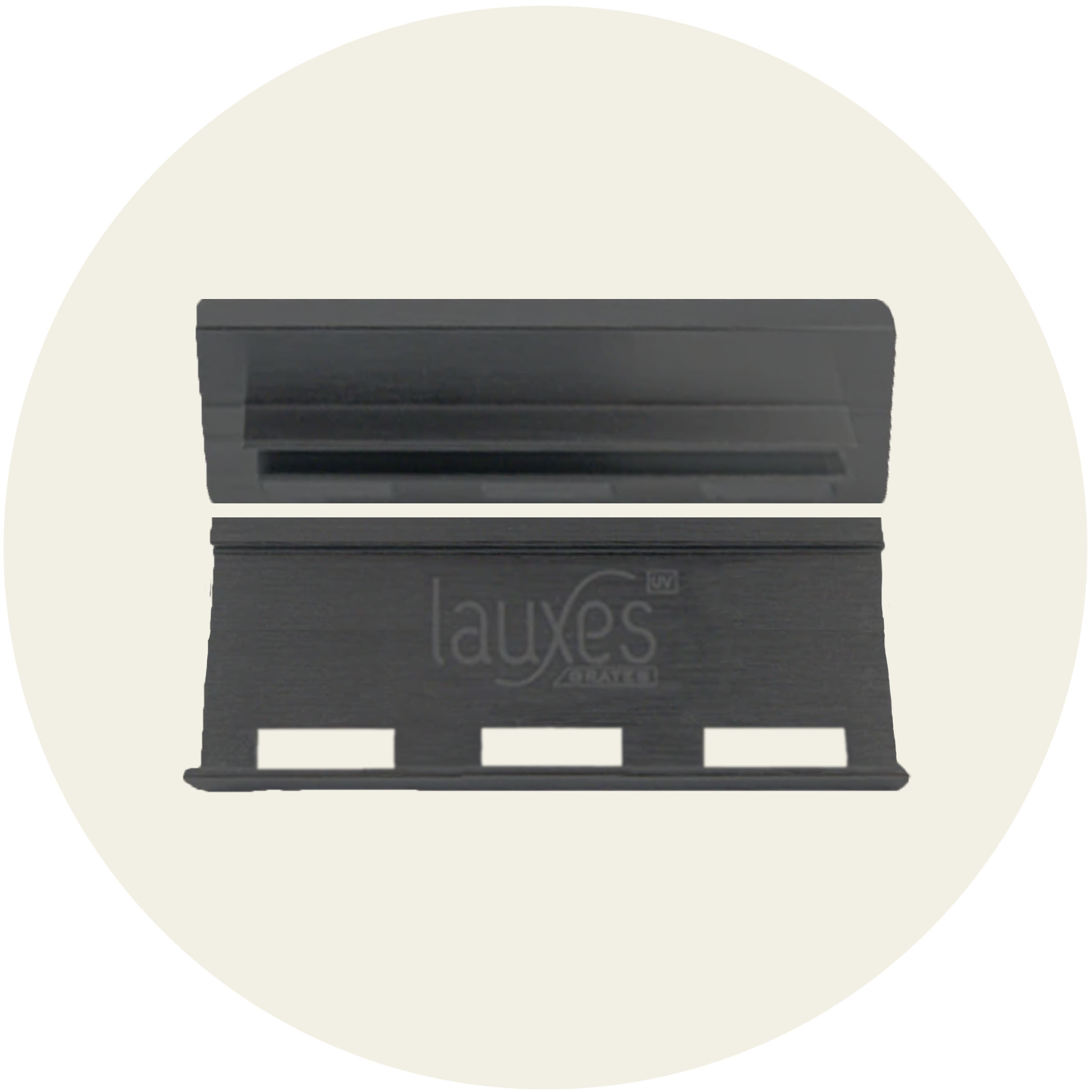

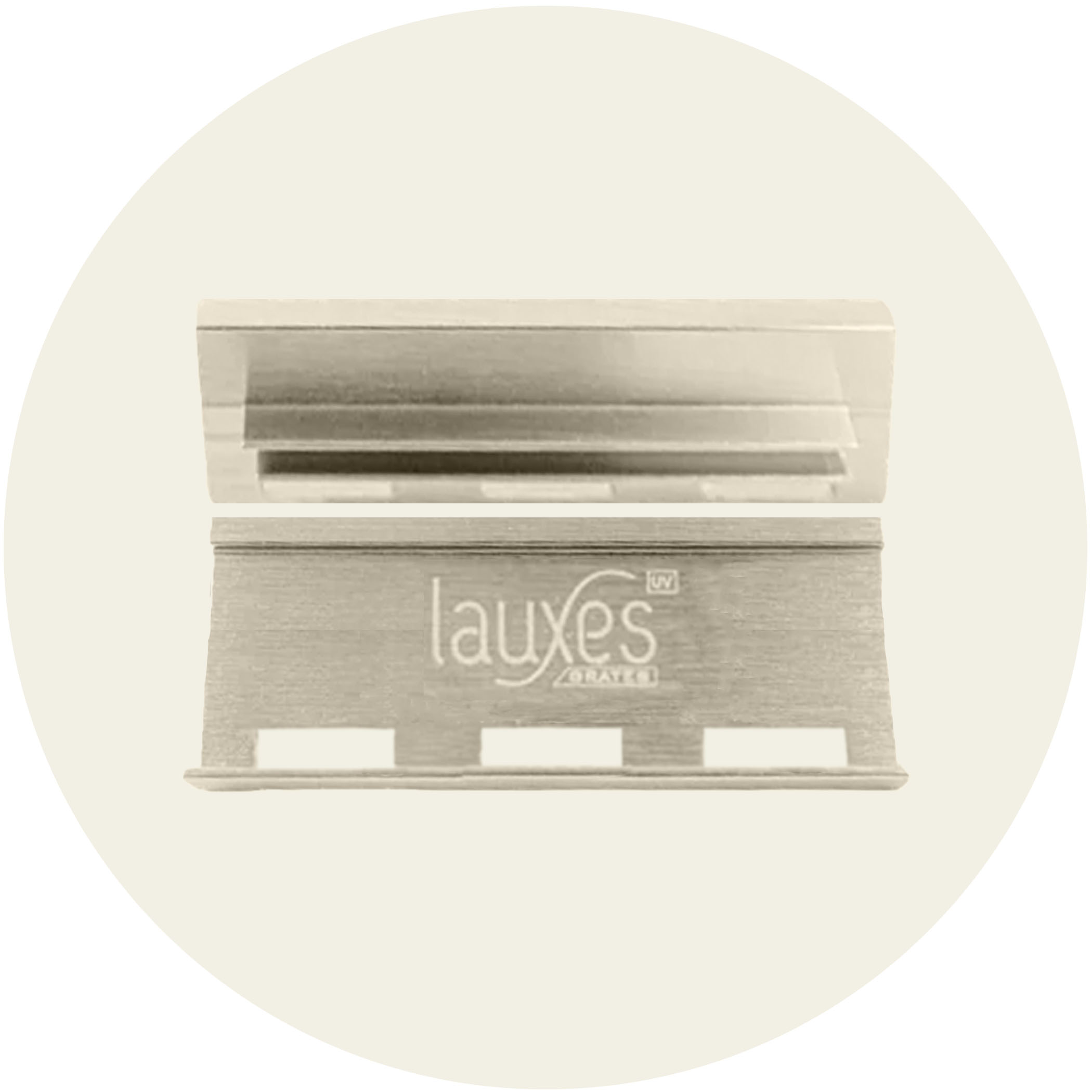

IEC35 35 x 100 mm
Colours Silver, Midnight, Gold, Brushed Nickel and Gunmetal; Copper in IEC21 and IEC26 (2026 catalogue; the combined tech sheet lists five)
Tech sheet Internal end cap tech sheet (PDF)

What It Fits

How It Is Used

Installation is by a licensed plumber, per Lauxes. Summary of the Lauxes installation guide (PDF), not DIY instructions:

  1. Cut the top shorter — per the Lauxes guide, cut the top 22 mm shorter than the bottom tray’s internal length to maintain the roll-out feature.
  2. Secure with silicone — the guide says to secure internal end caps with silicone; Lauxes recommends neutral cure.

Important Notes

  • Lauxes says no metal debris is to be left on or in contact with the grate, so clear cutting swarf straight away.
  • Lauxes says its grates and accessories hold WaterMark certification, and that WaterMark products are legally required to be installed by a licensed plumber; your plumber will confirm local requirements.
  • Lauxes notes colours may vary slightly.
  • If something is wrong with an item you bought here, contact Multifors first.

Frequently Asked Questions

What do internal end caps do?

Lauxes says they are installed at the end of the top (insert) tray, capping the tiled insert and keeping spacing consistent around all four sides. They are extra to the bottom-tray end caps.

How do internal end caps change the cut?

The Lauxes installation guide says to cut the top 22 mm shorter than the bottom tray’s internal length when using internal end caps, to maintain the roll-out feature.

Key Features

  • Caps the tiled insert at the end of the top tray (Lauxes)
  • Extra to the grate's two bottom-tray end caps, not a replacement
  • Sizes IEC21, IEC26 and IEC35 (21, 26 and 35 x 100 mm)
  • Lauxes guide: cut the top 22 mm shorter than the tray's internal length
  • Copper in IEC21 and IEC26 (2026 catalogue)
  • Lauxes supplies internal end caps as a pair

Additional information

Weight 0.01 kg
Accessory Range

Drains

Colour

Brushed Nickel, Gold, Gunmetal, Midnight, Silver

Variation

Suit 21mm STI Grates, Suit 26mm STI grates, Suit 35mm TIP Grates

Frequently asked questions

What do internal end caps do?

Lauxes says they are installed at the end of the top (insert) tray, capping the tiled insert and keeping spacing consistent around all four sides. They are extra to the bottom-tray end caps.

How do internal end caps change the cut?

The Lauxes installation guide says to cut the top 22 mm shorter than the bottom tray’s internal length when using internal end caps, to maintain the roll-out feature.
