Sika SikaSeal 190N High Flexibility Silicon Sealant

Description

Sika SikaSeal 190N High Flexibility Silicon Sealant

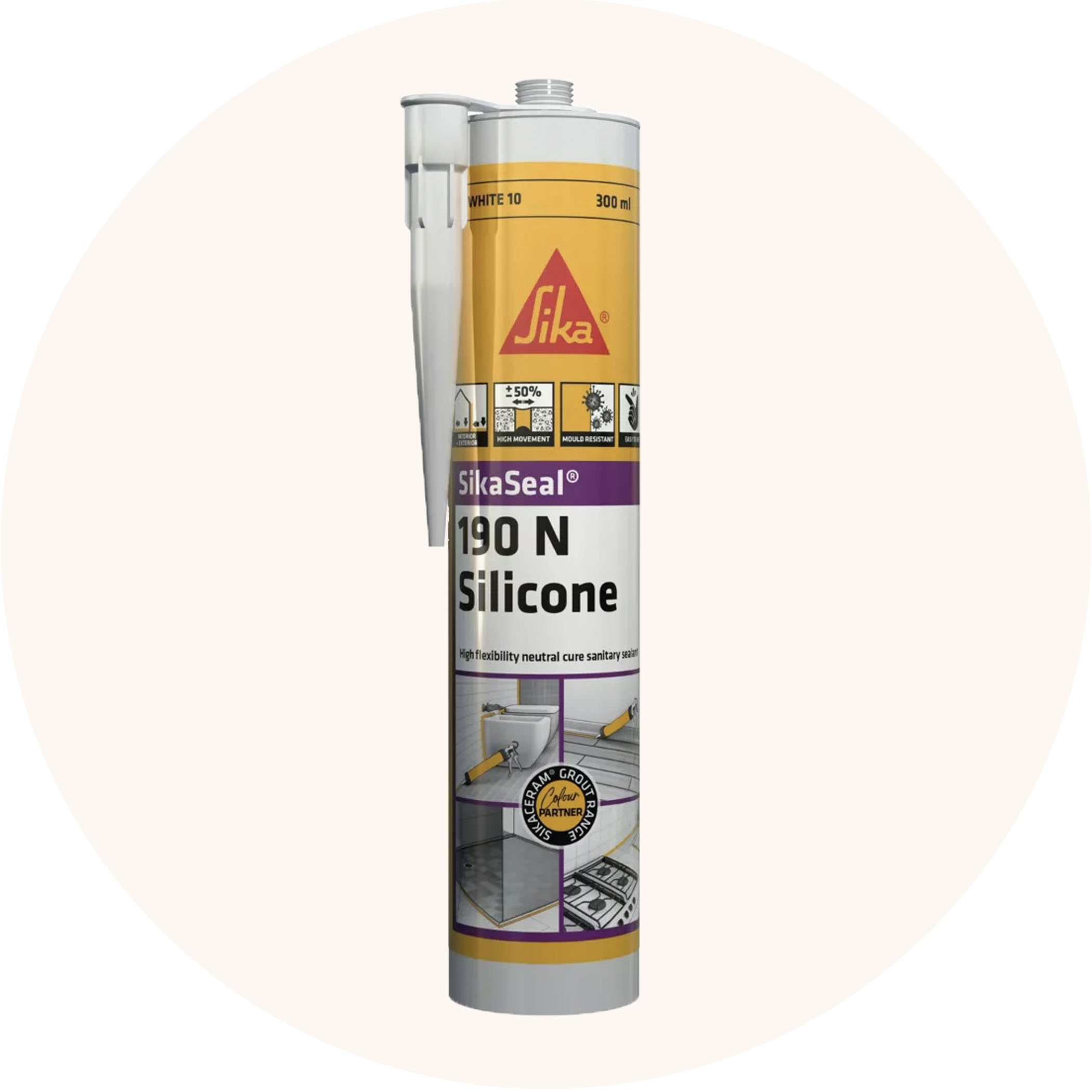

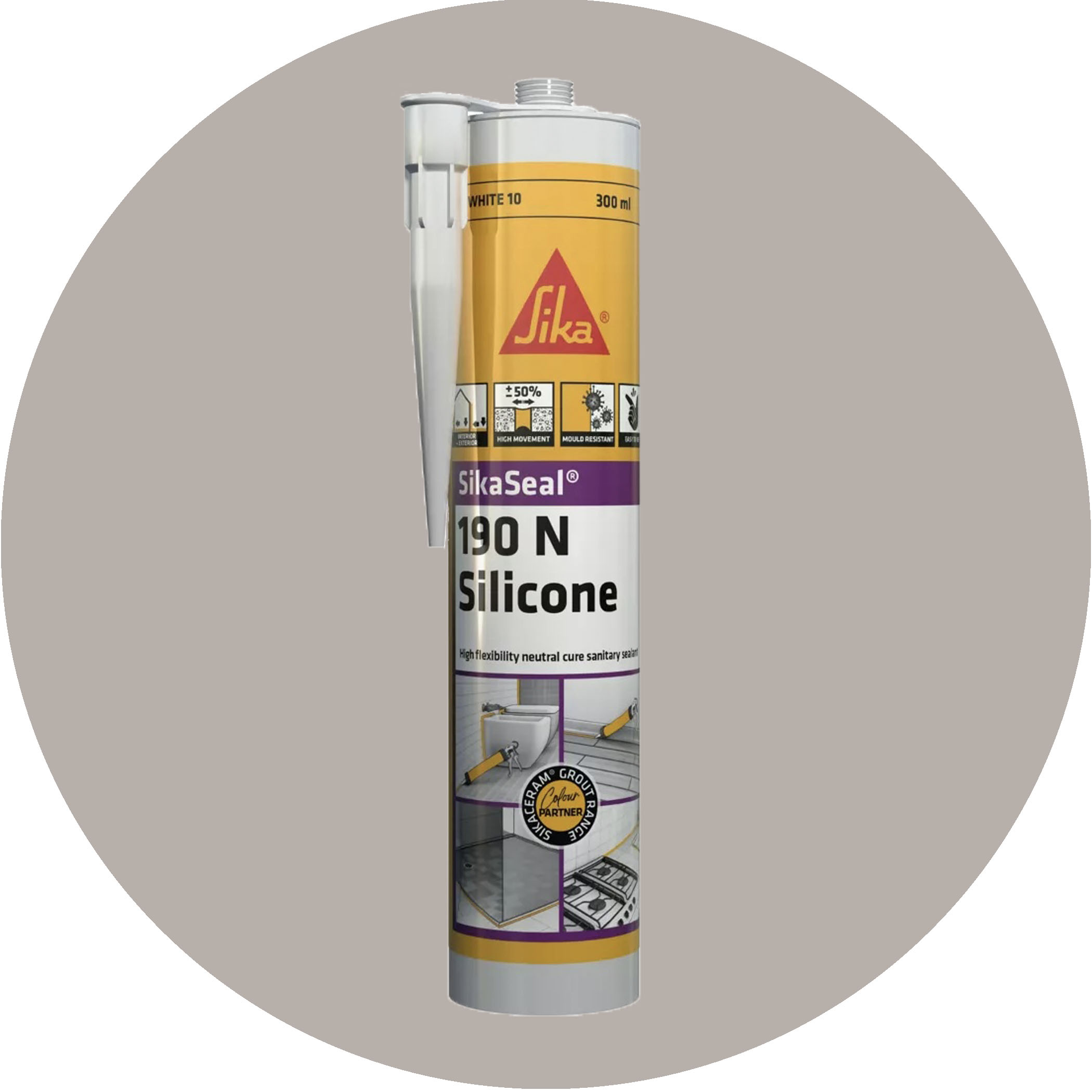

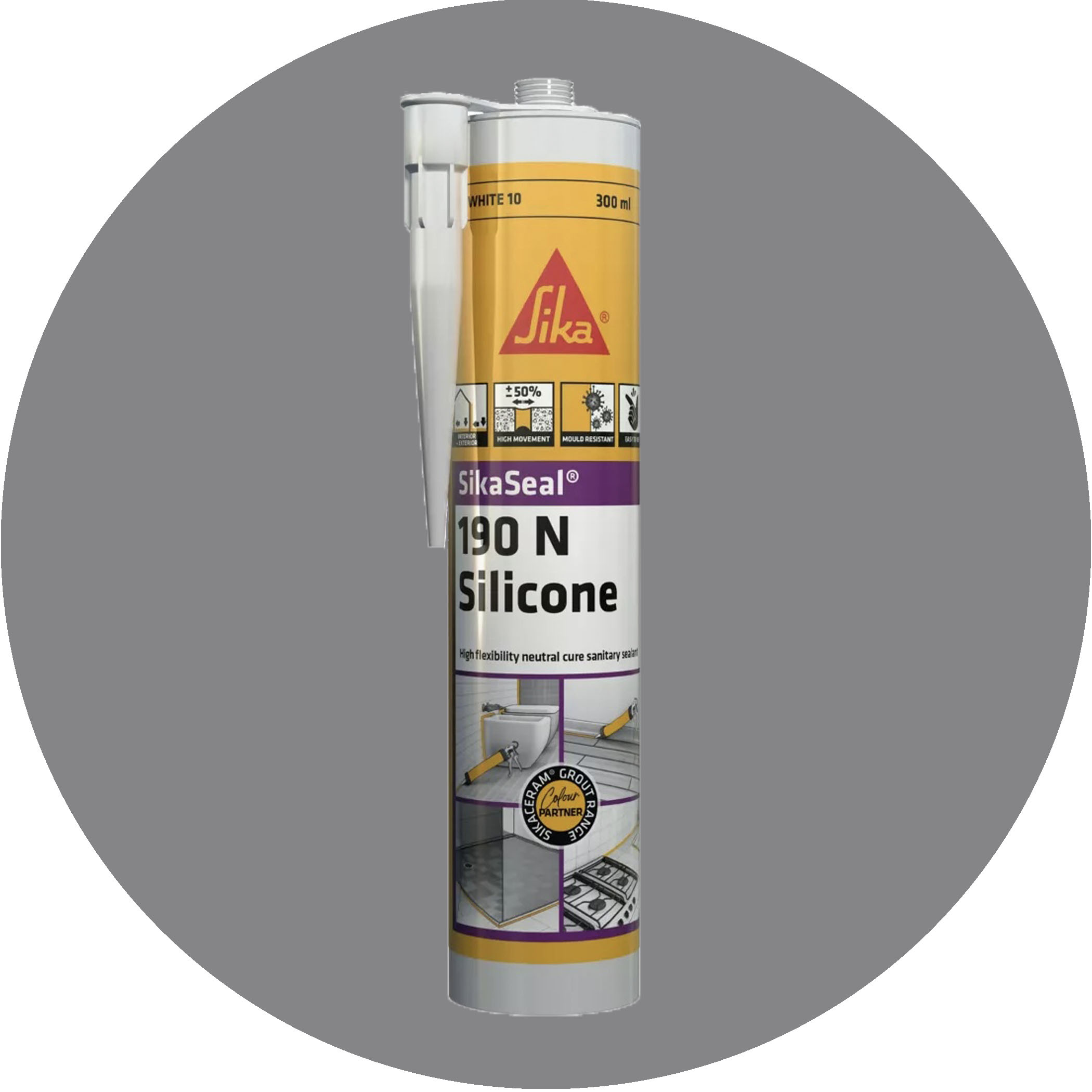

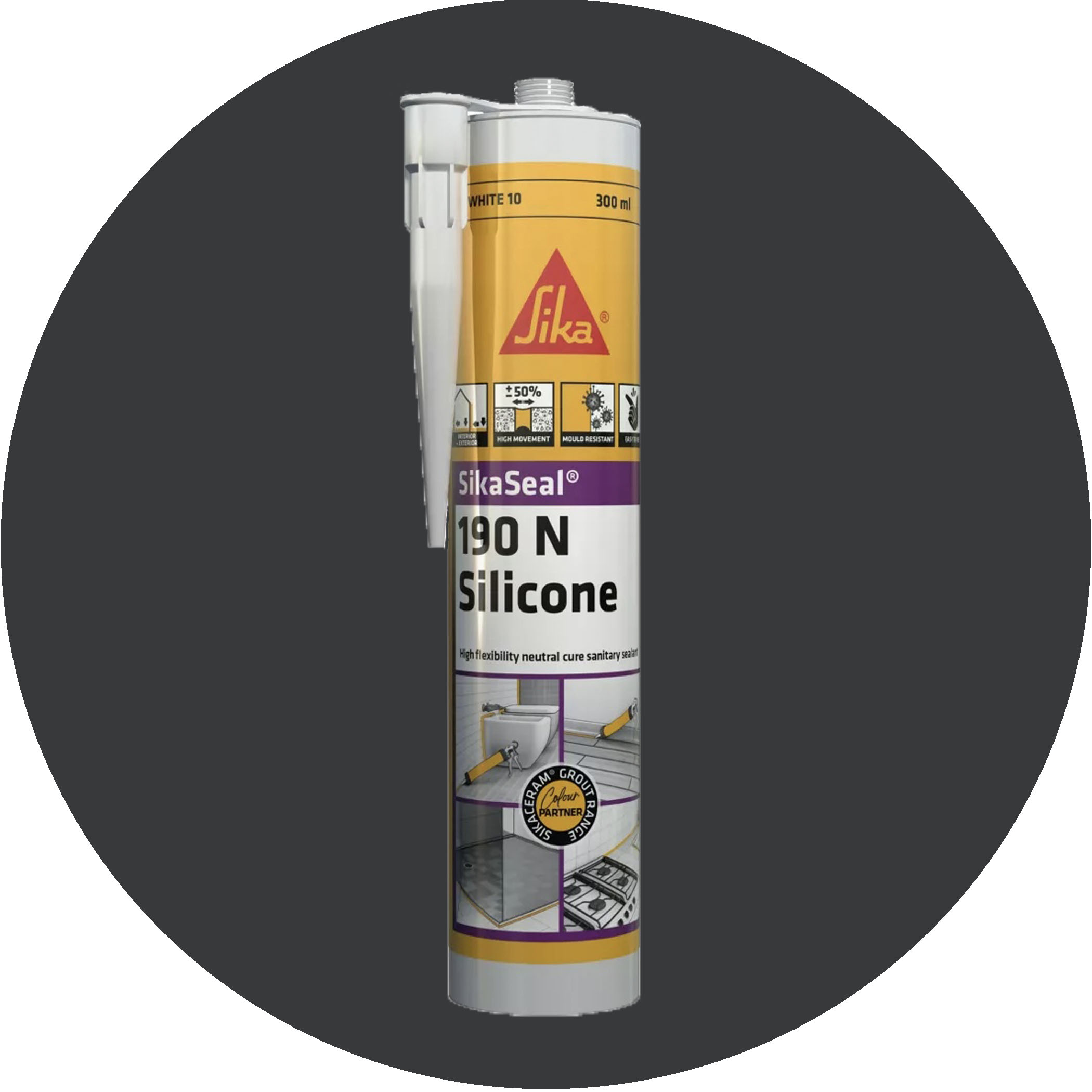

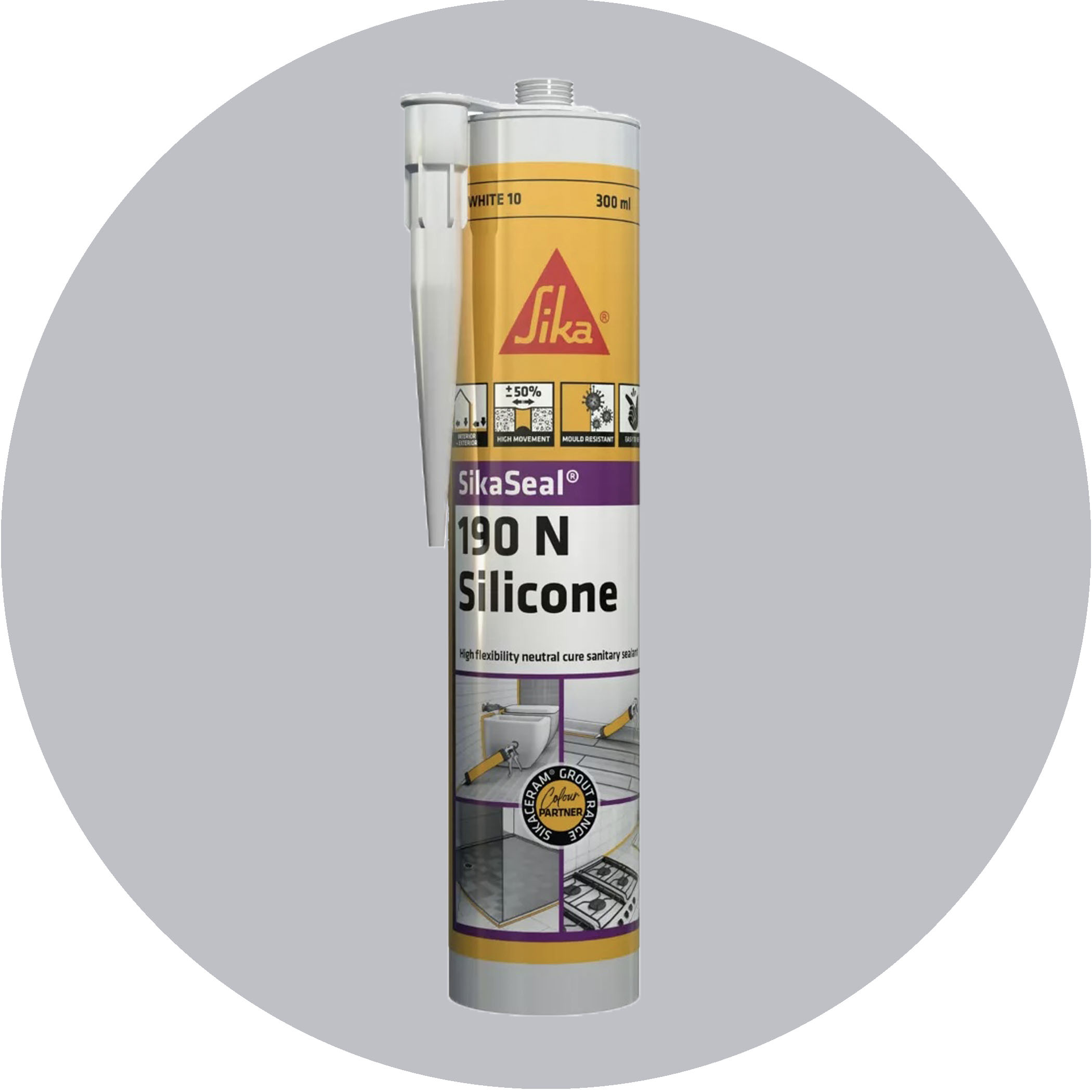

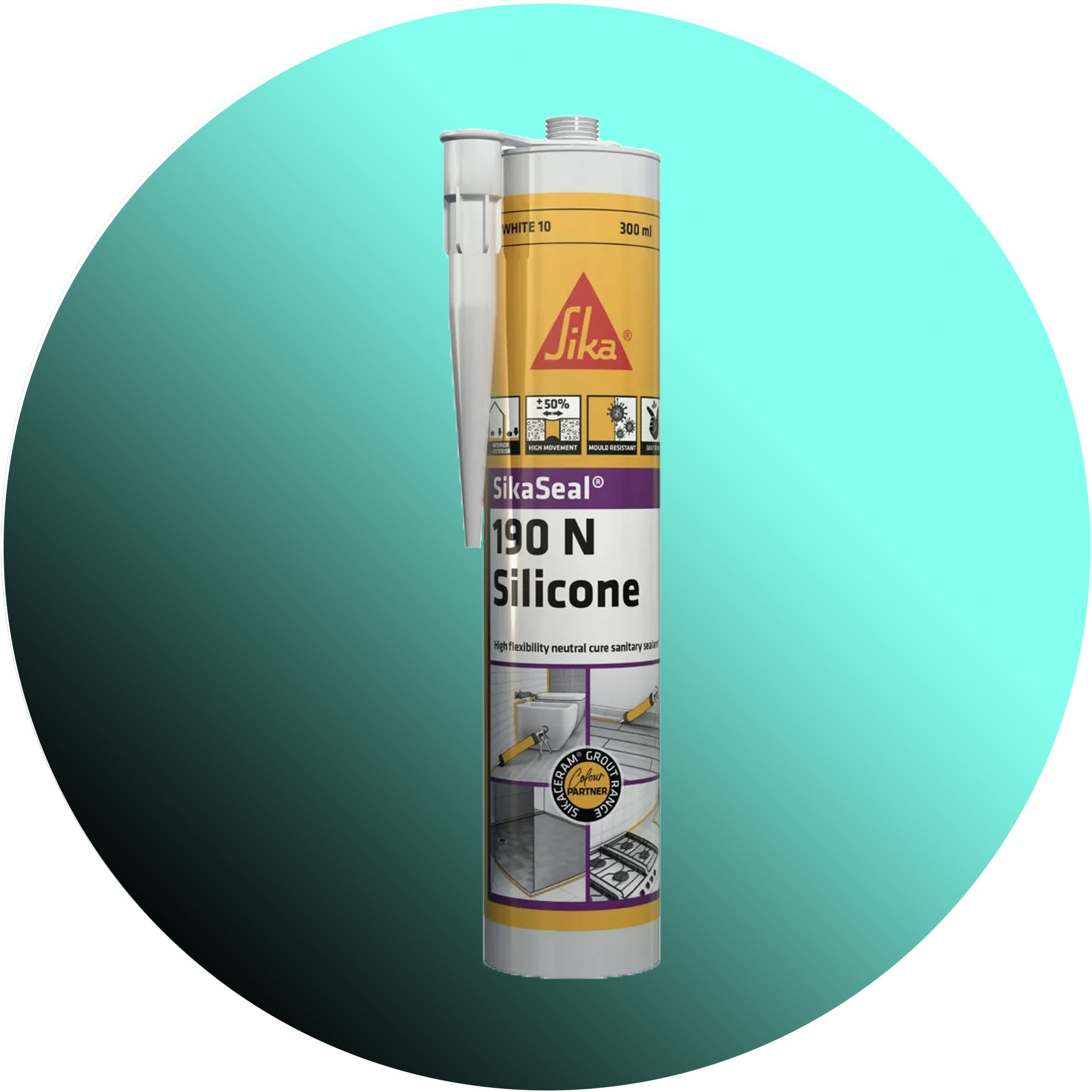

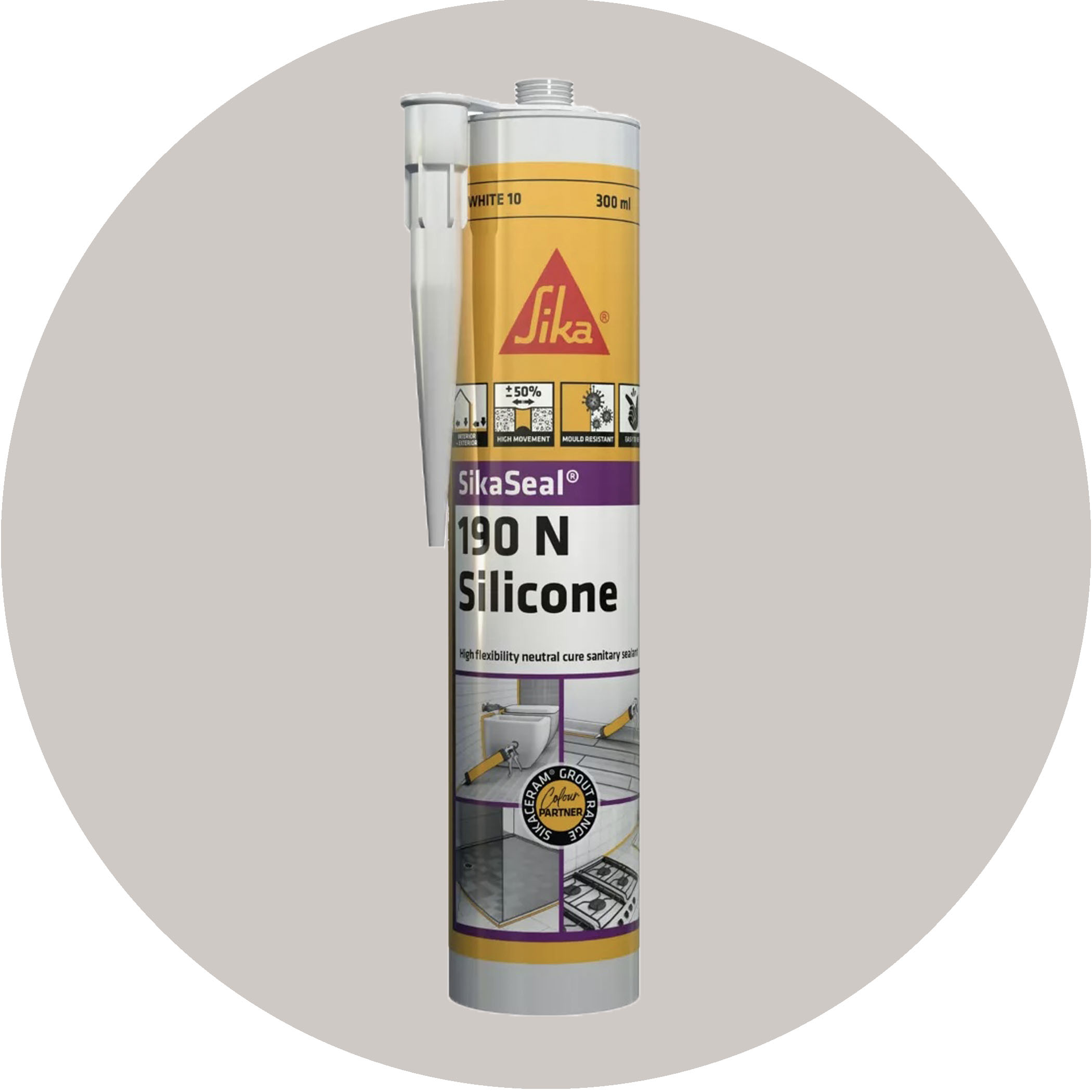

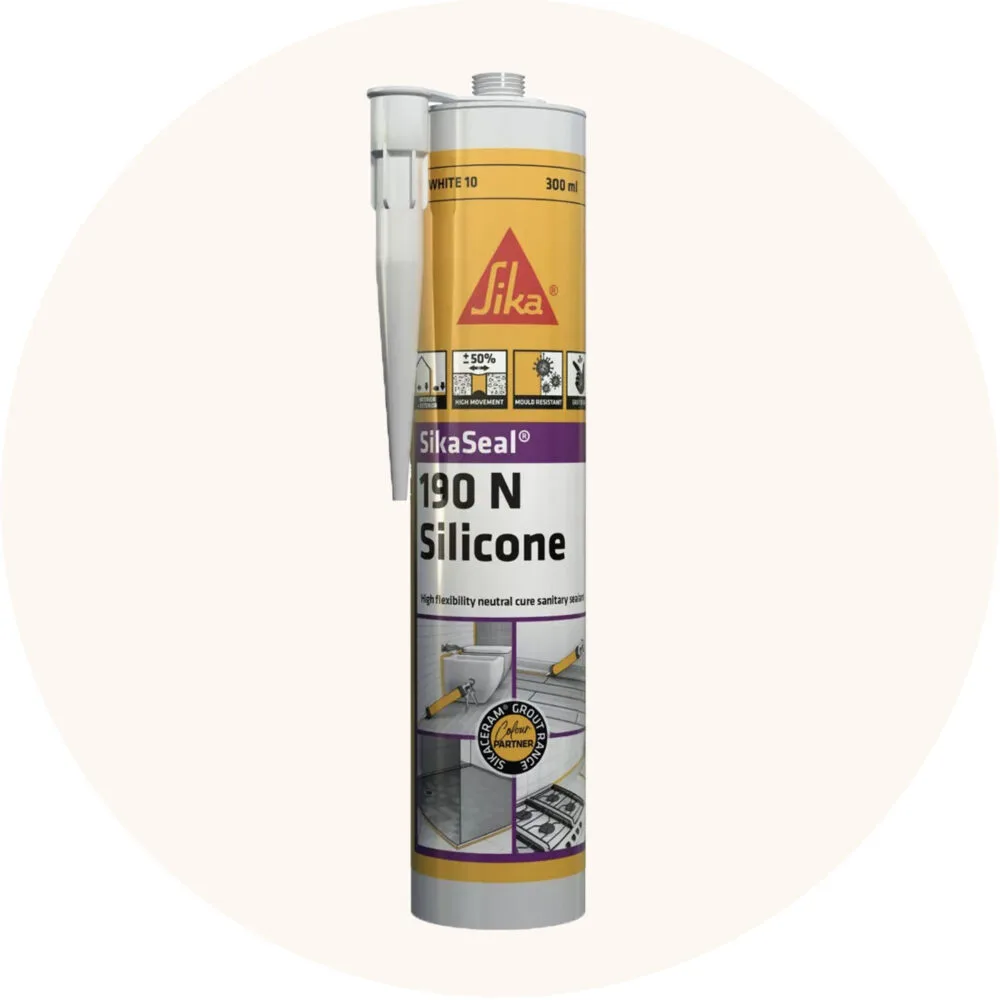

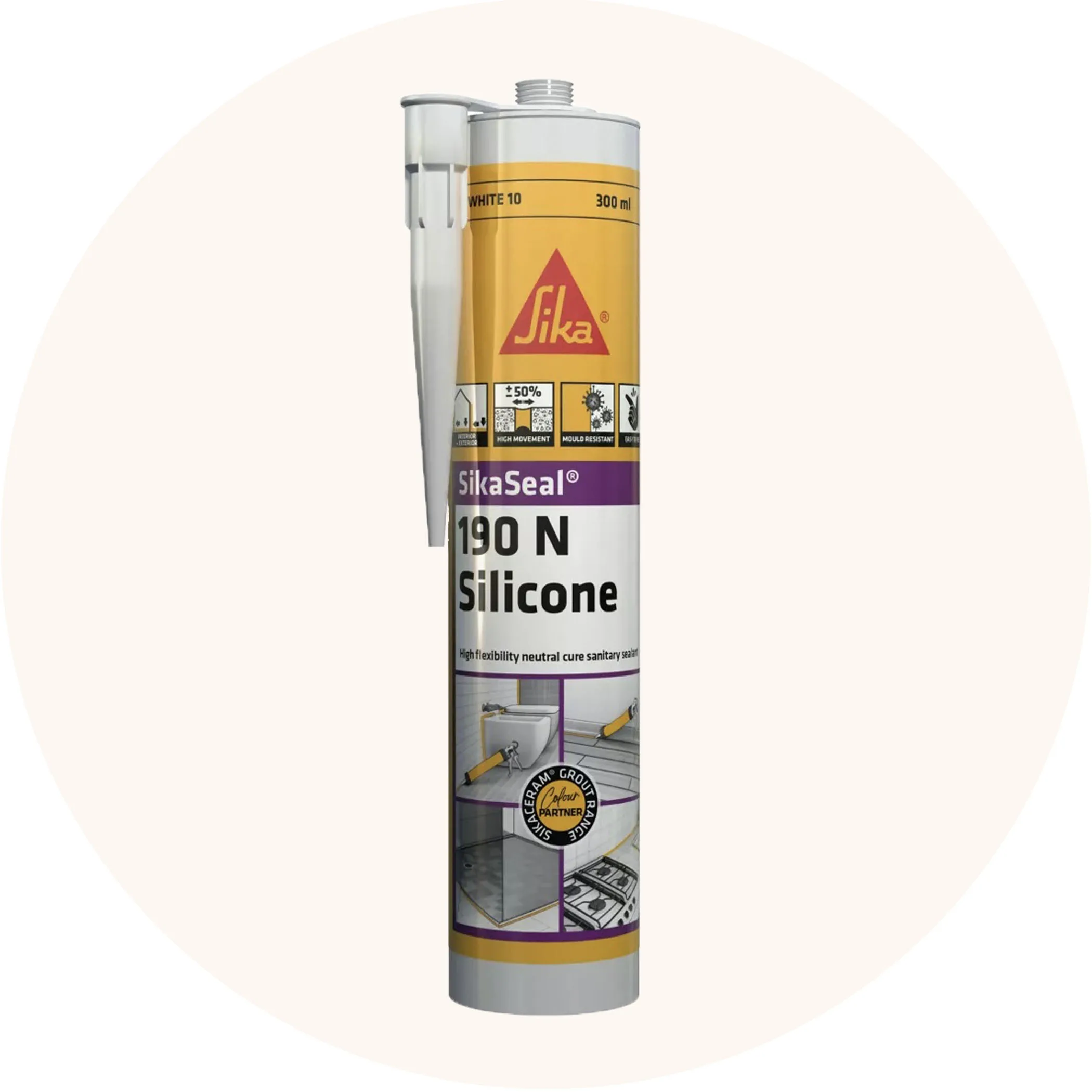

– Available as 300ml Cartridge

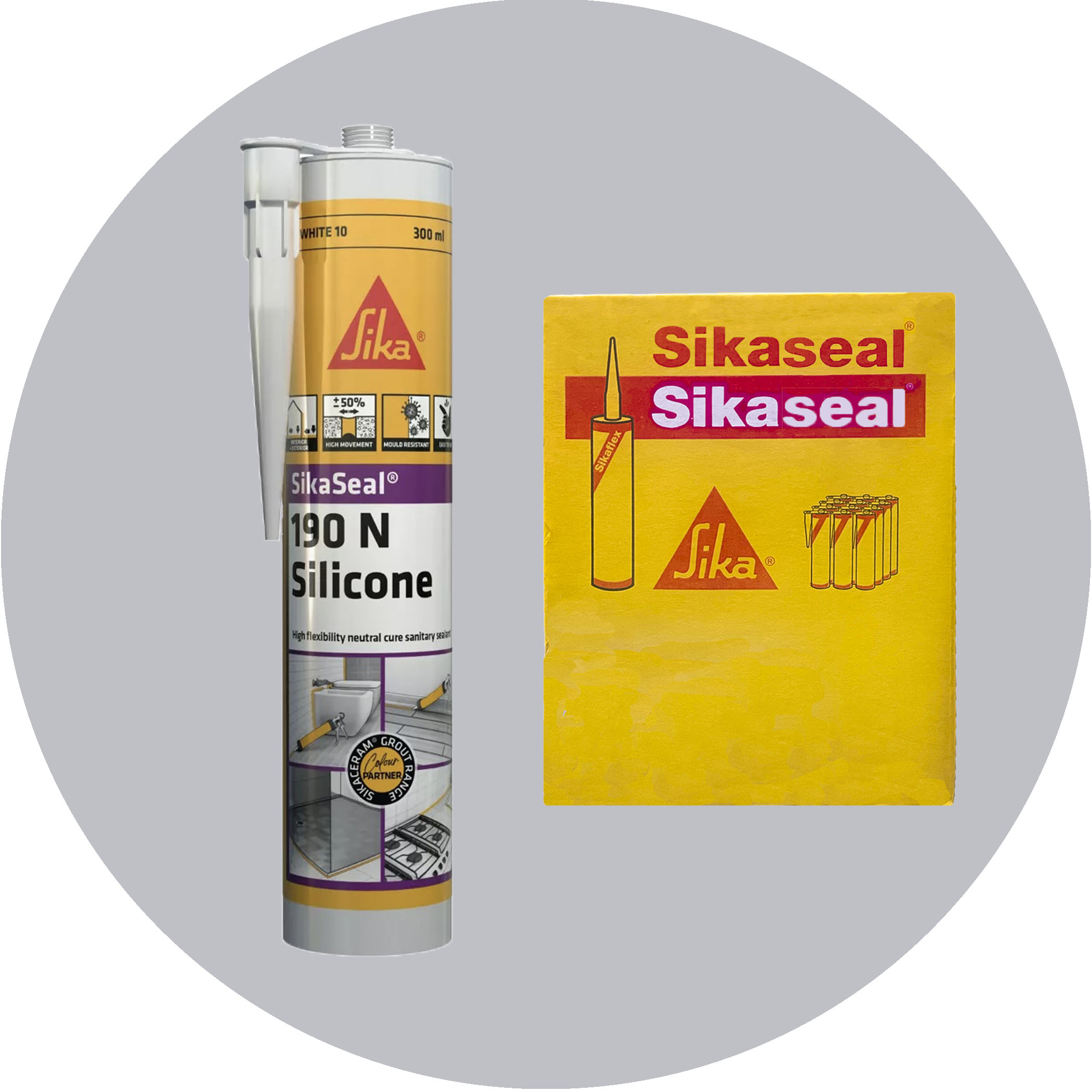

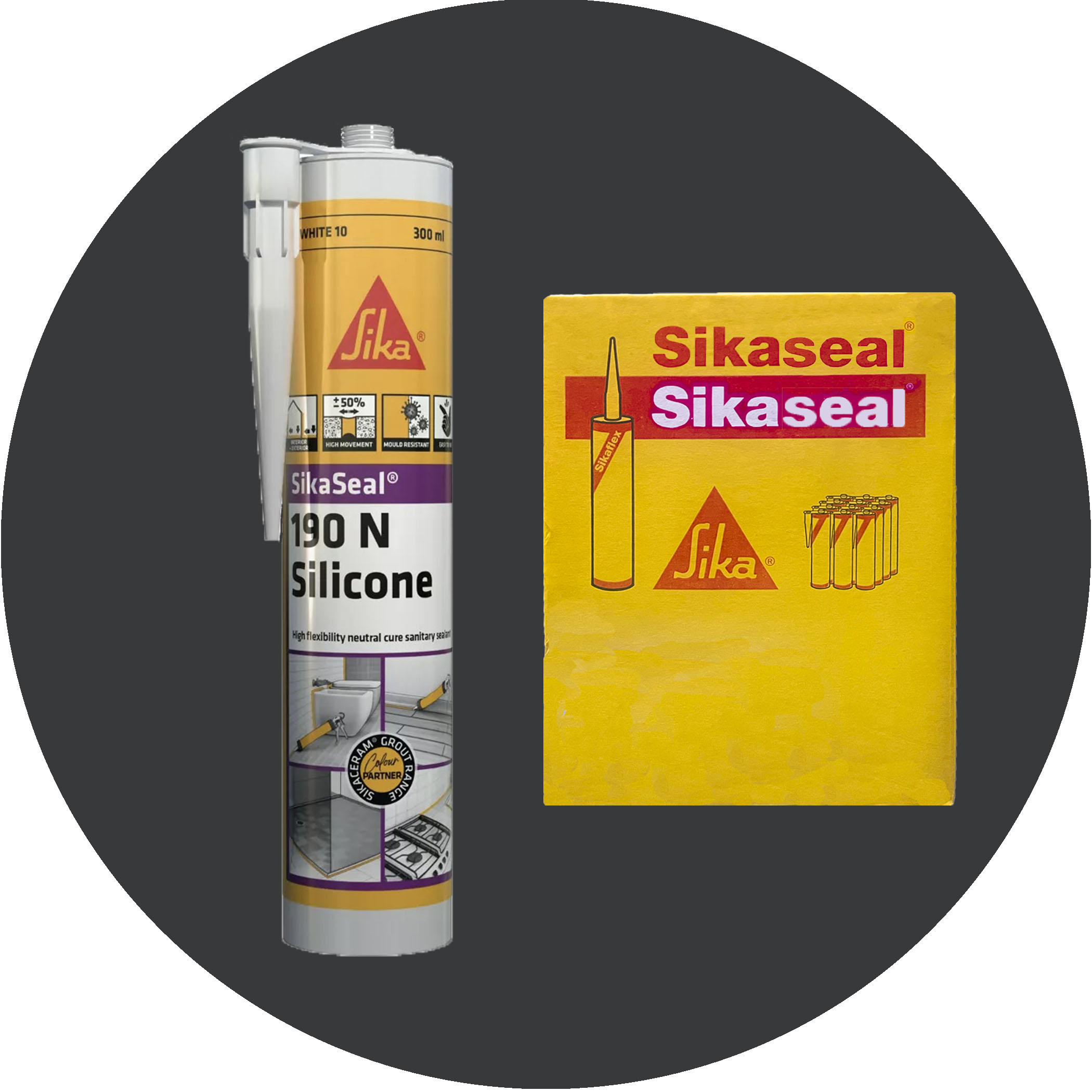

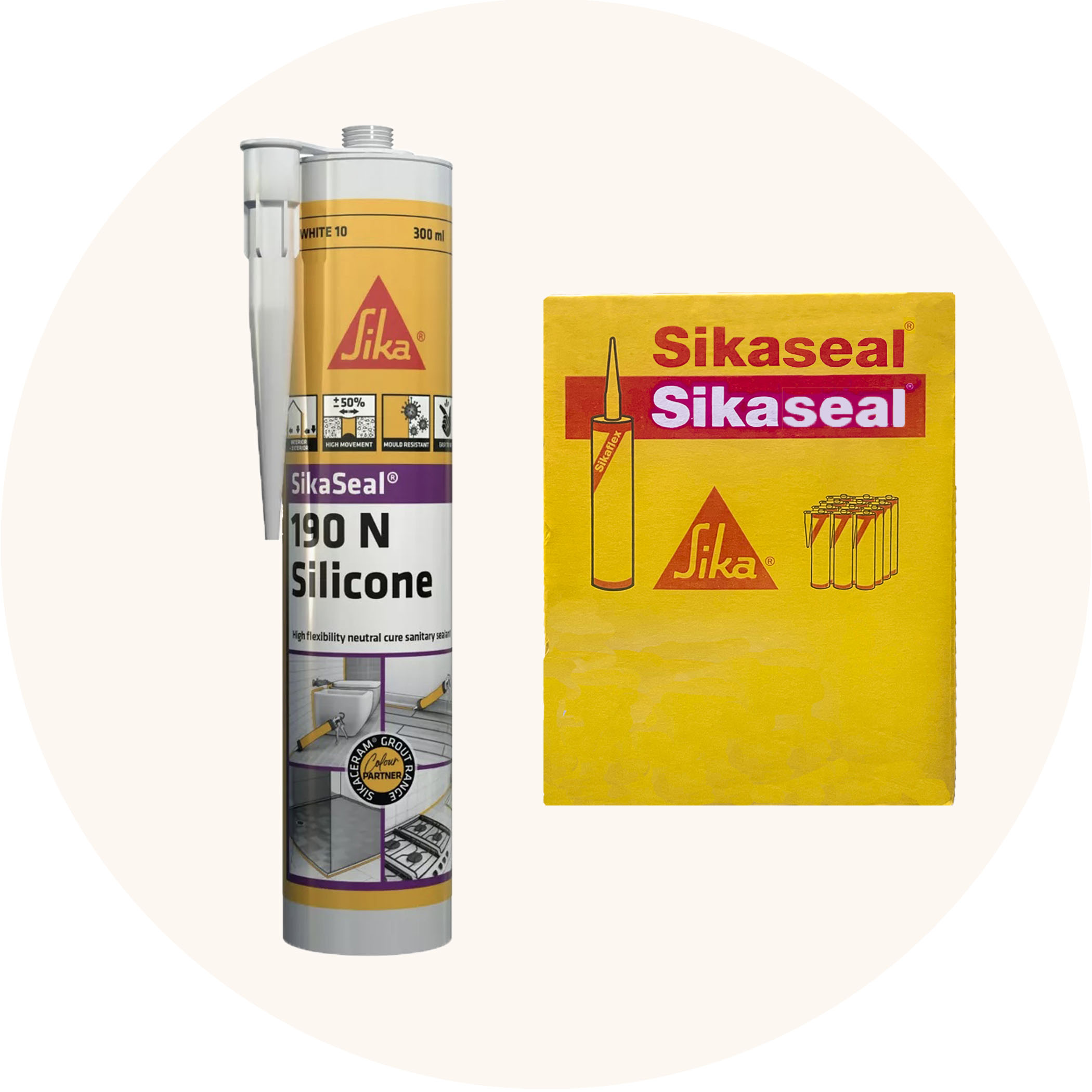

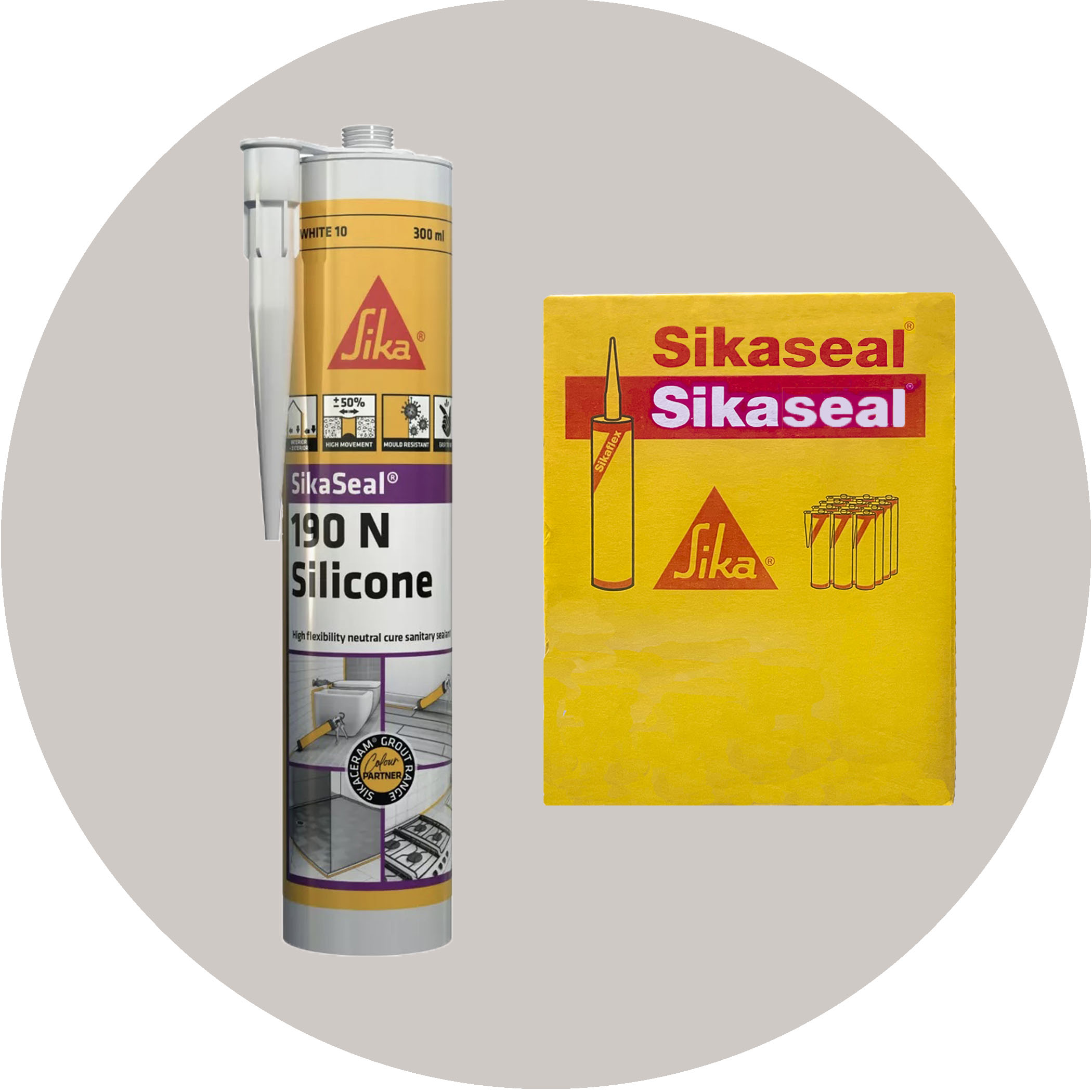

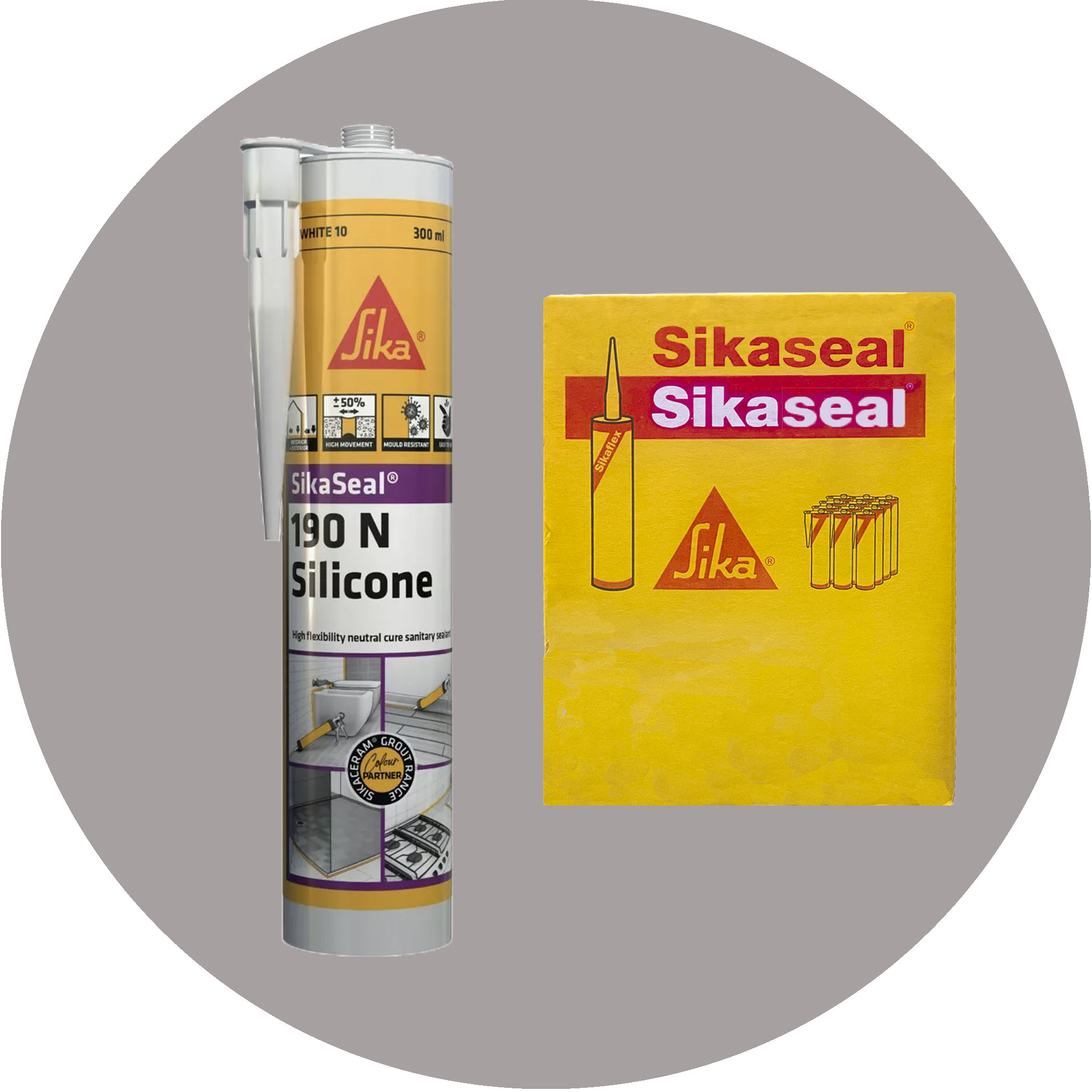

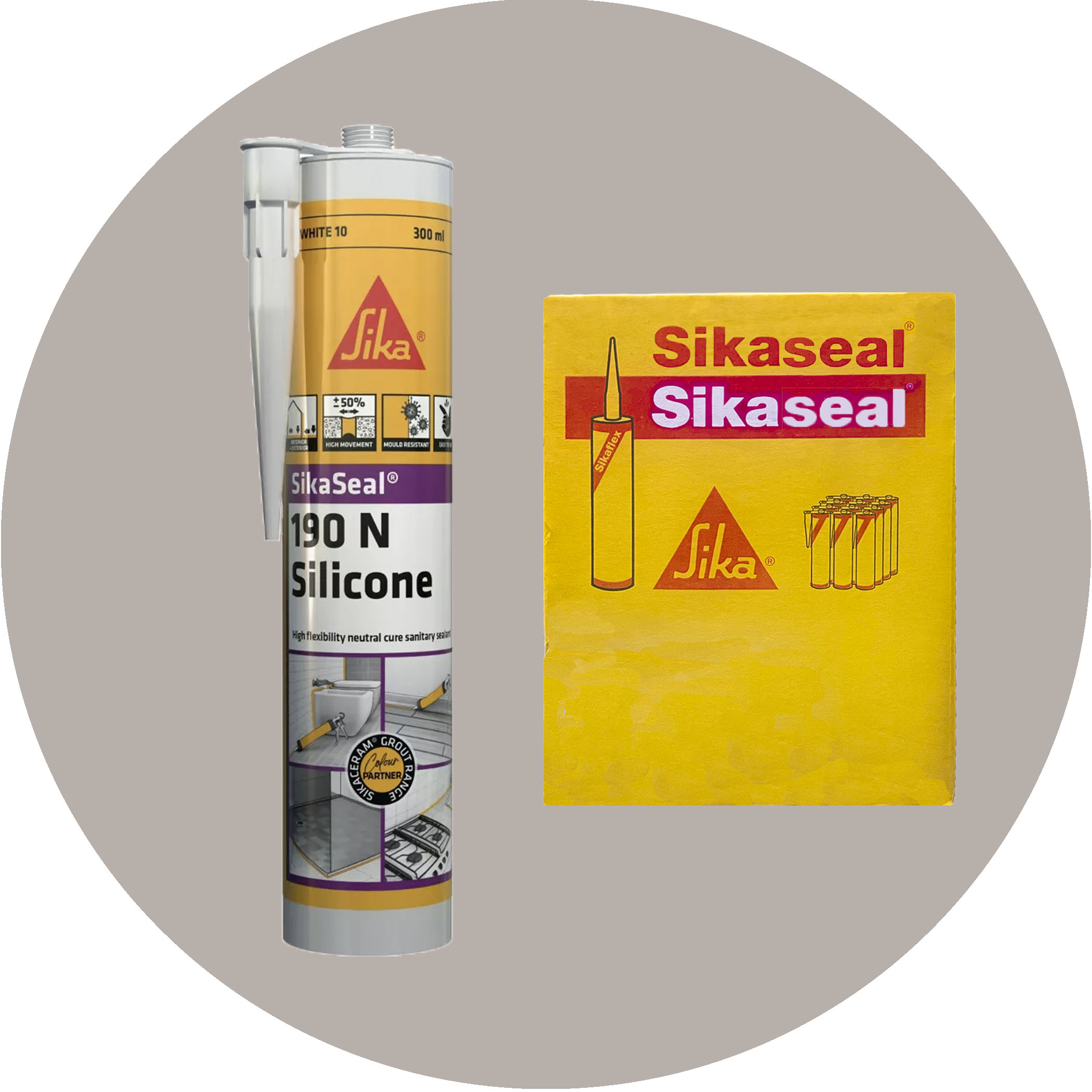

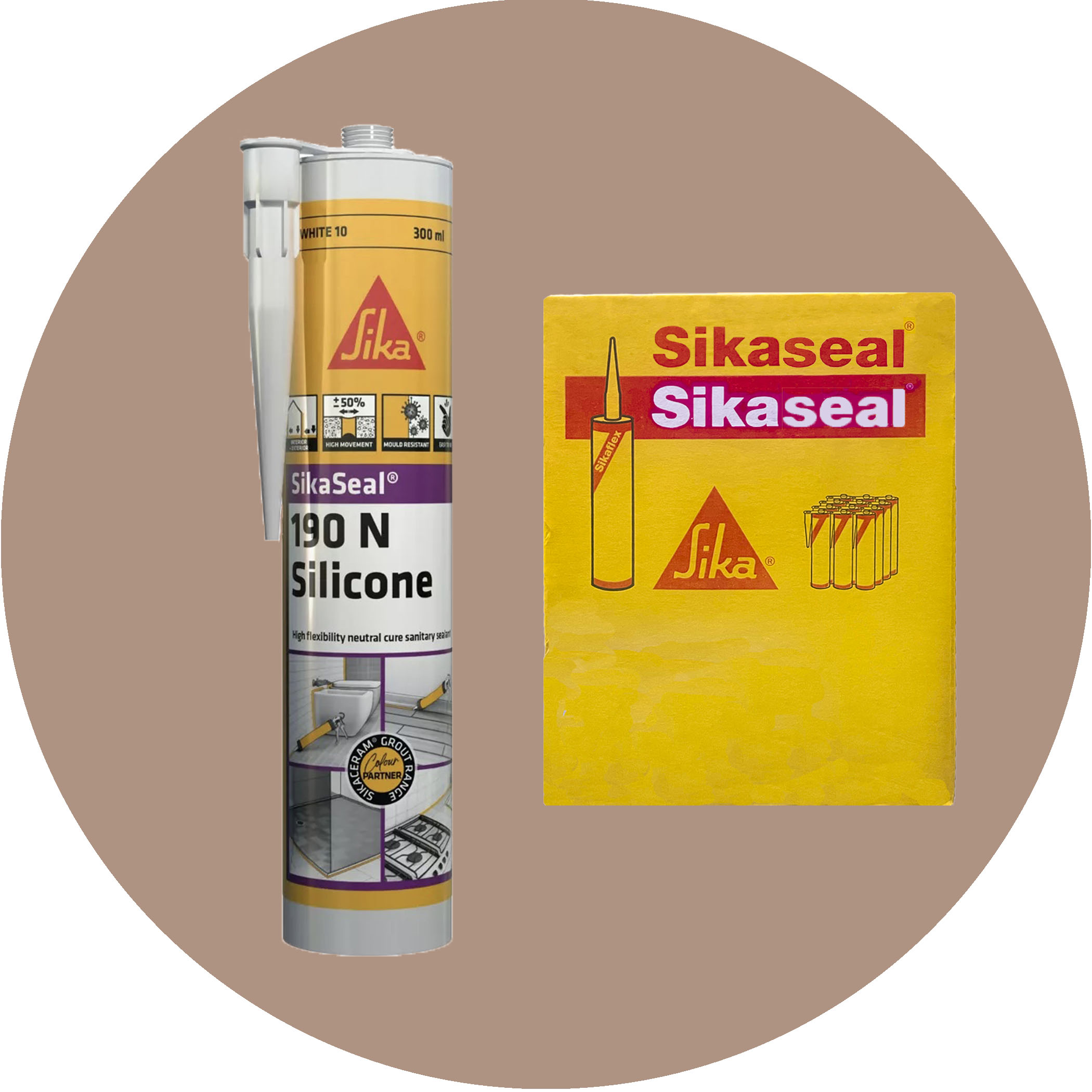

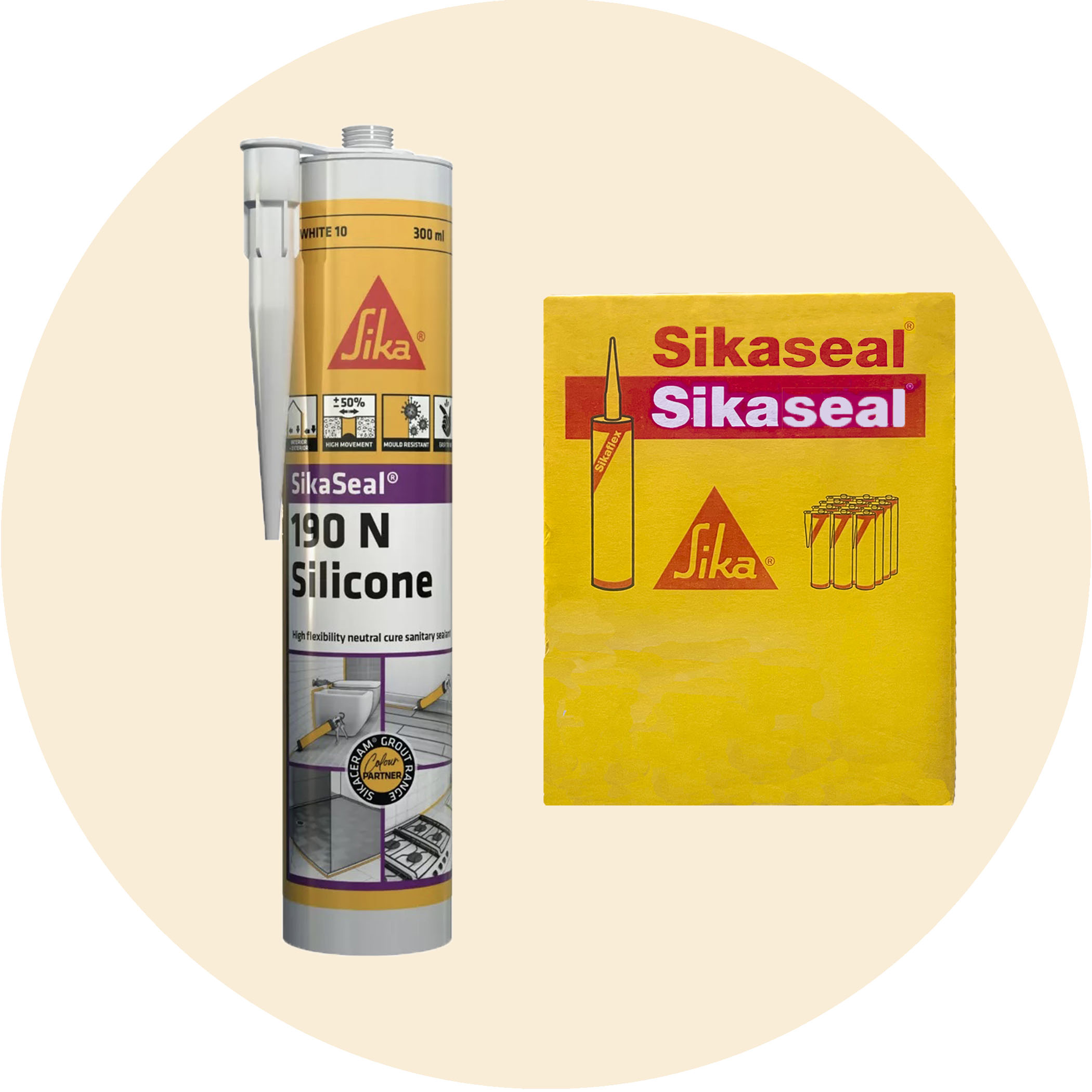

– Sold Individually and in Boxes of 12

SikaSeal®-190 N Silicone is a one-component, neutral curing, low odour silicone
sealant with excellent adhesion and is suitable for elastic joint sealing.
SikaSeal®-190 N Silicone is easy to apply and cures with atmospheric moisture to
form a high performance tough flexible mould resistant seal for internal and
external applications in movement and connection joints. SikaSeal®-190 N Silicone is
available in a range of complimentary colours for SikaCeram®-690 Elite and
SikaCeram®-880 Easy Epoxy.

USES

Sika SikaSeal 190N High Flexibility Silicon Sealant is suitable for:

• Kitchens & Bathrooms
• Showers & Tiled areas
• Benchtops & Basins
• Baths & Toilets
• Movement & Connection joints
• Around Splashbacks
• Around plumbing fixtures and penetrations
• General interior & exterior sealing around the home

FEATURES

• Neutral cure
• Excellent adhesion to common construction materials: glass, enamel,
  porcelain, ceramic, tile, aluminium, concrete and grouts
• Non-corrosive
• Non-sag
• Easy tooling characteristics
• Mould resistant
• Fast curing
• Low VOC content
• High movement capability ± 50%
• High temperature resistance (-40°C to +150°C)
• See Important Considerations below prior to use, Not suitable for all
  metal and natural stone substrates

PRODUCT INFORMATION

Composition

• Neutral cure silicone

Packaging

• 300ml Cartridges (12 Cartridges per box)

Shelf Life

• 12 months from the date of production

Storage Conditions

• The product must be stored in original, unopened and undamaged sealed
  packaging in dry conditions at temperatures between +5°C and +25°C.
• Refer to the current Safety Data Sheet for information on safe handling
  and storage.
• Always refer to packaging.

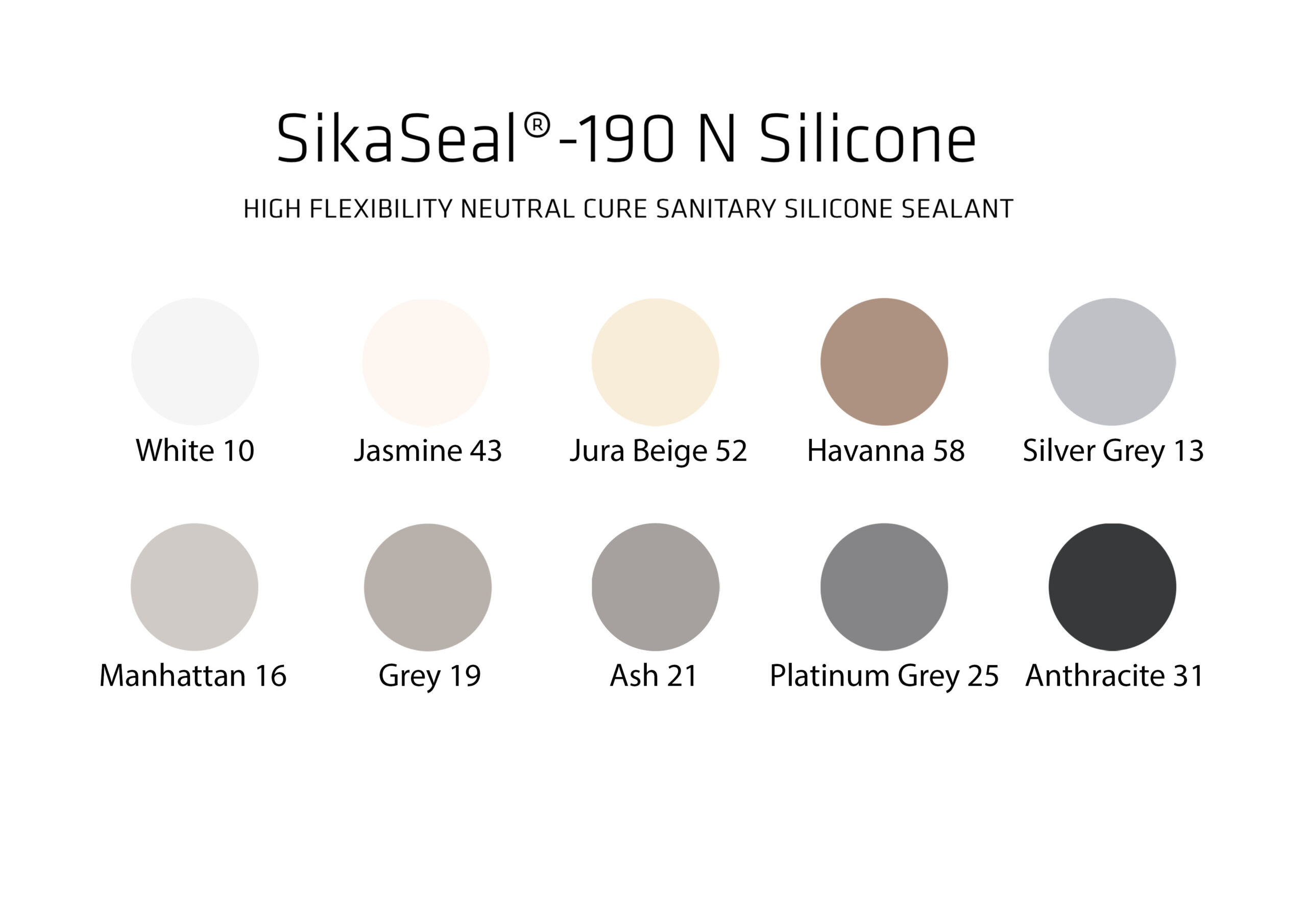

Appearance and Colour

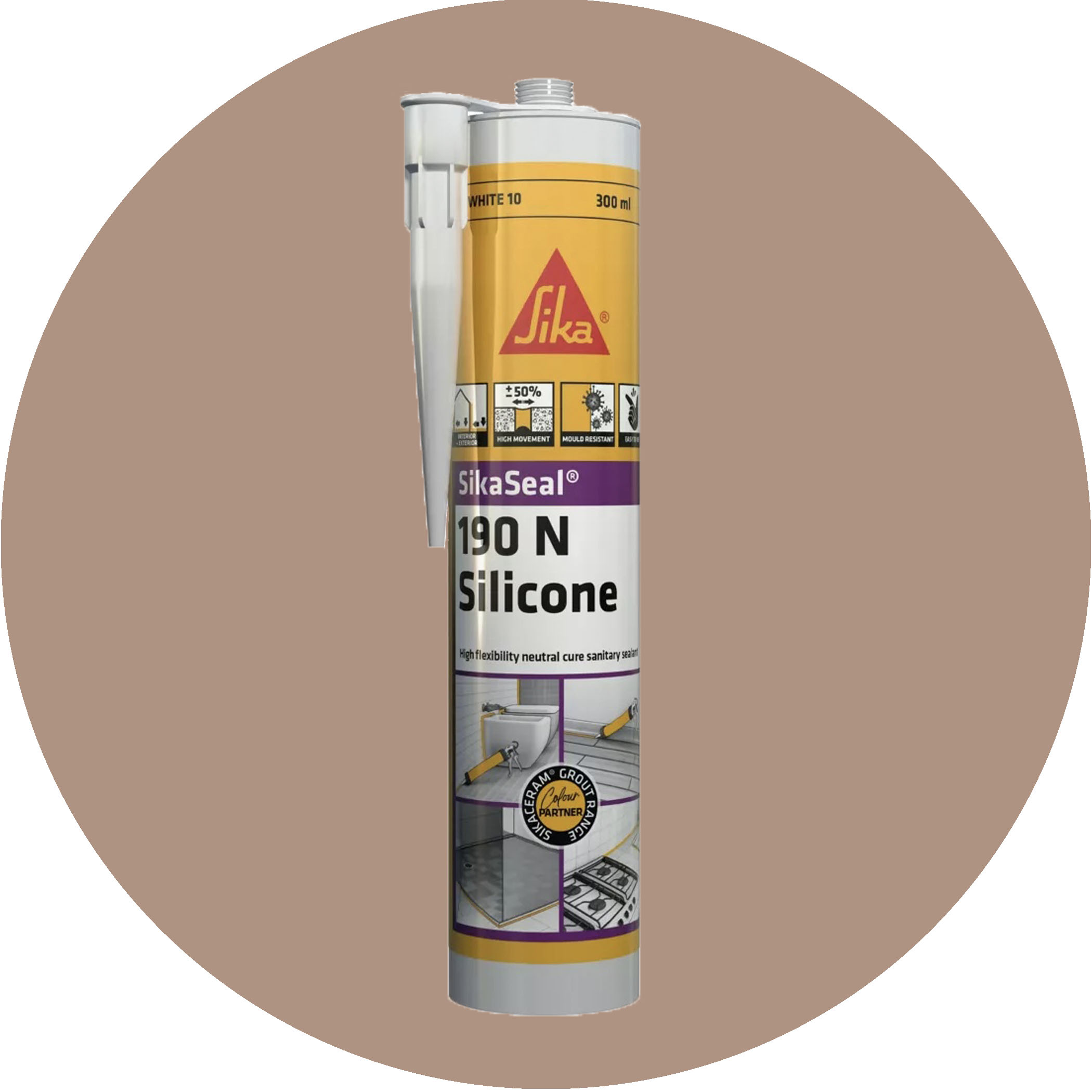

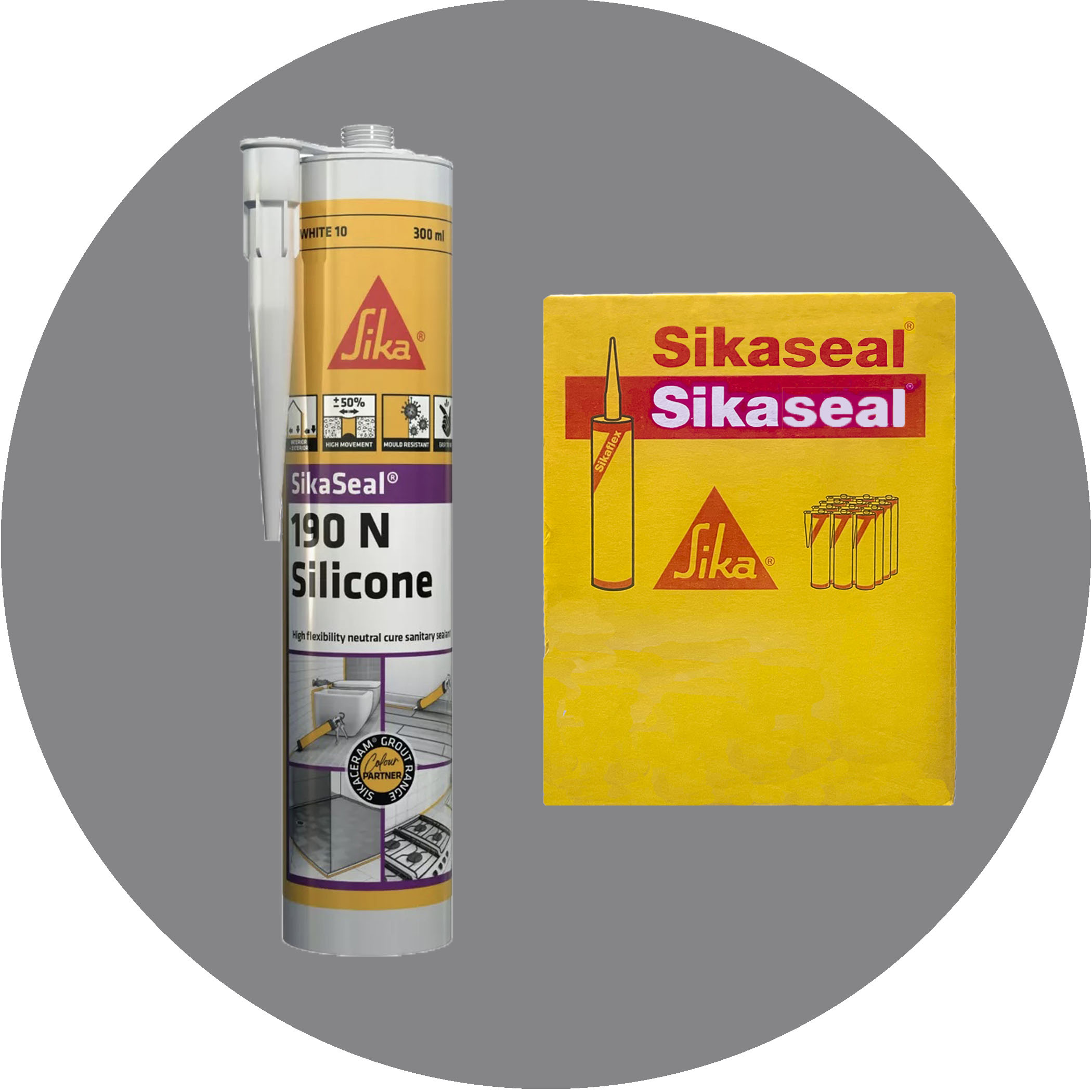

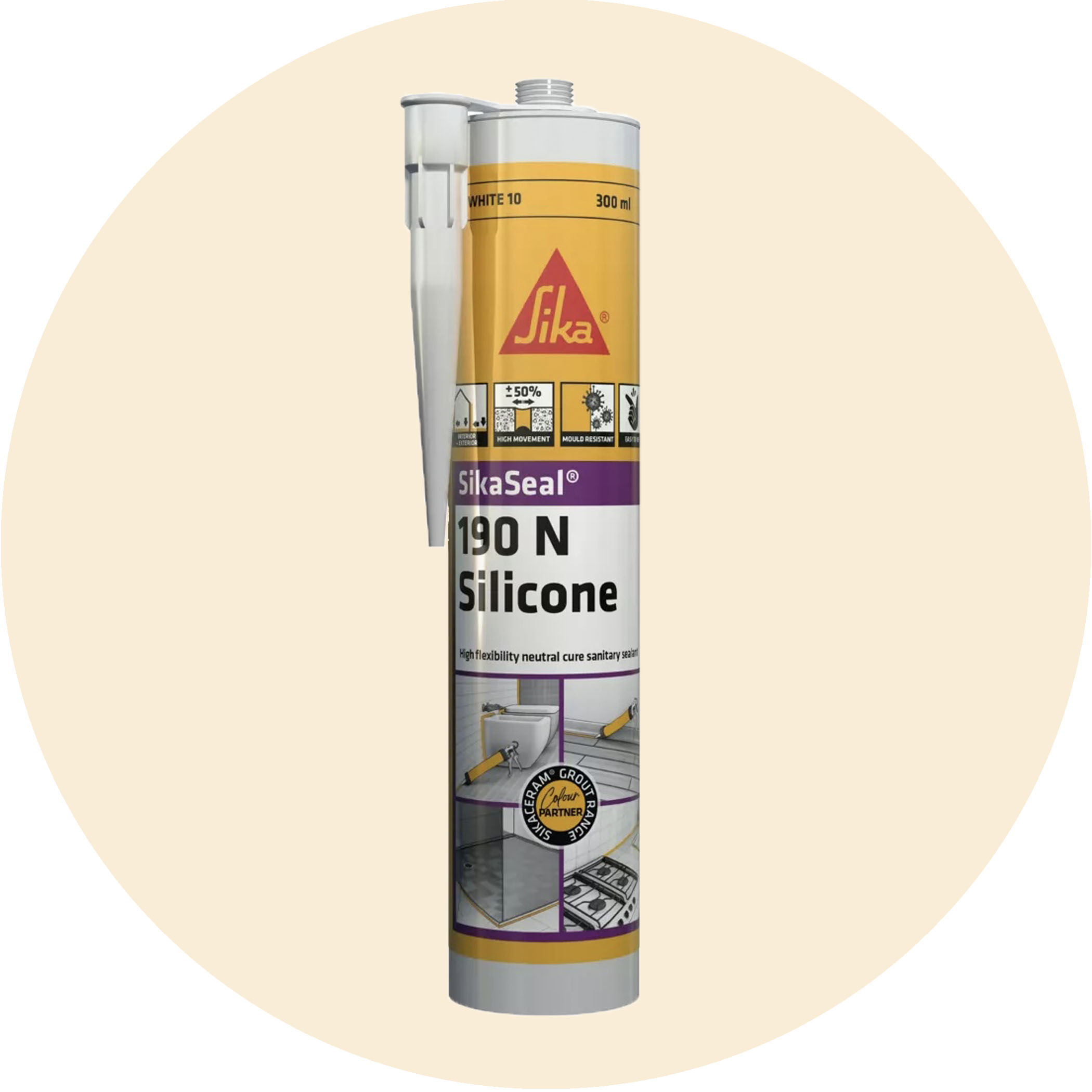

• 300ml Cartridge – White, Jasmin, Jurra Beige, Havana, Silver Grey,
  Manhattan, Grey, Ash, Platinum Grey & Anthracite

Density

• 1.4kg/l approx.

Volatile Organic Compound (VOC) Content

• 38 g/l. (ASTM D3960)

TECHNICAL INFORMATION

Shore A Hardness

• ~35 after 28 Days

Service Temperature

• -40ºC to +150ºC

Movement Capability

• ± 50 % (ASTM C719)

Elongation at Break

• ~400% (ISO 37)

Joint Design

For movement joints, the width must be at least 6 mm and should not exceed 45 mm.
For non-movement joints such as connection joints in interior areas, the joint width
can be less than 6 mm. The joint dimensions must be designed to suit the movement
capability of the sealant. In all cases joints must be at least 6 mm deep, or a have
a width to depth ratio of 1 : 0.5.

For more information about joint design and calculations refer to the Sika document
Design guideline: Dimensioning of construction joints or contact Sika Technical
Services.

APPLICATION INFORMATION

Sag Flow

• Nil Sag

Ambient Air Temperature

• +5 °C to +40 °C

Substrate Temperature

• +5 °C min. / +40 °C max. Minimum +3 °C above dew point temperature and
  free from frost and ice

Curing Rate

• ~3.5 mm / 24 hours (+23 °C / 50 % r.h.)

SkinningTime

• ~20 min (+23 °C / 50 % r.h.)

IMPORTANT CONSIDERATIONS

• When applying sealant into a previously silicone sealed joint, ensure
  all residue is removed from joint.
• SikaSeal®-190 N Silicone cannot be overpainted.
• Do not use on natural stone.
• Do not use on bituminous substrates, natural rubber or materials which
  might leach oils, plasticisers or solvents that could degrade the sealant.
• EPDM or other gaskets in direct contact must be tested for compatibility
  prior to application.
• Pre-test prior to use on prestressed polyacrylate and polycarbonate as
  it may cause environmental stress cracking (crazing).
• Pre-test in an inconspicuous area prior to use on porous material such
  as concrete to ensure the product does not stain the substrate.
• Do not use SikaSeal®-190 N Silicone in areas which are exposed to strong
  oxidising acids (e.g. nitric acid) and bases.
• Do not use to seal joints in or around swimming pools, joints under
  water pressure or permanent water immersion.
• Do not use SikaSeal®-190 N Silicone in totally confined spaces as it
  requires atmospheric moisture to cure.
• Colour variations may occur due to the exposure in service to chemicals,
  high temperatures and/or UV radiation (especially with white colour shade). This
  effect is aesthetic and does not adversely influence the technical performance or
  durability of the product.
