Description

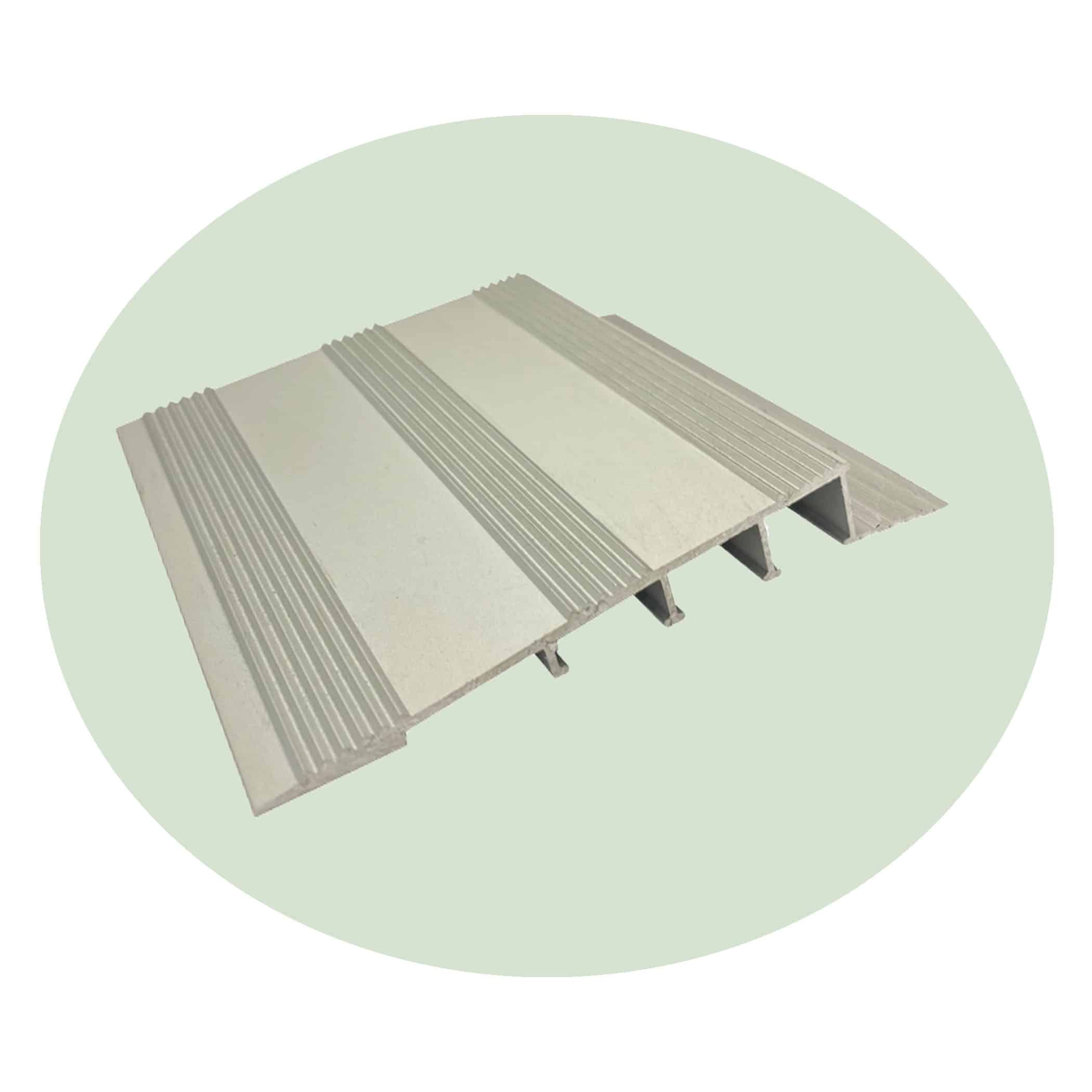

Where two floors finish at different heights, the choice is between a step and a ramp. This DTA transition ramp is the ramp: a long, gradual aluminium profile that takes the rise out over 74 to 110 millimetres rather than presenting an edge to catch a toe on.
It comes in three rises and is supplied in 3 metre lengths. Because the ramp length grows with the rise, the gradient stays consistent across the range, which is what keeps it comfortable underfoot at every size.
Technical Specifications

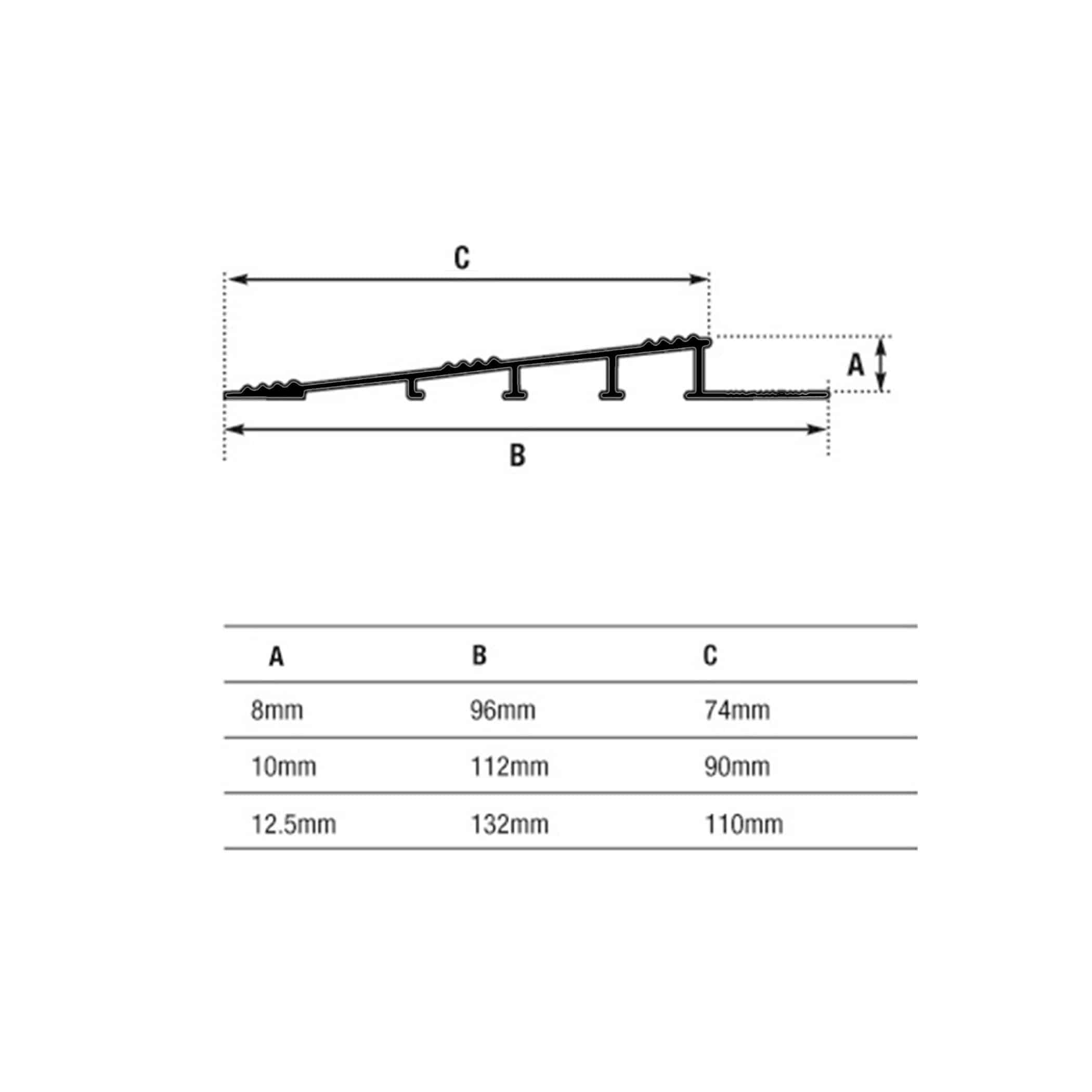

| Product type | Aluminium transition ramp |
|---|---|
| Length | 3.0m |

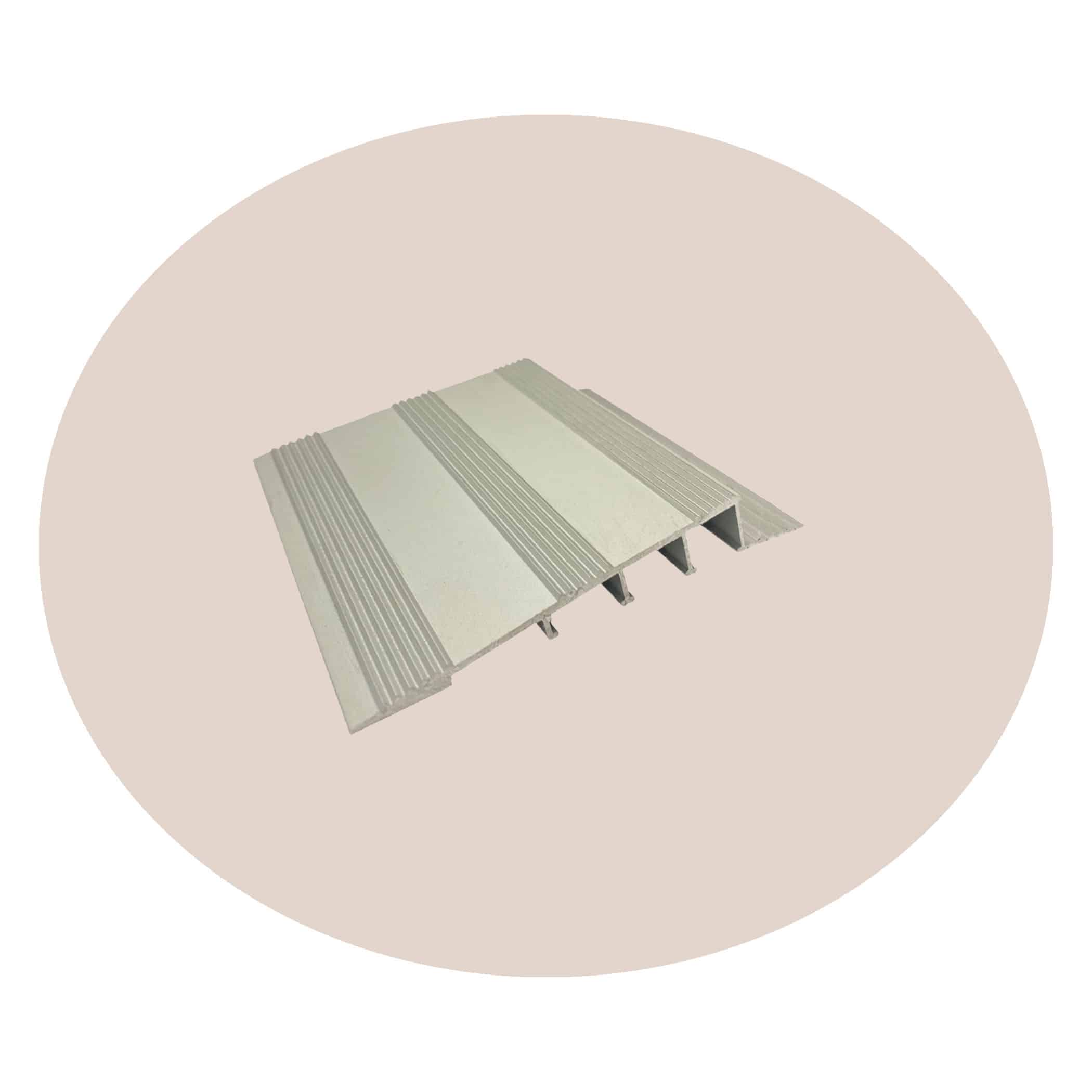

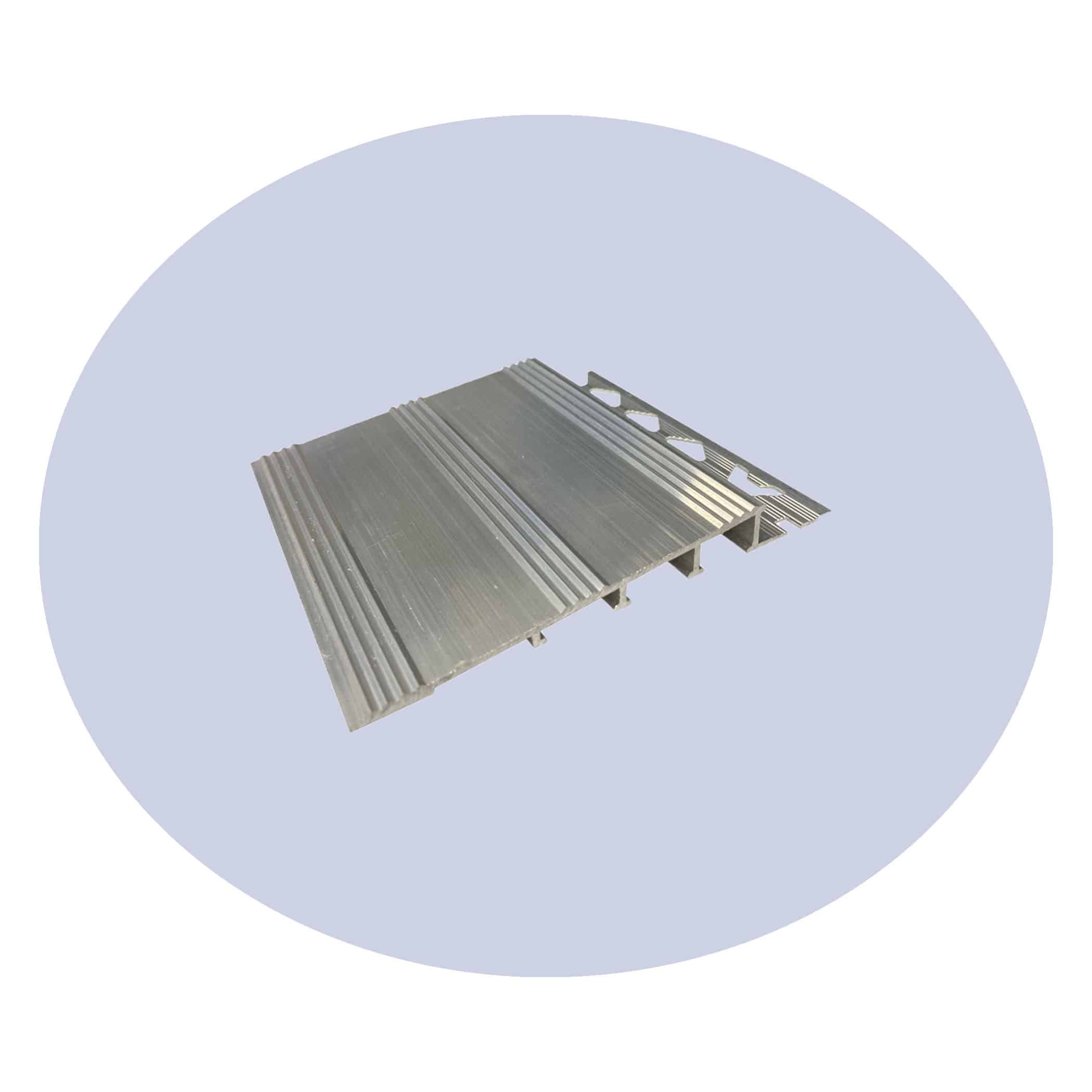

| 8mm rise | 74mm ramp length, 96mm overall |

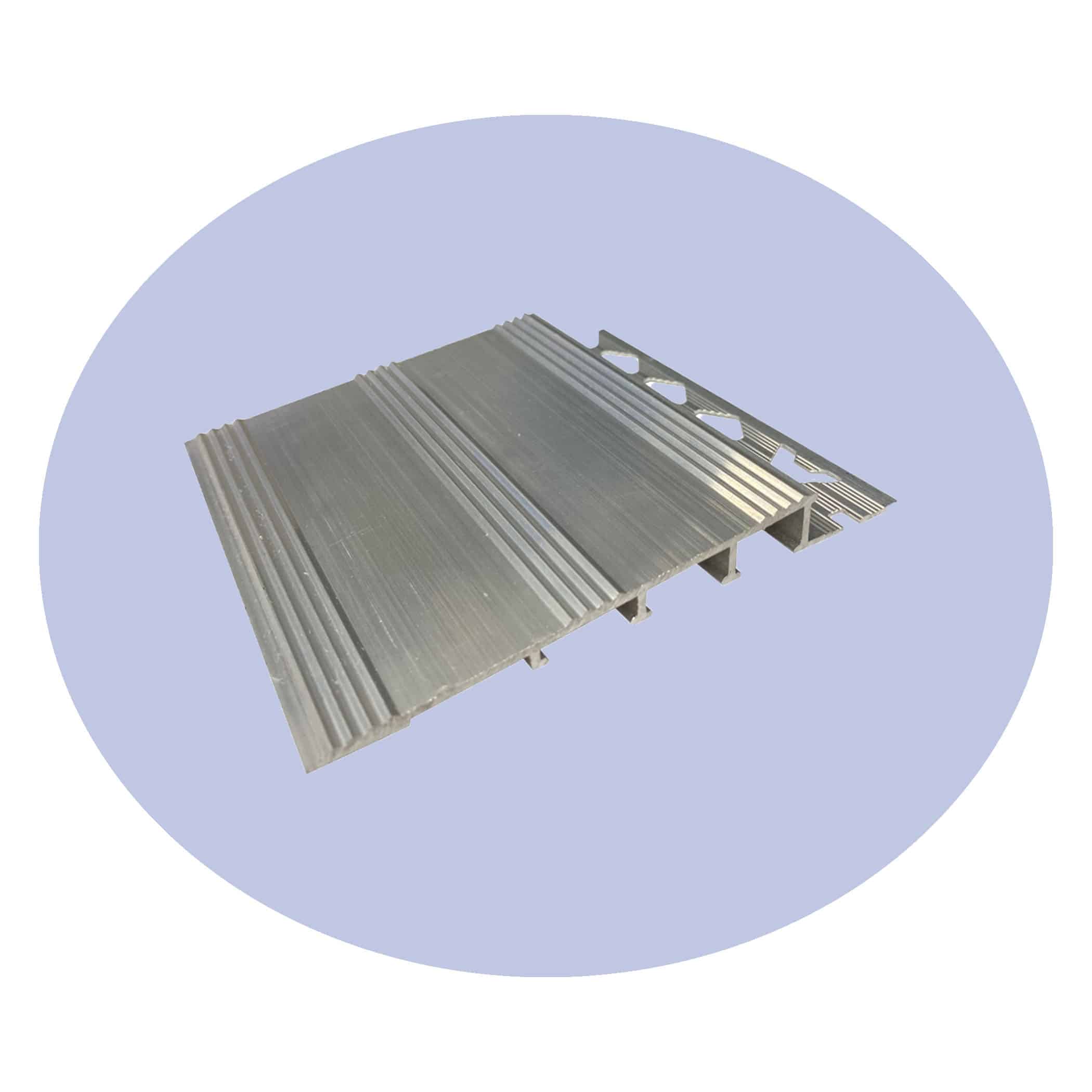

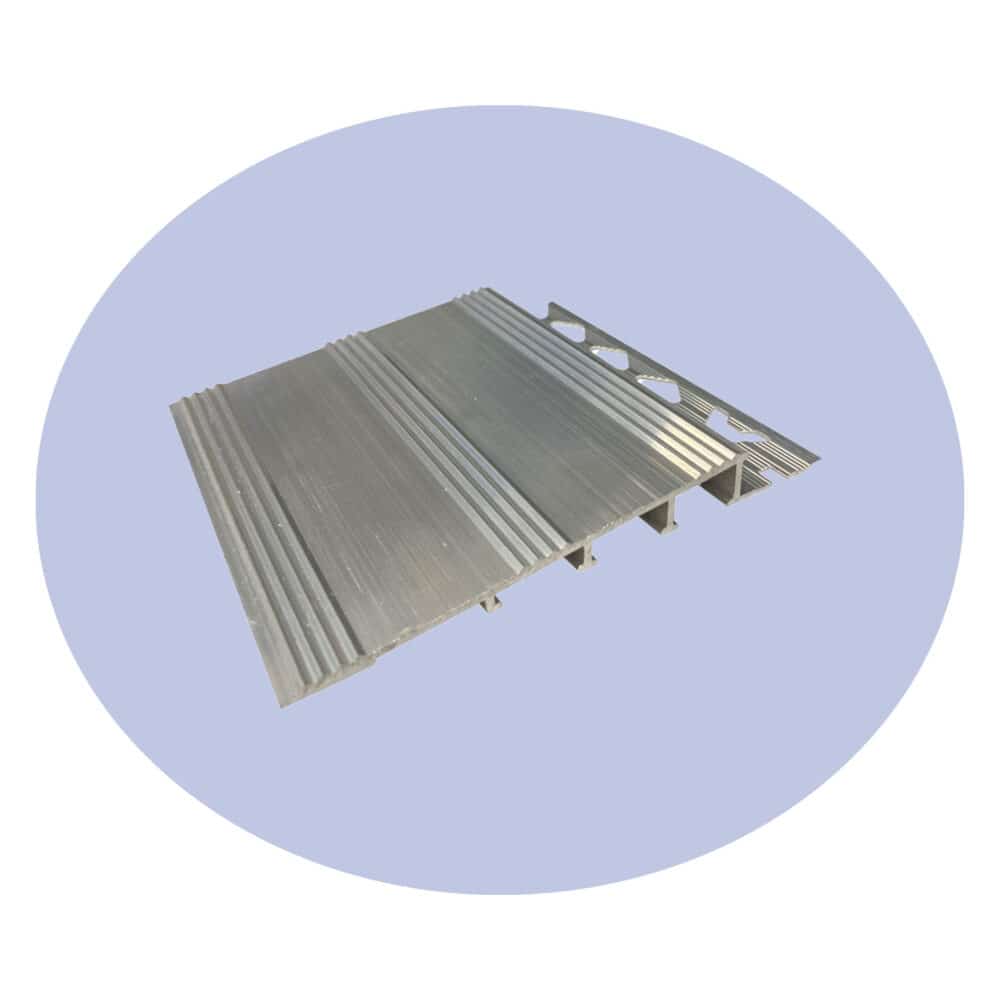

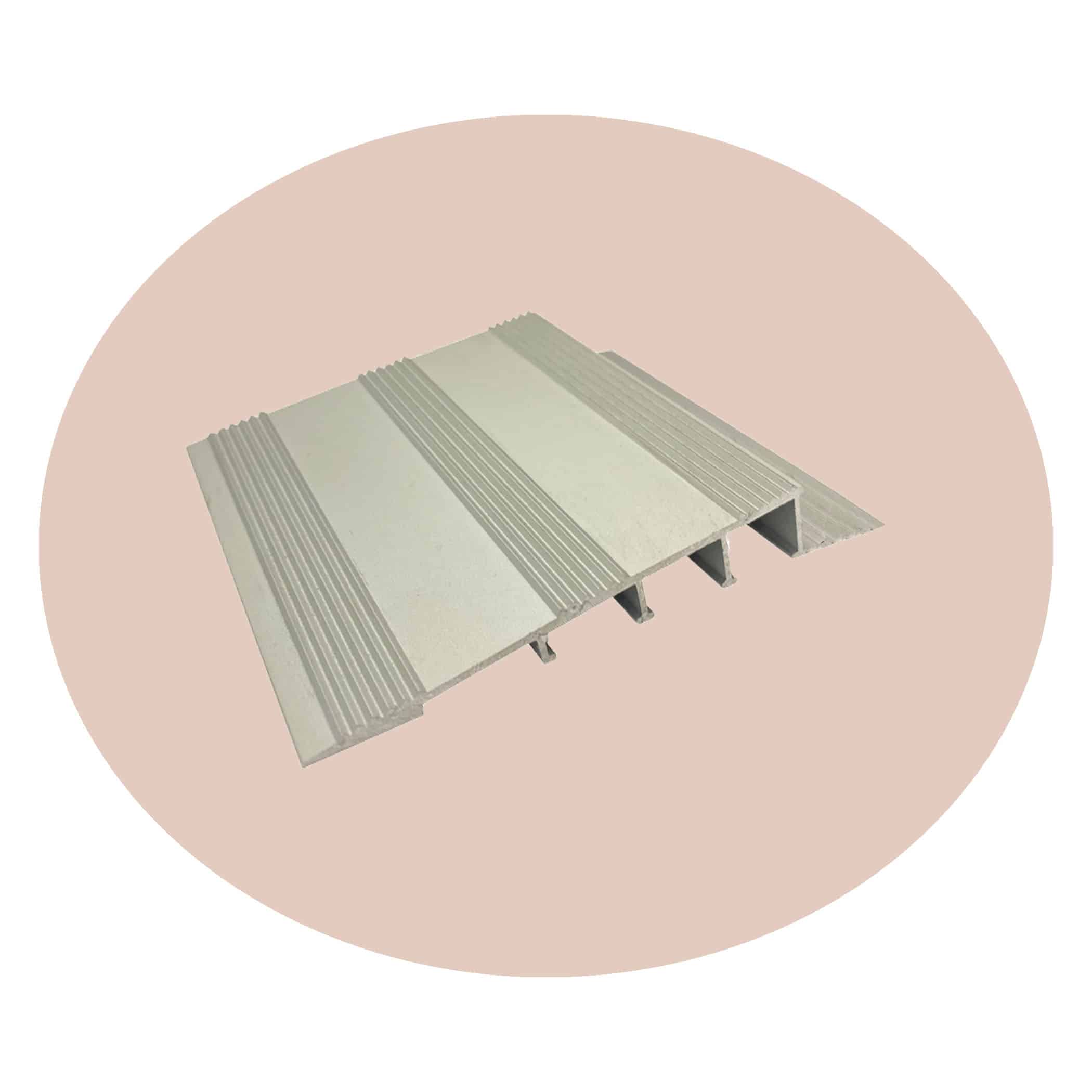

| 10mm rise | 90mm ramp length, 112mm overall |

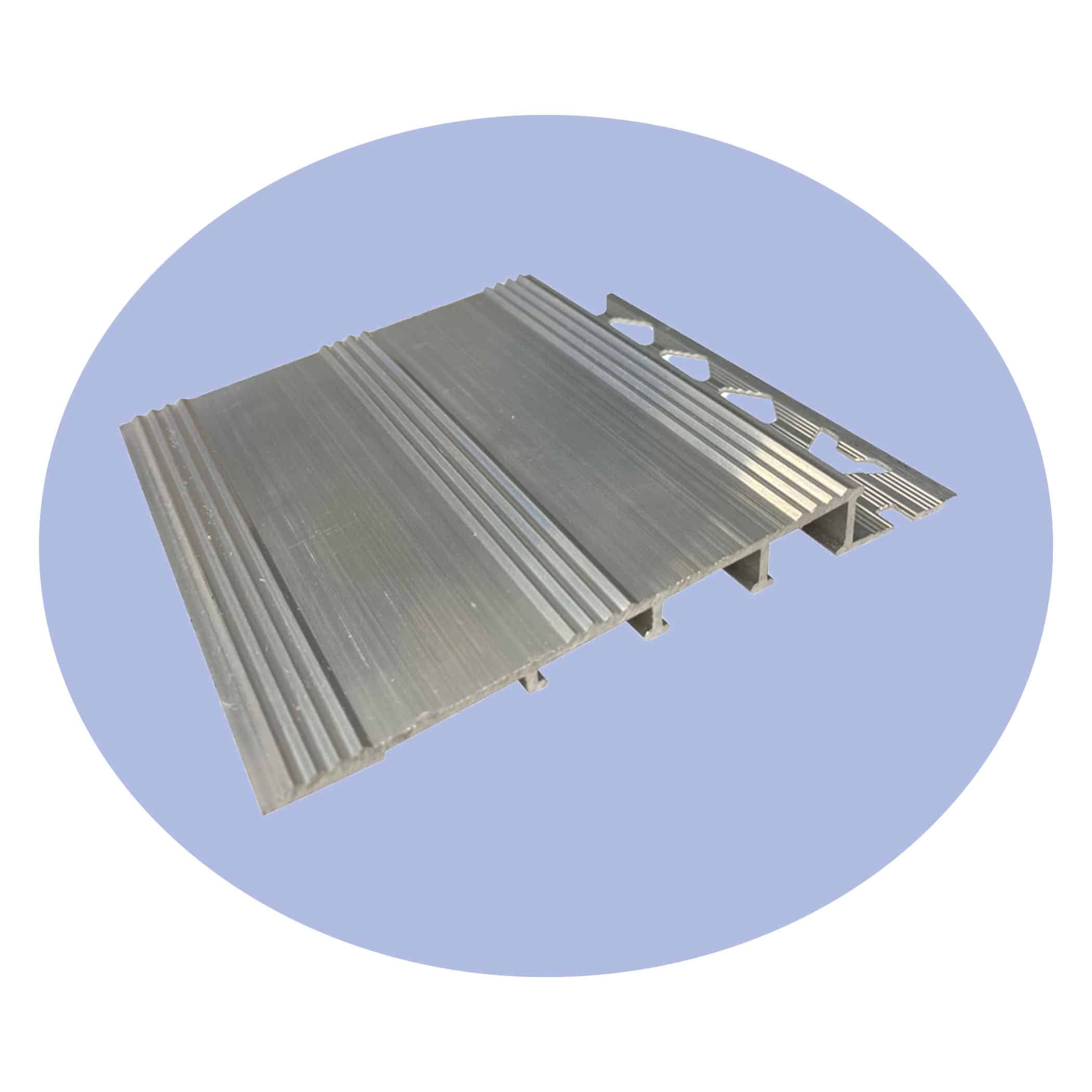

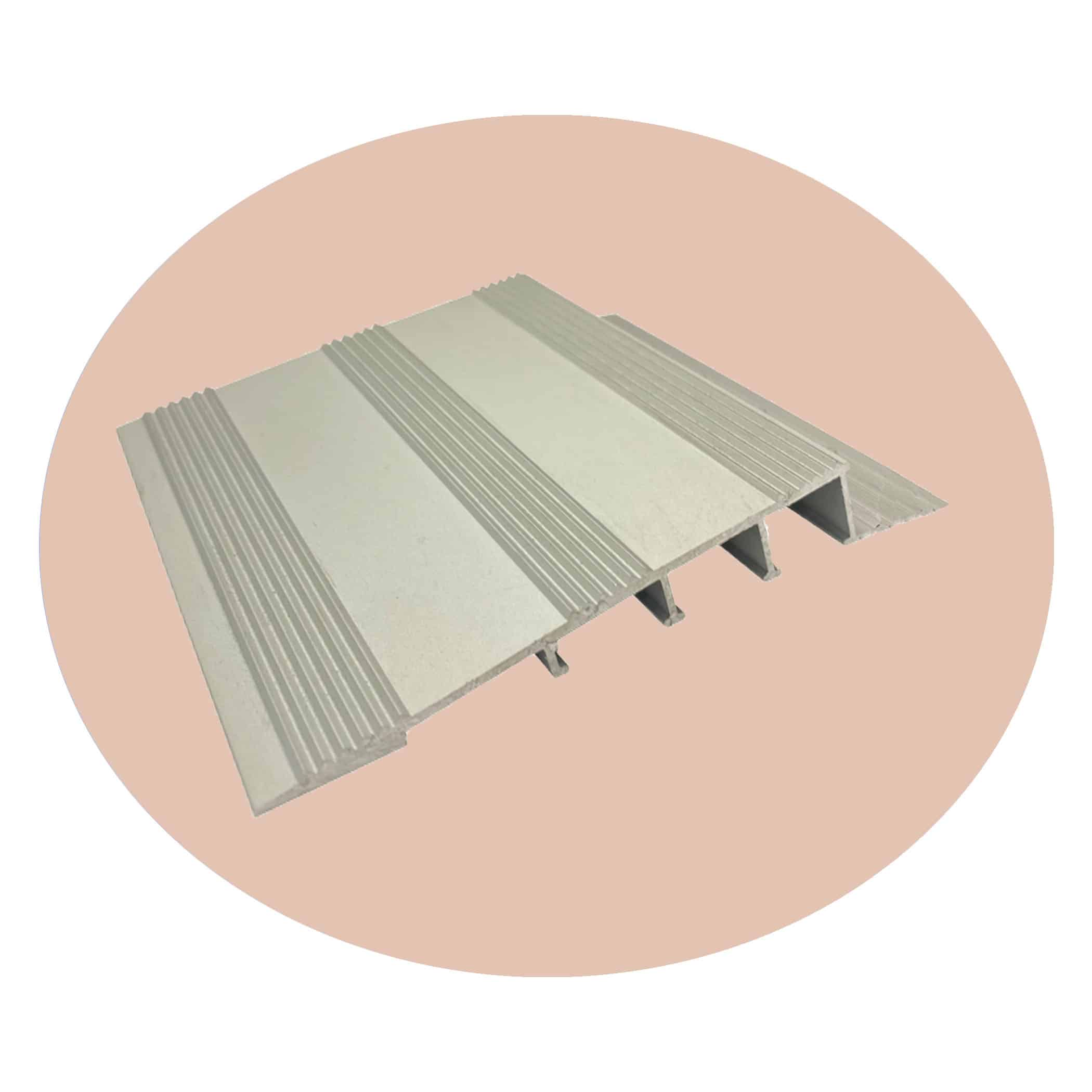

| 12mm rise | 110mm ramp length, 132mm overall |
| Finishes | Mill finish, Matt Silver, Black, Yellow |

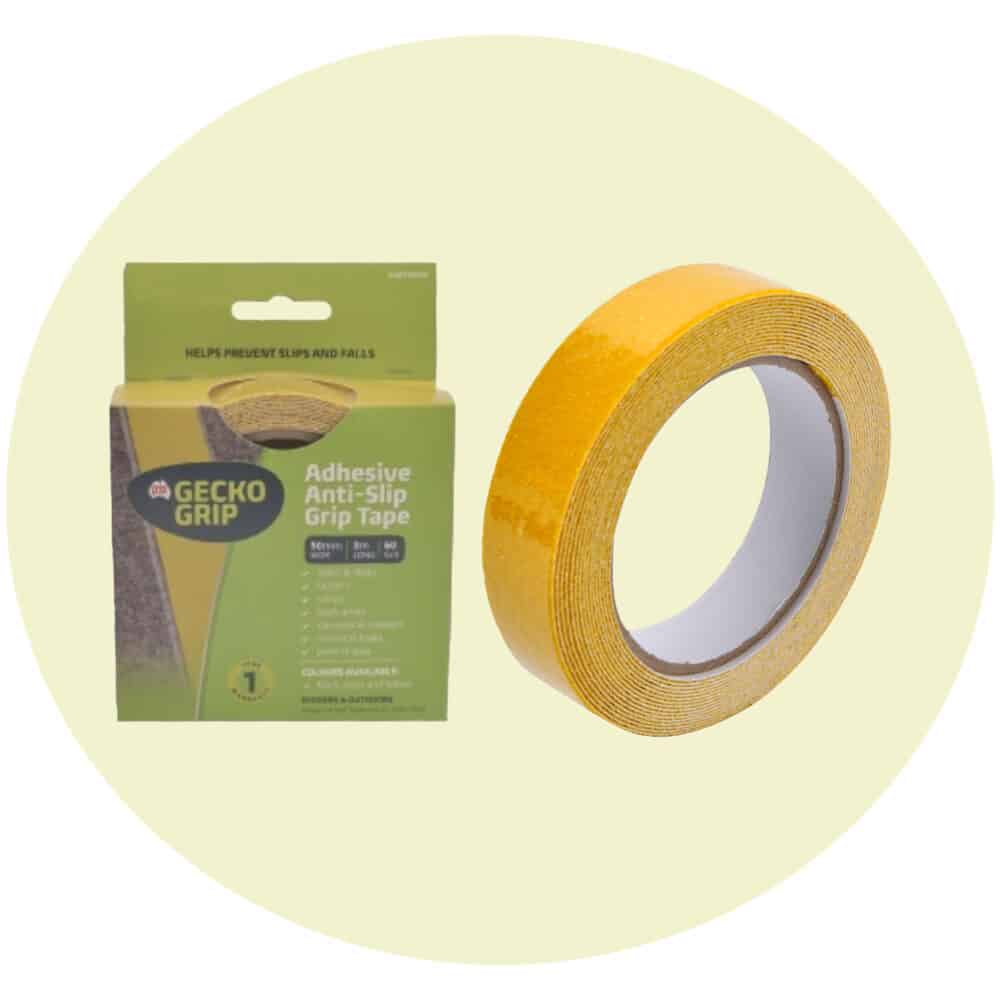

| Grip option | Suits Gecko Grip 25mm tape, black or yellow, 5m |
| Application | Domestic and commercial |
Ramp or Edge, and Why the Gradient Matters
A transition edge takes a height change in one step and protects the exposed edge of the floorcovering. A ramp spreads the same rise over a much longer run so there is no step at all. Which one you need depends on whether the priority is protecting the floor edge or removing a trip hazard.
The ramp lengths here are what make the difference. An 8 millimetre rise ramps over 74 millimetres, a 12 millimetre rise over 110 millimetres, so the gradient stays consistent as the rise grows. A profile that kept the same ramp length at every height would get progressively steeper and less comfortable.
Where to Use
- Transitions between floors finishing at different heights
- Doorways and thresholds where a trip hazard needs removing
- Commercial floors subject to trolleys and wheeled traffic
- Accessible routes where a gradual transition is required
How to Apply
- Measure the rise — Establish the height difference between the two finished surfaces, then pick the matching rise.
- Cut to length — Cut the 3 metre length to suit the opening.
- Fix down — Fix the ramp so it sits flat on both surfaces with no rocking.

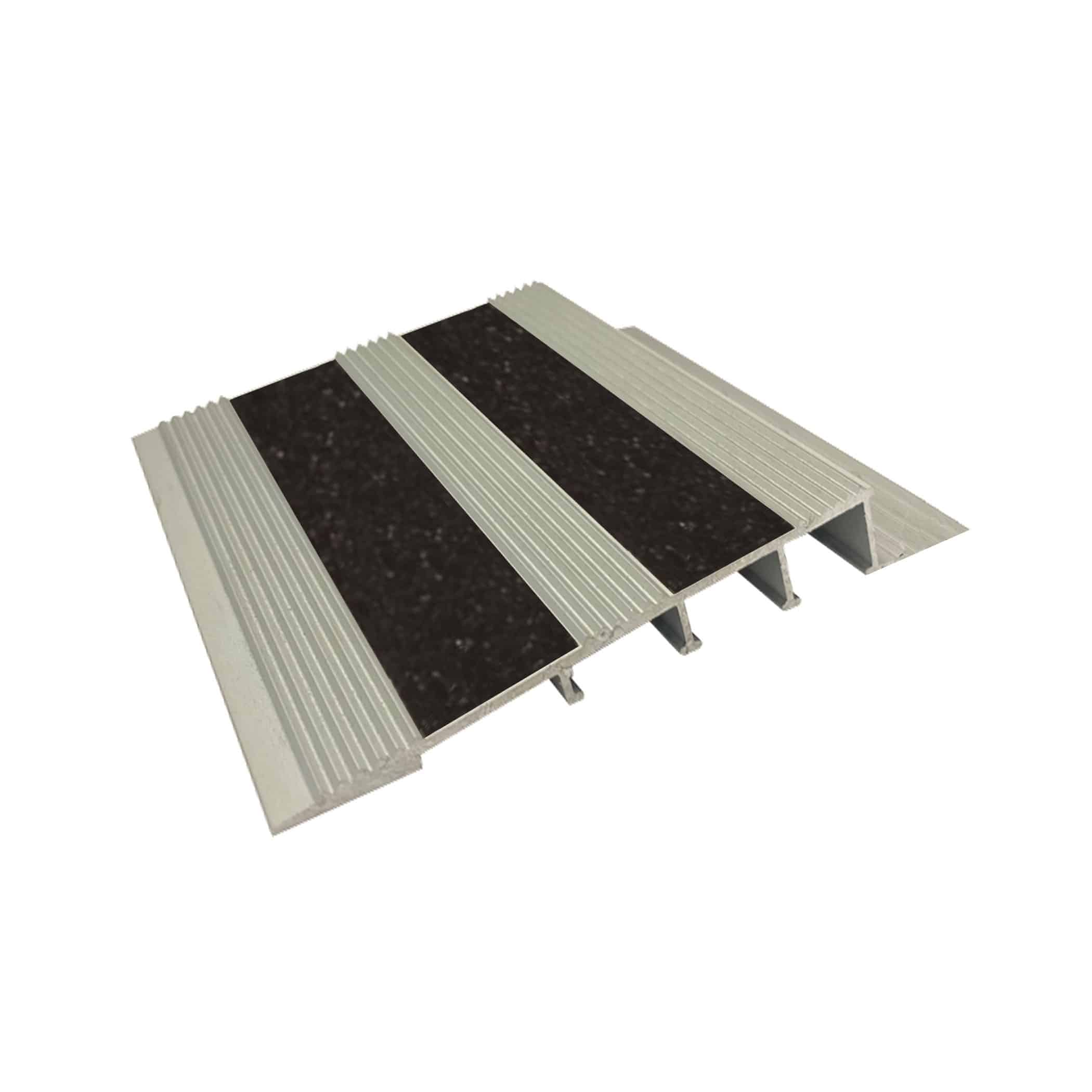

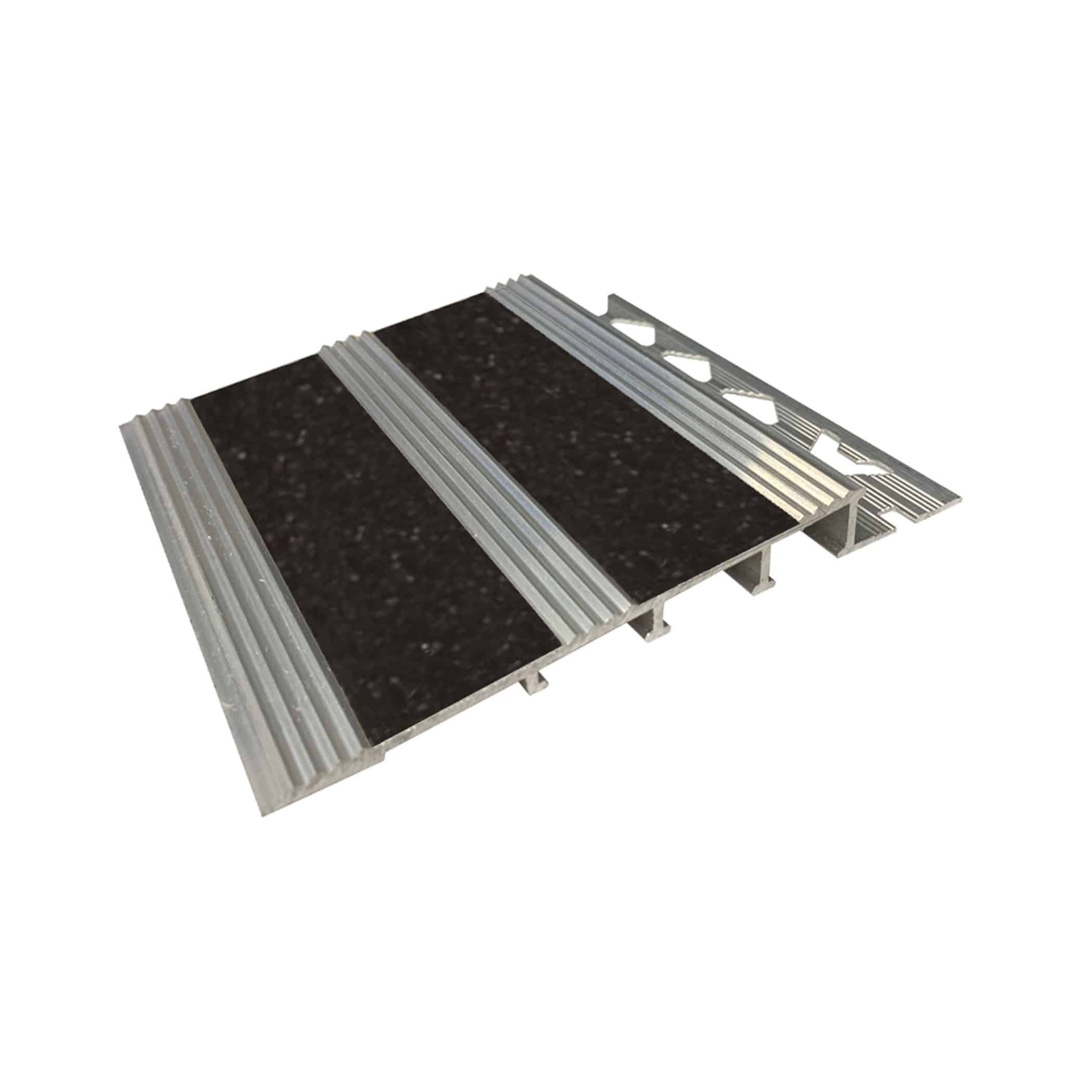

- Add grip if needed — Where extra traction is wanted, apply Gecko Grip 25mm tape along the ramp face.
Important Notes
- Choose the rise to match the actual height difference. A ramp that is too shallow leaves a lip, and one too tall rocks.
- The yellow finish and yellow grip tape exist for high-visibility applications where the transition must be seen.
- Wear safety glasses and gloves when cutting aluminium.
