Description

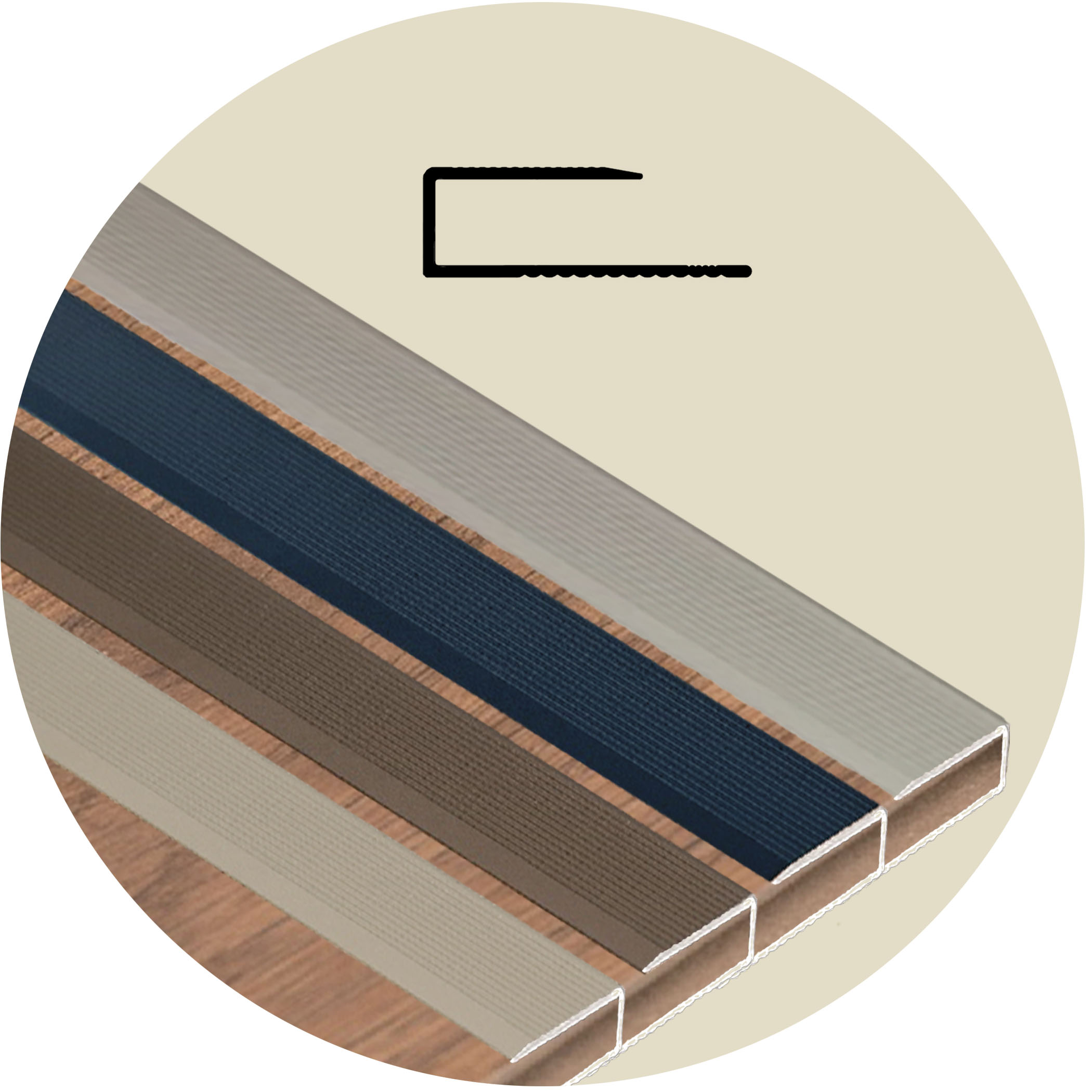

C Channel Edge Cover Flooring Trim finishes and protects the raw edge of a laminate or floating floor, closing off the exposed edge where flooring meets a step, landing or transition point. Rather than a single generic profile, it’s supplied across six internal heights — 5.5mm through to 15.0mm — each with its own supplier code and matching top and bottom flange dimensions, so the trim can be matched precisely to the flooring thickness being covered rather than forcing an approximate fit.
Being tested to the AS 4586:2013 slip resistance standard with a P4 rating gives it a genuine compliance basis for use in commercial or public-access areas where slip resistance is specified, not just a residential styling trim. Four finish options — Black, Bronze, Champagne and Silver — let it match a wider range of flooring and hardware colour schemes than a single mill finish would.
Technical Specifications
| Length | 3.3m |
|---|---|
| Slip resistance | AS 4586:2013, rated P4 |
| 5.5mm height | 13.6mm top flange / 23mm bottom flange — code MJ71 |
| 6.7mm height | 13.6mm top flange / 23mm bottom flange — code MJ73 |
| 8.0mm height | 18.0mm top flange / 25mm bottom flange — code MJ33 |

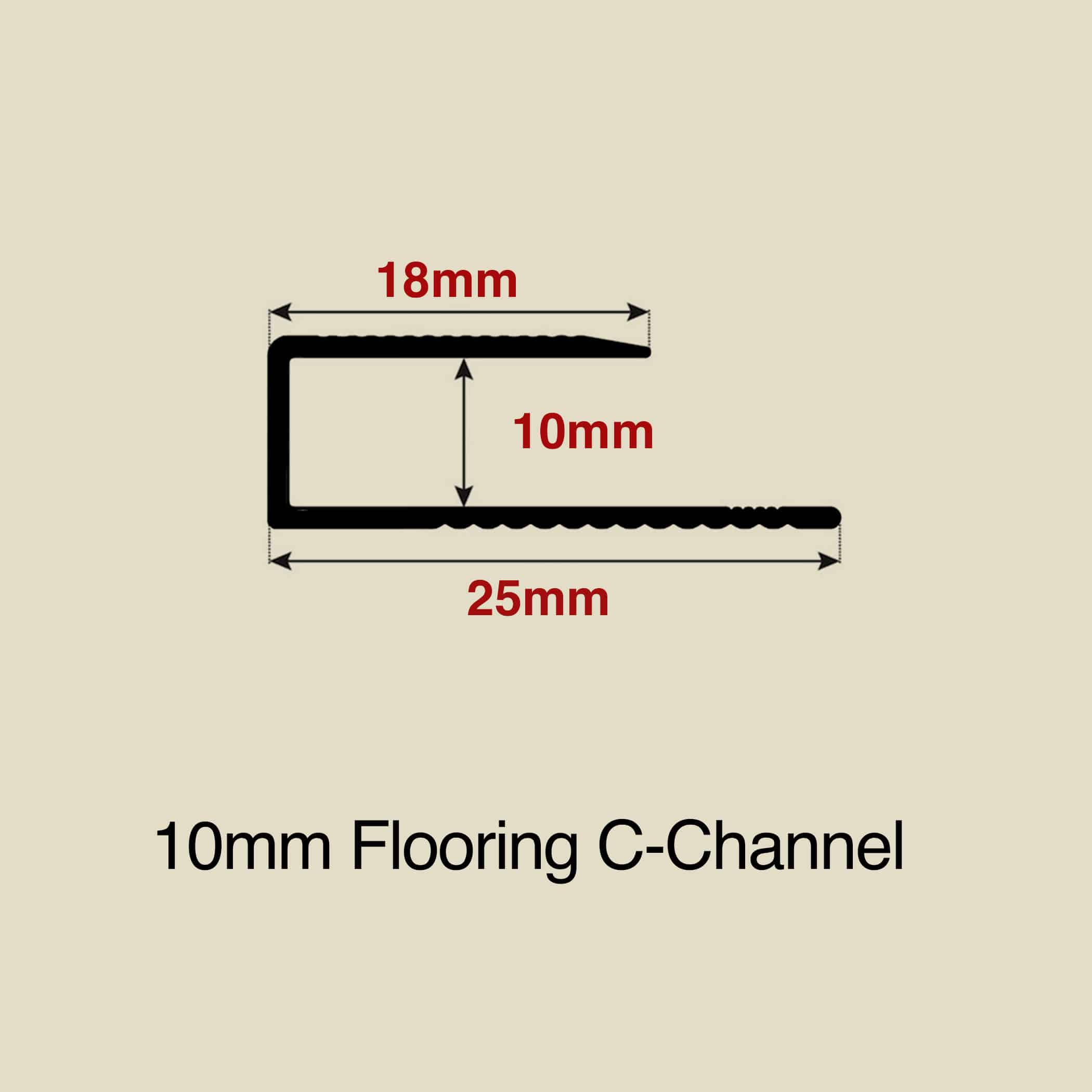

| 10.0mm height | 18.0mm top flange / 25mm bottom flange — code MJ34 |
| 13.0mm height | 18.0mm top flange / 25mm bottom flange — code MJ38 |
| 15.0mm height | 18.0mm top flange / 25mm bottom flange — code MJ35 |

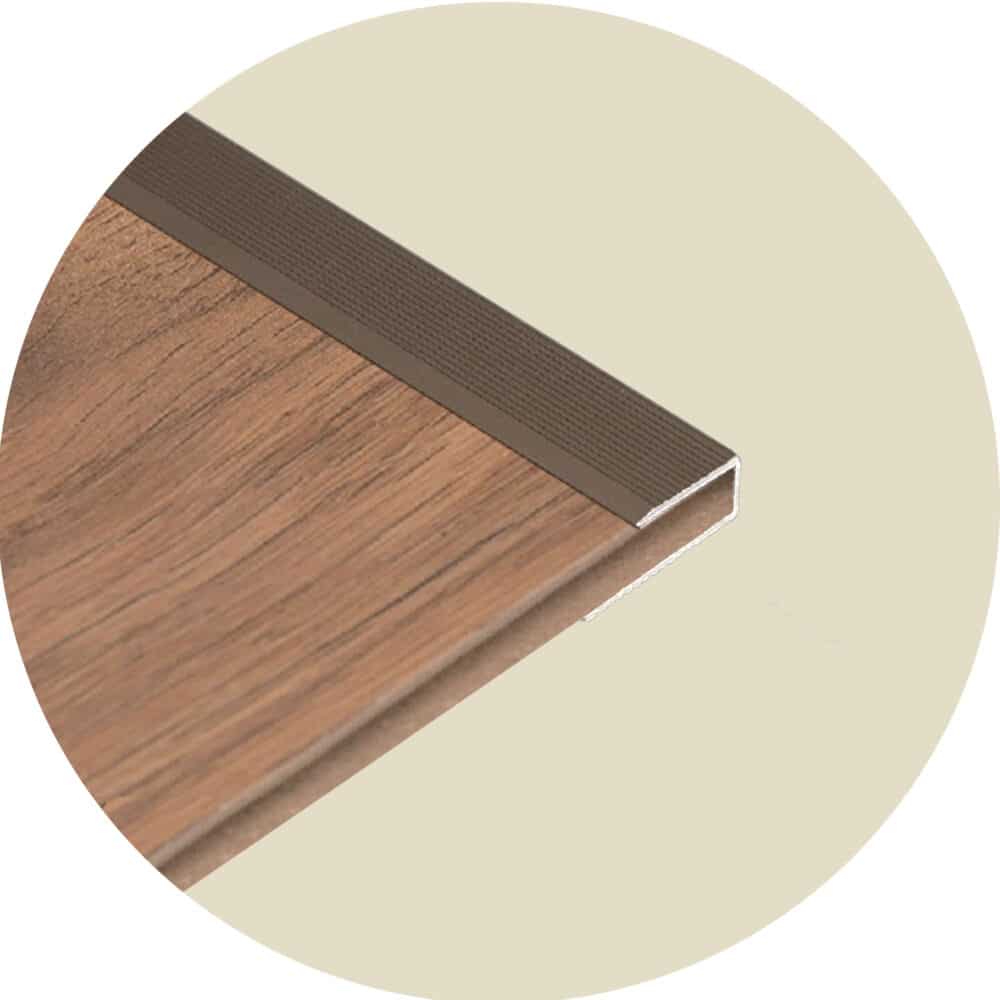

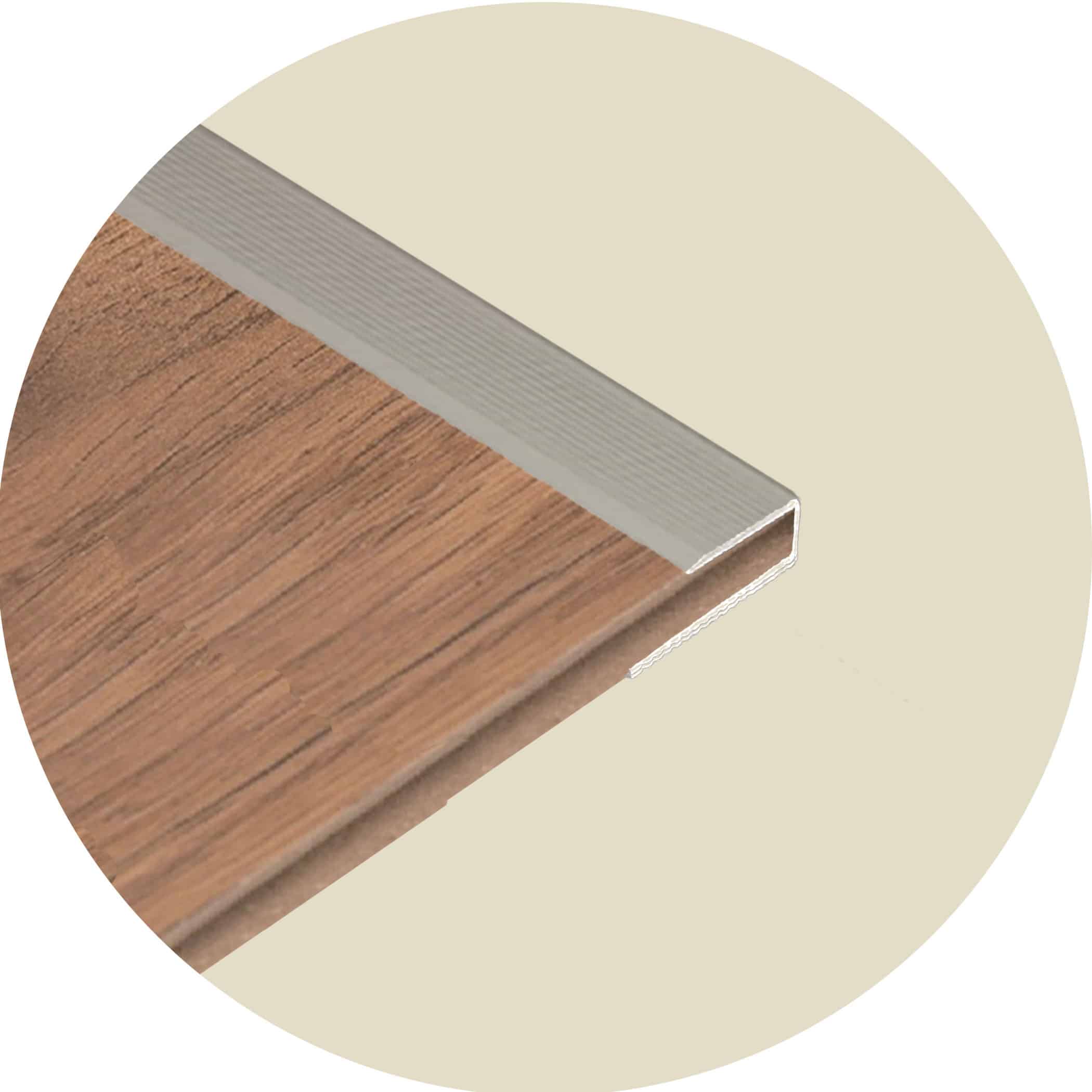

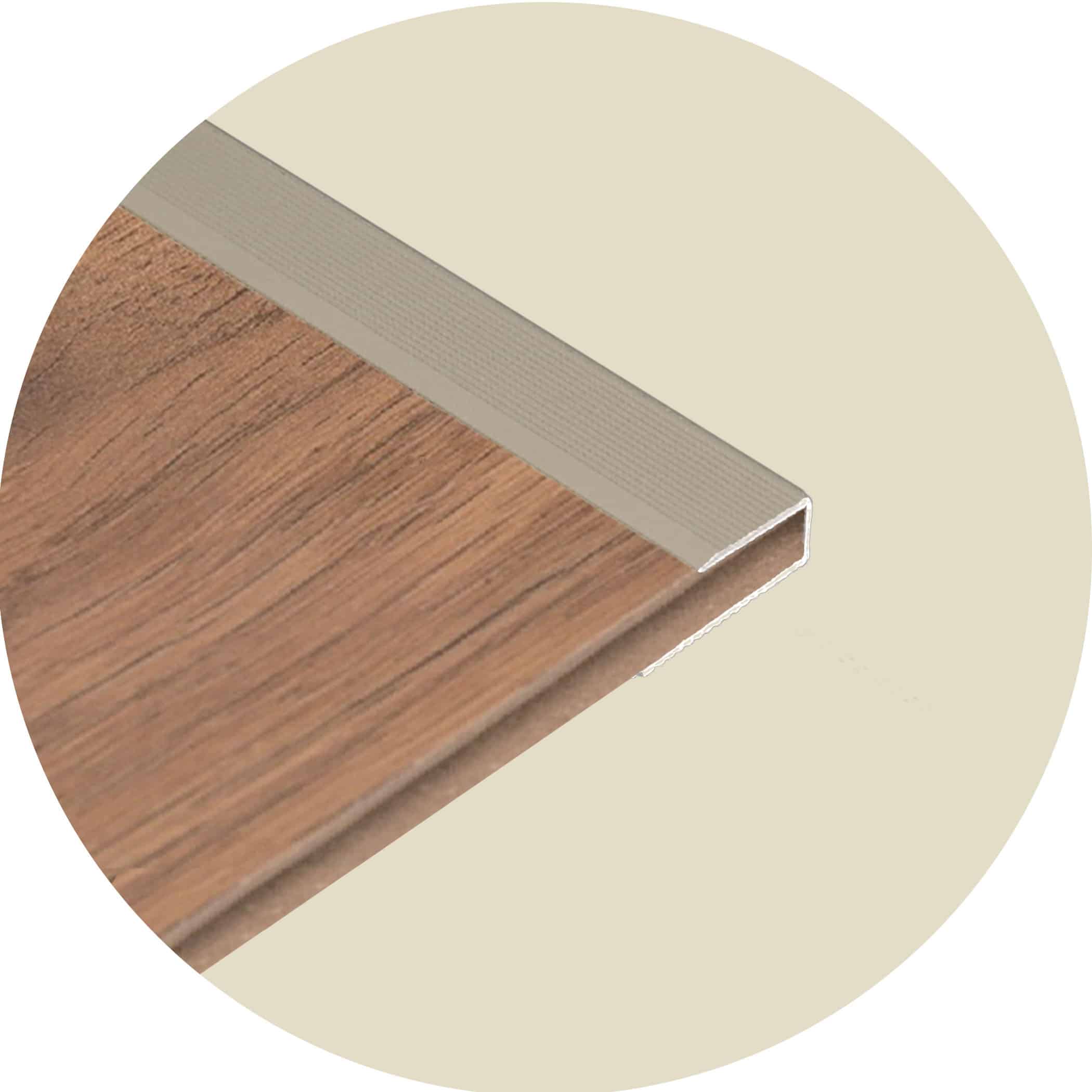

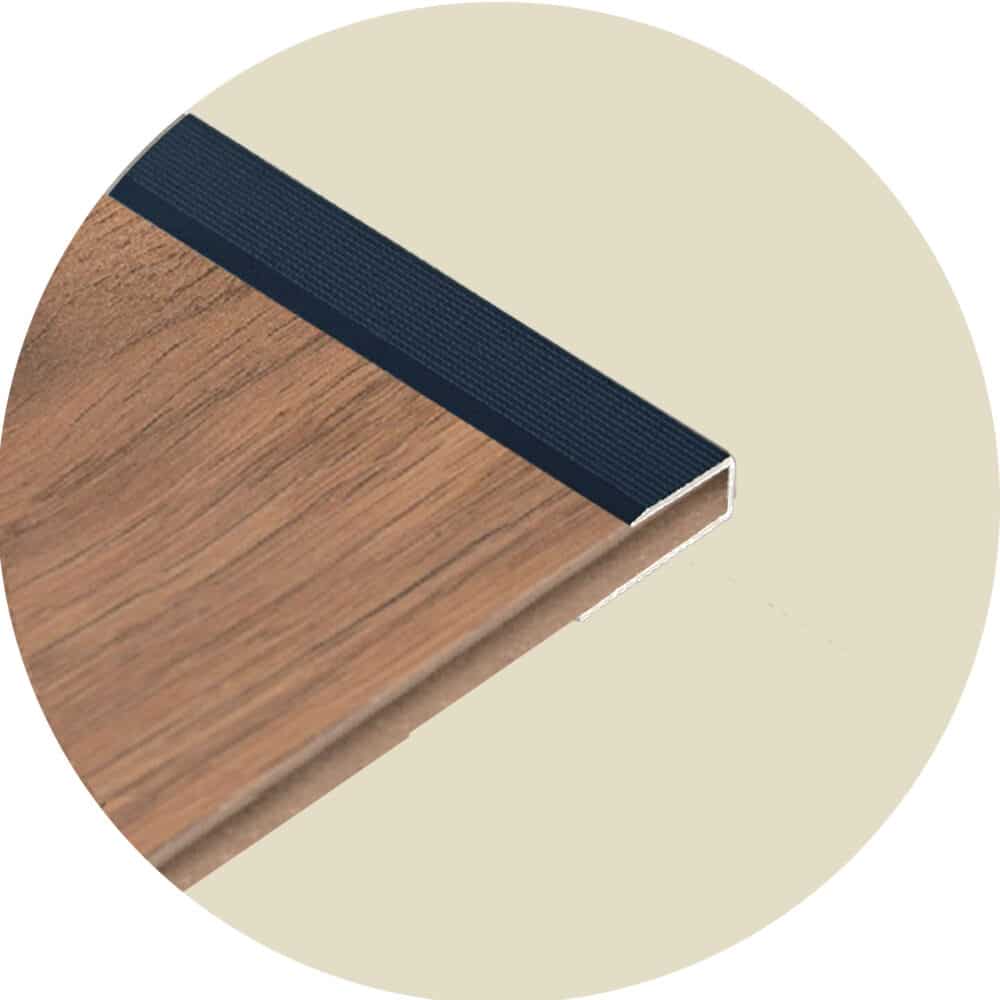

| Finishes | Black, Bronze, Champagne, Silver |
Where to Use
- Edges of raw, laminate and floating floors
- Steps, landings and transition points needing a protected, finished edge
- Commercial and public-access areas with slip-resistance requirements
How to Apply
- Measure the flooring thickness — select the internal height and matching supplier code that fits the floor being edged.
- Cut to length — trim the 3.3m length to suit the run being finished.
- Fit over the raw edge — position the channel over the exposed flooring edge.
- Secure in place — fix per the specific profile’s fastening method for a firm, flush finish.
Important Notes
- Confirm the correct internal height against the actual installed flooring thickness before ordering, as each height has a different supplier code.
- The P4 slip rating applies to the trim itself under AS 4586:2013 testing conditions.
- Finish colour should be selected to coordinate with the flooring and any adjoining trims or fittings.
Matching the internal height precisely to the installed flooring thickness matters more than it might first appear: a trim that’s slightly too shallow will sit proud of the floor and catch on foot traffic, while one that’s too deep leaves a visible gap under the flange. Having six discrete height options, each with its own supplier code, removes the guesswork that comes with a single generic profile trying to accommodate a range of thicknesses with packers or adhesive alone.
