Description

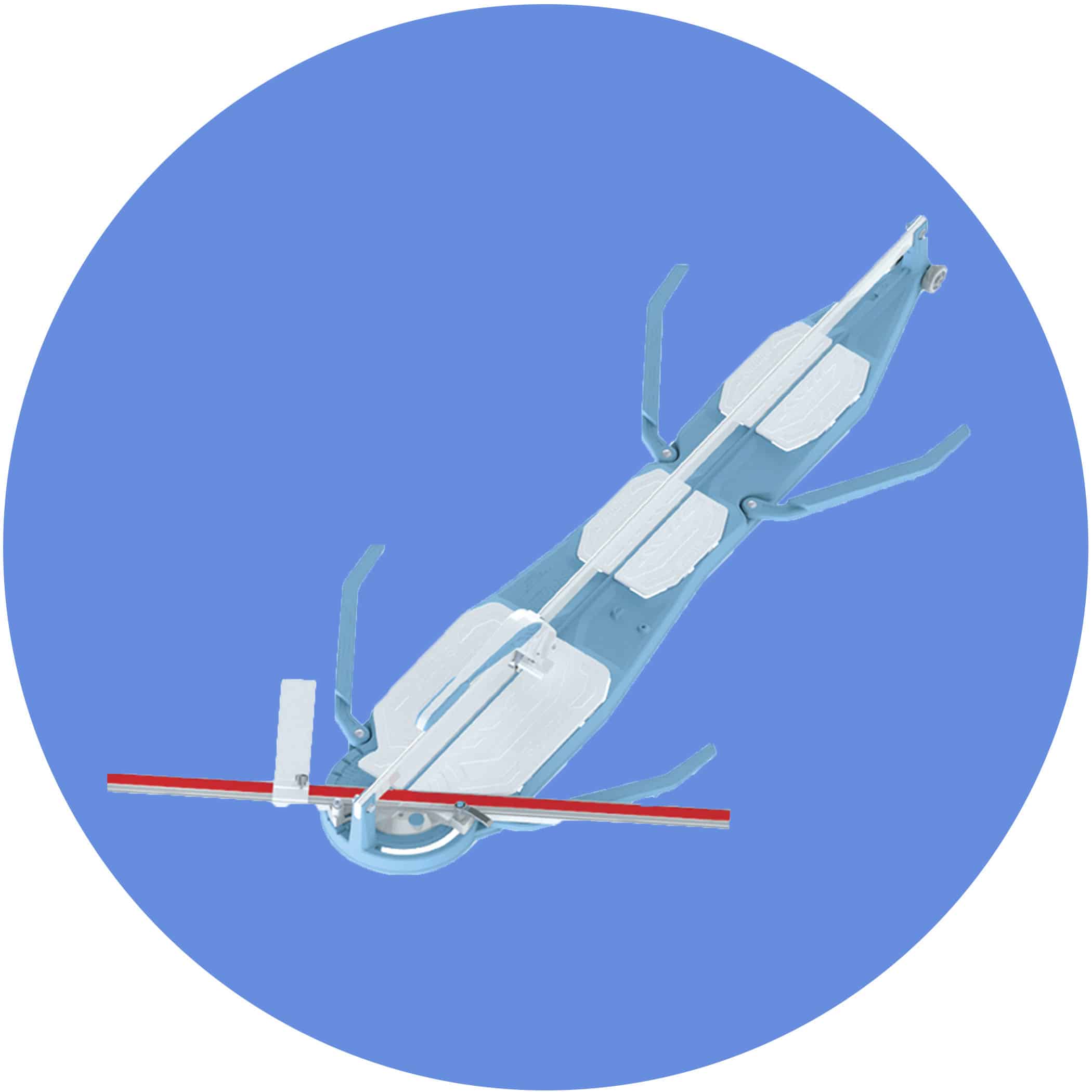

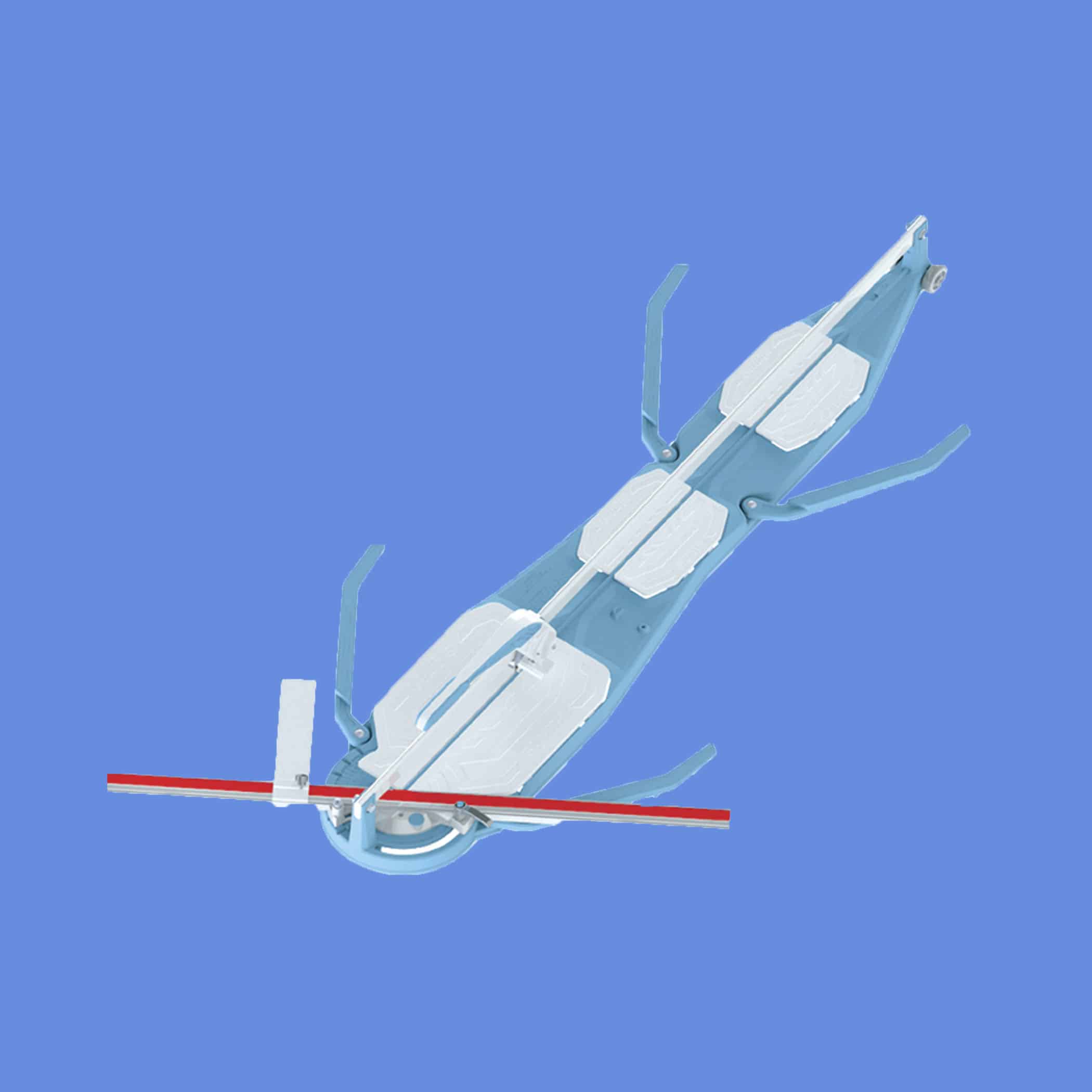

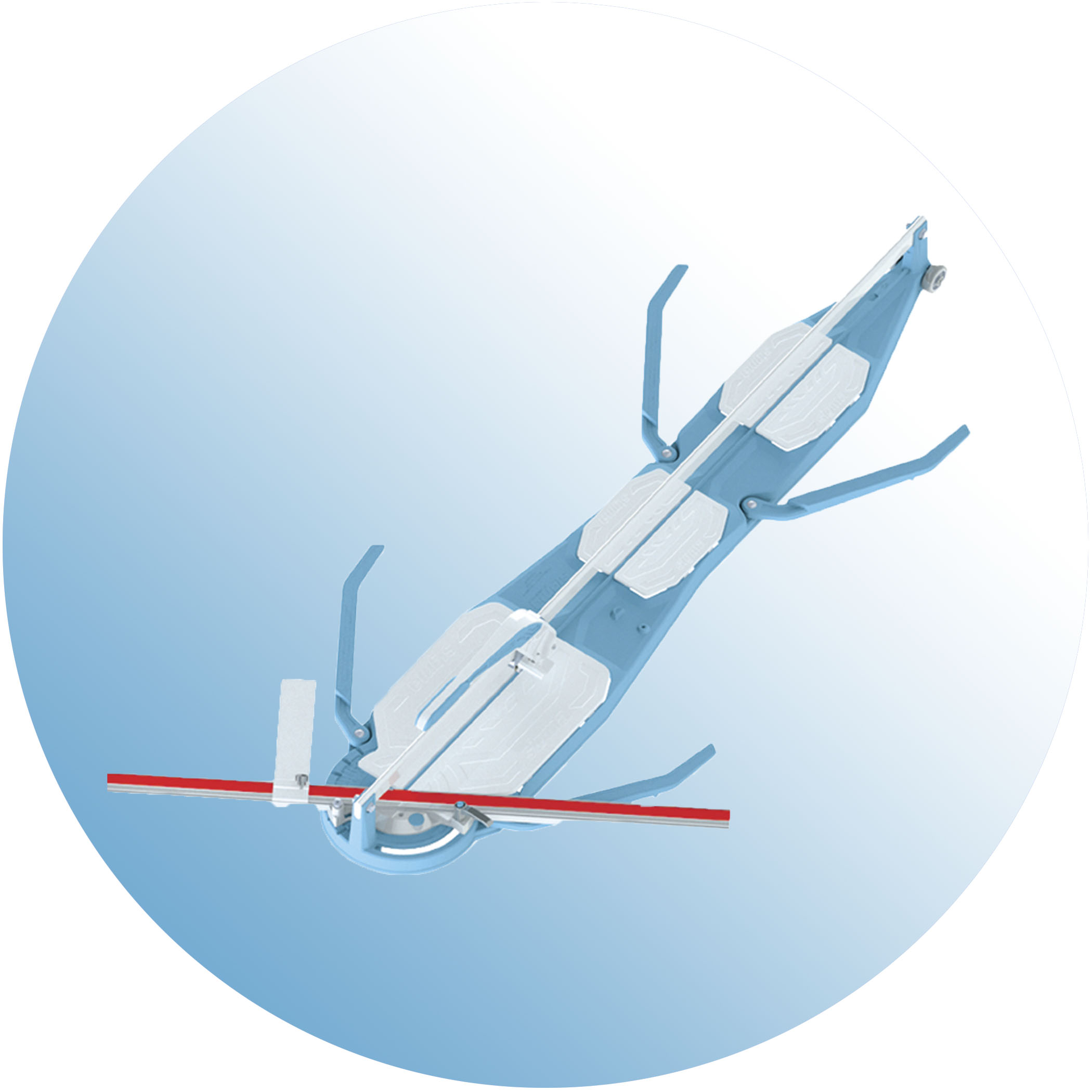

Sigma Art 4FN 155cm Tile Cutter
– Square Cuts up to 155cm in length
– Diagonal Cuts of Tiles up to 109.6cm x 109.6cm
The Sigma Art 4FN 155cm Tile Cutter is classified as a Very Large (oversized) Tile Cutter. The 4FN 155cm Tile Cutter is of robust construction and is testament to the many years that Sigma has dedicated towards developing the current range of tile cutters. The Sigma Art 4FN 155cm Tile Cutter frame is manufactured using light hardened aluminium alloy. The push handle with cushioned scoring runs completely on stainless steel runners. The Sigma Art 4FN 155cm Tile Cutter can be fitted with an optional front measuring scale to assist with making high precision parallel cuts. The main measuring scale can pivot between +45° and -45°.
FEATURES
- Ergonomic handle optimised for push scoring.
- Double-springing of the cutting arm provides for a cushioned incision.
- Double-springing is ideal for working with tiles of rough or textured surfaces.
- 120mm wide large splitting foot, makes for easier cutting of large format tiles.
- Gap foot constructed from aluminium alloy, both light and rigid for effective splitting.
- Gap foot equipped with interchangeable protection padding.
- The scoring wheel rotates on a roller bearing and is guided laterally by an anti-friction metal shell inserted in a UNC milled housing to avoid friction and lateral wear.
- The sliding carriage of the handle is wear free thanks to 3 double crown ball bearings that guarantee precision over time, without the need for maintenance.
- The sliding surface of the wheel and guide bar allow for perfectly straight cuts.
- Main measuring scale is freely positionable between +45º and -45º.
- Optional front measuring scale provides for precise parallel cuts.
- 155cm tile length capacity.
- The large diameter cutting wheel rotates on a pond ball bearing, for fast and fluid incisions, particularly on structured tiles.
- Rubber padded feet for precise anti-slip cutting.
MEASURES
- Maximum Tile Length – 155cm
- Maximum Tile Thickness – 19mm
- Diagonal Cuts – Maximum Tile Square Dimension of 109.6cm x 109.6cm
- Machine Weight – 26.3kg
- Packaged Weight – 29.8kg
- Packaged Size – 195 x 48 x 30cm
