Description

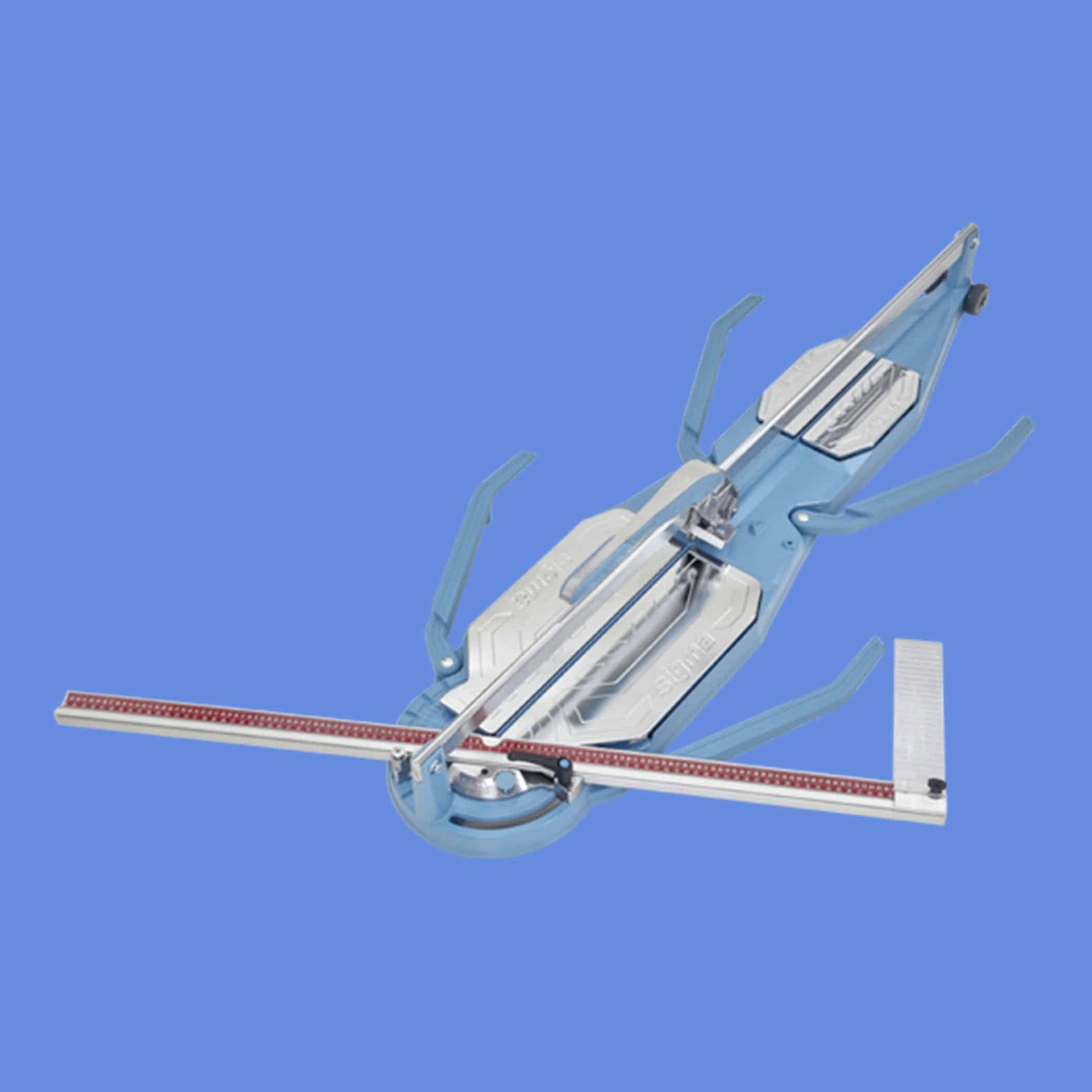

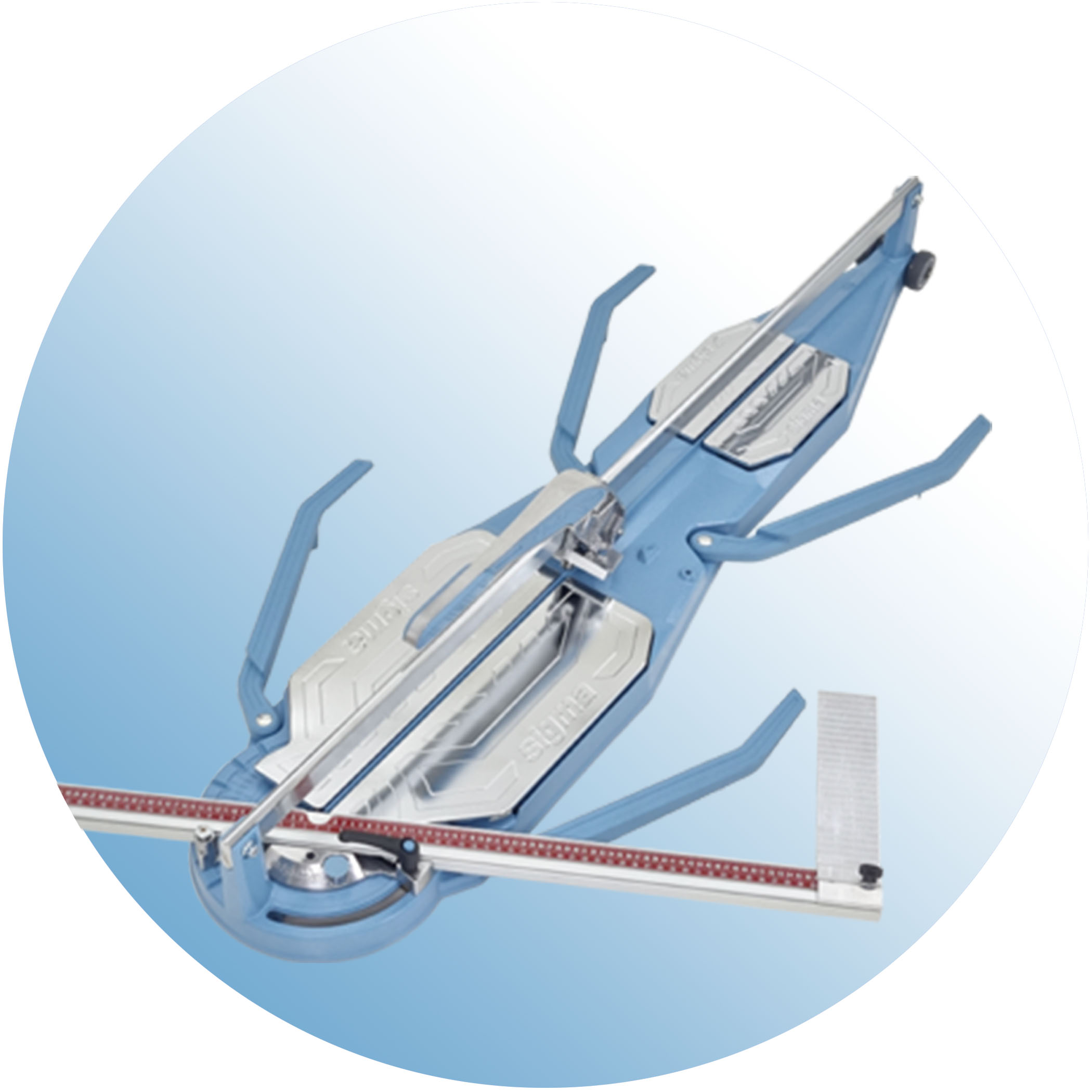

Sigma Art 4EN 125cm Tile Cutter
– Square Cuts up to 125cm in length
– Diagonal Cuts of Tiles up to 88.4cm x 88.4cm
The Sigma Art 4EN 125cm Tile Cutter is classified as a Large (oversized) Tile
Cutter. The 4EN 125cm Tile Cutter is of robust construction and is testament to the
many years that Sigma has dedicated towards developing the current range of tile
cutters. The Sigma Art 4EN 125cm Tile Cutter frame is manufactured using light
hardened alluminium alloy. The push handle with cushioned scoring runs completely
on stainless steel runners. The Sigma Art 4EN 125cm Tile Cutter can be fitted with
an optional front measuring scale to assist with making high precision parallel
cuts. The main measuring scale can pivot between +45° and -45°.
FEATURES

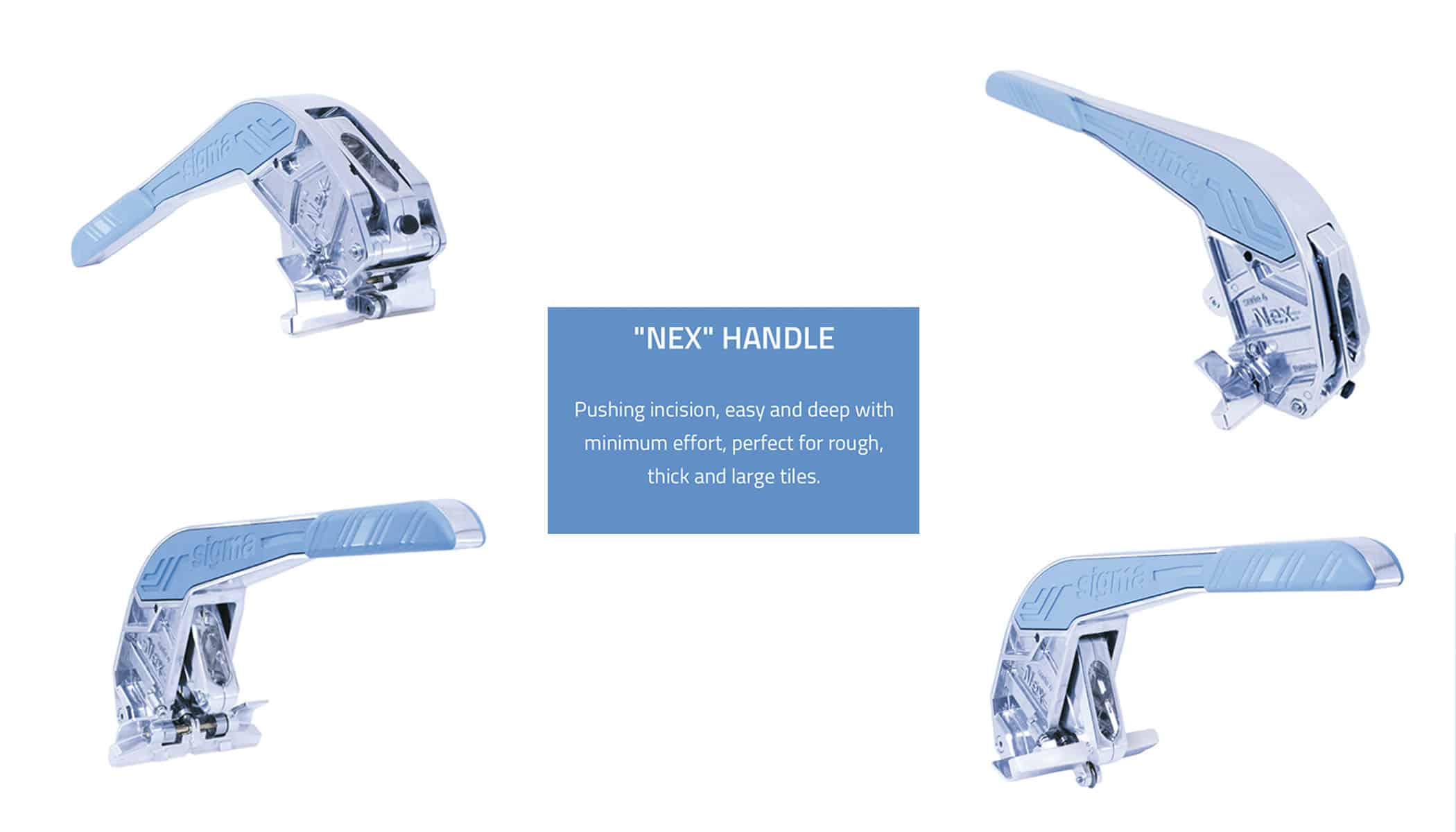

- Ergonomic handle is optimised for push cutting
- Double-springing of the cutting arm provides for a cushioned
incision - Double-springing is ideal for working with tiles of rough or textured
surfaces - 120mm wide foot gap, makes for easier cutting of large format
tiles - Gap foot constructed from aluminium alloy, both light and rigid for
effective splitting - Gap foot equipped with interchangeable protection padding.

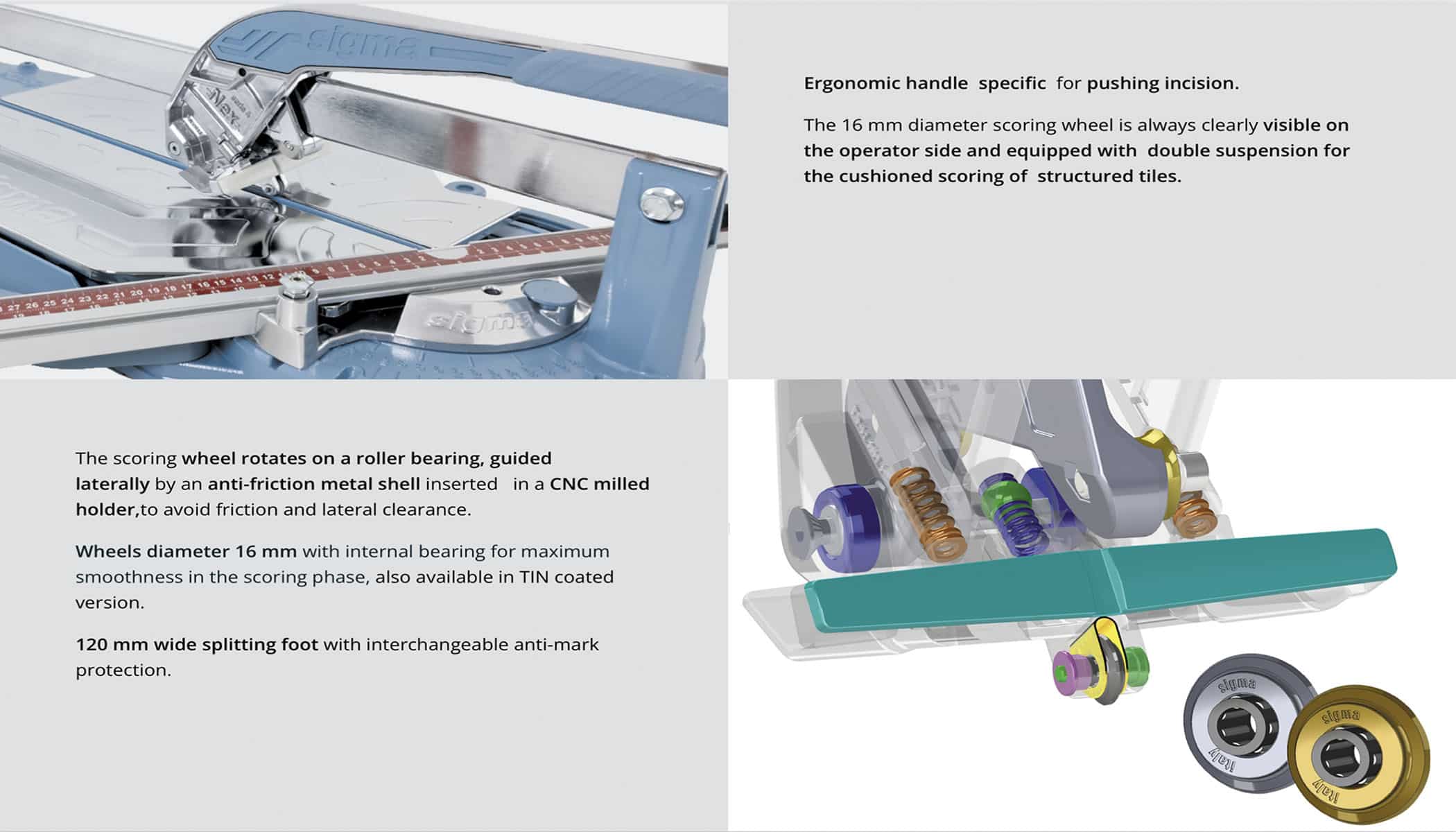

- The scoring wheel rotates on a roller bearing and is guided laterally
by an anti-friction metal shed inserted in a UNC milled housing to avoid friction
and lateral wear. - The sliding carriage of the handle is wear free thanks to 3 double
crown ball bearings that guarantee precision over time, without the need for
maintenance. - The sliding surface of the wheel and guide bar allow for perfectly
straight cuts. - Main measuring scale is freely positionable between +45º and -45º
- Optional front measuring scale provides for precise parallel cuts
- 125cm tile length capacity
- The large diameter cutting wheel rotates on a pond ball bearing, for
fast and fluid incisions, particularly on structured tiles - Rubber padded feet for precise anti-slip cutting
MEASURES:
- Maximum Tile Length – 125cm
- Maximum Tile Thickness – 19mm
- Diagonal Cuts – Maximum Tile Square Dimension of 88.4cm x 88.4cm
- Machine Weight – 22.3kg
- Packaged Weight – 25.6kg
- Packaged Size – 165 x 48 x 30cm
