Description

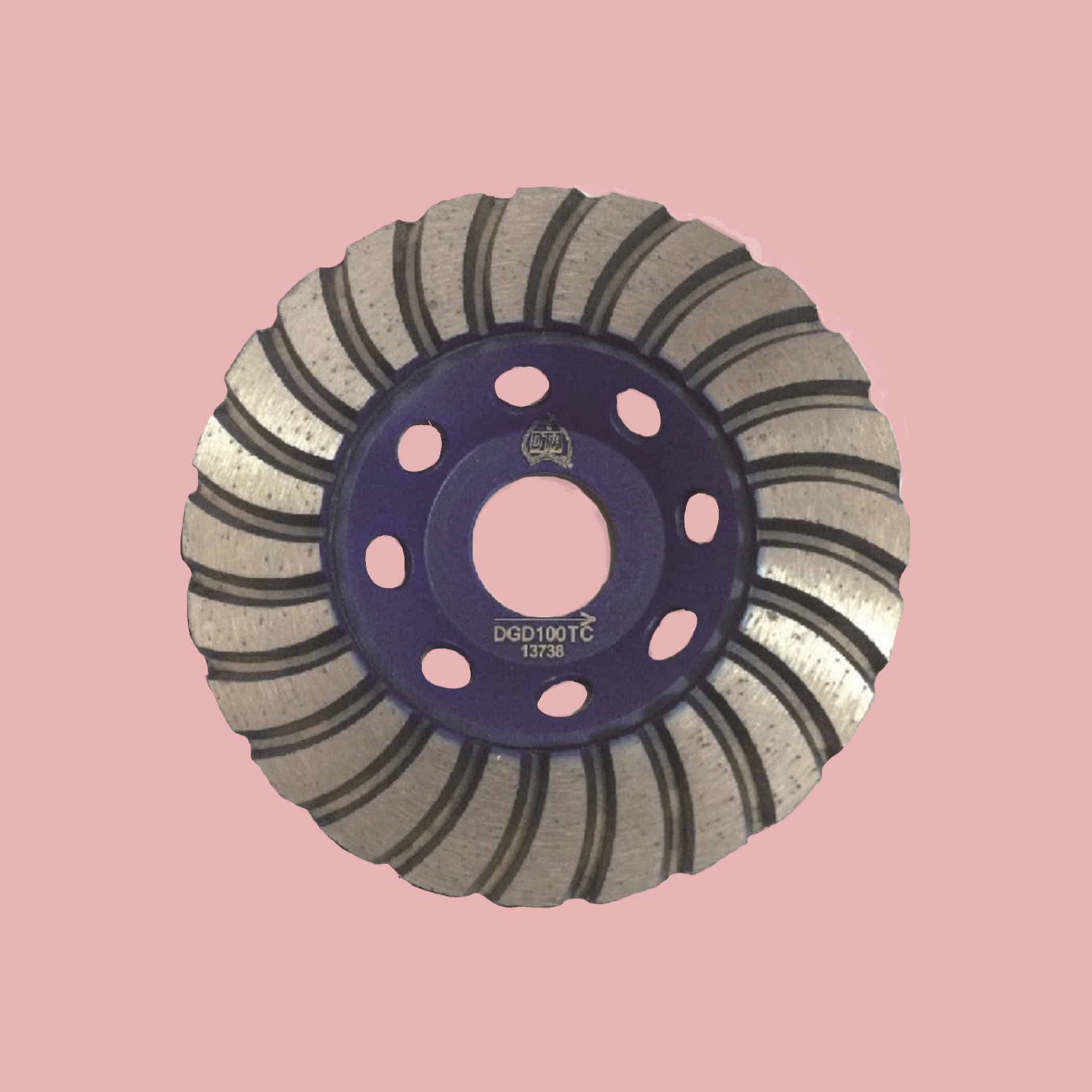

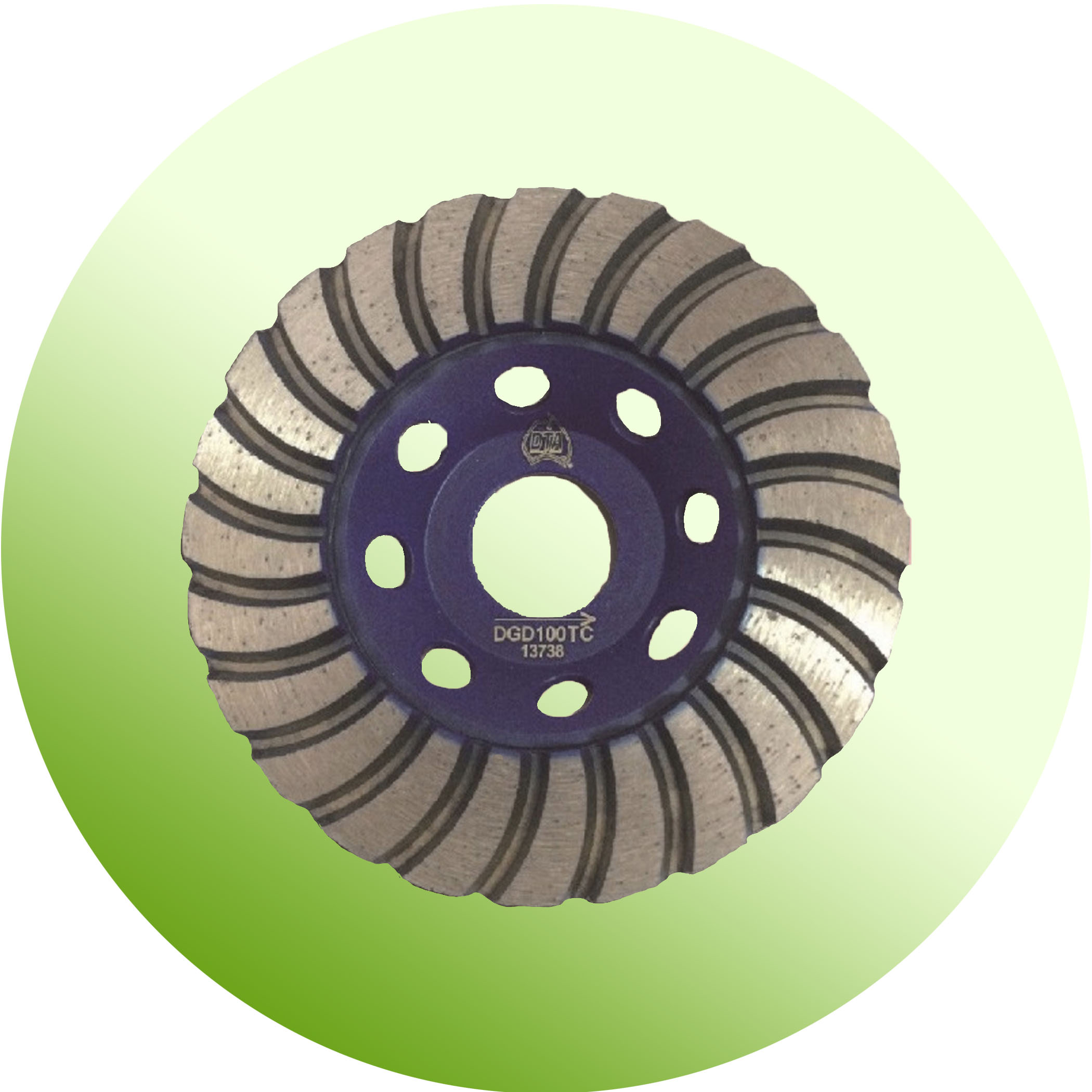

DTA lists this turbo diamond cup wheel as Grinding Disc, Turbo 100mm Coarse, product code DGD100TC, with the brand shown as BOSS. The turbo row suits the dry grinding of concrete that DTA describes for its cup wheels.
Technical Specifications
| Brand | BOSS (sold by DTA) |
|---|---|
| DTA product code | DGD100TC |
| Type | Diamond cup grinding wheel |
| Diameter | 100 mm |
| Grit | Coarse |
| Row | Turbo row |
| Bore size | 22.2 mm |
| Bush size | 16 mm |
| Method | Dry grinding |
Where to Use
DTA states that diamond cup grinding wheels are designed for dry grinding, levelling and shaping of concrete, and lists it for surface preparation. DTA lists it as suitable for grinding machines and angle grinders, with finishing, shaping and smoothing as its uses.
Important Notes
- DTA describes this wheel for dry grinding. The product page gives no wet-use rating.
- DTA does not publish a maximum speed for this wheel on its product page. Check the markings on the wheel and the instructions supplied with it.
- Check that the 22.2 mm bore, or the 16 mm bush, suits the arbor of your machine before use.
- DTA’s product page suggests a BOSS dust extraction cover for grinding discs up to 125 mm, listed as a separate product.
