Description

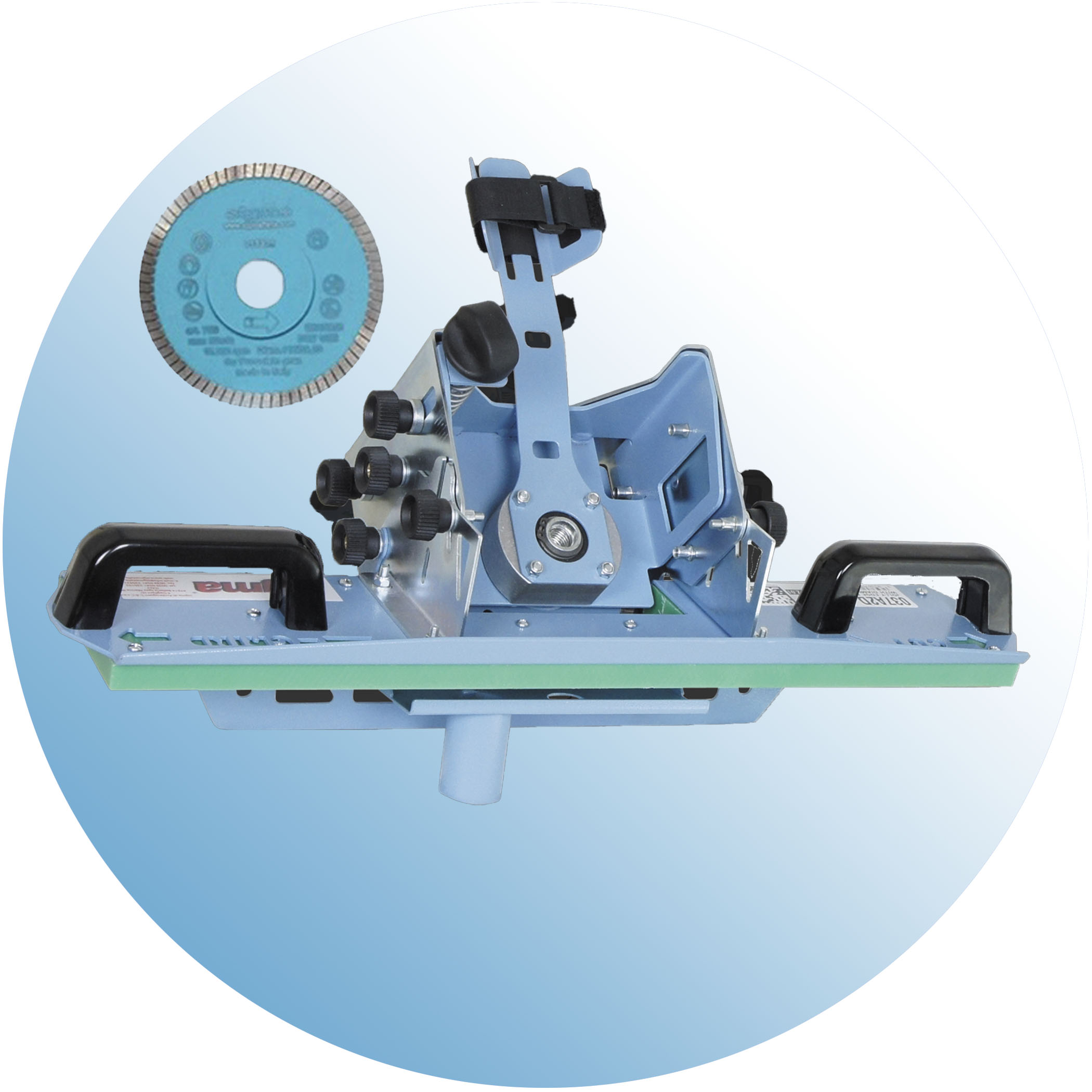

Sigma Jolly Edge Cutter – Art. 37A3D
– Angle Grinder Attachment
– Supplied with 115mm ø Cutting Blade
Advantages
- The “Jolly” Angle Chamfer Machine provides for effortless tilted-edge
cutting of porcelain tiles and other materials. - It cuts a uniform bevel along the entire length of the material edge.
- It allows flat bevels to be cut at any angle between 35° and 55°
- It can cut between 3 – 20mm in a single pass.
- Includes one only 115mm Cutting Blade.
- The 37A3D does not include an angle grinder.
Description
The “JOLLY” EDGE Cutter can perform two different machining operations:
- “JOLLY” (mitring) of the tile edge, using a cutting disc.
- “HALF-BULLNOSE” (profiling) of the edge tile, using a shaped grinding
wheel. - Gliding on the edge of the tile/slab (stoneware, marble, granite, etc.)
guarantees processing uniformity along the entire length of the edge, precisely
copying the physiological curves of the slab. - Jolly execution at any angle between 40° and 50°, in the “Half Bull”
configuration it allows the execution of round bevels (BULL) with radius 6-8-10 mm. - It can process tiles with thicknesses from 5 to 20 mm and length from
30 cm to infinity in a single pass. - Prepared for dust extraction it allows for dry cutting without
releasing dust into the air. - Comes supplied with an M14 universal attachment for 700 – 1400 W
grinders. - Is supplied with a 115mm diameter turbo cutting disc.
“JOLLY” VERSION
- In the ‘Jolly’ configuration allows cutting at any angle between 40°
and 50°. - It can work in a single pass on tiles with thicknesses between 5 and
20mm and size from 30 cm to infinity.
”HALF-BULLNOSE” VERSION
- tThe “Half Bull ” configuration allows the execution of round bevels (BULL) with radius 6 – 8 – 10 mm.
- It is possible to adjust the position of the grinding wheel to obtain
perfect machining angle.
WIDE SHELF
- The wide table-top of the Sigma Jolly Edge Cutter ensures perfect
stability when working. - The synthetic material of the table top allows for easy sliding without
any scratching of the tile surface.
UNIVERSAL GRINDER ATTACHMENT
- It is possible to mount any any grinder of between 700 and 1400 W on
the Sigma Jolly Edge Cutter thanks to its universal M14 connection.
DUST EXTRACTION
- The Sigma Jolly Edge Cutter can provide for a dust-free working
environment thanks to universal vacuum connection.
WITH OR WITHOUT WATER
- The Sigma Jolly Edge Cutter is specially designed to be able to work
with, or without water. - Thanks to the optional “WATERKIT” it is possible to work with an
adjustable water jet allowing for optimal cutting finish whilst minimising tool
wear.
HANDLES
- When working above the tile, the suppied side-handles provide for
excellent grip without losing stability.
