Description

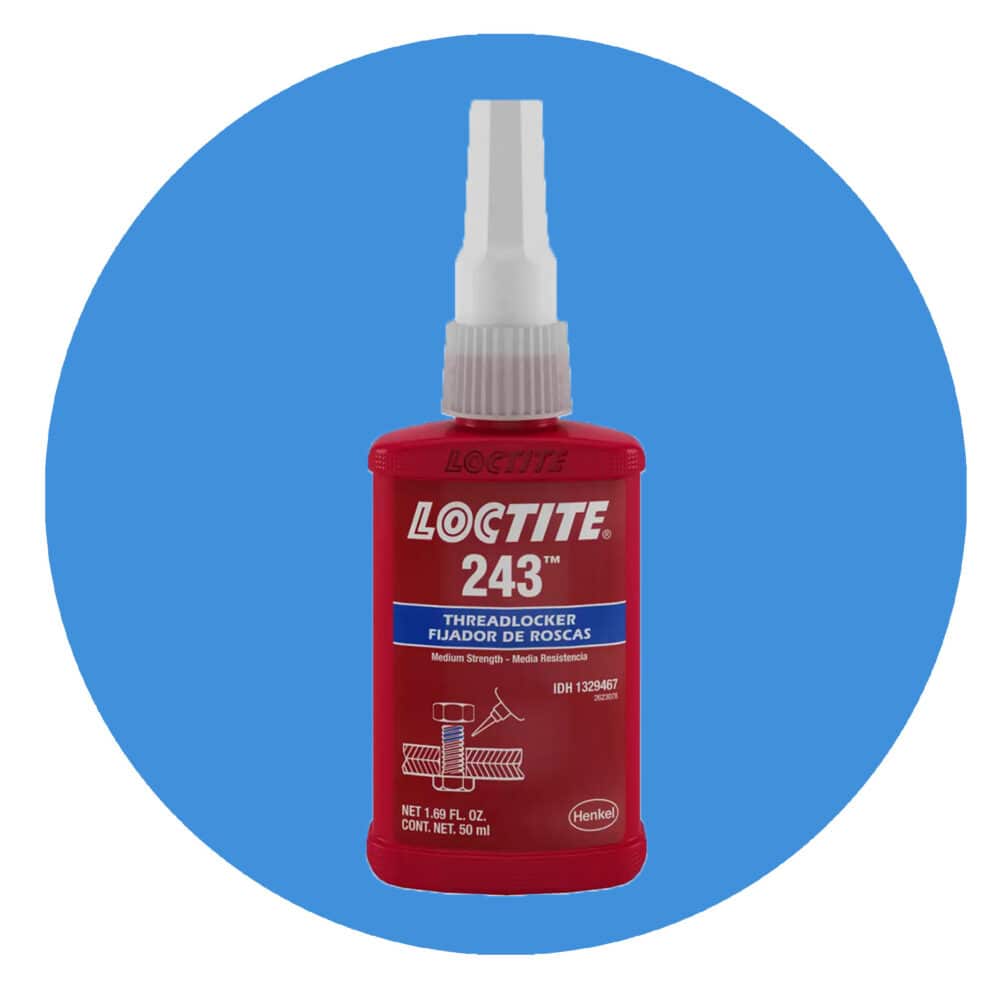

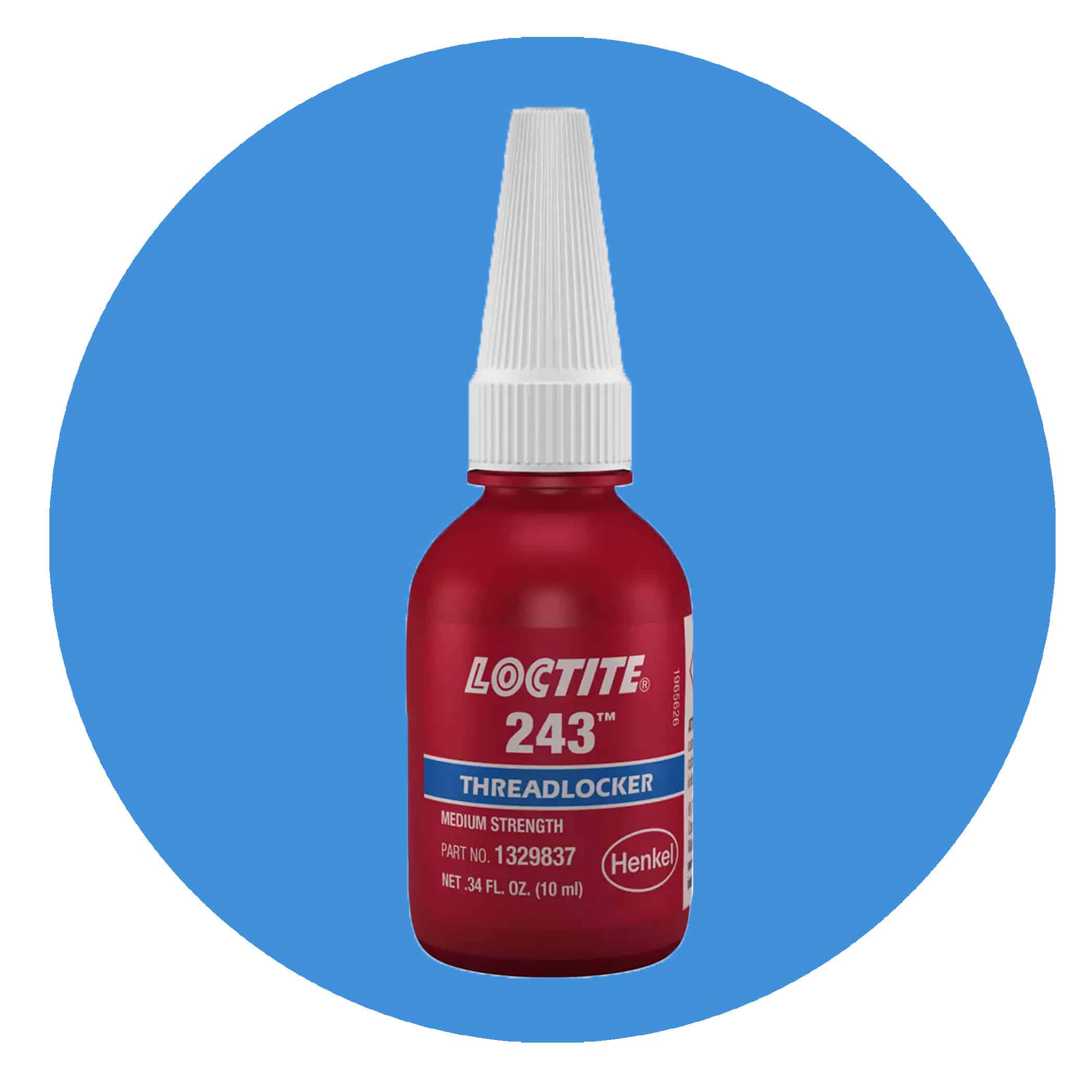

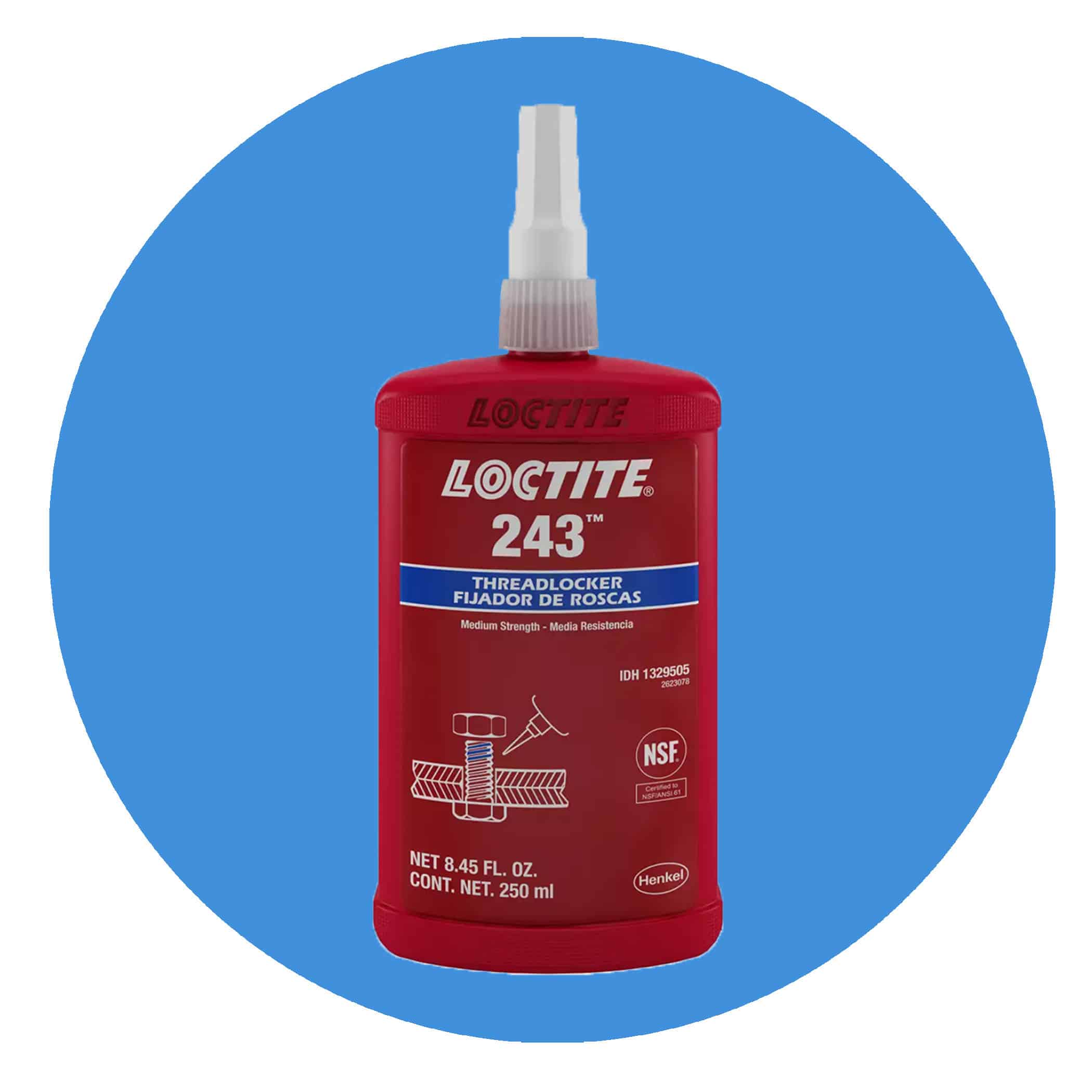

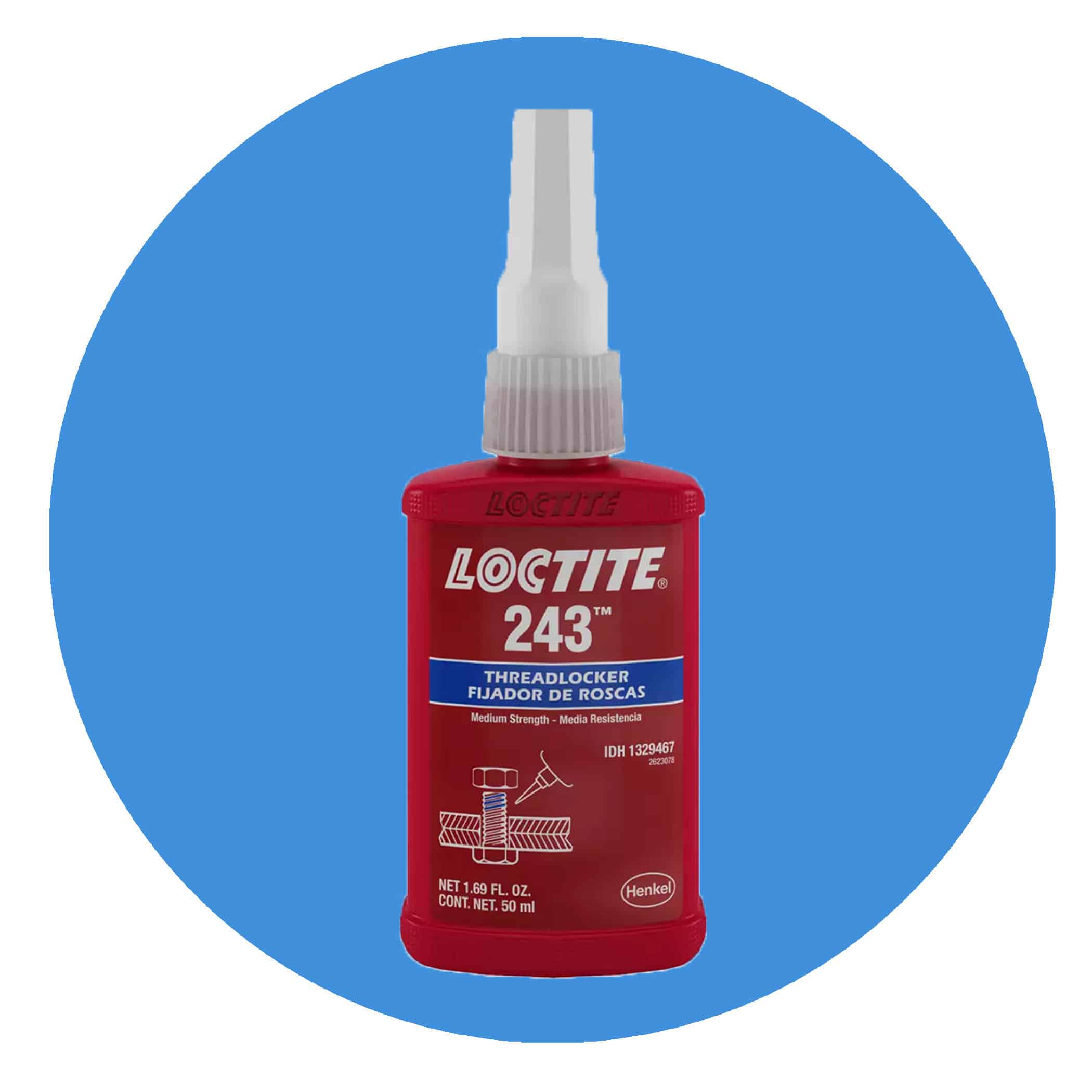

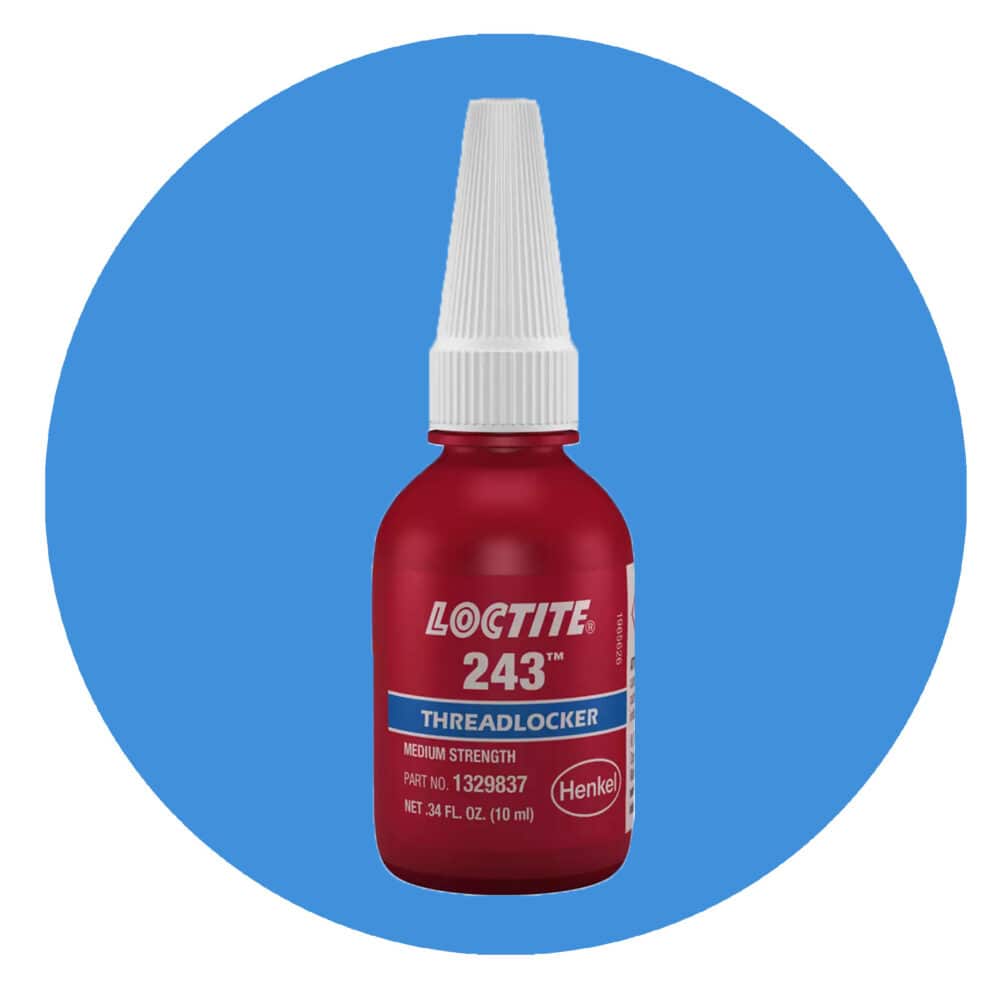

Loctite 243 Medium Strength Threadlocker
Available in 10ml, 50ml and 250ml Size Options
Description
Loctite 243 Medium Strength Threadlocker (Blue Coded) is a general purpose threadlocker that provides a medium strength bond. Loctite 243 Medium Strength Threadlocker works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. It is proven to be tolerant of minor contamination due to industrial oils, e.g., motor oils, corrosion prevention oils and cutting fluid.
• Prevents fastener loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
• Works on all metals, including passive substrates
• Suitable for use on most oil-coated, ‘as-received’ fasteners without cleaning
• Can be disassembled
Features and Benefits
• Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
• Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)
• Permits disassembly with ordinary hand tools for easy service and maintenance
• Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids
Technical Information
Application method – Dispense Gun, Dispense System, Manual
Application temperature -55.0 – 180.0 °C (-65.0 – 360.0 °F )
Applications, Threadlocking
Breakaway torque, M10 Steel Nuts/Bolts ~26.0 N·m (230.0 in./lb. )
Colour, Blue
Cure type, Anaerobic Cure
Fixture time 10.0 min.
Characteristics
- Disassembly: Removable
- Fluorescent
- General Purpose
- Oil Tolerant
- Primerless
Strength: Medium Strength, Thixotropic
Physical form, Liquid
Prevail torque, M10 Steel Nuts/Bolts 5.0 N·m (40.0 in./lb. )
Recommended for use with, Metal, Metal: Passive Metal
Specific gravity, @ 23.0 °C 1.08
Viscosity, Speed 20 RPM 2150.0 mPa·s (cP)
How to Use
1. Preparation – Cleaning
2. Preparation – Activation
If cure speed is too slow due to passive metals (stainless steel, aluminum and plated metals) or low temperature (below 5°C), use activator LOCTITE® SF 7649 (see cure speed vs activator graph in the TDS).
3. Application
Apply liquid threadlocker to the engagement area. For manual dispensing, the use of a peristaltic handgun or the LOCTITE® Pro Pump is recommended to ensure a consistent application volume.
4. Application – Through Hole
Insert bolt and apply threadlocker to the exposed thread. Assemble nut and tighten to the correct/specified torque.
5. Application – Blind Hole
Apply several drops of liquid threadlocker down the sides of the blind hole filling the lower third. Apply several drops to the bolt.
6. Assembly
Assemble and tighten. If several bolts are being assembled, torque them down to the correct value within the fixture.
https://dm.henkel-dam.com/is/image/henkel/Application-image-threadlocking-bolt-tighten?wid=2560&fmt=webp&qlt=60&fit=hfit,1
7. Disassembly – Hand Tools
Hint
For the disassembly of corroded or seized parts use LOCTITE® LB 8040 Freeze and Release.
