Sigma Art 4EN 125cm Tile Cutter

DESCRIPTION

The Sigma Art 4EN 125cm Tile Cutter is classified as a Large (oversized) Tile Cutter.
The 4EN 125cm Tile Cutter is of robust construction and is testament to the many years that
Sigma has dedicated towards developing the current range of tile cutters.
The Sigma Art 4EN 125cm Tile Cutter frame is manufactured using light hardened alluminium alloy.
The push handle with cushioned scoring runs completely on stainless steel runners.
The Sigma Art 4EN 125cm Tile Cutter can be fitted with an optional front measuring scale to assist
with making high precision parallel cuts.
The main measuring scale can pivot between +45° and -45°.

FEATURES

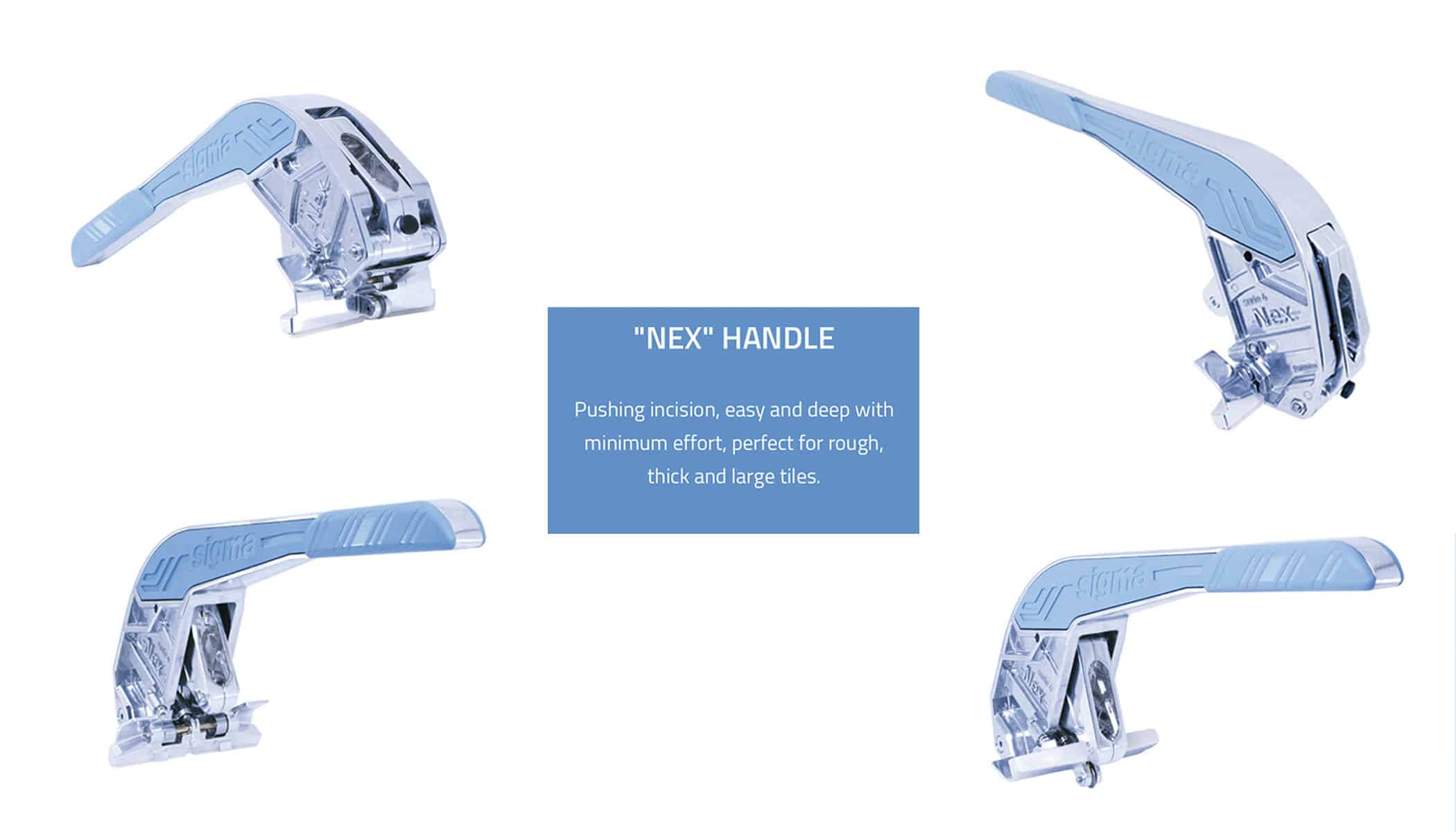

• Ergonomic handle is optimised for push cutting
• Double-springing of the cutting arm provides for a cushioned incision
• Double-springing is ideal for working with tiles of rough or textured surfaces
• 120mm wide foot gap, makes for easier cutting of large format tiles
• Gap foot constructed from aluminium alloy, both light and rigid for effective splitting
• Gap foot equipped with interchangeable protection padding.

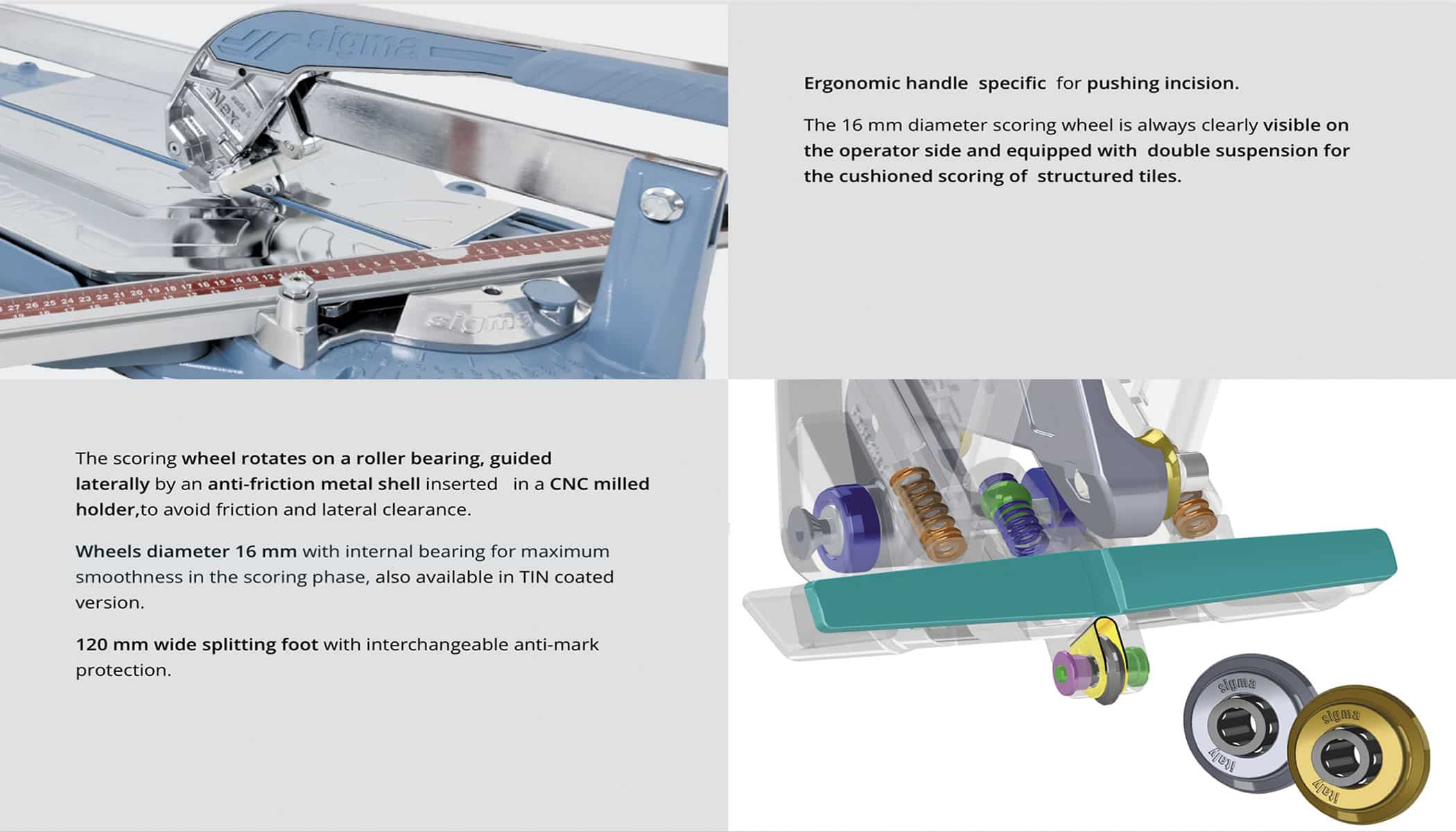

• The scoring wheel rotates on a roller bearing and is guided laterally by an anti-friction
metal shed inserted in a UNC milled housing to avoid friction and lateral wear.

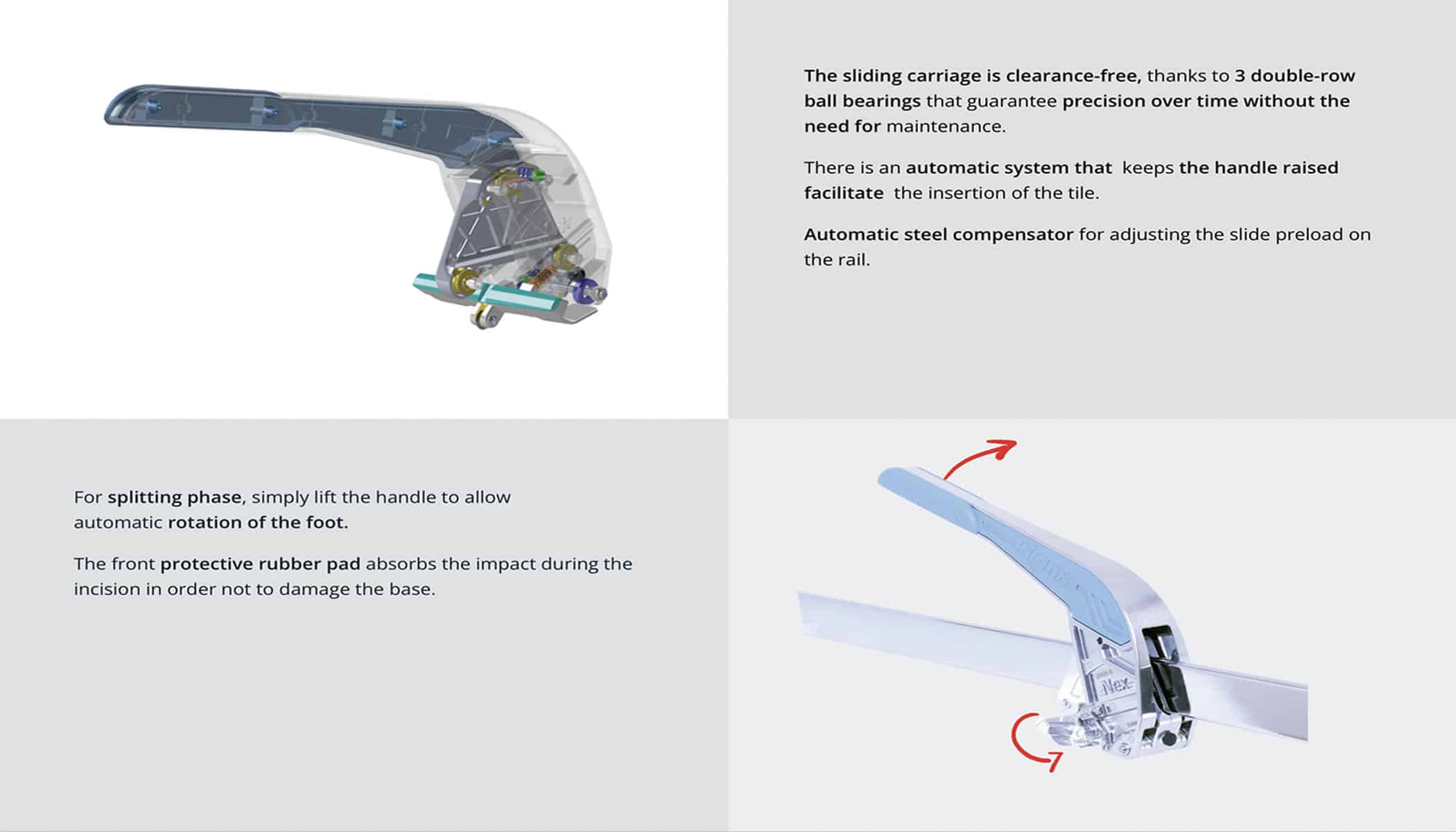

• The sliding carriage of the handle is wear free thanks to 3 double crown ball bearings
that guarantee precision over time, without the need for maintenance.
• The sliding surface of the wheel and guide bar allow for perfectly straight cuts.
• Main measuring scale is freely positionable between +45º and -45º
• Optional front measuring scale provides for precise parallel cuts
• 125cm tile length capacity
• The large diameter cutting wheel rotates on a pond ball bearing, for fast
and fluid incisions, particularly on structured tiles
• Rubber padded feet for precise anti-slip cutting

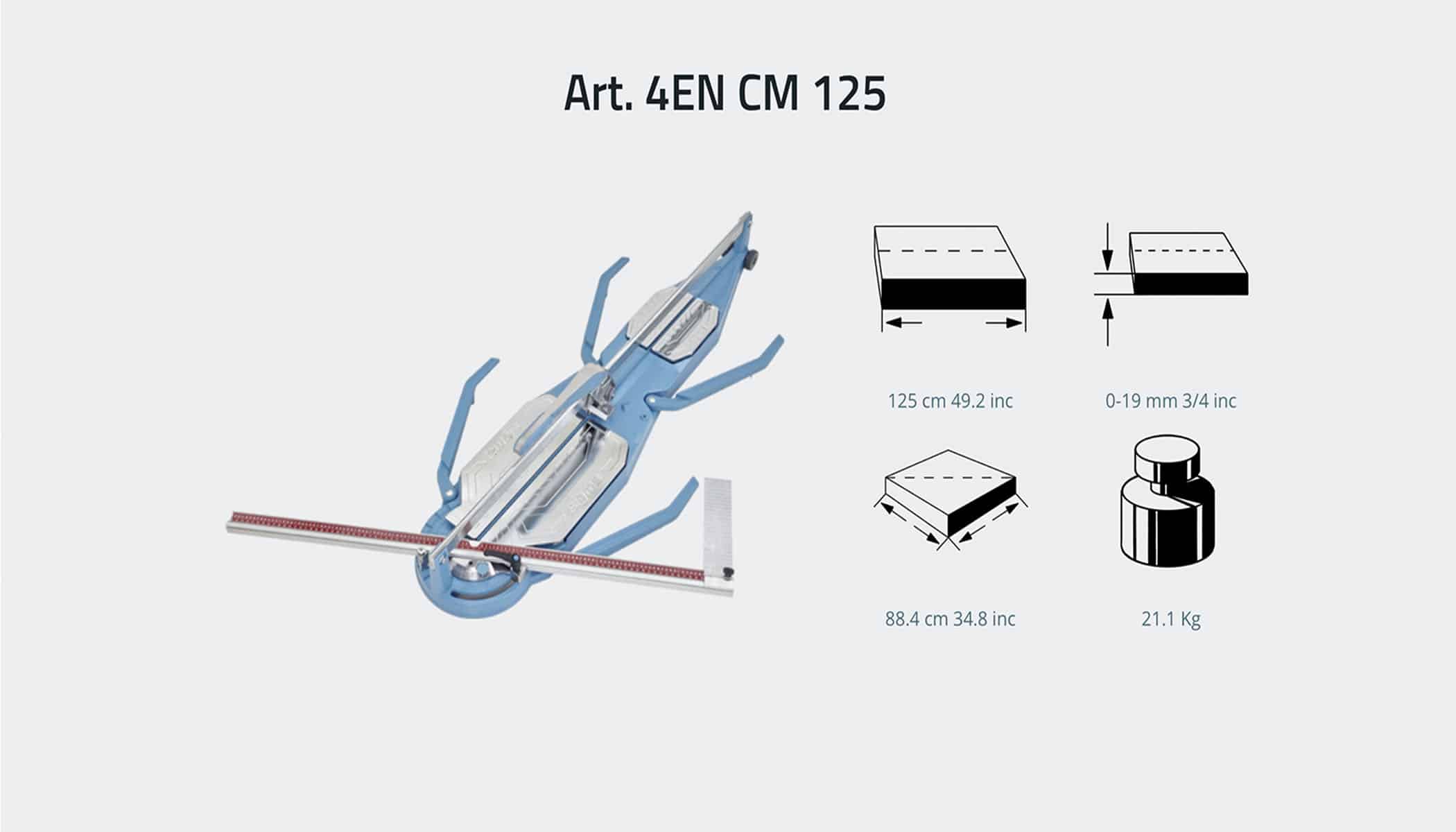

MEASURES

• Maximum Tile Length – 125cm
• Maximum Tile Thickness – 19mm
• Diagonal Cuts – Maximum Tile Square Dimension of 88.4cm x 88.4cm
• Machine Weight – 22.3kg
• Packaged Weight – 25.6kg
• Packaged Size – 165 x 48 x 30cm
