Sigma Art 4DU 103cm Tile Cutter

DESCRIPTION


The Sigma Art 4DU 103cm Tile Cutter is classified as a Large
Tile Cutter. The 4DU Tile Cutter is of robust construction and is testament
to the many years that Sigma has dedicated towards developing the
current range of tile cutters.

The Sigma Art 4DU 103cm Tile Cutter frame is manufactured using light hardened
alluminium alloy. The push handle with cushioned scoring runs completely on
stainless steel runners.

The Sigma Art 4DU 103cm Tile Cutter can be fitted with an optional front
measuring scale to assist with making high precision parallel cuts. The main
measuring scale can pivot between +45° and -45°..

FEATURES

• The scoring wheel is also available with a TIN coat for longer life span

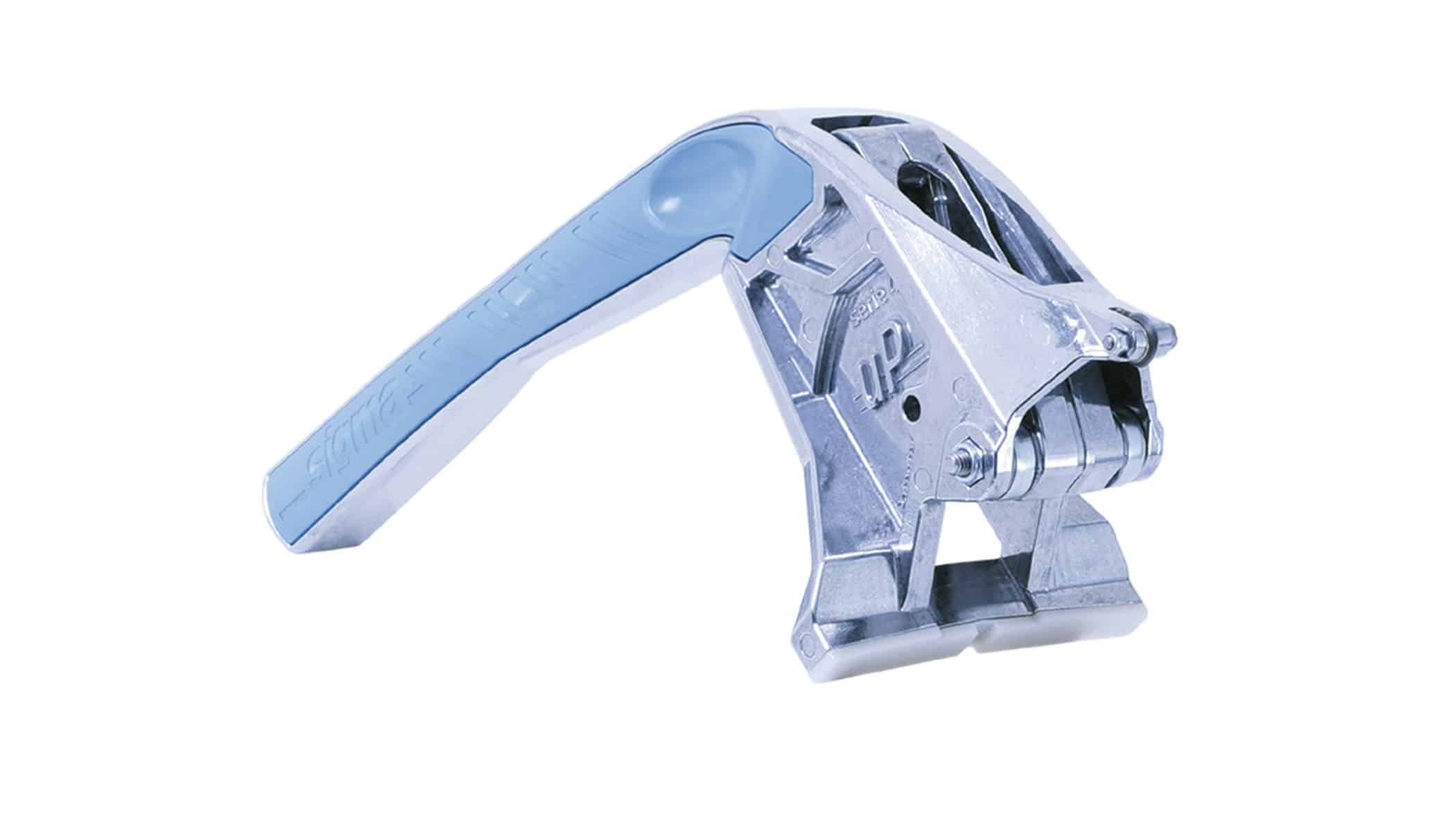

• Ergonomic handle specific for pull scoring
• 100mm large splitting foot
• Interchangeable stain-free protection with shock-absorber at the end of the scoring
• The handle is coupled to the sliding carriage with two thrust bearing ball-bearings, for maximum precision
• Excellent scoring wheel visibility

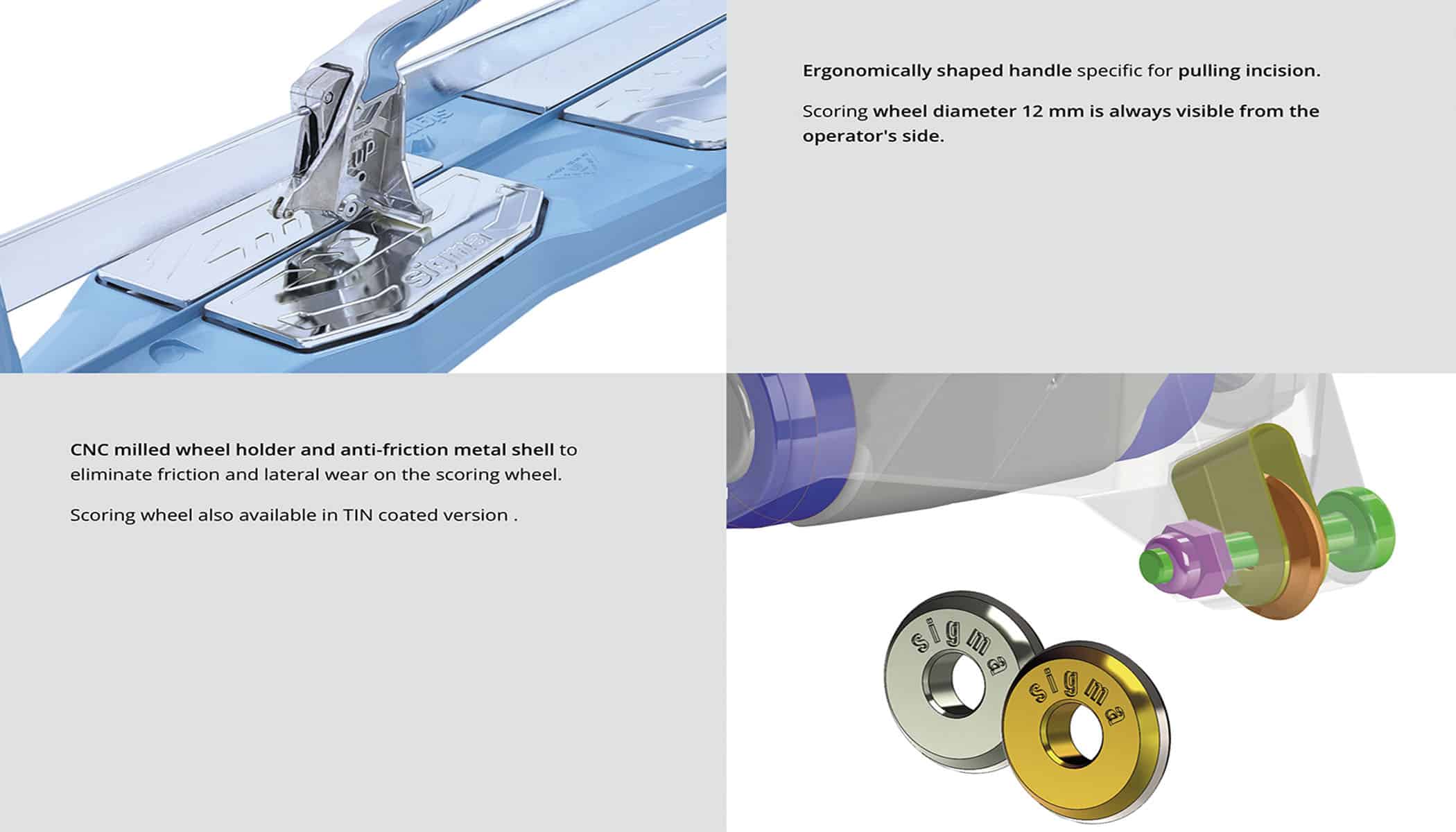

• CNC milled wheel holder, roller bearing and anti-friction metal shell to erase friction and lateral wear of the scoring wheel
• An automatic system holds the handle raised to ease the positioning of the tile

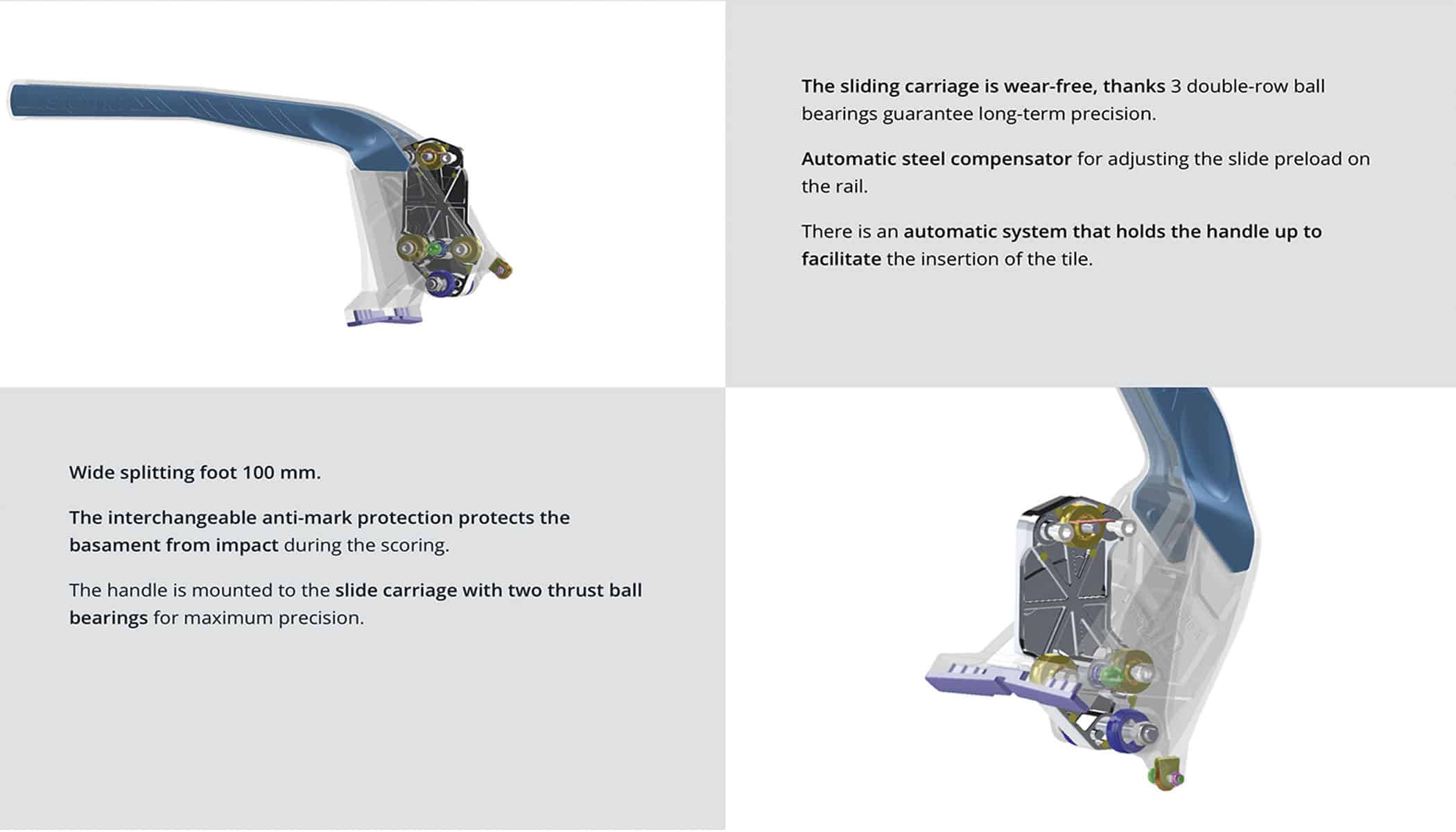

• The sliding carriage of the handle is wear-free thanks to 3 double crown ball bearings that guarantee precision over time, without the need for maintenance
• The sliding surface of the wheel and guide bar allow for perfectly straight cuts.
• Main measuring scale is freely positionable between +45º and -45º
• Optional front measuring scale provides for precise parallel cuts
• 103cm tile length capacity
• The large diameter cutting wheel rotates on a pond ball bearing, for fast and
fluid incisions, particularly on structured tiles
• Rubber padded feet for precise anti-slip cutting

MEASURES

• Maximum Tile Length – 103cm
• Maximum Tile Thickness – 17mm
• Diagonal Cuts – Maximum Tile Square Dimension of 72.8cm x 72.8cm
• Machine Weight – 14.5kg
• Packaged Weight – 17.6kg
• Packaged Size – 135 x 48 x 30cm
